Can anyone tell me two things about my fence ?

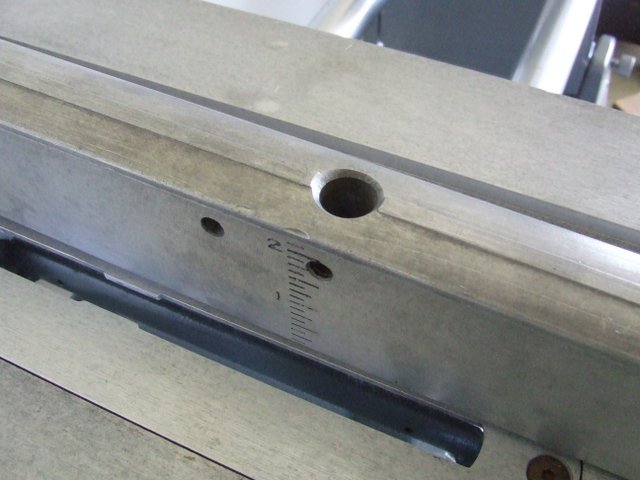

1. there is a large hole in the top of the fence and there is a provision for a setscrew both in my picture and the parts breakdown from shopsmith....Can anyone tell me what it is for?

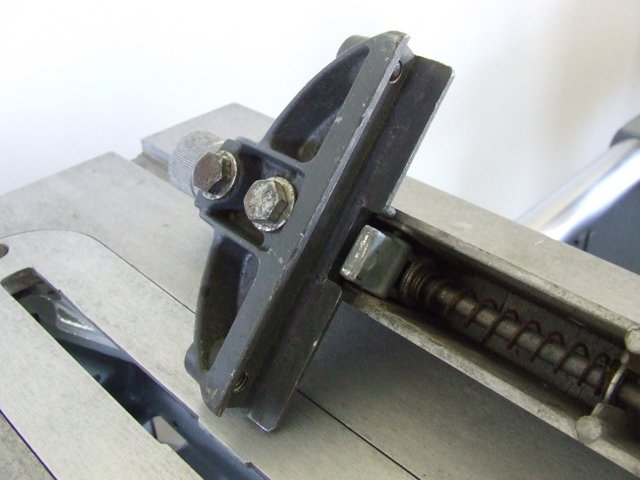

2. Is there anything missing from my Rip Fence base part #NA Reference #220 in the parts breakdown...
Fence queson
Moderator: admin
Fence queson
- Attachments
-
- DSCF6323.JPG (55.56 KiB) Viewed 1352 times
-
- DSCF6324.JPG (58.04 KiB) Viewed 1339 times
The hole in the fence accepts the mortising holddown. It is held in place by the setscrew.steve4447 wrote:Can anyone tell me two things about my fence ?
1. there is a large hole in the top of the fence and there is a provision for a setscrew both in my picture and the parts breakdown from shopsmith....Can anyone tell me what it is for?
2. Is there anything missing from my Rip Fence base part #NA Reference #220 in the parts breakdown...
The base of your fence looks normal to me, though I cannot see the tip of the second set screw (ref. 221).
Rob in San Diego
Email: SDSSmith51 AT gmail.com
Email: SDSSmith51 AT gmail.com
Thanks...SDSSmith wrote:The hole in the fence accepts the mortising holddown. It is held in place by the setscrew.
The base of your fence looks normal to me, though I cannot see the tip of the second set screw (ref. 221).
Damn...You have eyes like an eagle....There is indeed a setscrew missing ....
The hole can be used for several other operations as well. You can use the dead center from the lathe setup to create a center point for cutting at the jigsaw or for use with a disk sander etc.
One thing I like to use it for is for mounting a 12" disk sander for hand sanding.
Those set screws well the one you have and the one you are missing are for off setting the fence. They are not for squaring the fence to the table. So they need to retracted for every thing but off setting the fence, normally done for sanding operations.
Ed
One thing I like to use it for is for mounting a 12" disk sander for hand sanding.
Those set screws well the one you have and the one you are missing are for off setting the fence. They are not for squaring the fence to the table. So they need to retracted for every thing but off setting the fence, normally done for sanding operations.
Ed
steve4447 wrote:Can anyone tell me two things about my fence ?
1. there is a large hole in the top of the fence and there is a provision for a setscrew both in my picture and the parts breakdown from shopsmith....Can anyone tell me what it is for?
2. Is there anything missing from my Rip Fence base part #NA Reference #220 in the parts breakdown...
Thanksreible wrote:The hole can be used for several other operations as well. You can use the dead center from the lathe setup to create a center point for cutting at the jigsaw or for use with a disk sander etc.
One thing I like to use it for is for mounting a 12" disk sander for hand sanding.
Those set screws well the one you have and the one you are missing are for off setting the fence. They are not for squaring the fence to the table. So they need to retracted for every thing but off setting the fence, normally done for sanding operations.
Ed
Interisting but I can't visualize how you mount a 12" disk sander for hand sanding. ..Have you made up a stub shaft out of 5/8 rod?..
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
steve4447 wrote:Thanks
Interisting but I can't visualize how you mount a 12" disk sander for hand sanding. ..Have you made up a stub shaft out of 5/8 rod?..
You use the tailstock chuck adapter(or whatever it is called). It has a MT2 on one end and a flatted 5/8" 'shaft' on the other. After attaching the sanding disk to the shaft end, the tapered end is inserted in to that mystery hole.
As for the 'missing set screw' I say good riddance! The one there will do the offsetting as well as previous versions that only had that one setscrew.
I repeat what has already been said, because of it's importance.
They are not for squaring the fence to the table. So they need to retracted for every thing but off setting the fence, normally done for sanding operations.
More specifically sanding to width. Or 'edge' sanding like a jointer.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Looks like this Tailstock chuck arboursteve4447 wrote:Thanks,
I'll have to try to figure out what the tailstock adaptor looks like and if I even have one?..
