Jointer Refurbish II

Post by steve4447 »

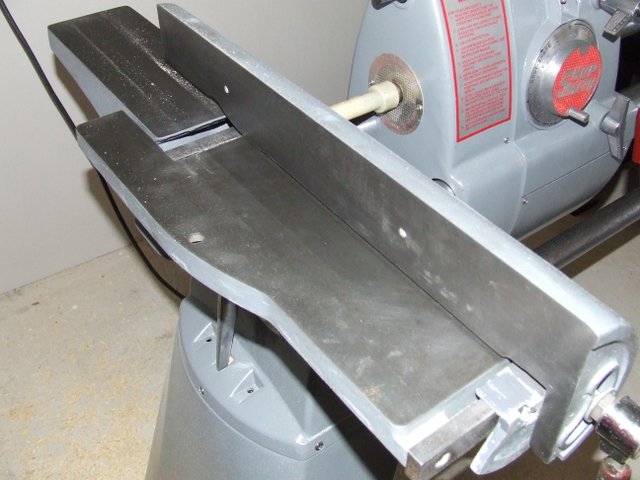

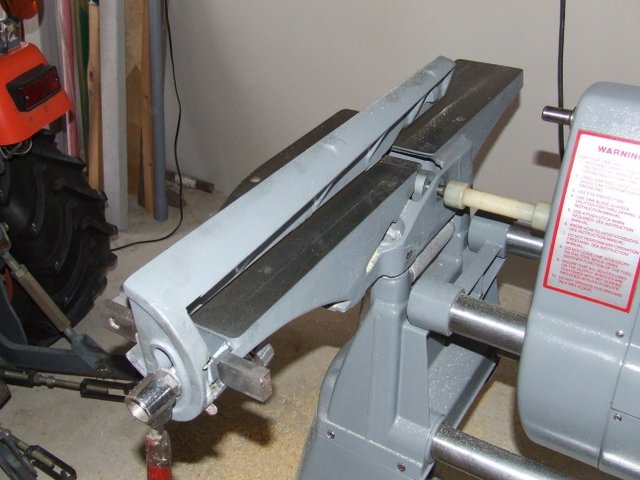

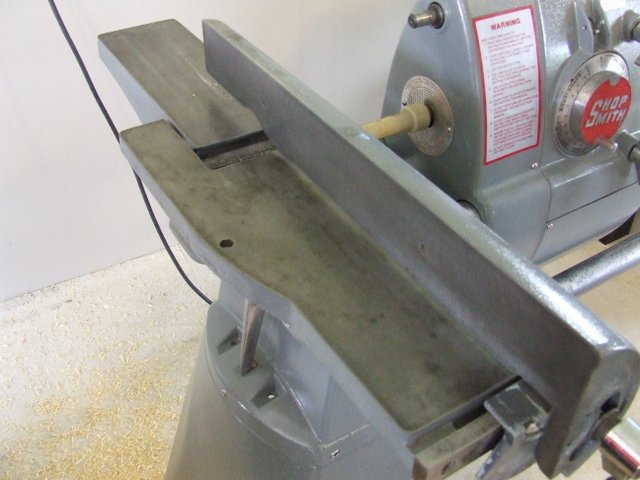

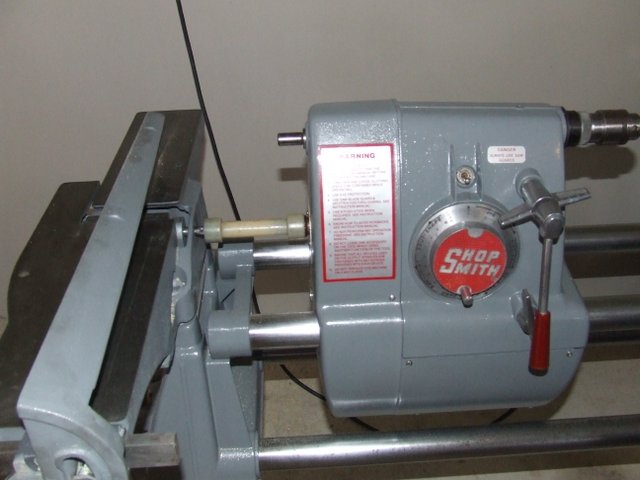

Completed pictures
Attachments
Top
User avatar
JPG
Platinum Member
Posts: 35600
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

steve4447 wrote:Completed pictures
What a difference a few days makes.

Looks good!!!!!!!!!!!!!!!
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
claimdude
Gold Member
Posts: 460
Joined: Fri Dec 29, 2006 11:47 pm

Post by claimdude »

Nice work Steve!

Jack
Top
User avatar
wa2crk
Platinum Member
Posts: 3080
Joined: Sat Jul 22, 2006 7:37 am
Location: Leesburg, Fl

Post by wa2crk »

Pleeease reinstall the cutter guard before using!!!!
Bill V
Top
steve4447
Gold Member
Posts: 179
Joined: Wed Mar 05, 2014 11:30 am

Post by steve4447 »

wa2crk wrote:Pleeease reinstall the cutter guard before using!!!!
Bill V
I can't ..."reinstall the cutter guard "....It isn't there to reinstall...
Top
steve4447
Gold Member
Posts: 179
Joined: Wed Mar 05, 2014 11:30 am

Post by steve4447 »

Thanks for the encouragement everyone,,
Top
User avatar
beeg
Platinum Member
Posts: 4790
Joined: Sun Oct 14, 2007 2:33 pm
Location: St. Louis,Mo.

Post by beeg »

steve4447 wrote:I can't ..."reinstall the cutter guard "....It isn't there to reinstall...


Then get this one. Talk with Linda or Jan to see if ya need the post that's missing?

http://www.shopsmith.com/ownersite/cata ... dretro.htm
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
Top
steve4447
Gold Member
Posts: 179
Joined: Wed Mar 05, 2014 11:30 am

Post by steve4447 »

beeg wrote:Then get this one. Talk with Linda or Jan to see if ya need the post that's missing?

http://www.shopsmith.com/ownersite/cata ... dretro.htm
Thanks...But doesn't the guard that you are recommending come complete?
Top
User avatar
beeg
Platinum Member
Posts: 4790
Joined: Sun Oct 14, 2007 2:33 pm
Location: St. Louis,Mo.

Post by beeg »

steve4447 wrote:Thanks...But doesn't the guard that you are recommending come complete?

That's why I said talk to either one of those ladies.:)
I'd be guessing on any answer of that.
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
Top
User avatar
wa2crk
Platinum Member
Posts: 3080
Joined: Sat Jul 22, 2006 7:37 am
Location: Leesburg, Fl

Post by wa2crk »

I believe that the new style guard comes with all of the fittings but you do have to drill and tap one hole. Really easy to do.
Bill V
