The shopsmith I use as a drill press and SPT stand is due for a bearing change in the quill. It was getting bad last year already but I just put it off. Now it is to the point that I can't do that anymore.
Pulled the quill out and as the manufacturing date suggested it has a two bearing quill. This was used machine when I got it but at least the previous owner(s) had been oiling it as it smelled of 3 in 1 oil. I didn't have to do anything special to it other then some fresh lube and a bit of cleaning. So for the price I've been quite happy with it.
It is one of the last "B" version, and is the newest one I own. Since I don't have a history with the machine I can't be sure but I think it is the original quill and other internals.
It has been mentioned that there are 5 version of the 2 bearing quill but I don't recall us building a list of which is what.
If you have knowledge of of your quill and want to proved data please do so.
Headstock Date 021391
The front bearing has a 17mm bore and outside of 35mm, width of 10mm.
The back bearing has a 15mm bore and outside of 32mm, width of 9mm.
It is a two piece shaft in shaft with a drive pin for connection.
Bearing numbers / manufacture
60032
60022
TPI (Taiwan)
Both bearings have shields on both sides.
Replacement bearings
None yet.
Ed
ps

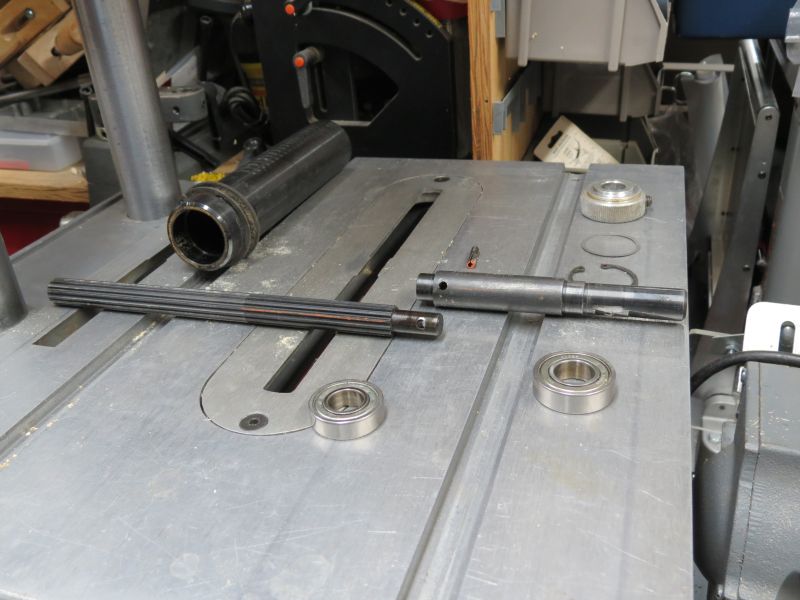

I'll add a disassembled picture later.
Dual Bearing Quill (got data?)
Moderator: admin
-
rcplaneguy
- Platinum Member
- Posts: 549
- Joined: Mon Sep 23, 2013 6:33 pm
- Location: Chapel Hill, NC
I'm doing the same thing to mine now. Got the Nachi sealed bearings today from VXB.com.
http://shopsmith.net/forums/showthread.htm?t=14380
http://shopsmith.net/forums/showthread.htm?t=14380
John
I was rather hoping that we could adopt a format along these lines:
Headstock Date 021391
The front bearing has a 17mm bore and outside of 35mm, width of 10mm.
The back bearing has a 15mm bore and outside of 32mm, width of 9mm.
It is a two piece shaft in shaft with a drive pin for connection.
Bearing numbers / manufacture
60032
60022
TPI (Taiwan)
Both bearings have shields on both sides.
Replacement bearings
None yet.
I don't have the time or inclination to search for data so if anyone wants to provide that (see format above) I will be willing to compile what comes in.
Just though this might be useful to us as a group.
Ed
Headstock Date 021391
The front bearing has a 17mm bore and outside of 35mm, width of 10mm.
The back bearing has a 15mm bore and outside of 32mm, width of 9mm.
It is a two piece shaft in shaft with a drive pin for connection.
Bearing numbers / manufacture
60032
60022
TPI (Taiwan)
Both bearings have shields on both sides.
Replacement bearings
None yet.
I don't have the time or inclination to search for data so if anyone wants to provide that (see format above) I will be willing to compile what comes in.
Just though this might be useful to us as a group.
Ed
