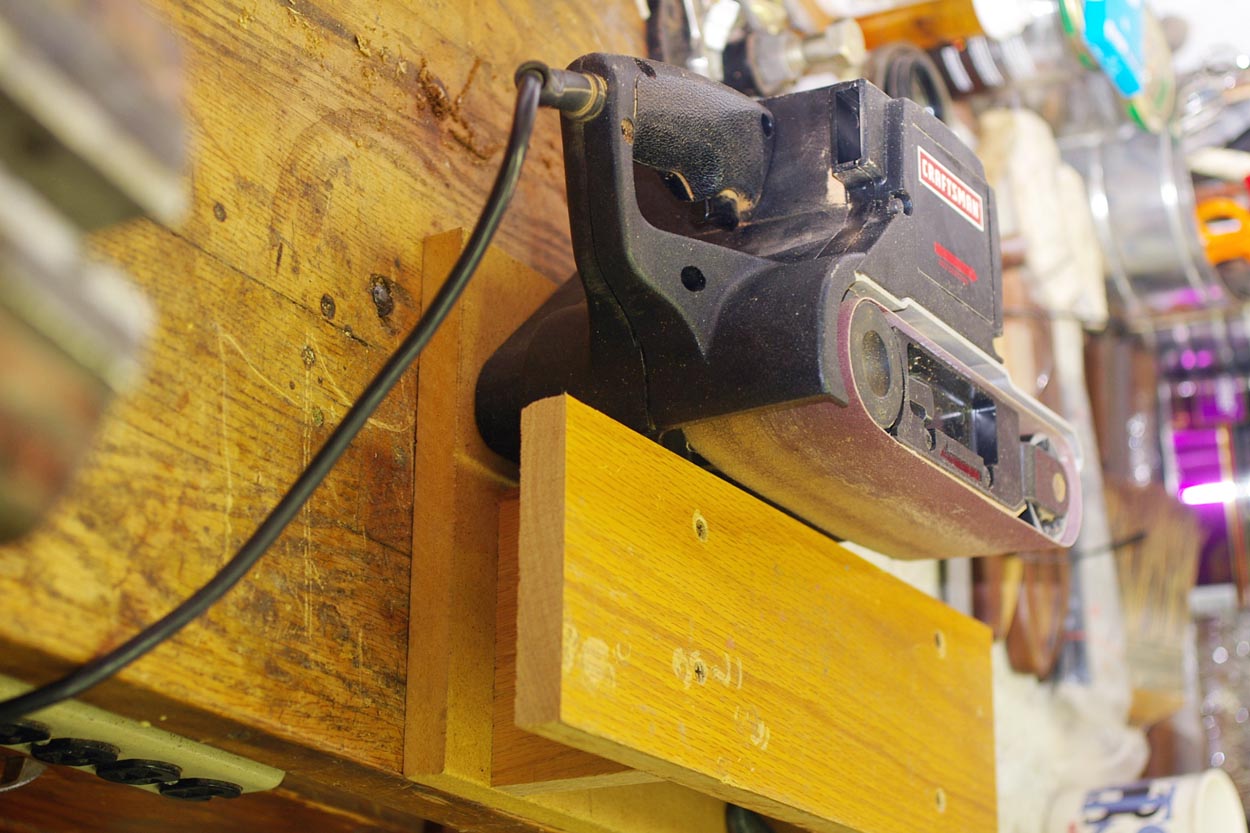

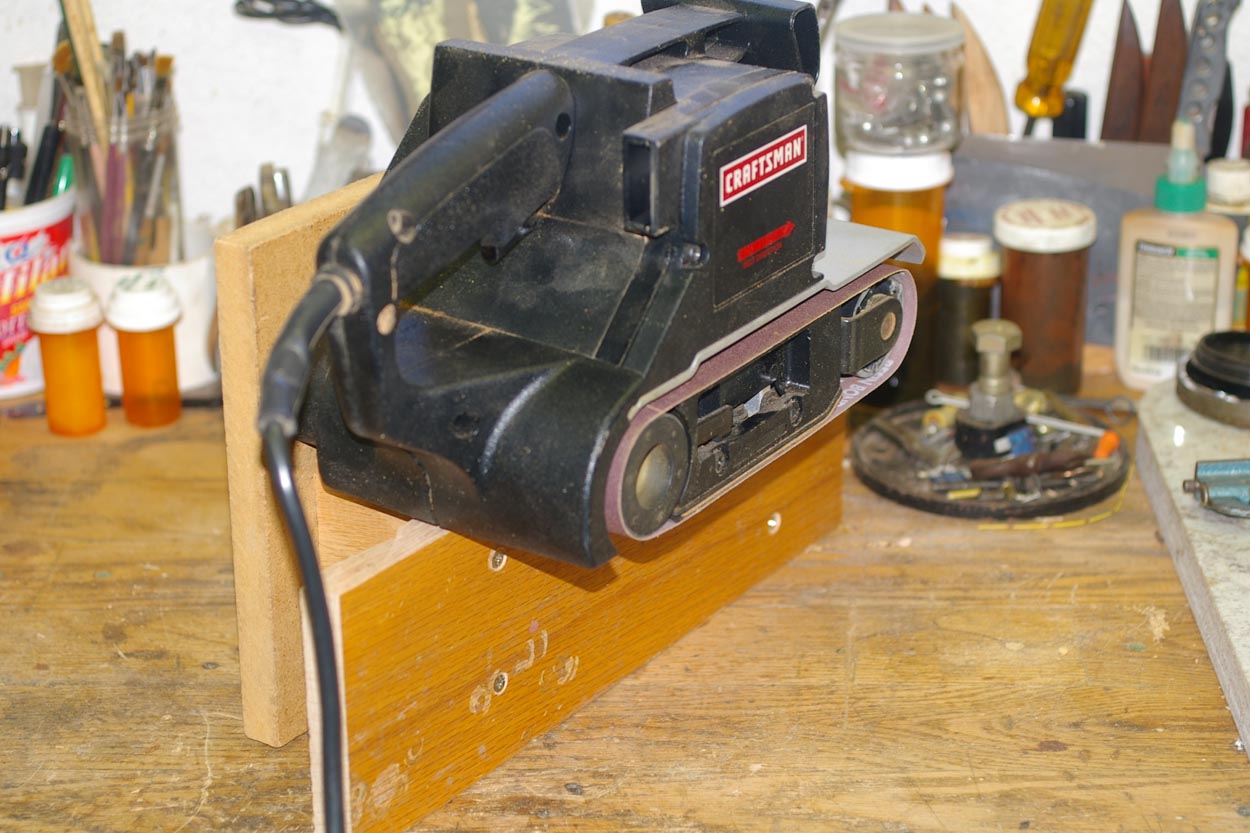

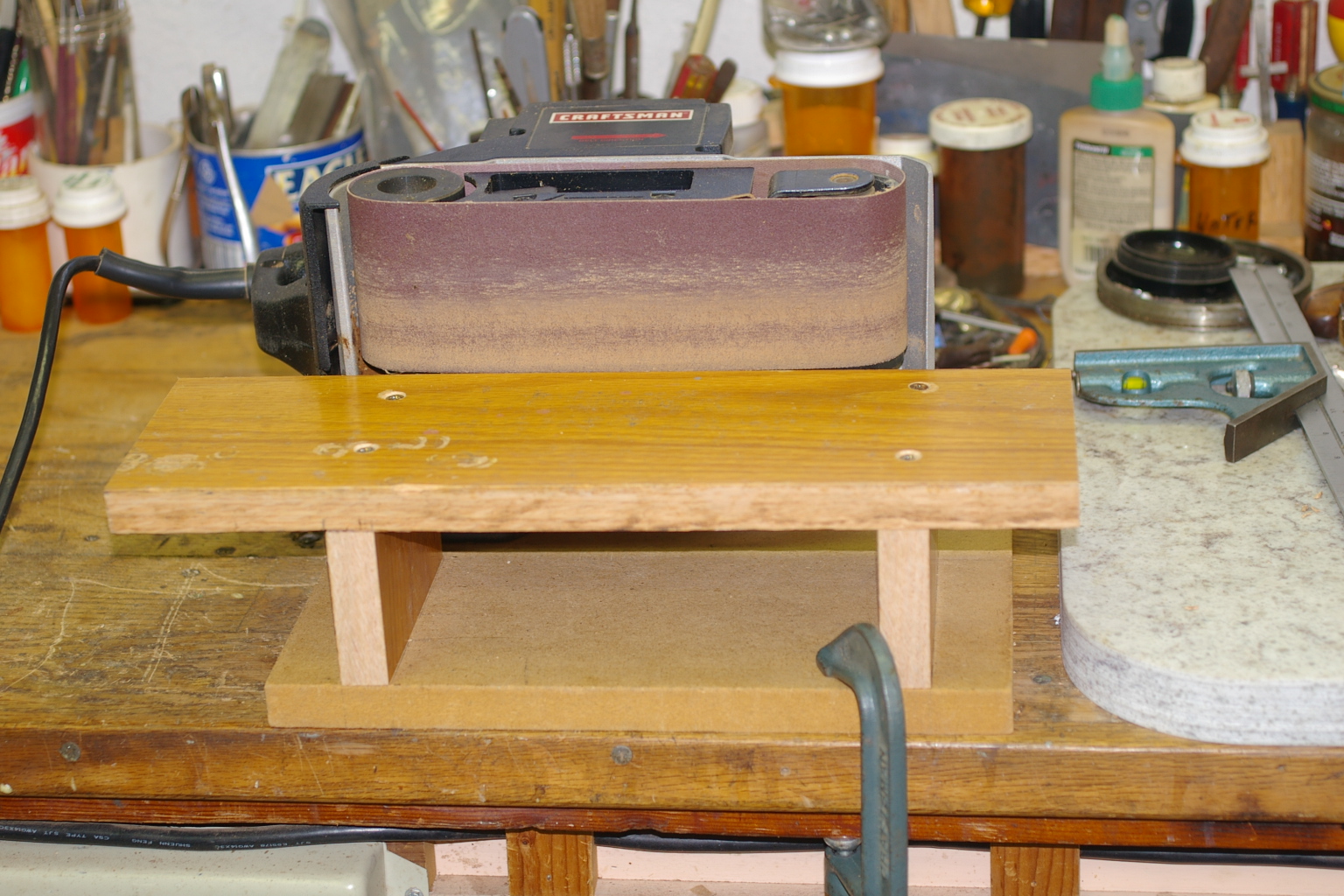

I have a Craftsman belt sander that I purchased about 30 years ago for a project and the only time it's been used since was to sand the top of my work bench a few years ago. I decided to make a platform to mount it on it's side and operate it with a foot switch. I believe it will be useful for whatever rather than occupy space on a shelve in a cabinet.
Don G
Belt sander
Moderator: admin
Belt sander
- Attachments
-
- IMGP4060.JPG (791.75 KiB) Viewed 3291 times
-
- IMGP4061 re.jpg (181.25 KiB) Viewed 3291 times
-
- IMGP4062 re.jpg (174.29 KiB) Viewed 3291 times
-
- IMGP4063 re.jpg (167.72 KiB) Viewed 3291 times
-
mountainbreeze
- Platinum Member
- Posts: 511
- Joined: Sun Jan 30, 2011 9:58 pm
- Location: Ocala, FL
Re: Belt sander
I like that! How did you mount the sander to the jig?
Re: Belt sander
Mountainbreeze

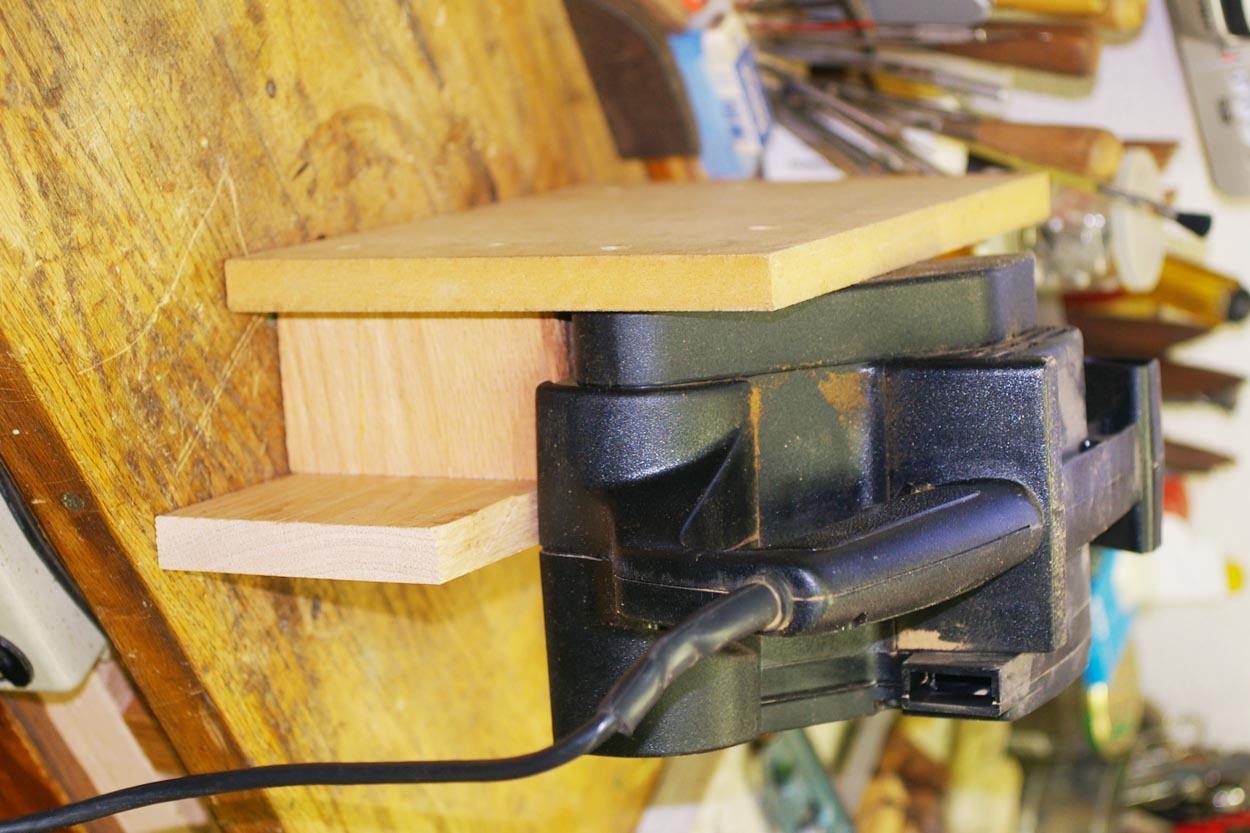

On the side of the sander is a belt guard held on by 2 machine screws. I simply replaced them with longer screws and mounted to 3/4" oak board.
I can remove the sander and take additional pictures if you would like?
Don G
On the side of the sander is a belt guard held on by 2 machine screws. I simply replaced them with longer screws and mounted to 3/4" oak board.
I can remove the sander and take additional pictures if you would like?
Don G
-
mountainbreeze
- Platinum Member
- Posts: 511
- Joined: Sun Jan 30, 2011 9:58 pm
- Location: Ocala, FL
Re: Belt sander
That's OK, I think I understand. Thanks.
