Hey All;

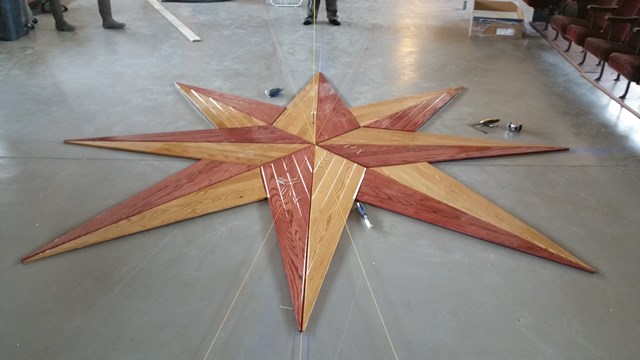

This is the recent piece I am finishing and installing in the Center of the Lodge Room Floor in my Masonic Lodge in Dover Ohio.
It is representative of the Blazing Star described in the Old Testament. It is made completely of Red Oak, planed to .350" and then biscuited together. there are 8 separate points each made of two assemblies.
There is a total of 80 pieces of wood in this piece. All of the angles were computed by hand and then my 520, Mini and 10ER were all employed to complete. it is stained two different colors and coated with two layers of high build finish.
Regards
Eric
Recent Project
Moderator: admin
-
ventrac4231
- Gold Member
- Posts: 33
- Joined: Thu Nov 08, 2012 7:33 am
- Location: New Philadelphia, Ohio
Recent Project
- Attachments
-
- board size.jpg (49.87 KiB) Viewed 3294 times
Re: Recent Project
That looks GREAT. MANY hours in that project.
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
.
.
Bob
Re: Recent Project
Looks great Eric. Please post a picture once it is installed.
Jim
Jim
Re: Recent Project
Looks like another guy who didn't get/read the memo about not being able to do accurate work on a Shopsmith.
Gale's Law: The bigger the woodworking project, the less the mistakes show in any photo taken far enough away to show the entire project!
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Recent Project
I assume you are standing in the East(sorta).ventrac4231 wrote:Hey All;
This is the recent piece I am finishing and installing in the Center of the Lodge Room Floor in my Masonic Lodge in Dover Ohio.
It is representative of the Blazing Star described in the Old Testament. It is made completely of Red Oak, planed to .350" and then biscuited together. there are 8 separate points each made of two assemblies.
There is a total of 80 pieces of wood in this piece. All of the angles were computed by hand and then my 520, Mini and 10ER were all employed to complete. it is stained two different colors and coated with two layers of high build finish.
Regards
Eric
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
ventrac4231
- Gold Member
- Posts: 33
- Joined: Thu Nov 08, 2012 7:33 am
- Location: New Philadelphia, Ohio
Re: Recent Project
All,

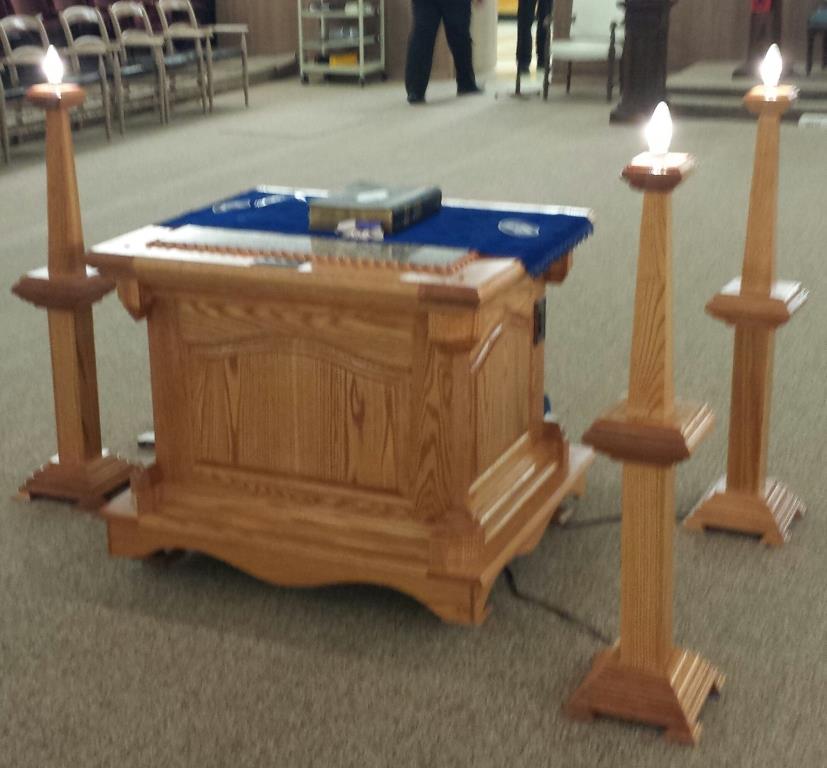

I am humbled by your comments. As far an accuracy memo, must have gotten lost as it passed through my Pro Planer??. I hate to tell who ever thinks the Shopsmith Equipment is NOT accurate that they are misinformed, but they just might be. My 520 is a 510 upgraded. I bought my 520 in 1987. It is just as precise as new. Attached is a picture of the Altar I built that will sit on top of that star. The top has a 2inch thick piece of granite in it and weighs in excess of 300 lbs. It is all Red Oak. Each of the three lights contains 36 pieces of wood. The star by the way is 13 feet 6 inches in widest points.
Humbly
Eric
I am humbled by your comments. As far an accuracy memo, must have gotten lost as it passed through my Pro Planer??. I hate to tell who ever thinks the Shopsmith Equipment is NOT accurate that they are misinformed, but they just might be. My 520 is a 510 upgraded. I bought my 520 in 1987. It is just as precise as new. Attached is a picture of the Altar I built that will sit on top of that star. The top has a 2inch thick piece of granite in it and weighs in excess of 300 lbs. It is all Red Oak. Each of the three lights contains 36 pieces of wood. The star by the way is 13 feet 6 inches in widest points.
Humbly
Eric
- Attachments
-
- directory.jpg (63.43 KiB) Viewed 3246 times
Last edited by ventrac4231 on Thu Mar 05, 2015 3:54 pm, edited 1 time in total.
Re: Recent Project
Wow! Fantastic!
Now, pleeeeaaaase tell us you put that that altar (with the three hundred pound piece of granite in it) on top of your Shopsmith, then we can tell forum member Ed-in-Tampa to stop complaining about Shopsmith's shortcomings
(just kidding Ed-in-Tampa
).
Now, pleeeeaaaase tell us you put that that altar (with the three hundred pound piece of granite in it) on top of your Shopsmith, then we can tell forum member Ed-in-Tampa to stop complaining about Shopsmith's shortcomings
(just kidding Ed-in-Tampa ).Gale's Law: The bigger the woodworking project, the less the mistakes show in any photo taken far enough away to show the entire project!
-
ventrac4231
- Gold Member
- Posts: 33
- Joined: Thu Nov 08, 2012 7:33 am
- Location: New Philadelphia, Ohio
Re: Recent Project
Algale,
Actually the frame for the granite DID sit on top of the 520
for machining out an inaccuracy
in my Dewalt miter saw(Now Replaced with a 12" Milwaukee) I built a special table all around the unit, and then with a Dado, I milled out the in accurate joints and then inserted hickory pieces and then sanded them smooth, then through the joiner and then to my router table. The whole piece moved in 7 sections.
Actually the frame for the granite DID sit on top of the 520
for machining out an inaccuracy in my Dewalt miter saw(Now Replaced with a 12" Milwaukee) I built a special table all around the unit, and then with a Dado, I milled out the in accurate joints and then inserted hickory pieces and then sanded them smooth, then through the joiner and then to my router table. The whole piece moved in 7 sections.
Re: Recent Project
I have only been inside one Masonic lodge, but I was impressed and I think your project represents all the best of the principles I saw there!
Chris
Chris
Re: Recent Project
Wow I am certainly impressed. I have been in a number of lodges here in Arizona which contain vrs. member constructed altars and lesser lights. I don't remember seeing the lights placed around the altar. Ours are always at the south side. Ohio vs. Az I suspect. The Douglas Lodge actually has the steps to climb during the 2nd degree. All the wood work is handcrafted.
Bob Coder PM
Willcox No.10
Bob Coder PM
Willcox No.10
