I walked into our local service center that repairs my DeWalt, Milwaukee and many other corded and cordless power tools and asked for a switch like the one in my hand. I didn’t even tell them what it was on.
They popped into the back and brought me a 20A, EATON Safety Switch in a few seconds. It was less than $14.00. They even provided me 4 insulated ¼” terminals to crimp on to the ends of wires that I would likely have to salvage from the existing bad switch, if mine weren’t long enough, as many weren’t for older switches with the imbedded pigtails.
Only then did they ask me what it came off of. I told them Shopsmith Mark V made since the early 1990’s, and they said we will add them to our list of machines these fit. This switch is what we use for a bunch of Delta, several Porter Cable, and Black & Decker products, even some Sears items they said.
So I was curious… not so much anymore after researching it as I believe there must be over a hundred models of various tools that use this exact replacement switch. To find it stocked locally in my town, was refreshing. They indicated one should be able to find one just about anywhere with a repair center servicing tools.
So if you ever need one, you may be in luck, if you don’t tell them it’s for a Shopsmith first. They won’t have it then, unless you show them the switch itself.
And… since a picture is worth a thousand words ….
- Delta 12 inch Portable Planer.jpg (14.03 KiB) Viewed 7468 times

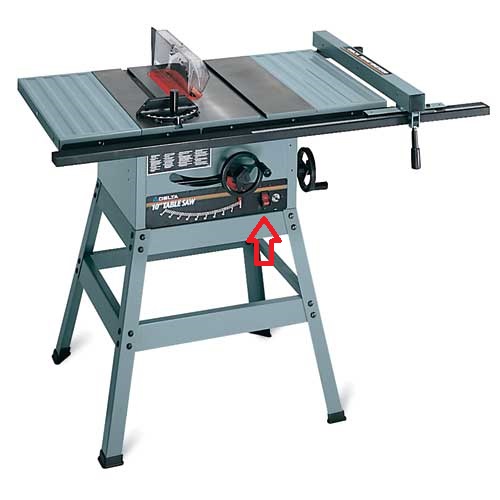

- Delta 36-600 Type 2 Table Saw.jpg (40.44 KiB) Viewed 7468 times

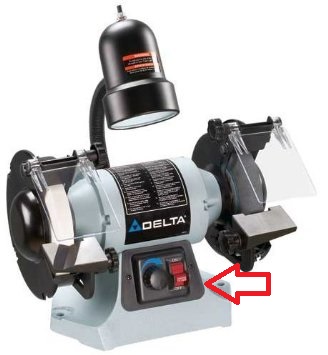

- Delta GR275 6 inch variable speed grinder.jpg (28.91 KiB) Viewed 7468 times

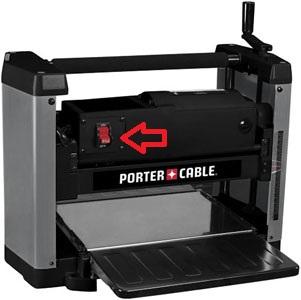

- Porter Cable PC305TP.jpg (38.89 KiB) Viewed 7468 times
I just thought you might be in a pinch someday as I was, and need a compatible part that you might find locally.
Everett
