500 to 510 upgrade...left over parts?

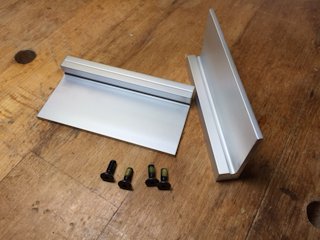

I just completed upgrade from Mark V 500 to 510 and I have the following parts left over. Any idea what they are for? (The small screws have and hex head) Thanks
- Attachments
-
- IMG_0408x.JPG (17.57 KiB) Viewed 944 times
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: 500 to 510 upgrade...left over parts?
I do not know about the screws, but the aluminum extrusions are gauges for setting the rails to the table top(s)
BUT BUT you said 500 to 510.
So I do not have a clue about them either apparently.
BUT BUT you said 500 to 510.
So I do not have a clue about them either apparently.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Re: 500 to 510 upgrade...left over parts?
I agree on the gauges for setting up a 520, no idea how one would use them on a 510.
The screws are for a sanding disk hub. The upgrade gives you the new longer hug and the 4 screws needed to do the change out.
Ed
The screws are for a sanding disk hub. The upgrade gives you the new longer hug and the 4 screws needed to do the change out.
Ed
