Quill Not Returning to 0
Posted: Mon Nov 16, 2015 11:44 am
by tdorey
Not sure if I am using the right terminology here but the quill that extends the arbor does not return to 0. Meaning I think it should go back a bit more. Is this photo normal? Shouldn't the guard sit flat against the headstock?
Re: Quill Not Returning to 0
Posted: Mon Nov 16, 2015 11:59 am
by reible
Another question might be what is missing from your shopsmith.

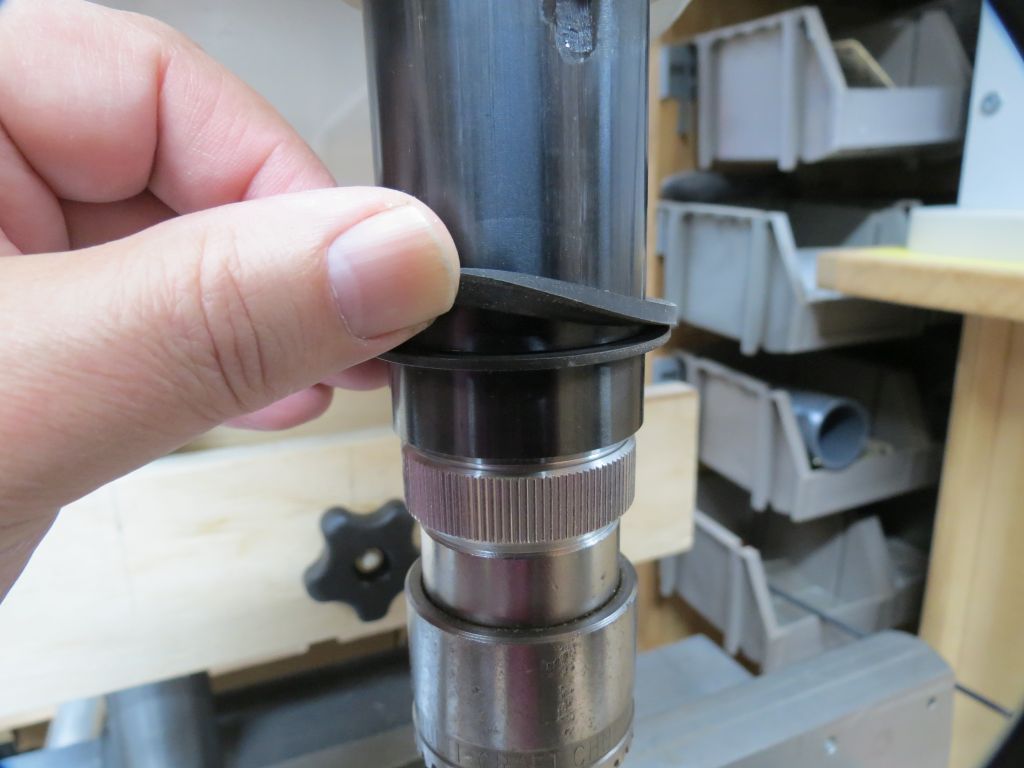

- IMG_0104sc.jpg (85.41 KiB) Viewed 797 times
Ed
Re: Quill Not Returning to 0
Posted: Mon Nov 16, 2015 12:05 pm
by JPG
Notice yours stops closer than the rubber bumper(missing) will allow(the bumper acts as a soft stop).
Re: Quill Not Returning to 0
Posted: Mon Nov 16, 2015 12:14 pm
by tdorey
Ah, so there is a part missing? Could one be made from rubber gasket material?
Re: Quill Not Returning to 0
Posted: Mon Nov 16, 2015 12:24 pm
by wa2crk
I have never tried this but I think that an "O" ring with a cross section of about 1/8" and proper diameter may work until a proper replacement can be obtained.
Bill V
