My third Shopsmith purchase was a unit that had a band saw. The unit itself had been dripped on and was in bad shape. The band saw wasn't in too bad of shape so I went ahead and bought it figuring, aside from the band saw, I may be able to use some of the other parts for my other units. Besides the price wasn't bad, $75.
When I went to pick it up I couldn't even disassemble it as the tubes had rusted into the headstock and both ends. I had to shove it in my van whole. With effort and heat I ultimately got it all apart and then started to rework it in my spare time. I also rewired the headstock to be reversible so I could run SPT's on both ends. Below are some pictures of the process. I've seen restorations here that are absolutely gorgeous, Mickyd's restoration for example. This one isn't in that category but I'm really happy with the way it came out. - Nick
Shortie finally done ....
Moderator: admin
-
UncleSnick
- Gold Member
- Posts: 37
- Joined: Mon Apr 07, 2014 8:36 am
- Location: Bethelehm, PA Nick's 'Nuthin Fancy'
Shortie finally done ....
- Attachments
-

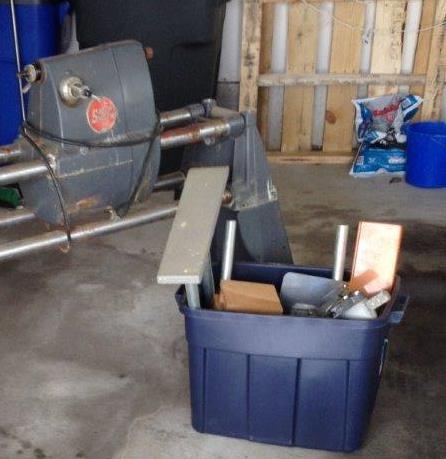

- When I got it home.
- IMG_2999-detail.jpg (28.8 KiB) Viewed 4953 times
-

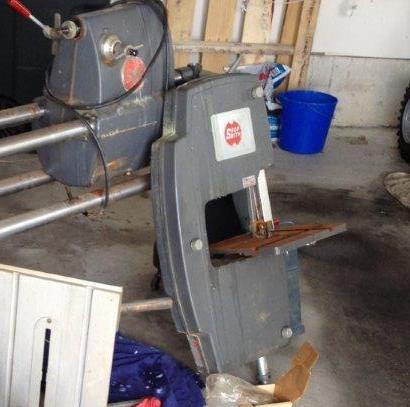

- When I got it home.
- IMG_3002-detail.jpg (26.56 KiB) Viewed 4953 times
-

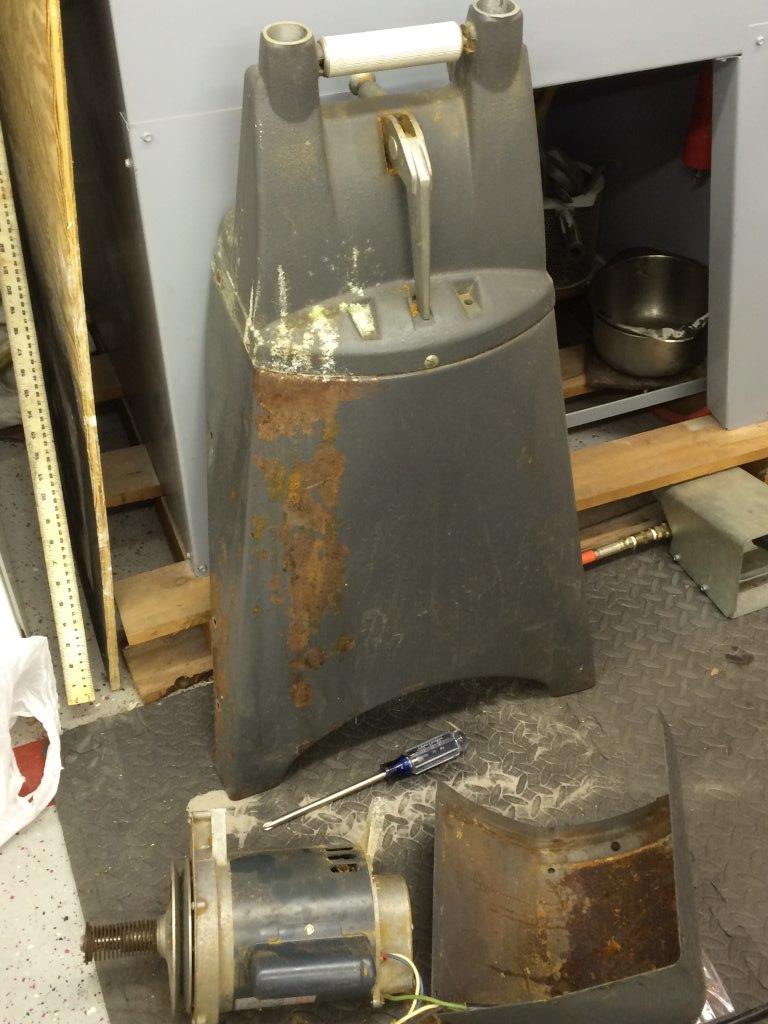

- Getting ready for sand blasting.
- IMG_3282.jpg (120.31 KiB) Viewed 4953 times
-

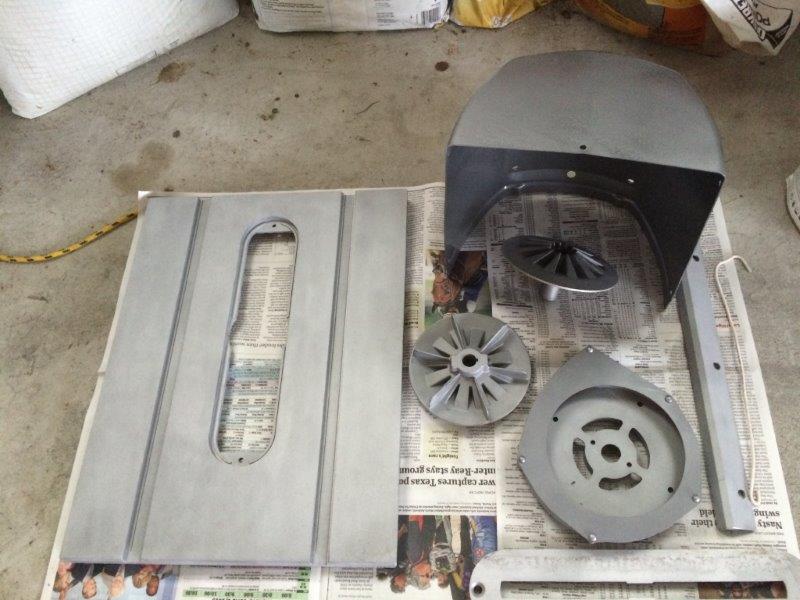

- Some parts after sand blasting
- IMG_3314-1.jpg (74.71 KiB) Viewed 4953 times
-

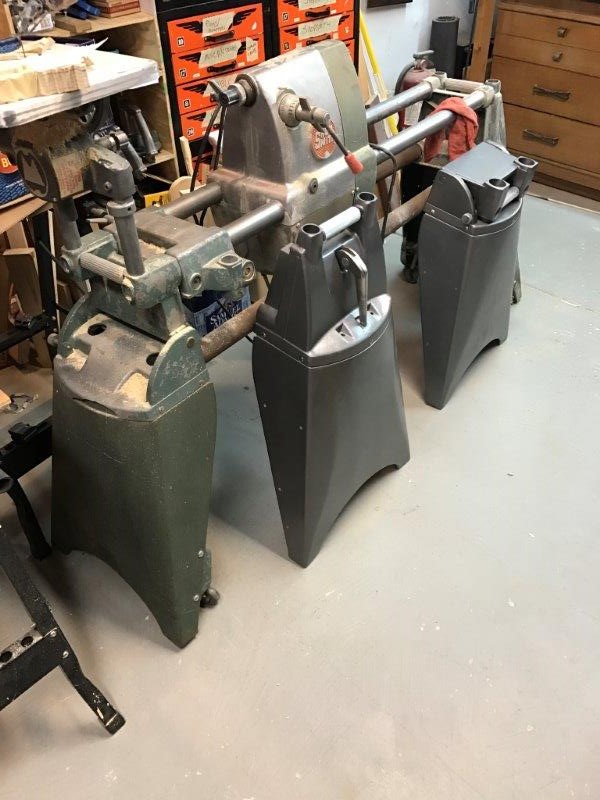

- Some of the parts after painting and partial reassembly
- IMG_5450.jpg (119.83 KiB) Viewed 4953 times
-

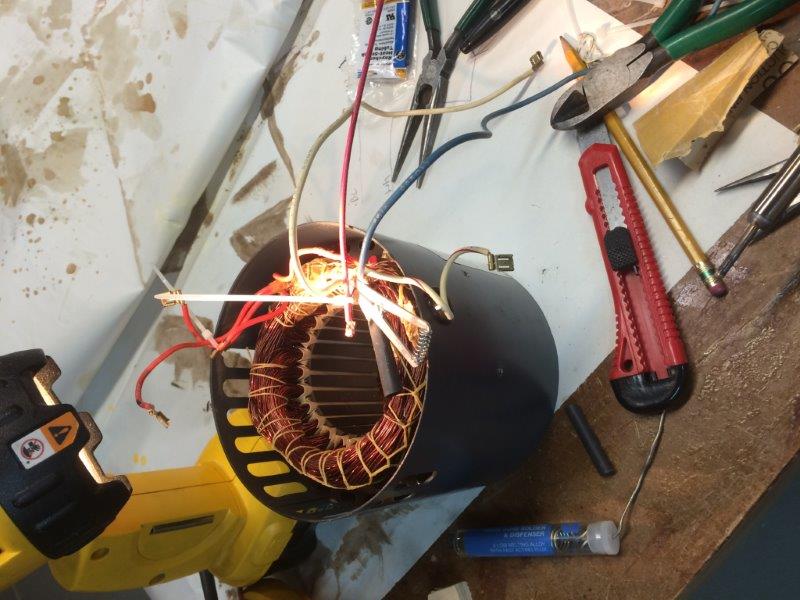

- Rewiring the motor - Thanks to Bill Mayo and JoshH
- IMG_5105.jpg (79.15 KiB) Viewed 4953 times
-

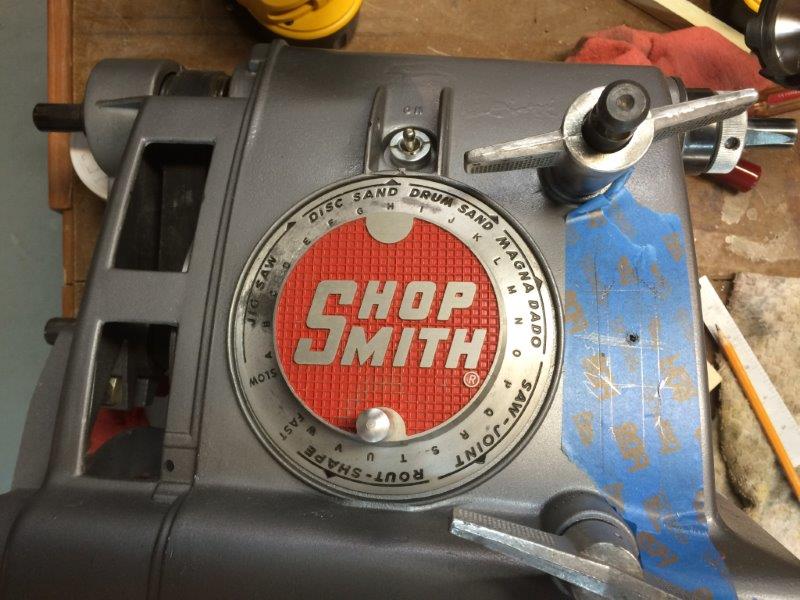

- Cutting reversing switch into headstock
- IMG_5143.jpg (81.18 KiB) Viewed 4953 times
-

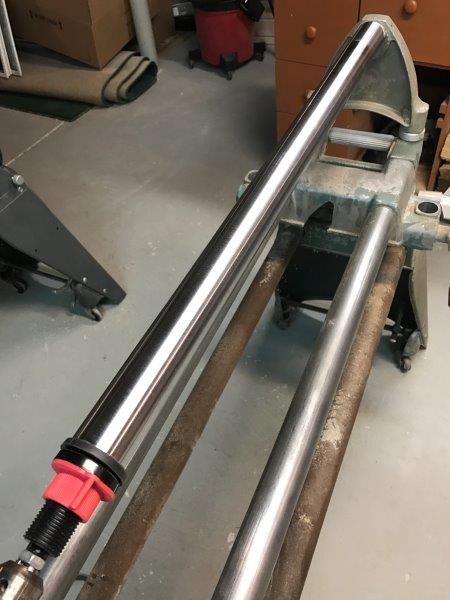

- Finished tube ready for reassembly
- IMG_5461.jpg (41.77 KiB) Viewed 4953 times
-

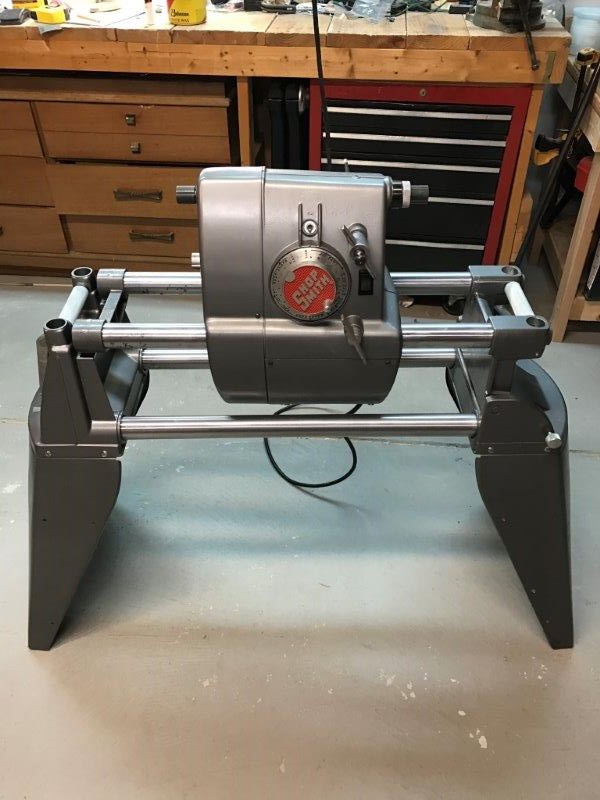

- Finished Shortie
- IMG_5463.jpg (109.19 KiB) Viewed 4953 times
-

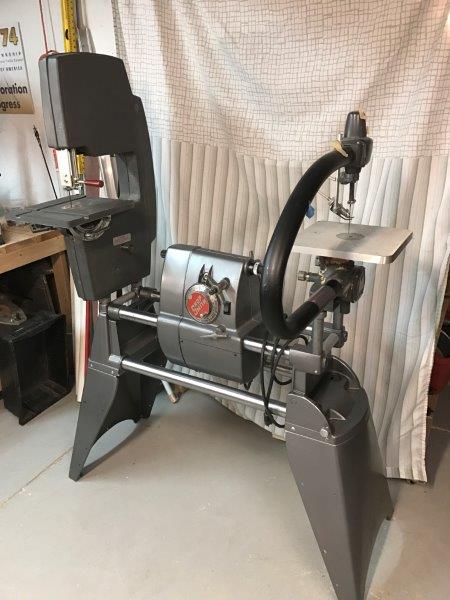

- Ready for use
