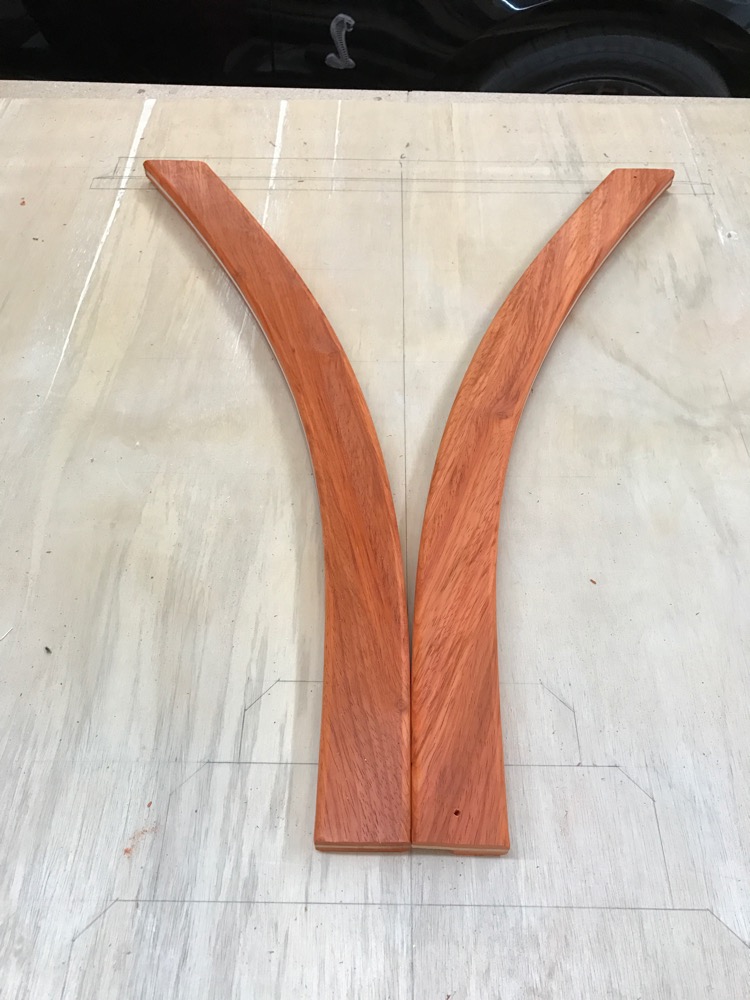

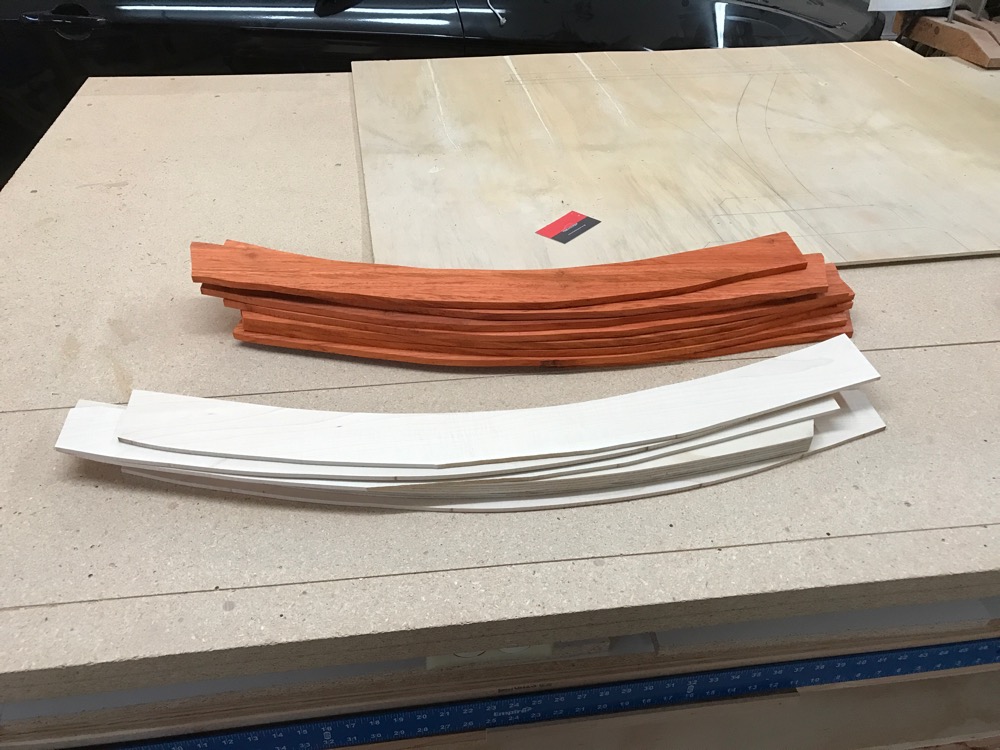

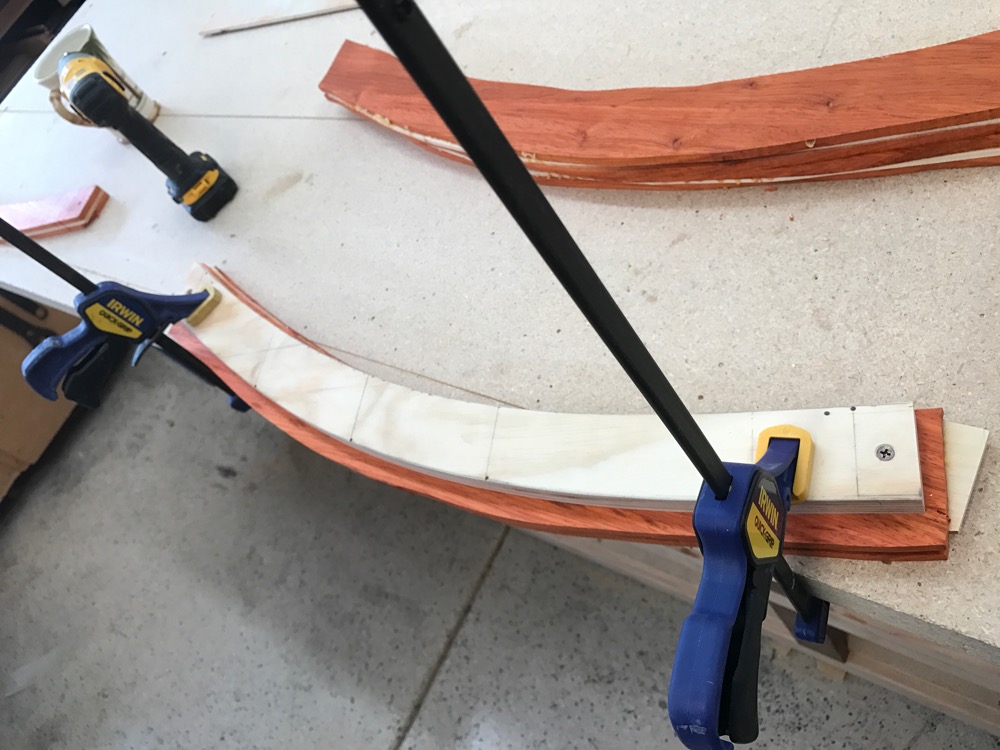

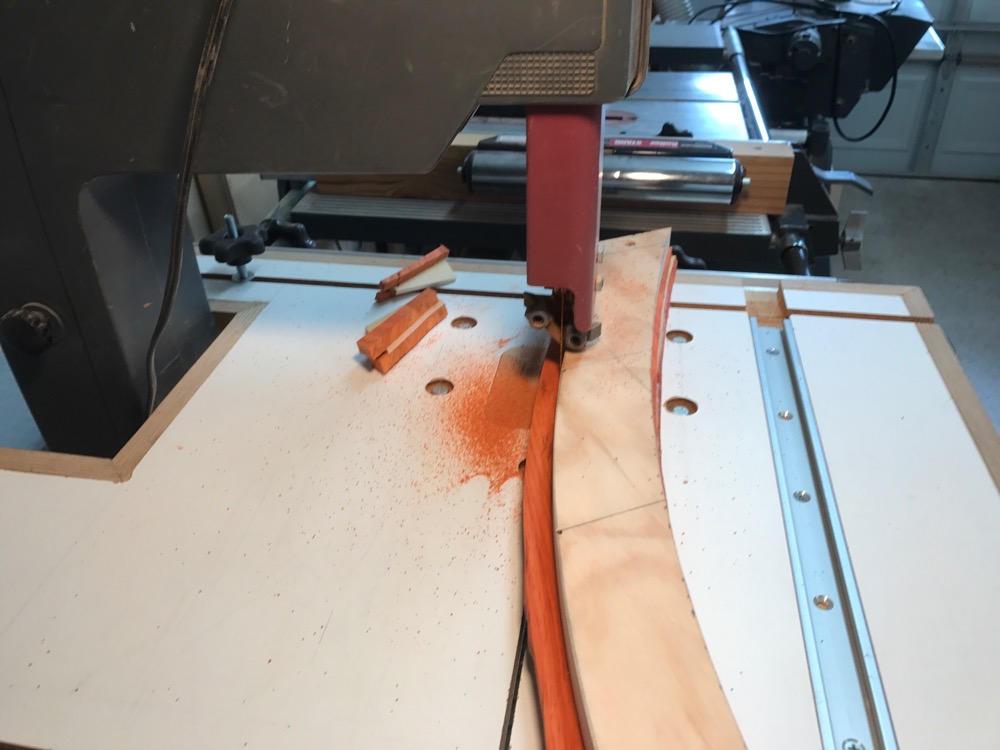

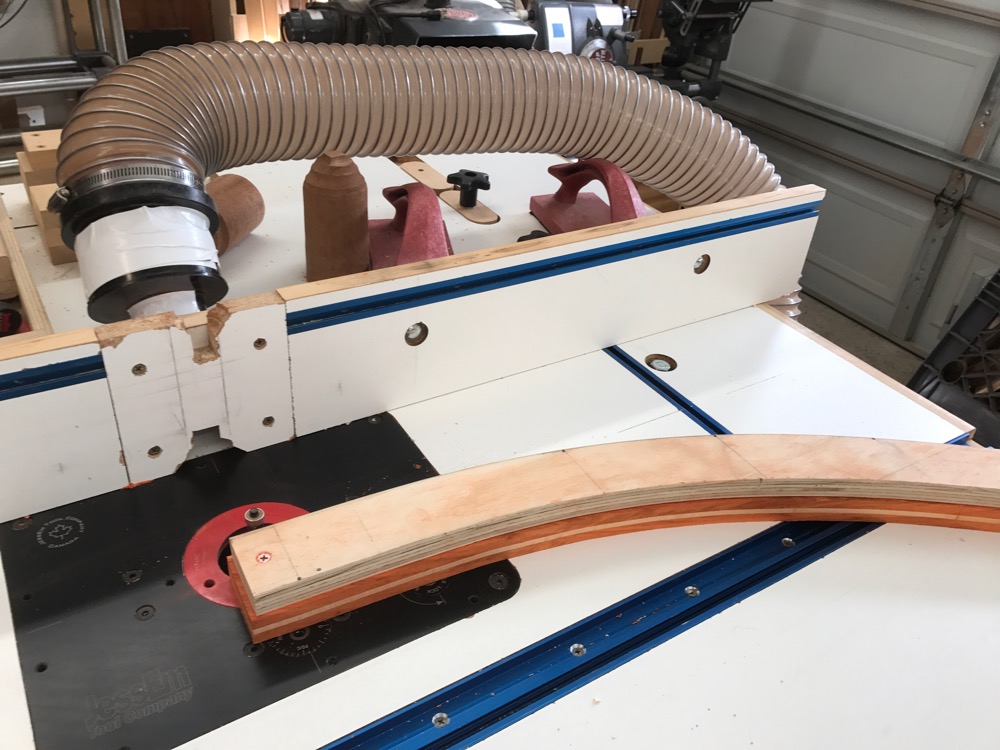

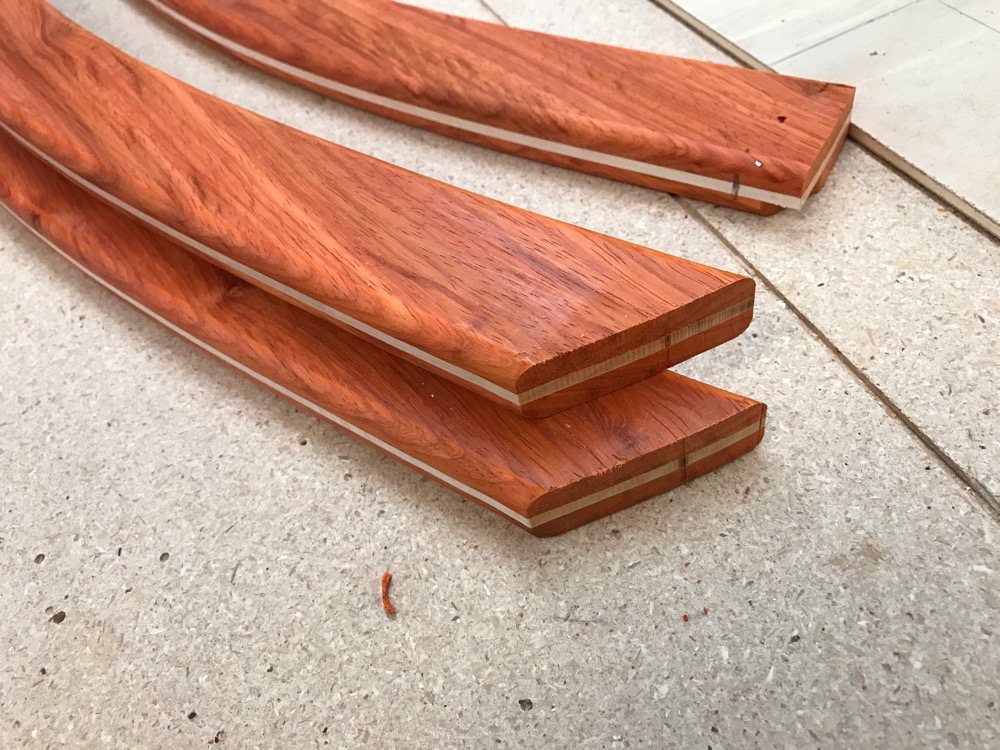

The boss has designed a table for a backgammon set and I started on it yesterday. It will be Honduran mahogany, paduak and maple for accent. The legs were the first part so yesterday I made the template from the drawing, milled up the wood and laminated them. Today was trim them to size and router them. Now for the base and top. Also an added suprise today the power pro upgrade arrived !
Paul
Busy two days in the shop
Moderators: HopefulSSer, admin
-
masonsailor2
- Platinum Member
- Posts: 1564
- Joined: Wed Feb 05, 2014 11:57 am
- Location: Las Vegas NV
Busy two days in the shop
- Attachments
-
- IMG_3773.JPG (156.44 KiB) Viewed 6941 times
-
- IMG_3774.JPG (163.72 KiB) Viewed 6941 times
-
- IMG_3775.JPG (189.47 KiB) Viewed 6941 times
-
- IMG_3776.JPG (171.23 KiB) Viewed 6941 times
-
- IMG_3777.JPG (123.66 KiB) Viewed 6941 times
-
- IMG_3778.JPG (181.1 KiB) Viewed 6941 times
-
- IMG_3779.JPG (264.21 KiB) Viewed 6941 times
-
- IMG_3780.JPG (162.15 KiB) Viewed 6941 times
-
- IMG_3781.JPG (181.47 KiB) Viewed 6941 times
Re: Busy two days in the shop
Nice on both counts!
Ed
Shopsmith: 2 Mark V 510 (1988,1993), bandsaw, jointer, mounted planer, belt sander, scroll saw, strip sander, lathe duplicator, conical disc sander, biscuit joiner, free standing router table with Jointech IPM-1
Other stuff: Bosch glide mitre, Ridgid 13" planer, Rikon drill press, routers, drills, and other toys
Shopsmith: 2 Mark V 510 (1988,1993), bandsaw, jointer, mounted planer, belt sander, scroll saw, strip sander, lathe duplicator, conical disc sander, biscuit joiner, free standing router table with Jointech IPM-1
Other stuff: Bosch glide mitre, Ridgid 13" planer, Rikon drill press, routers, drills, and other toys
Re: Busy two days in the shop
I'd be interested on your assessment of the Power Pro - I see a 520 upgrade in the new future for me, and I'm contemplating the PP with double tilt.
Ed
Shopsmith: 2 Mark V 510 (1988,1993), bandsaw, jointer, mounted planer, belt sander, scroll saw, strip sander, lathe duplicator, conical disc sander, biscuit joiner, free standing router table with Jointech IPM-1
Other stuff: Bosch glide mitre, Ridgid 13" planer, Rikon drill press, routers, drills, and other toys
Shopsmith: 2 Mark V 510 (1988,1993), bandsaw, jointer, mounted planer, belt sander, scroll saw, strip sander, lathe duplicator, conical disc sander, biscuit joiner, free standing router table with Jointech IPM-1
Other stuff: Bosch glide mitre, Ridgid 13" planer, Rikon drill press, routers, drills, and other toys
-
mbcabinetmaker
- Platinum Member
- Posts: 1627
- Joined: Thu Jul 20, 2006 6:18 am
- Location: Greer SC
Re: Busy two days in the shop
I know you will be busy for a few days with that new toy but when you have time can you elaborate a little on your method for laying out those legs with the nails and scribe? Its looking good and I am anxious to see the finished project!
****************
****************
Mark
2017 Power Pro Mark 7
2002 50th anniversary model 520
and a few other woodworking tools.
****************
Mark
2017 Power Pro Mark 7
2002 50th anniversary model 520
and a few other woodworking tools.
-
JPG
- Platinum Member
- Posts: 34697
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Busy two days in the shop

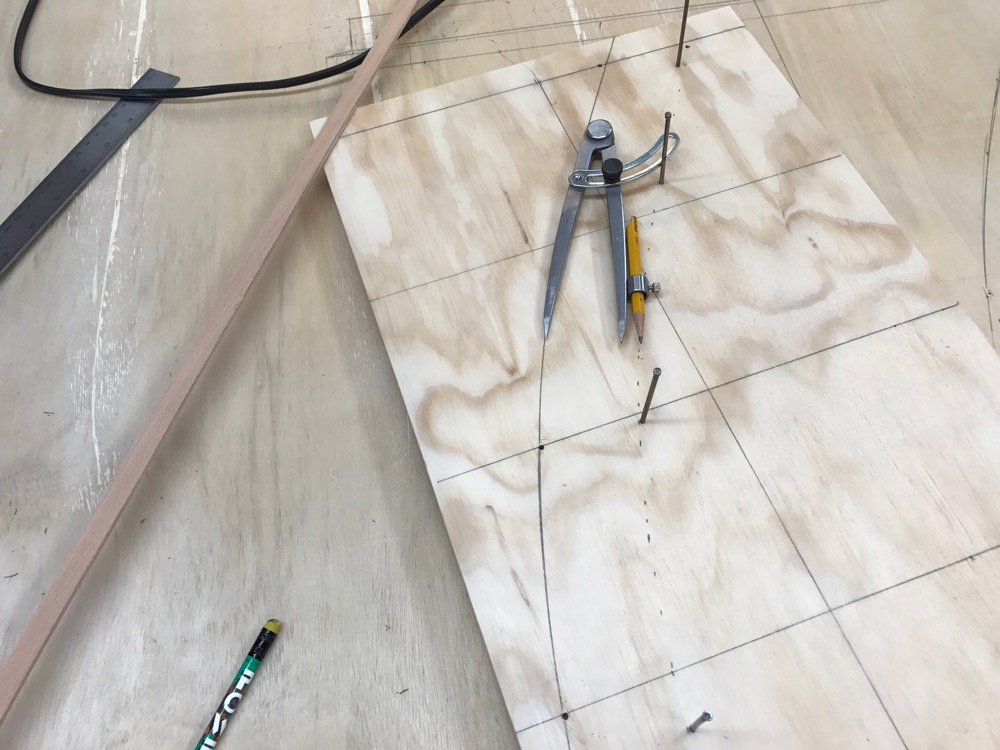

I be guessing nails at a measured distance from the 'center' line along those 'cross' lines.
Then that thin strip of wood bent to the nails.(notice the 'outside' location of the top nail compared to the 'inside' location of the other nails)
Finally the pencil line drawn along inner edge of the now curved thin strip.
THEN the compass used to trace a line the fixed compass distance from the first line.
Then that thin strip of wood bent to the nails.(notice the 'outside' location of the top nail compared to the 'inside' location of the other nails)
Finally the pencil line drawn along inner edge of the now curved thin strip.
THEN the compass used to trace a line the fixed compass distance from the first line.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
masonsailor2
- Platinum Member
- Posts: 1564
- Joined: Wed Feb 05, 2014 11:57 am
- Location: Las Vegas NV
Re: Busy two days in the shop

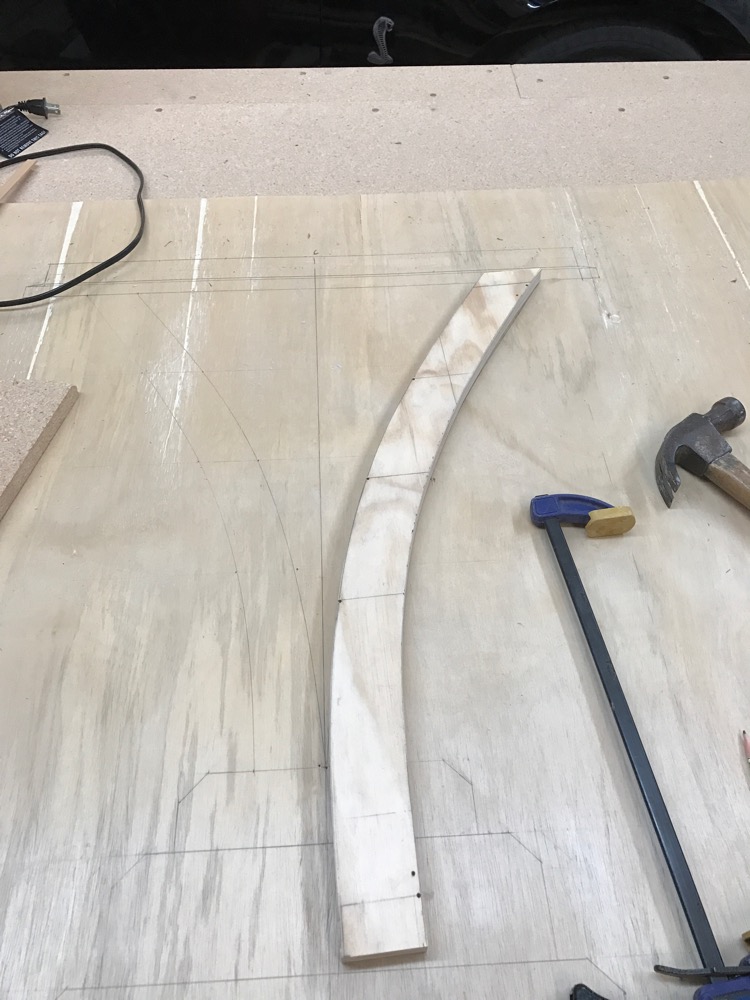

You were pretty much right on JPG. That is my layout method for making curved templates. The compass also is used to create a dotted line at the specified distance from the first line and that allows me to make sure the nails and the wooden strip on the second line exactly match the curve of the second line. It's a very quick and accurate method to create a template. Made some progress today on it. I will post more pics tomorrow.
Paul
Paul
-
masonsailor2
- Platinum Member
- Posts: 1564
- Joined: Wed Feb 05, 2014 11:57 am
- Location: Las Vegas NV
Re: Busy two days in the shop

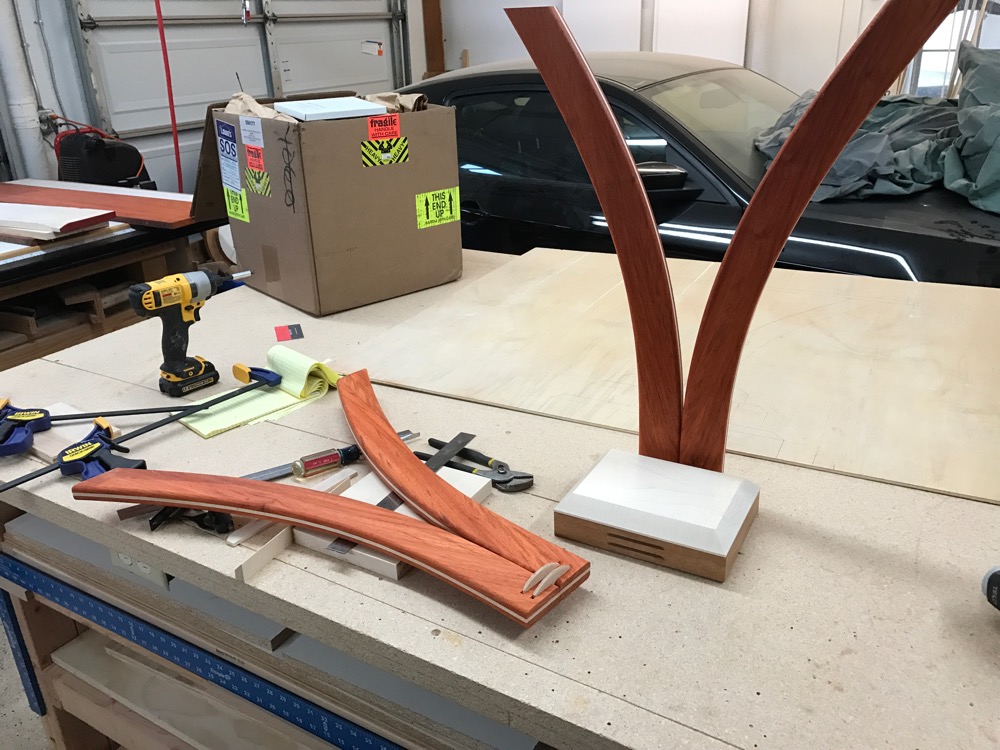

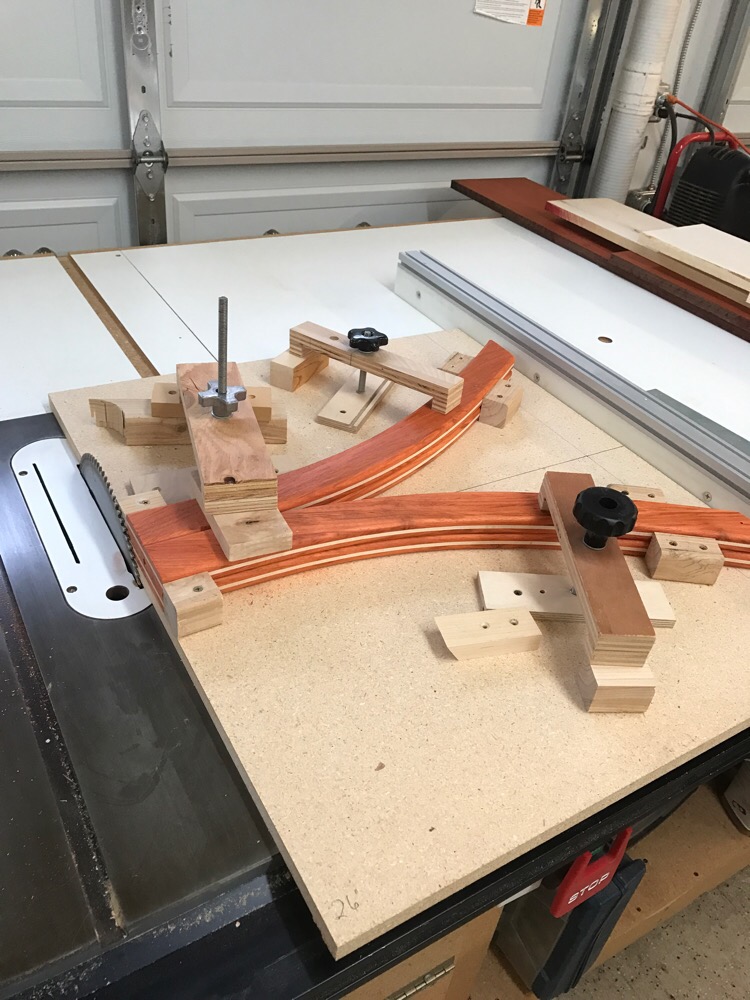

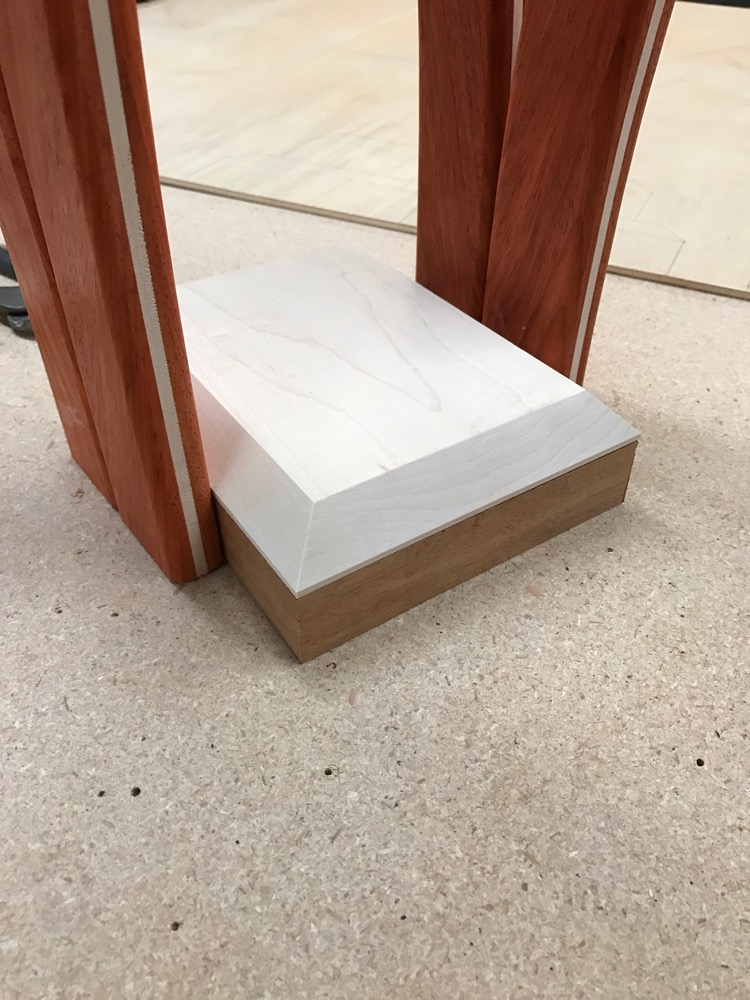

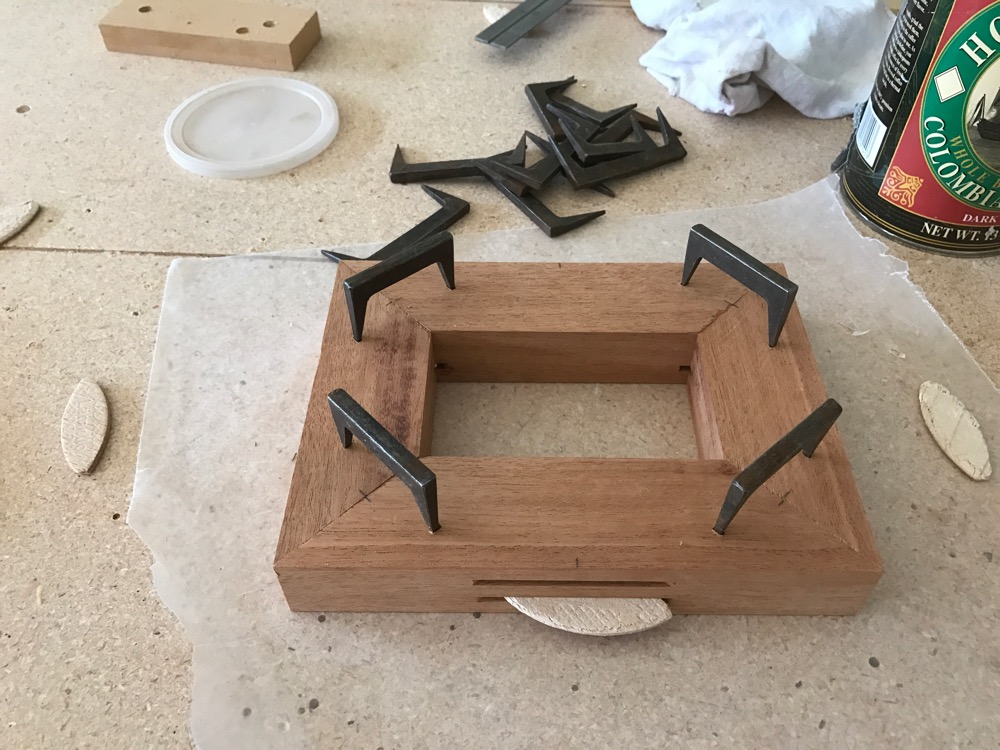

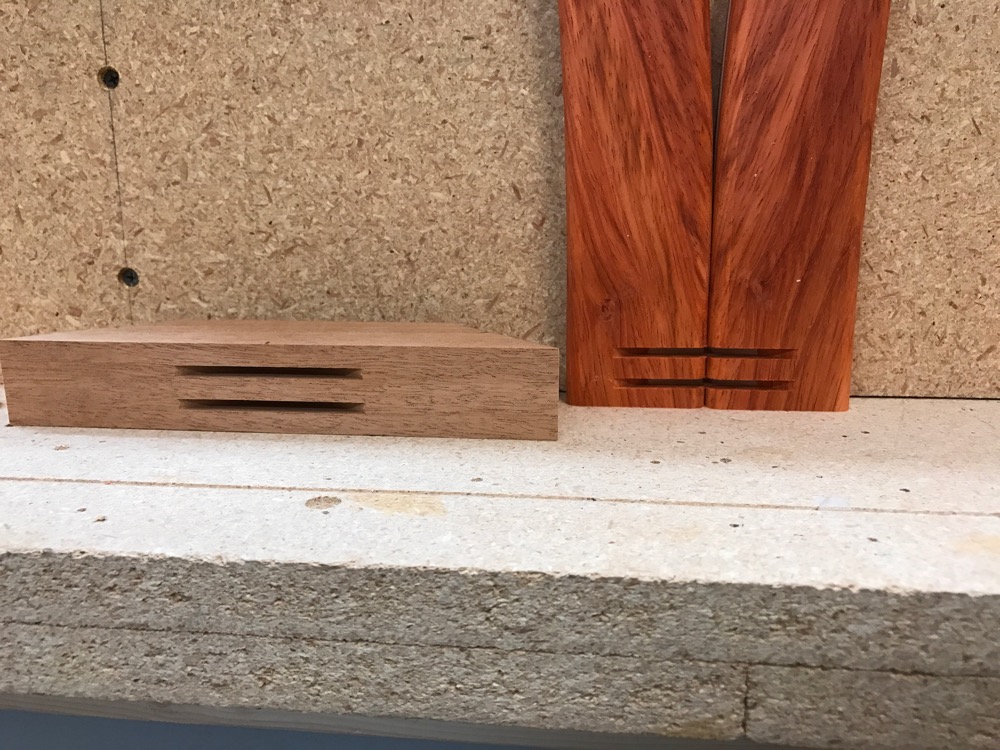

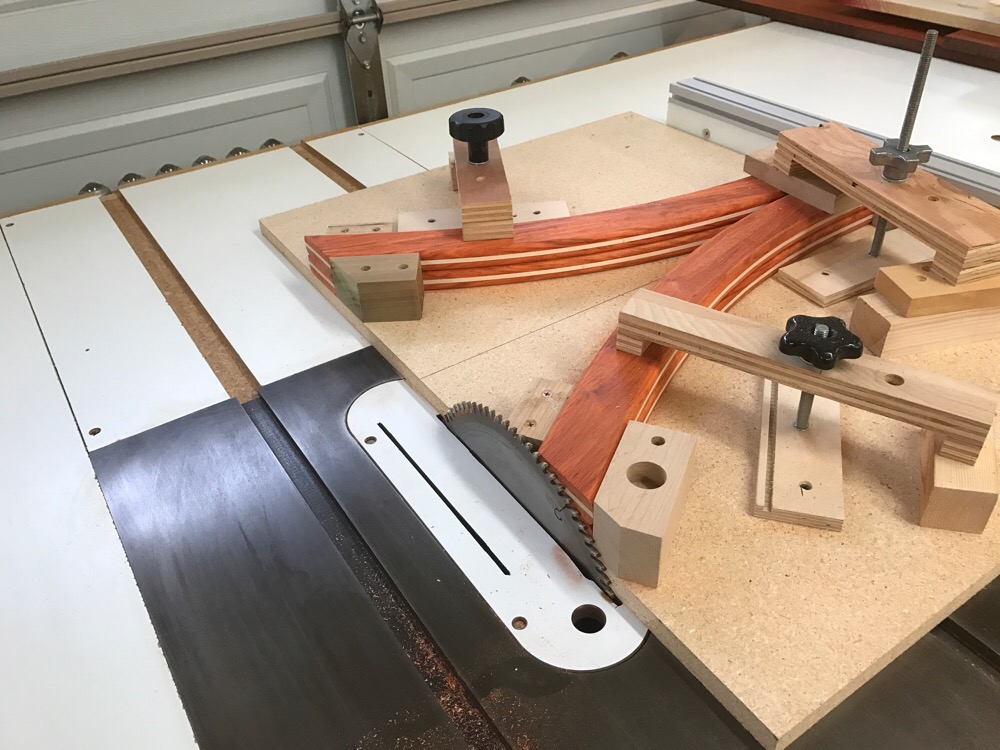

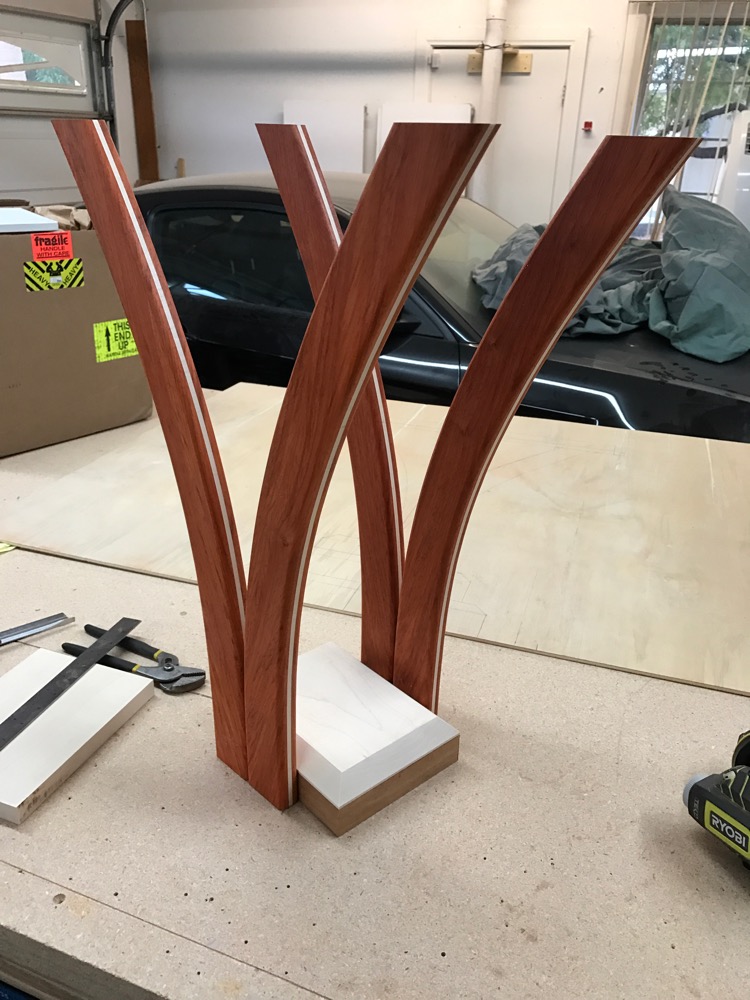

Well it's raining here today in Vegas so a good shop day. I will get the power pro upgrade done today and continue with the table. Yesterday I managed to get the legs cut to size, make thefirst level of the base and mortise the legs to it. There will be two more levels to the base which I will hopefully get done today.
Paul
Paul
- Attachments
-
- IMG_3808.JPG (204.86 KiB) Viewed 6657 times
-
- IMG_3809.JPG (194.06 KiB) Viewed 6657 times
-
- IMG_3802.JPG (220.91 KiB) Viewed 6657 times
-
- IMG_3806.JPG (255.36 KiB) Viewed 6657 times
-
- IMG_3803.JPG (217.87 KiB) Viewed 6657 times
-
- IMG_3804.JPG (194.5 KiB) Viewed 6657 times
-
- IMG_3805.JPG (200.67 KiB) Viewed 6657 times
Re: Busy two days in the shop
Beautiful work!
Gale's Law: The bigger the woodworking project, the less the mistakes show in any photo taken far enough away to show the entire project!
-
ERLover
- Platinum Member
- Posts: 3914
- Joined: Mon Aug 31, 2015 10:19 pm
- Location: Greenie and Goldie Country not to metion the WI Badgers!
Re: Busy two days in the shop
lOOKING GREAT.
KNOWLEDGE AND EXPERIENCE EQUALS WISDOM. Albert Einstein
The Greatness officially starts
Greenie, Grayling, SS stand alone BS and BS SPT, jointer and belt sander, 3 Ers with Speed Changers. I think those 3 cover my ER needs, and space for them.
The Greatness officially starts
Greenie, Grayling, SS stand alone BS and BS SPT, jointer and belt sander, 3 Ers with Speed Changers. I think those 3 cover my ER needs, and space for them.
Re: Busy two days in the shop
VERYVERY NICE!!
