Part location

Post by berry »

I was sweeping the shop the other day and found a roll pin. I know some of you know the equipment inside - out. Everything still seems to be working fine but it came from somewhere and I'd like to return it to where it belongs. What are the likely places I should look. (I have a 1982 500, upgraded to a 520 about 20 years ago.) I can post a pic if that would help. Thanks!
Top
User avatar
JPG
Platinum Member
Posts: 35600
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: Part location

Post by JPG »

Pin dimensions(diameter/length) would be helpful. ;) We know what a tension pin LOOKS like. :D
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
User avatar
dusty
Platinum Member
Posts: 21530
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Re: Part location

Post by dusty »

JPG wrote:Pin dimensions(diameter/length) would be helpful. ;) We know what a tension pin LOOKS like. :D
Tension pin, roll pin, spring pin -- I didn't know there was a difference.

It really doesn't matter where it came from now BUT I do believe that it would matter if there was NO tension spring thewre and you use the machine.

How long is it?
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Top
User avatar
dusty
Platinum Member
Posts: 21530
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Re: Part location

Post by dusty »

berry wrote:I was sweeping the shop the other day and found a roll pin. I know some of you know the equipment inside - out. Everything still seems to be working fine but it came from somewhere and I'd like to return it to where it belongs. What are the likely places I should look. (I have a 1982 500, upgraded to a 520 about 20 years ago.) I can post a pic if that would help. Thanks!
A picture or two of the pin laying along side a ruler would help.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Top
User avatar
berry
Platinum Member
Posts: 751
Joined: Sun Oct 15, 2006 5:46 pm
Location: St. Paul, MN

Re: Part location

Post by berry »

5/8 long 5/32 diameter
I'm having some computer issues but I'll work on a pic asap.
Top
User avatar
JPG
Platinum Member
Posts: 35600
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: Part location

Post by JPG »

Hinge pin retainer?
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
User avatar
JPG
Platinum Member
Posts: 35600
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: Part location

Post by JPG »

dusty wrote:
JPG wrote:Pin dimensions(diameter/length) would be helpful. ;) We know what a tension pin LOOKS like. :D
Tension pin, roll pin, spring pin -- I didn't know there was a difference.

. . .
A 'roll' pin and a 'tension' pin are both 'spring' pins.

A 'roll' pin was the original spring pin(multiple layers wound like a coil spring). They have been replaced by 'tension' pins that are a slightly incomplete hollow cylinder(slotted tube).

Both are intended to be used in a bore slightly smaller than the od of the pin. As the pin is forced into the bore the pin od gets smaller and the spring force presses against the bore walls and it becomes self retained.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
ERLover
Platinum Member
Posts: 3914
Joined: Mon Aug 31, 2015 10:19 pm
Location: Greenie and Goldie Country not to metion the WI Badgers!

Re: Part location

Post by ERLover »

Do you have a castor set on your SS? If I remember they have some in them, I think.
KNOWLEDGE AND EXPERIENCE EQUALS WISDOM. Albert Einstein
The Greatness officially starts :D :D :D :D :D :D
Greenie, Grayling, SS stand alone BS and BS SPT, jointer and belt sander, 3 Ers with Speed Changers. I think those 3 cover my ER needs, and space for them. :)
Top
User avatar
berry
Platinum Member
Posts: 751
Joined: Sun Oct 15, 2006 5:46 pm
Location: St. Paul, MN

Re: Part location

Post by berry »

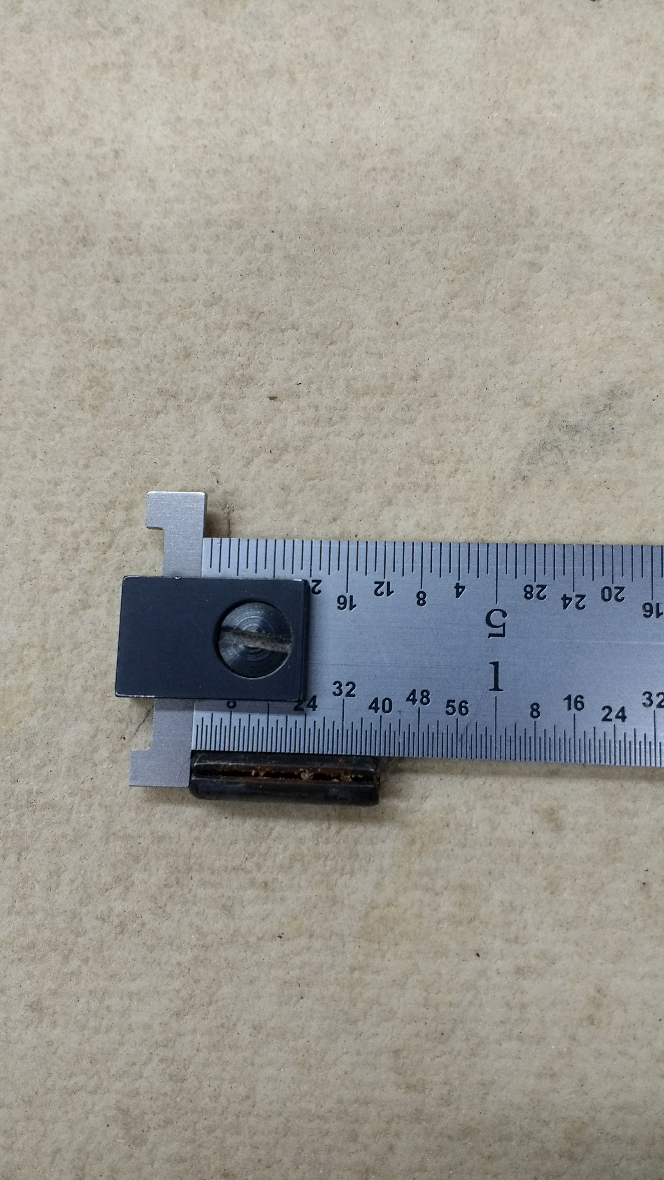

I have the newer castors. And here's the pic
roll pin.jpg
roll pin.jpg (785.57 KiB) Viewed 3689 times
Top
ERLover
Platinum Member
Posts: 3914
Joined: Mon Aug 31, 2015 10:19 pm
Location: Greenie and Goldie Country not to metion the WI Badgers!

Re: Part location

Post by ERLover »

Look your castors over, I am not at home to check mine but I think they use roll pins around or with the cams.
KNOWLEDGE AND EXPERIENCE EQUALS WISDOM. Albert Einstein
The Greatness officially starts :D :D :D :D :D :D
Greenie, Grayling, SS stand alone BS and BS SPT, jointer and belt sander, 3 Ers with Speed Changers. I think those 3 cover my ER needs, and space for them. :)
