Nova jaws, what are these holes for?

Post by reible »

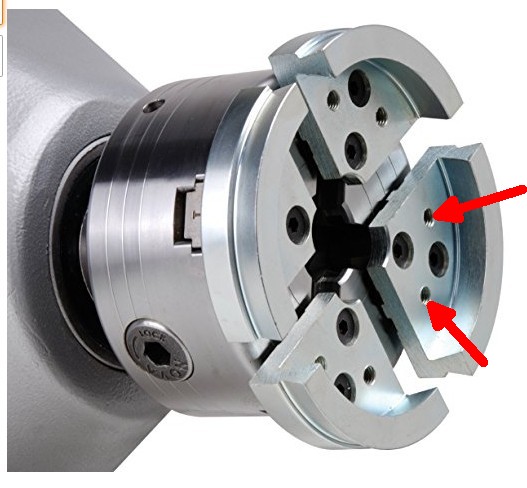

I've just ordered a larger set of jaws for my Nova chucks and noticed these holes. Just wondering what they are for, none of my other jaws have them but then they are all smaller......... They should be here on Monday so maybe the paper work will tell me but if you just happen to already know? Please don't waste your own time looking it up, just if you know and post a line of two that would be great.
Ed
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
Top
User avatar
rpd
Platinum Member
Posts: 3045
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Re: Nova jaws, what are these holes for?

Post by rpd »

reible wrote:I've just ordered a larger set of jaws for my Nova chucks and noticed these holes. Just wondering what they are for, none of my other jaws have them but then they are all smaller......... They should be here on Monday so maybe the paper work will tell me but if you just happen to already know? Please don't waste your own time looking it up, just if you know and post a line of two that would be great.


Ed
On line manual says they are for mounting optional wooden jaws. see page 31
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Top
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Re: Nova jaws, what are these holes for?

Post by reible »

That sounds interesing!

Not sure what the problem is but the link is not working for me.... sorry.

Ed
rpd wrote:
reible wrote:I've just ordered a larger set of jaws for my Nova chucks and noticed these holes. Just wondering what they are for, none of my other jaws have them but then they are all smaller......... They should be here on Monday so maybe the paper work will tell me but if you just happen to already know? Please don't waste your own time looking it up, just if you know and post a line of two that would be great.


Ed
On line manual says they are for mounting optional wooden jaws. see page 31
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
Top
User avatar
rpd
Platinum Member
Posts: 3045
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Re: Nova jaws, what are these holes for?

Post by rpd »

reible wrote:That sounds interesing!

Not sure what the problem is but the link is not working for me.... sorry.

Ed
Strange it works for me but could be because I already have it downloaded.
Try this one. https://teknatool.freshdesk.com/support ... aw-manual-
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Top
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Re: Nova jaws, what are these holes for?

Post by reible »

Thank you that seems to work.

Ed
