Mixing hobbies - woodworking and 3D printing
Moderator: admin
Mixing hobbies - woodworking and 3D printing

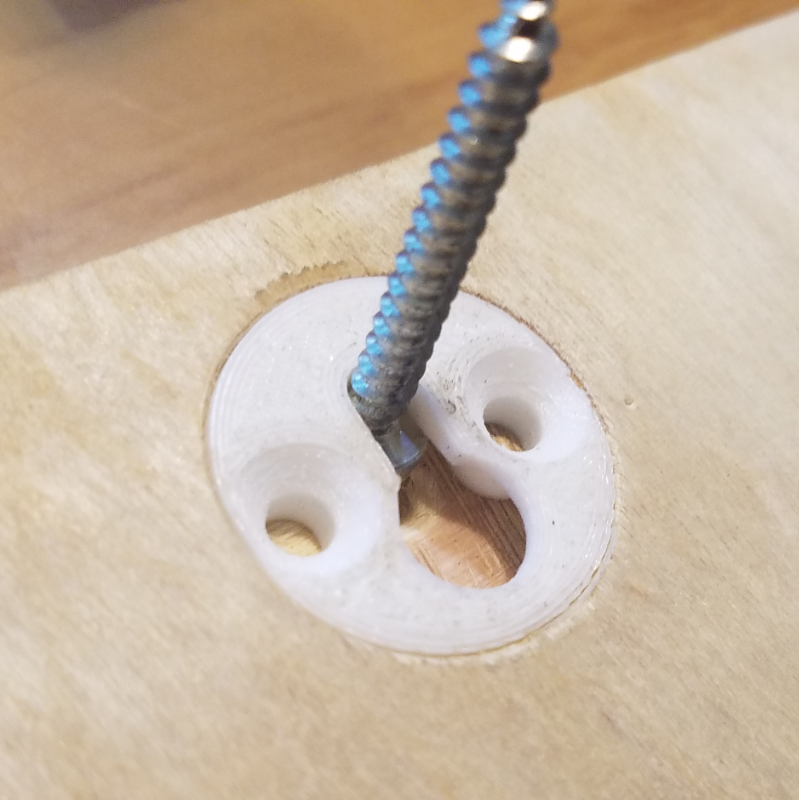

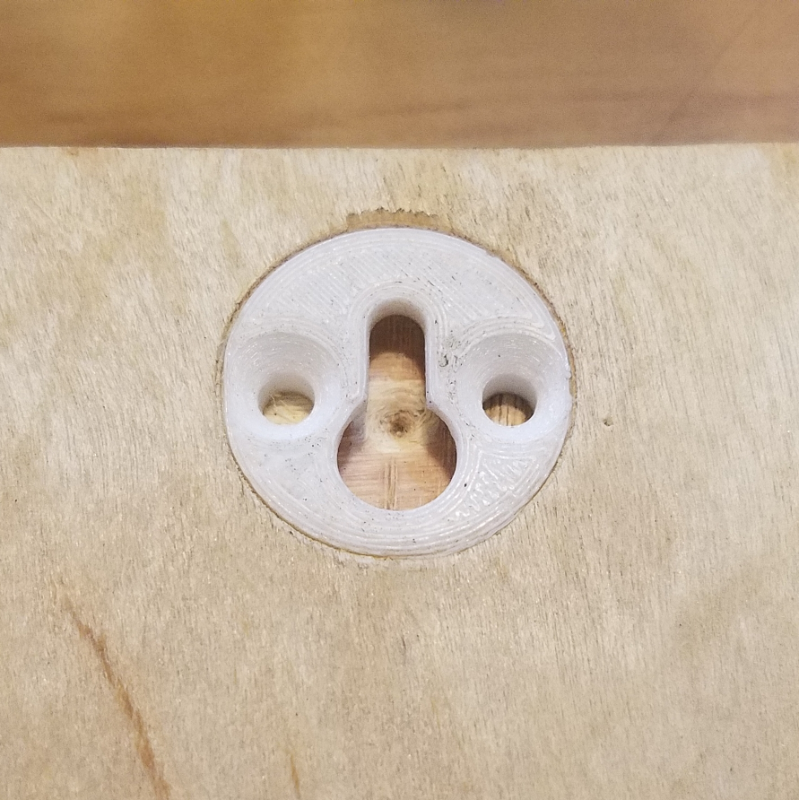

My daughter grabs any scrap piece of plywood I have so she can make string art. She asked me todag to drill a hole in one of them so she could hang it. But I thought I could do better than that. Since I don't have a key hole slot router bit (or a router) I decided I could 3D print an insert. I already had white loaded in the printer so jhst used that. It perfectly fits a 1" hole from a Forstner bit with a very tight friction fit. Although there are screw holes to screw it in place, they're really not needed. Also, you can't see it in the pics, but the inside has a taper to it. So, like a French Cleat, it will pull the board against the wall. So I don't have to fiddle with adjusting the screw "just right."
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
-
terrydowning
- Platinum Member
- Posts: 1678
- Joined: Mon Jul 19, 2010 3:26 pm
- Location: Windsor, CO
Re: Mixing hobbies - woodworking and 3D printing
what kind of 3D printer do you have? What material did you use?
Re: Mixing hobbies - woodworking and 3D printing
That's pretty cool!
I just broke out a keyhole router bit that I had bought from Shopsmith 10 years agod. It worked great, but your idea is all the cooler!
Chris
I just broke out a keyhole router bit that I had bought from Shopsmith 10 years agod. It worked great, but your idea is all the cooler!
Chris
Re: Mixing hobbies - woodworking and 3D printing
I currently have 4 printers, but I'm about to get rid of 2 of them. The two I'm going to keep are both Wanhao Duplicator i3 (aka Monoprice Maker Select). I've mostly been printing drone parts out of TPU the last couple years for a little side income. This insert was printed in PLA. It's easy to print and does not produce toxic fumes like ABS.terrydowning wrote:what kind of 3D printer do you have? What material did you use?
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Re: Mixing hobbies - woodworking and 3D printing

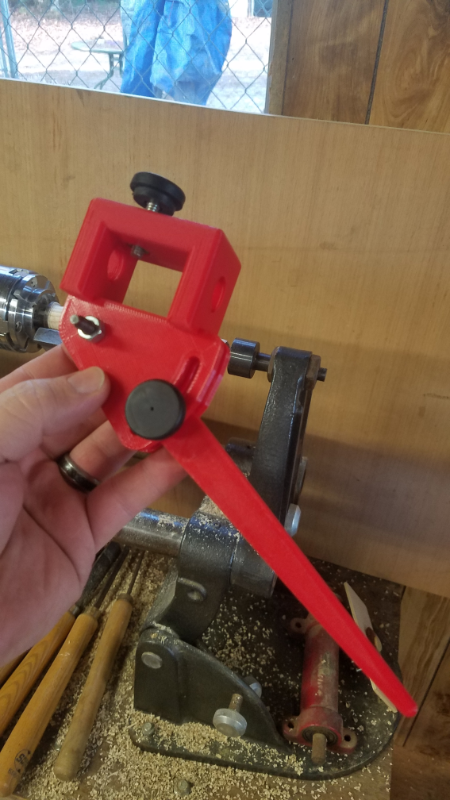

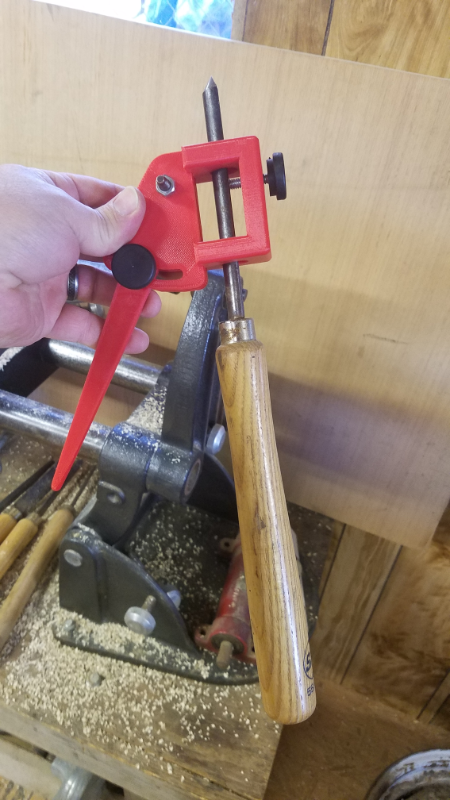

Today's melding of hobbies...
- Attachments
-
- 20171202_160504_edited.png (527.21 KiB) Viewed 17660 times
-
- 20171202_160544_edited.png (536.19 KiB) Viewed 17659 times
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Re: Mixing hobbies - woodworking and 3D printing

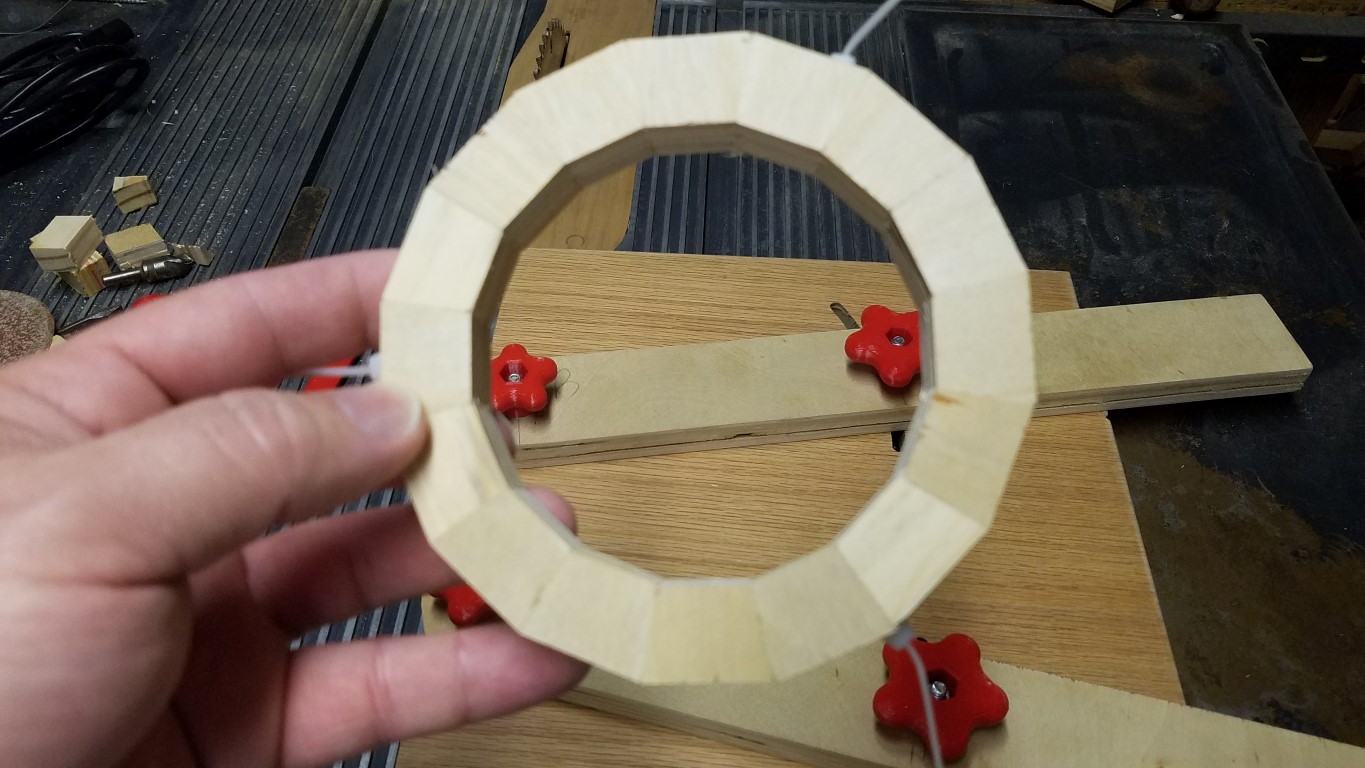

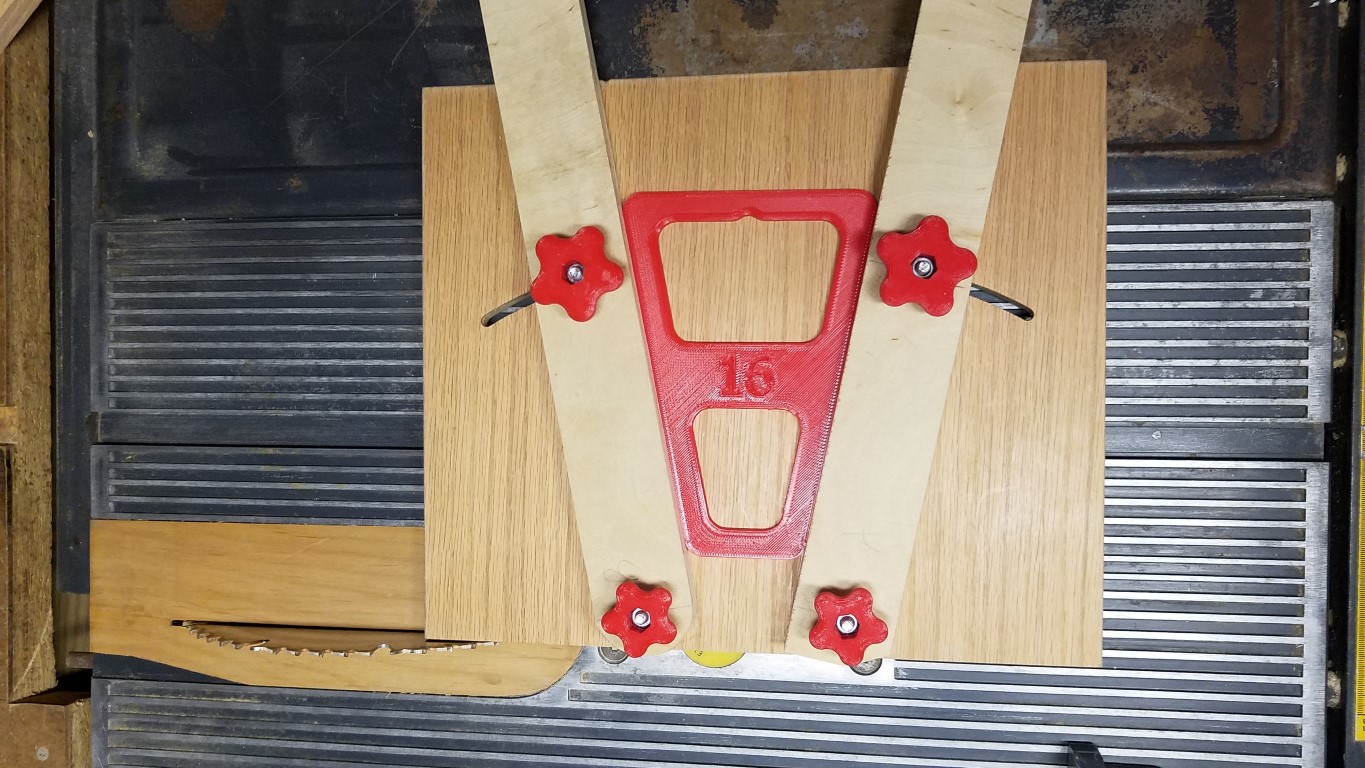

First test cut on my wedgie sled with a 3D printed wedge for 16 segments. Came out perfect!
- 20180218_204632.jpg (217.02 KiB) Viewed 17206 times
- 20180218_204408.jpg (309.14 KiB) Viewed 17206 times
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Re: Mixing hobbies - woodworking and 3D printing
Awesome ingenuity!
keep posing like that, and I may have to "contract" some ideas to you...
Chris
keep posing like that, and I may have to "contract" some ideas to you...
Chris
-
rjent
- Platinum Member
- Posts: 2121
- Joined: Fri Mar 14, 2014 3:00 pm
- Location: Hot Springs, New Mexico
Re: Mixing hobbies - woodworking and 3D printing
I am impressed! Great job and application of both worlds!
Dick
1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....
"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....
"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
-
JPG
- Platinum Member
- Posts: 35598
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Mixing hobbies - woodworking and 3D printing
>>>>> 11.25° <<<<< ?
How much $ in raw material?
How much $ in raw material?
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Re: Mixing hobbies - woodworking and 3D printing
About a dollar in raw material cost. But that's only one part of the cost equation. This wedge took about an hour and a half to print. If I sold them, I'd price them at $5 per wedge.JPG wrote:>>>>> 11.25° <<<<< ?
How much $ in raw material?
