Jointer Part

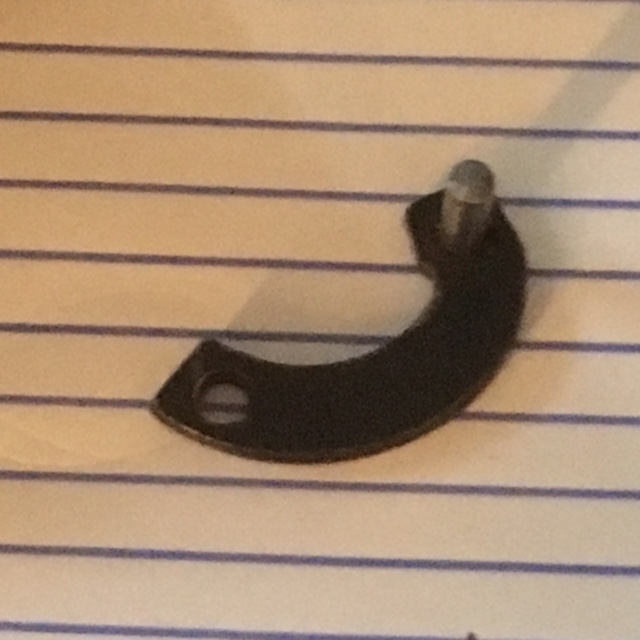

I am looking for c shaped flat part that goes between the fence and the fence holder part 44 in the c slot on both parts. i don't see that on the diagram. Does anyone know what is called and how to order it.
- Attachments
-
- part picture
- IMG_0814.jpg (93.01 KiB) Viewed 2296 times
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Jointer Part
I believe that was attached to the fence and is not supposed to be detached.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
dusty
- Platinum Member
- Posts: 21530
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona
Re: Jointer Part
Mike' the part that you show is part of the quadrant and I do not believe it is available from Shopsmith except as part of an assembly (Quadrant Assembly 502651 which was listed in my old catalog at about $50.00).
I thought I might have the part (along with the damaged Quadrant) but I do not. Sorry, I can't help there.
I thought I might have the part (along with the damaged Quadrant) but I do not. Sorry, I can't help there.
