Rebate plane
Moderators: HopefulSSer, admin
Rebate plane

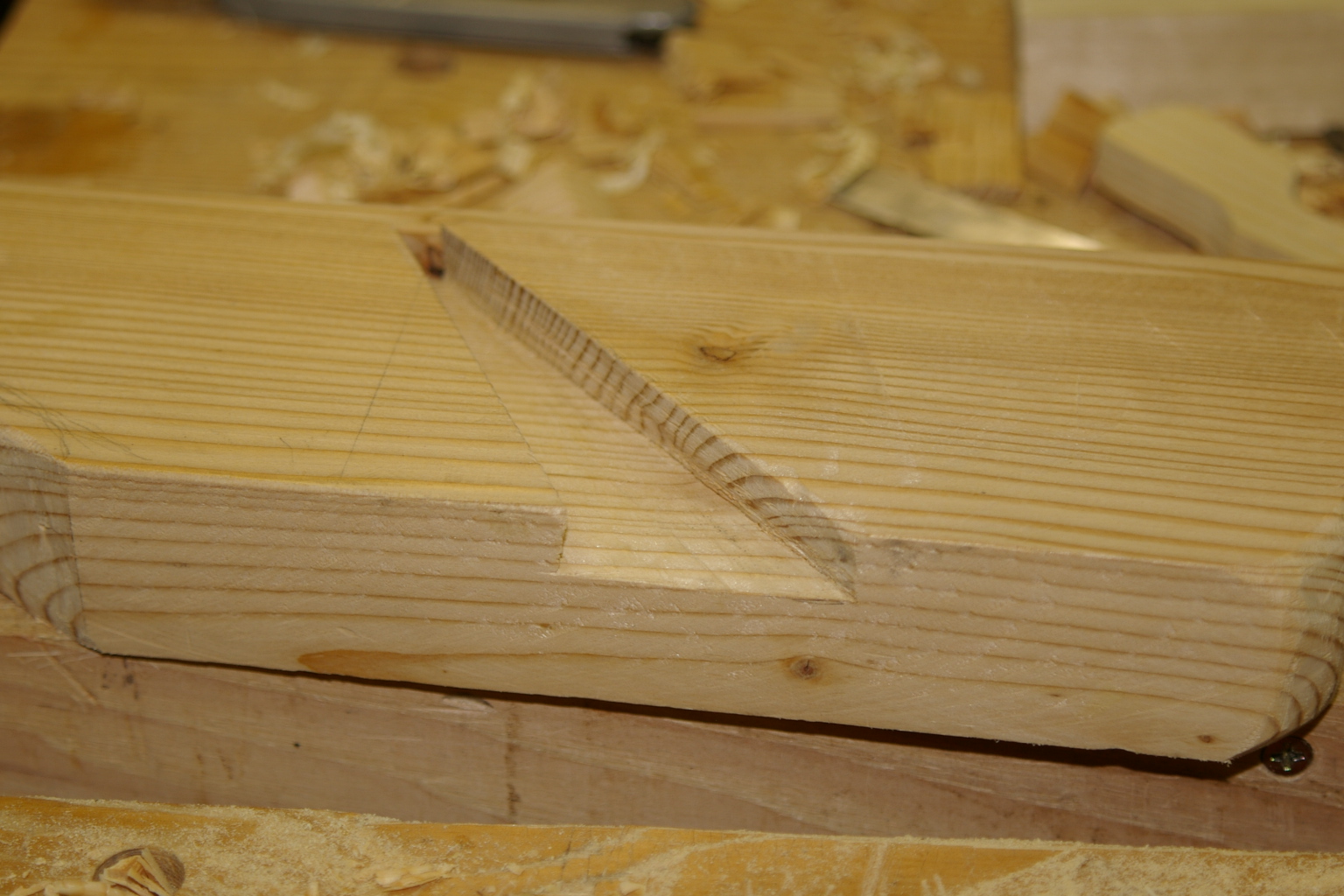

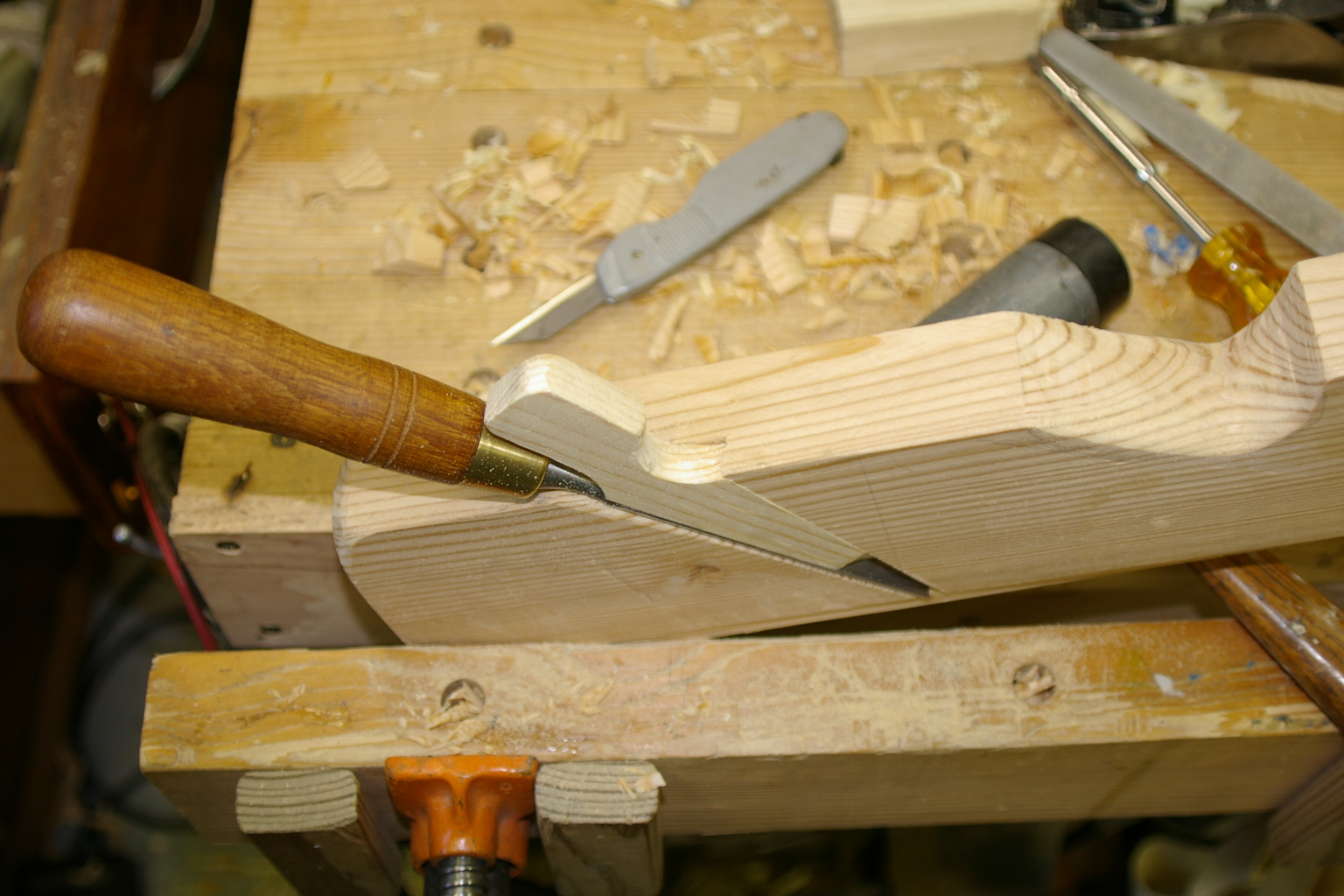

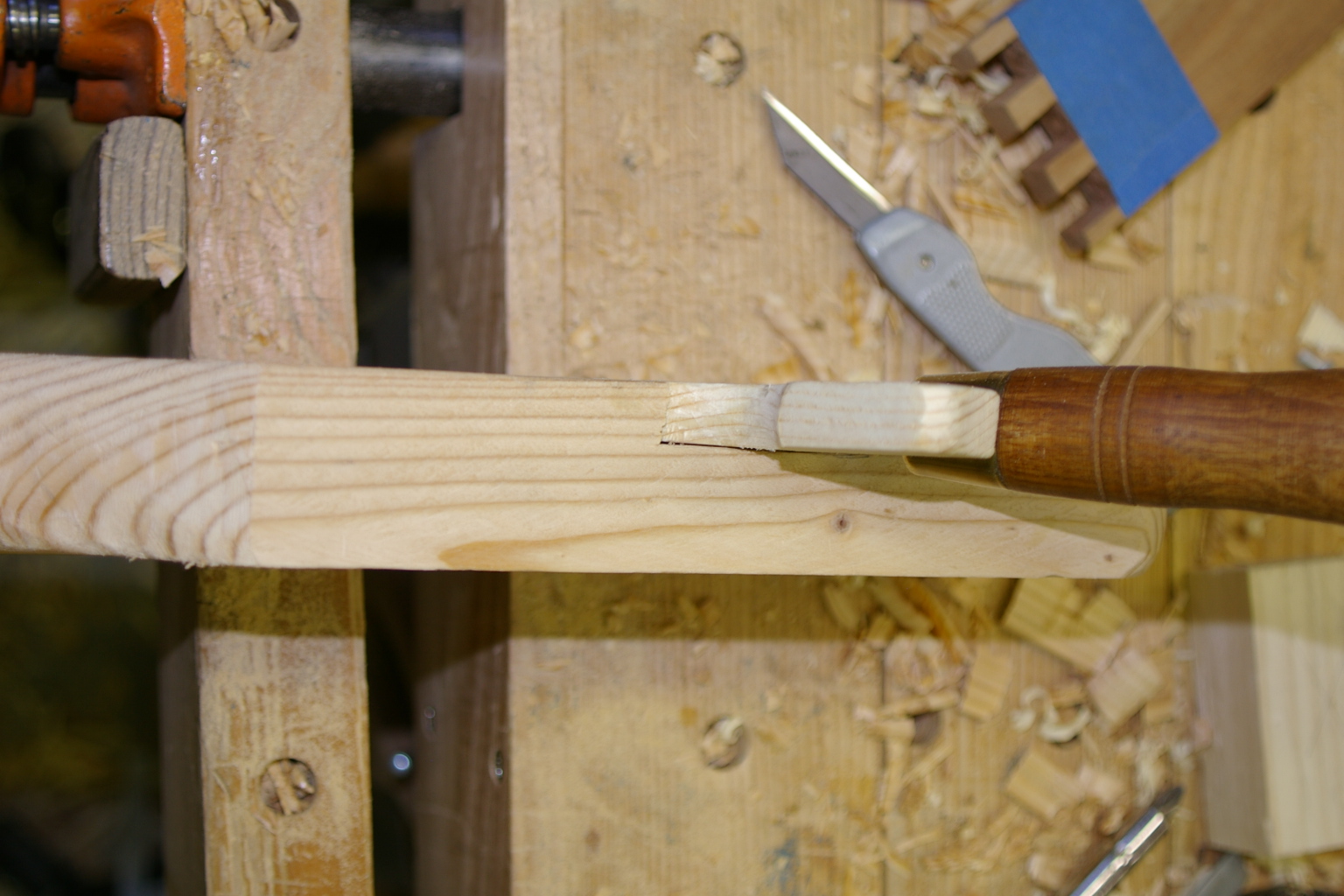

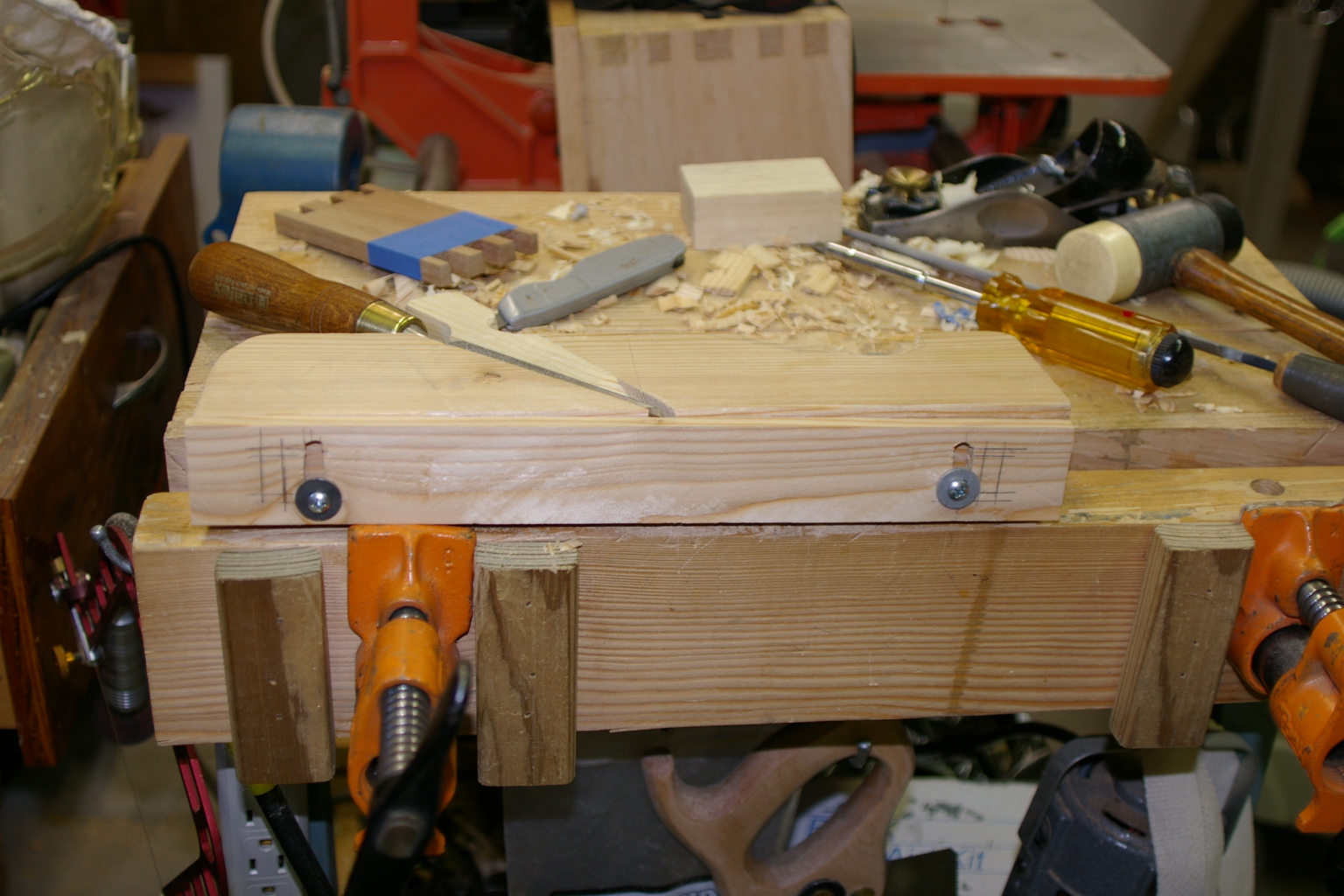

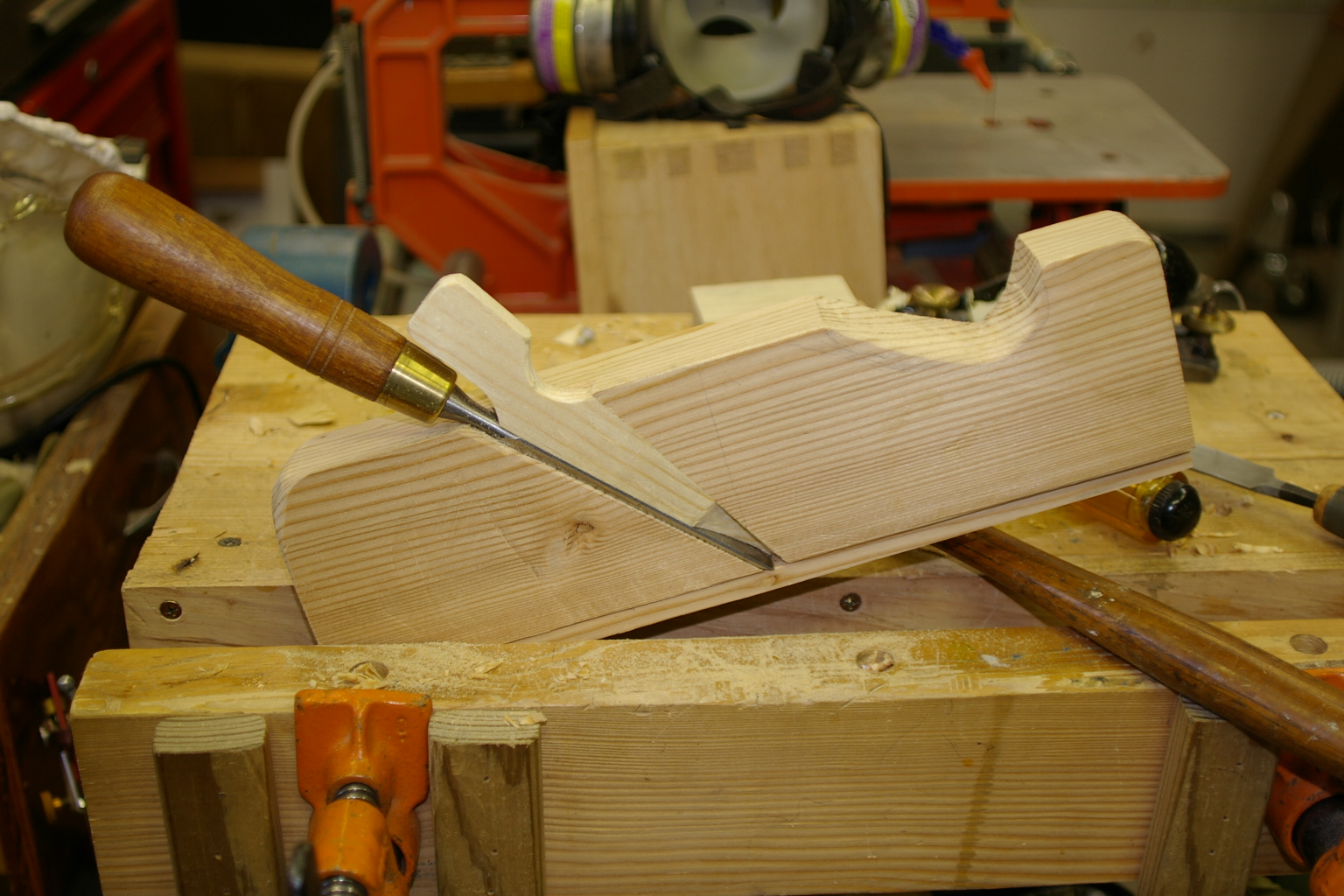

I didn't have one, so I made one. !/2 " chisel with fence.
Don G
Don G
- Attachments
-
- IMGP0006.JPG (704.33 KiB) Viewed 19322 times
-
- IMGP0007.JPG (637.23 KiB) Viewed 19322 times
-
- IMGP0008.JPG (577.41 KiB) Viewed 19322 times
-
- IMGP0009.JPG (663.65 KiB) Viewed 19322 times
-
- IMGP0010.JPG (609.42 KiB) Viewed 19322 times
Re: Rebate plane
Very nice!
It also reminds me of another article I saw on a molding plane where the recess-ramp was open on one side. No reason it can't work!
Thanks,
Chris
It also reminds me of another article I saw on a molding plane where the recess-ramp was open on one side. No reason it can't work!
Thanks,
Chris
Re: Rebate plane
and here is a youtube video describing in detail how to go about making it. Paul Sellers is an inspiring hand tool woodworker with a great weekly video series.
https://www.youtube.com/watch?v=yTuOtmlRhAI
https://www.youtube.com/watch?v=yTuOtmlRhAI
Re: Rebate plane
tenbears
I was looking at the Paul Sellars video for clues about how to make one.
Don G
I was looking at the Paul Sellars video for clues about how to make one.
Don G
Re: Rebate plane
Very nice.
hard wood will last longer then pine , especially when you start using it a lot.
What was the angle of the grind on the chisel ? and are you going to put a finish on it? a little wax the bottom edge will help .
I have been a fan of Paul Sellers for a long time , the first video of his I watched was his work bench build !!
Been hooked every since .
He works with hand tools and makes it look easy .
hard wood will last longer then pine , especially when you start using it a lot.
What was the angle of the grind on the chisel ? and are you going to put a finish on it? a little wax the bottom edge will help .
I have been a fan of Paul Sellers for a long time , the first video of his I watched was his work bench build !!
Been hooked every since .
He works with hand tools and makes it look easy .
Hobbyman2 Favorite Quote: "If a man does his best, what else is there?"
- General George S. Patton (1885-1945)
- General George S. Patton (1885-1945)
Re: Rebate plane
I'm another Paul Sellers fan.Hobbyman2 wrote: I have been a fan of Paul Sellers for a long time , the first video of his I watched was his work bench build !!
Been hooked every since .
He works with hand tools and makes it look easy .
![Smile :)](./images/smilies/smile.gif)
![Wink ;)](./images/smilies/wink.gif)
http://www.shopsmith.com/ss_forum/viewt ... p?p=143025
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Re: Rebate plane
Hobbyman2
I ground it 30 degrees with a micro bevel 3 or 4 degrees. If I use it enough, I will make one out of hardwood, probably Pecan or Walnut.
Don G
I ground it 30 degrees with a micro bevel 3 or 4 degrees. If I use it enough, I will make one out of hardwood, probably Pecan or Walnut.
Don G
-
- Platinum Member
- Posts: 1564
- Joined: Wed Feb 05, 2014 11:57 am
- Location: Las Vegas NV
Re: Rebate plane
Nice job !
Paul
Paul
-
- Gold Member
- Posts: 190
- Joined: Sat May 05, 2012 5:43 am
- Location: Pittsfield, Maine
Re: Rebate plane
Very nice, thanks for posting. I'm also a fan of Paul Sellers, they wouldn't let me carry the lumber in his shop....
- robinson46176
- Platinum Member
- Posts: 4182
- Joined: Mon Mar 09, 2009 9:00 pm
- Location: Central Indiana (Shelbyville)
Re: Rebate plane
dgreen810 wrote:Hobbyman2
I ground it 30 degrees with a micro bevel 3 or 4 degrees. If I use it enough, I will make one out of hardwood, probably Pecan or Walnut.
Don G
Around here in the old days beech was pretty popular for wooden planes. Many of them had harder soles laminated onto them. Hedge or black locust would probably serve well. I had a whole set of wooden specialty profile planes and some other tools including a wood and brass bit brace. I didn't ever want to use them since they had belonged to one of my great great grandfather's and I didn't want to risk damaging them. I passed them along to my son and I know he will take care of them. I also gave him a wooden spoke shave I had acquired at an auction sale of a busy copper-smith I was acquainted with years ago. He was moving his shop about 8 miles and reorganizing. He told me that he found it while tearing down a log cabin and that where they found it up in the connection between the roof and the top of the wall it had to have been left there when the old cabin was built in the late 1700's. Somehow it just seemed to belong with those tools of my gg-gf.
![Smile :)](./images/smilies/smile.gif)
.
--
farmer
Francis Robinson
I did not equip with Shopsmiths in spite of the setups but because of them.
1 1988 - Mark V 510 (bought new), 4 Poly vee 1 1/8th HP Mark V's, Mark VII, 1 Mark V Mini, 1 Frankensmith, 1 10-ER, 1 Mark V Push-me-Pull-me Drillpress, SS bandsaw, belt sander, jointer, jigsaw, shaper attach, mortising attach, TS-3650 Rigid tablesaw, RAS, 6" long bed jointer, Foley/Belsaw Planer/molder/ripsaw, 1" sander, oscillating spindle/belt sander, Scroll saw, Woodmizer sawmill
