Where Does This Go?
Found under my 510. L=5/8, 13 TPI, 1/4 Allen
- Attachments
-
- P1110785.JPG (26.05 KiB) Viewed 7710 times
-
- P1110784.JPG (16.96 KiB) Viewed 7710 times
-
- P1110783.JPG (14.61 KiB) Viewed 7710 times
Re: Where Does This Go?
Just figured it out. It goes here.
- Attachments
-
- P1110786.JPG (487.76 KiB) Viewed 7705 times
Re: Where Does This Go?
LOL!
I've got a similar little plastic drawer full of the odds and ends. I really should chuck it.
I've got a similar little plastic drawer full of the odds and ends. I really should chuck it.
db5 wrote:Just figured it out. It goes here.
Gale's Law: The bigger the woodworking project, the less the mistakes show in any photo taken far enough away to show the entire project!
Re: Where Does This Go?
Goes on anything that has to mount n the quill. Set screws with a flat point are mostly used on the quill.
Bill V
Bill V
-
JPG
- Platinum Member
- Posts: 35598
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Where Does This Go?
I would be checking all my arbors.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
robinson46176
- Platinum Member
- Posts: 4182
- Joined: Mon Mar 09, 2009 9:00 pm
- Location: Central Indiana (Shelbyville)
Re: Where Does This Go?
Maybe 45 years ago my father labeled a large drawer in the farm shop that is still there today. It just says "One Of Those".
.
.
--
farmer
Francis Robinson
I did not equip with Shopsmiths in spite of the setups but because of them.
1 1988 - Mark V 510 (bought new), 4 Poly vee 1 1/8th HP Mark V's, Mark VII, 1 Mark V Mini, 1 Frankensmith, 1 10-ER, 1 Mark V Push-me-Pull-me Drillpress, SS bandsaw, belt sander, jointer, jigsaw, shaper attach, mortising attach, TS-3650 Rigid tablesaw, RAS, 6" long bed jointer, Foley/Belsaw Planer/molder/ripsaw, 1" sander, oscillating spindle/belt sander, Scroll saw, Woodmizer sawmill
farmer
Francis Robinson
I did not equip with Shopsmiths in spite of the setups but because of them.
1 1988 - Mark V 510 (bought new), 4 Poly vee 1 1/8th HP Mark V's, Mark VII, 1 Mark V Mini, 1 Frankensmith, 1 10-ER, 1 Mark V Push-me-Pull-me Drillpress, SS bandsaw, belt sander, jointer, jigsaw, shaper attach, mortising attach, TS-3650 Rigid tablesaw, RAS, 6" long bed jointer, Foley/Belsaw Planer/molder/ripsaw, 1" sander, oscillating spindle/belt sander, Scroll saw, Woodmizer sawmill
-
chapmanruss
- Platinum Member
- Posts: 4534
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Where Does This Go?

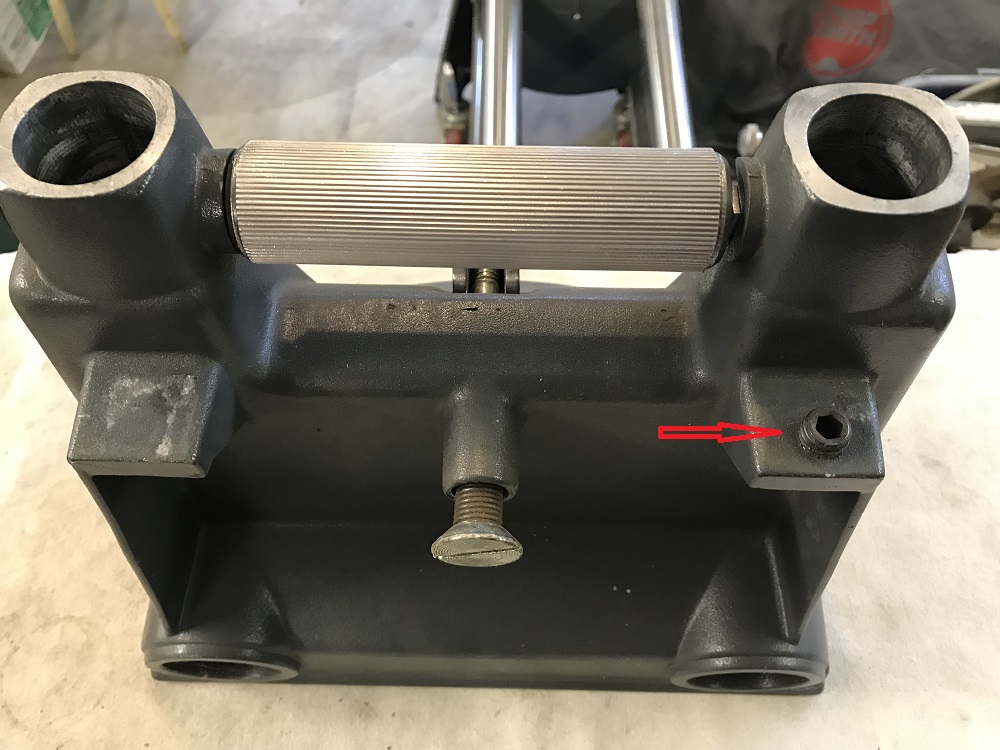

Don't loose it to the black hole of the misc. parts bin yet. It goes on your 510 on the headrest as shown below. So it can be seen better the set screw is shown in the picture backwards from how it goes in. It adjusts from below.
