This the last bit before my bandsaw gets its own permanent stand.
- 20180702_172839-768x1024.jpg (180.57 KiB) Viewed 6179 times
Motor direction issue
Moderator: admin
Motor direction issue

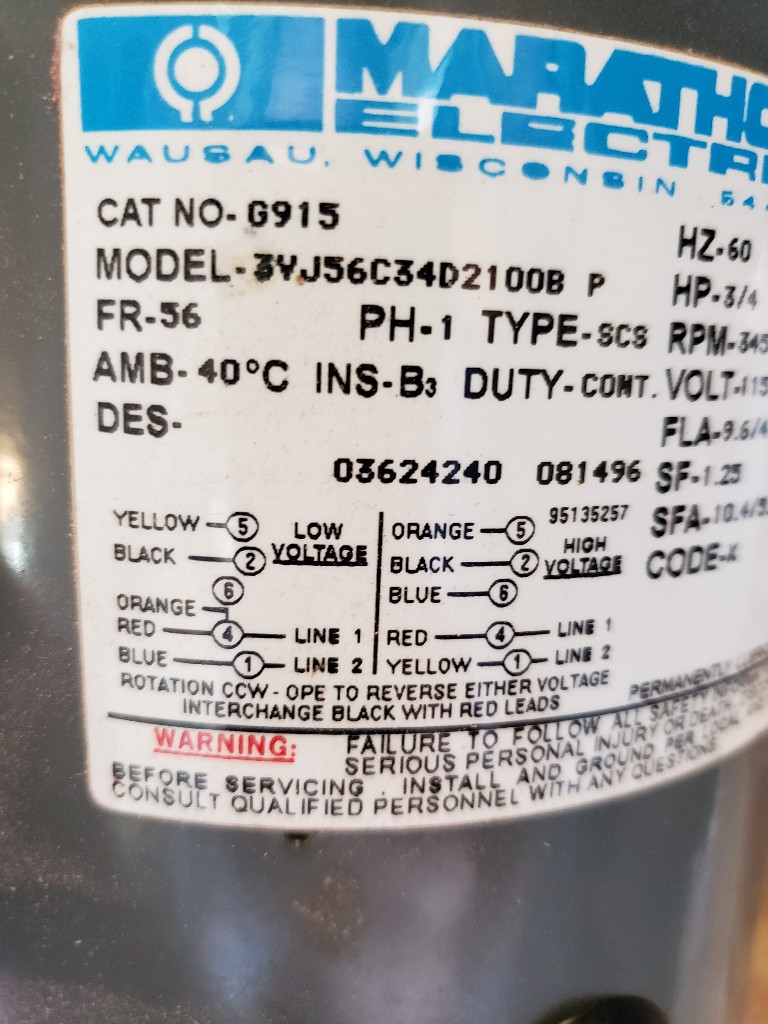

Got my stand for bandsaw set, but one overlooked issue... the motor direction is counter clockwise. Anyone familiar with motor specs that could tell me how exactly I can or cannot change direction? Took a picture of the spec label.
This the last bit before my bandsaw gets its own permanent stand.
This the last bit before my bandsaw gets its own permanent stand.
-Beave
Re: Motor direction issue
The label says it is reversible.Beave2012 wrote:Got my stand for bandsaw set, but one overlooked issue... the motor direction is counter clockwise. Anyone familiar with motor specs that could tell me how exactly I can or cannot change direction? Took a picture of the spec label.
This the last bit before my bandsaw gets its own permanent stand.
"Rotation CCW - OPE to reverse ... interchange Black with Red leads."
Take off the access plate where the wires enter the motor. There should be a terminal plate.
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Re: Motor direction issue
I was hopingmy guess was right. You gave me the confidence to "rewire" it. Lol. It works. I did not fry my motor and all is good. Thank you.rpd wrote:The label says it is reversible.Beave2012 wrote:Got my stand for bandsaw set, but one overlooked issue... the motor direction is counter clockwise. Anyone familiar with motor specs that could tell me how exactly I can or cannot change direction? Took a picture of the spec label.
This the last bit before my bandsaw gets its own permanent stand.
"Rotation CCW - OPE to reverse ... interchange Black with Red leads."
Take off the access plate where the wires enter the motor. There should be a terminal plate.
-Beave
-
wdphillips
- Gold Member
- Posts: 33
- Joined: Mon Feb 28, 2011 9:00 am
- Location: Trinidad, Colorado
Re: Motor direction issue
Flashback with the Marathon Electric motor!
I went to work for them as Electrical Engineer after graduating from the University of Wisconsin, BSEE, back in 75.
Designed motors and generators for 8 years.
BTW they are still in business.
Sent from my iPhone using Tapatalk
I went to work for them as Electrical Engineer after graduating from the University of Wisconsin, BSEE, back in 75.
Designed motors and generators for 8 years.
BTW they are still in business.
Sent from my iPhone using Tapatalk
1998 Mark V Model 510, Band Saw, Scroll Saw, Joiner, Belt Sander
