Drill Bit Sharpening

[TooTall]

Today I mounted one of those drill bit sharpening rigs onto the table of the Shopsmith by drilling 2 1/4" holes.

I put them in the center and in line with the chuck -- could have offset them too I suppose.

I put one of those 8" thin stones in the chuck, but it seems to me it is too coarse a grit for bits.

That big sanding disk that came with has some nice emery glued to it.
Would be a nice finishing touch to the first cutback.

Sorry, I'll go take a photo now for your entertainment.

Wait!
If One picture is worth a thousand words
Why did I write this letter

TT

[TooTall]

I give up! What a hassle trying to get the photo small enough to attach.
Other forums are a breeze.

[TooTall]

Any suggestions as to the best stone for bit sharpening?

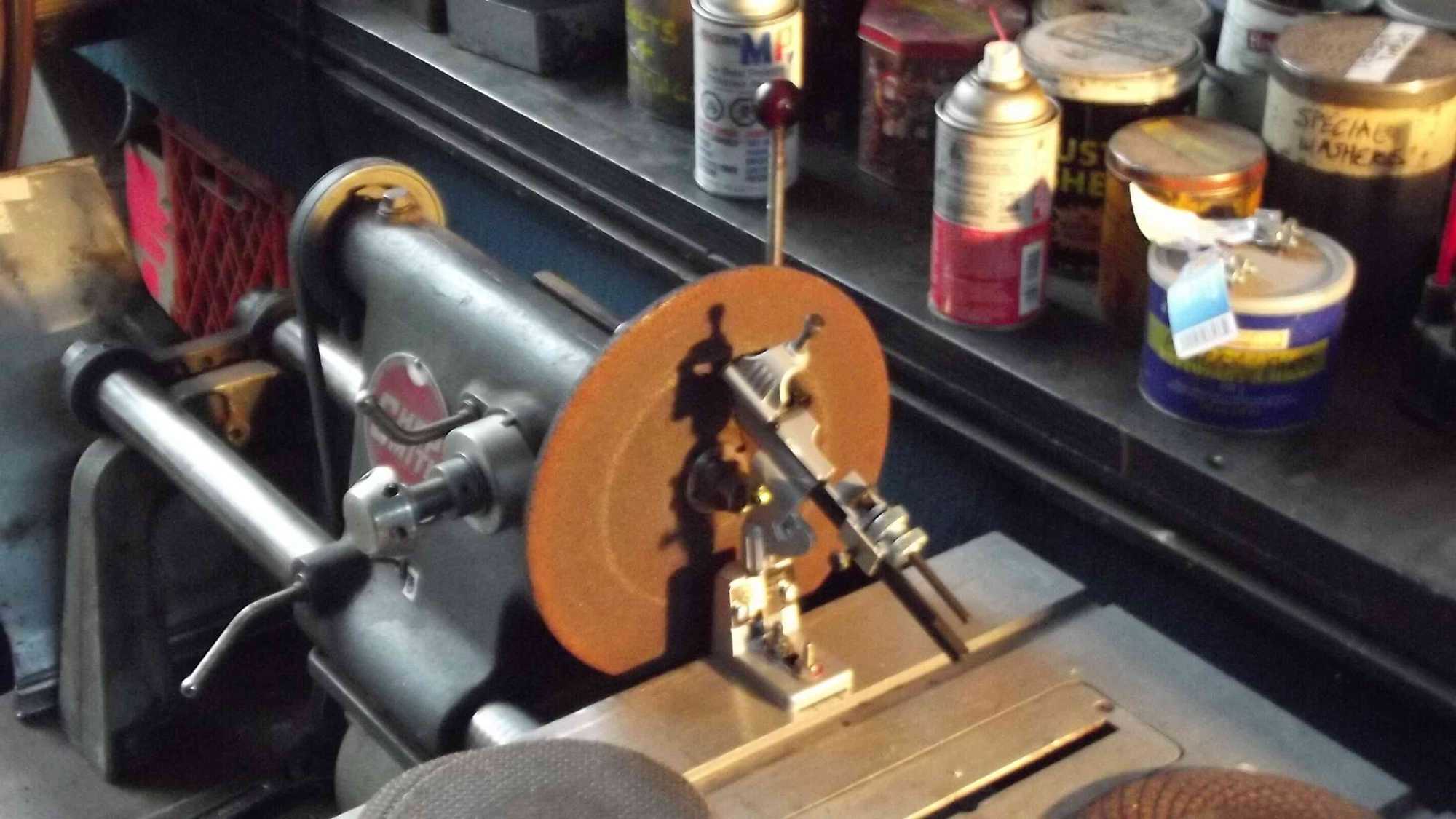

Sharpener Mt'd_3.jpg (139.47 KiB) Viewed 27231 times

[wa2crk]

Hi and welcome
I do my drill bit sharpening on a Drill Doctor. I have the original model and it puts a superior edge on conventional twist drill bits. All of the other do-dads left an inferior edge and/or angle.
Bill V

[JPG]

Sharpener Mt'd_3.jpg

Just about any fine grit 12" sanding disk will do.

NICE looking 10E!!!

[TooTall]

Thanks!
My browser keeps crashing when I try to reply.

My Smith came with emery cloth glued to the big sanding disk.
I'll have to try that.

It's an insult to call this a do-dad as though it's not much more than a gimmick. I almost sprung for a Drill Doctor but for under $30 I thought I'd give this a shot after watching a few videos.

There's a bit of an art to using this jig with success I'm thinking -- as opposed to plug-and-play for dummies.

Cheers,
T

[ryanbp01]

How do you sharpen brad point bits?

[TooTall]

Don't know what a Brad Point is.

[thunderbirdbat]

I have not needed to sharpen mine yet but I would guess a file or sharpening stone possibly even a dremel tool would work. It would have to be small enough to fit between the spur and center point. It may even be possible to make a sand paper paddle to fit the bit. If using sand paper, I would use 350 grit or higher the same as if you were sharpening a chisel or plane iron.

[rpd]

How do you sharpen brad point bits?

I think an auger bit file would be the way to go.

http://www.leevalley.com/us/wood/page.a ... 3089,70693
