Mark V Model 500 Jointer Cutter guard

docvox · Post by **docvox** » Sat Aug 31, 2019 10:15 pm

I recently puchased an abused Mark V Model 500 (I believe- manufactured 1982). I want to resurface the jointer in-feed and out-feed tables but cannot remove the cutter guard. The parts diagram shows a nut 3/8-16 nut on a "table mount stud" 502884 but I have a bolt there and cannot remove it, nor can I remove the "60-D Knob", and that does not resemble the round knob on my jointer. I presume I have the wrong parts diagram, but still am flummoxed and don't want to break anything.

JPG · Post by **JPG** » Sat Aug 31, 2019 10:22 pm

How about a picture of 'yours'.

P.S. Include a view of the underside where that 'bolt' passes through the infeed table.

docvox · Post by **docvox** » Mon Sep 02, 2019 12:56 pm

I am new to the forum. How do I post jpg files. I currently have 2 pics saved in my dropbox

JPG · Post by **JPG** » Mon Sep 02, 2019 1:28 pm

docvox wrote:I am new to the forum. How do I post jpg files. I currently have 2 pics saved in my dropbox

https://www.shopsmith.com/ss_forum/comm ... 19246.html

rpd · Post by **rpd** » Mon Sep 02, 2019 7:18 pm

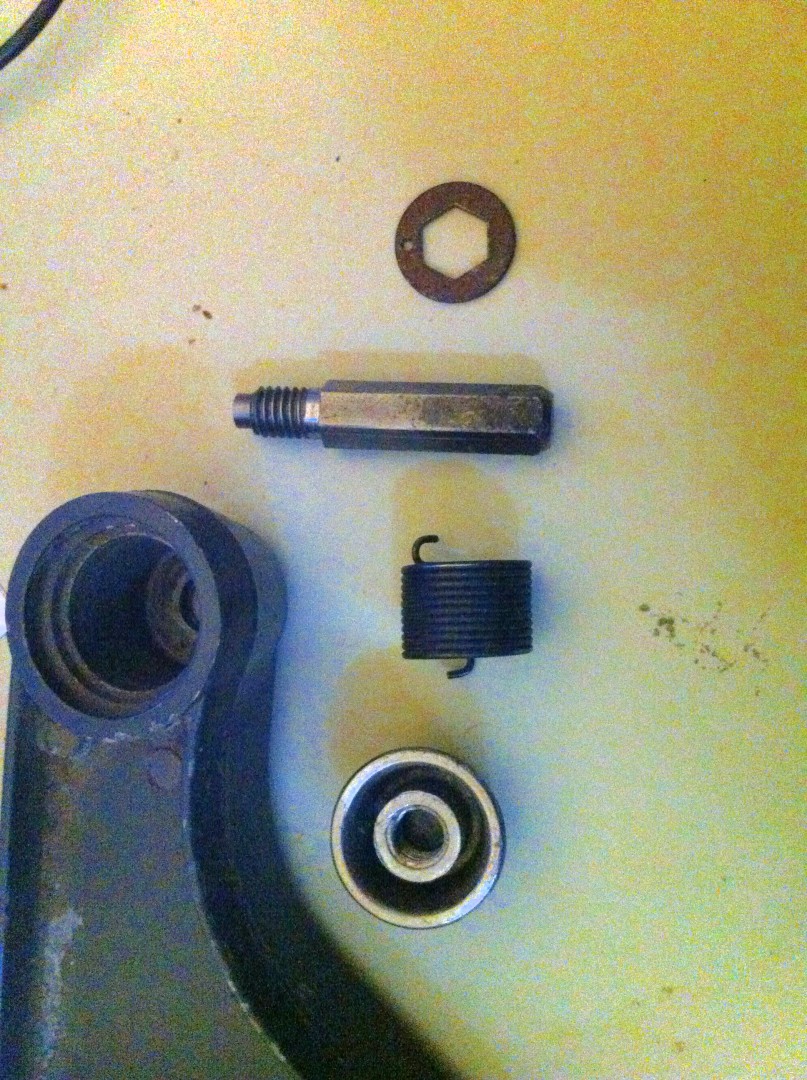

This is a picture of mine, disassembled. The hex shaft just sits in a hex hole in the bed.

: Jointerguard.JPG (304.27 KiB) Viewed 10846 times

JPG · Post by **JPG** » Mon Sep 02, 2019 7:49 pm

Somebody

posted this to the wrong thread earlier.

https://www.shopsmith.com/ss_forum/view ... 90#p262490
