Table Insert Identification

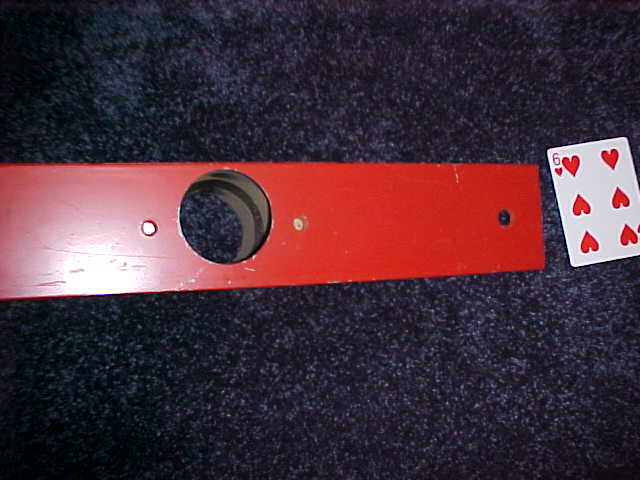

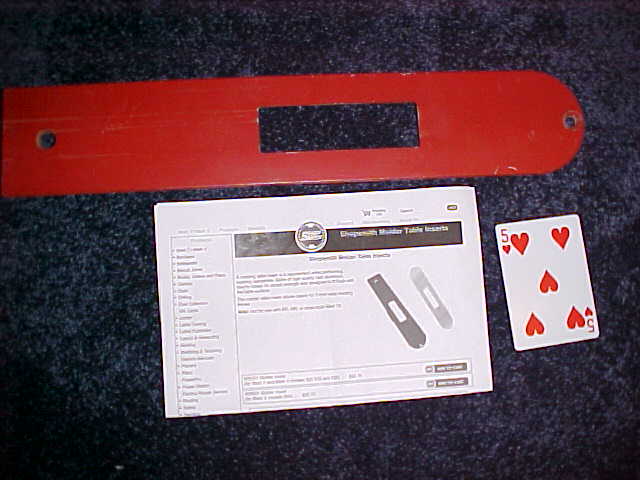

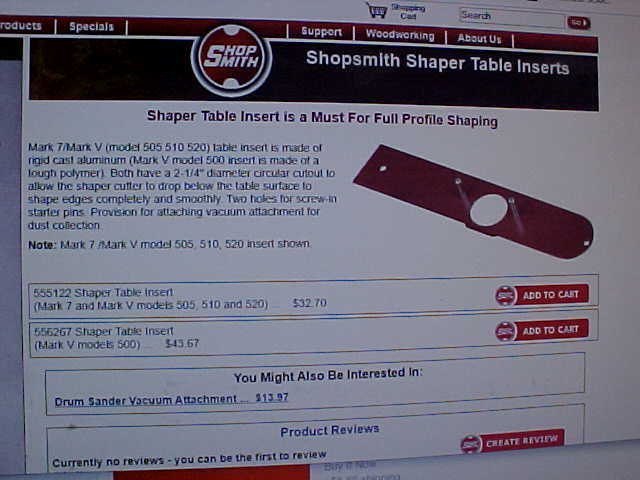

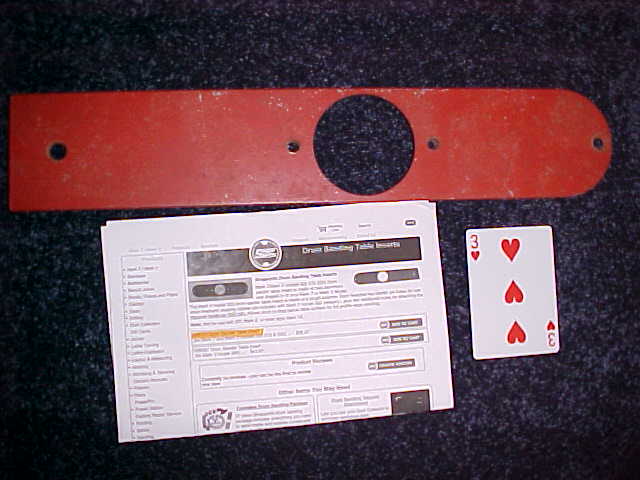

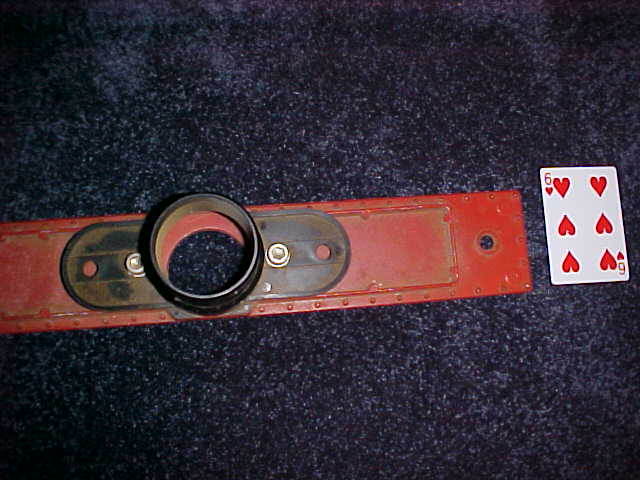

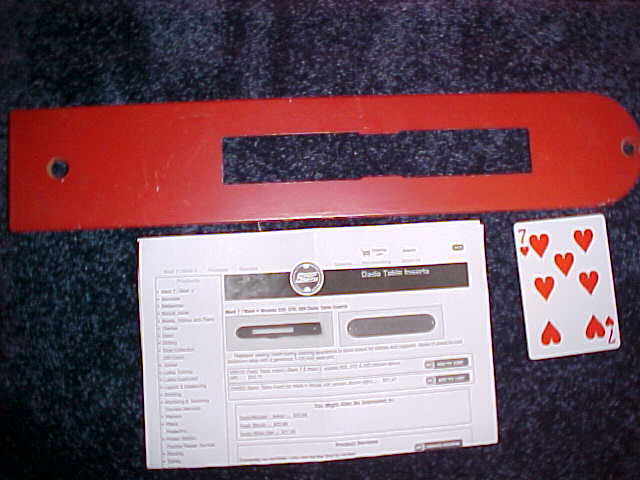

I recently acquired a Shopsmith Mark V with a 520 upgrade. The package included table inserts which I am attempting to identify. I've looked on Shopsmith's website but still need your assistance to confirm that I am correct and to properly identify the other two inserts which I am uncertain about. Are the starter pins an add on or does the insert come with the starter pins as reflected in the Shopsmith screen shot? The 6 of hearts and the 3 of hearts are similar except the diameter of the 3 of hearts is larger compared to the 6 of hearts. Are they used for shaping/routing? If Shopsmith stamped the inserts with their intended purpose, it would make things easy for newbies like me who purchase on the secondary market.Thanks in advance!
- Attachments
-
- MVC-102S.JPG (34.41 KiB) Viewed 5910 times
-
- MVC-103S.JPG (35.03 KiB) Viewed 5910 times
-
- MVC-104S.JPG (40.89 KiB) Viewed 5910 times
-
- MVC-105S.JPG (33.97 KiB) Viewed 5910 times
-
- MVC-106S.JPG (36.32 KiB) Viewed 5910 times
-
- MVC-107S.JPG (36.8 KiB) Viewed 5910 times
Re: Table Insert Identification
You have them all correctly identified.
The shaper insert should have came with the pins, I don't see them listed separately.
This post shows the dimensions of the pins, so you could likely make a set by modifying a 3/8-16 bolt.
https://www.shopsmith.com/ss_forum/view ... 12#p128912
The shaper insert should have came with the pins, I don't see them listed separately.
This post shows the dimensions of the pins, so you could likely make a set by modifying a 3/8-16 bolt.
https://www.shopsmith.com/ss_forum/view ... 12#p128912
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Table Insert Identification
FOR THOSE WITH LESS THAN 'PERFECT' EYESIGHT,
7♥ = DADO
5♥ = MOLDER
6♥ = SAND DRUM
3♥ = SHAPER
7♥ = DADO
5♥ = MOLDER
6♥ = SAND DRUM
3♥ = SHAPER
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Re: Table Insert Identification
That's what ctrl + (zoom in) is for.JPG wrote:FOR THOSE WITH LESS THAN 'PERFECT' EYESIGHT,
7♥ = DADO
5♥ = MOLDER
6♥ = SAND DRUM
3♥ = SHAPER
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Re: Table Insert Identification
I found the shaper pins, "shaper insert posts", item 501551) Thanks again!
