Coupler/Hub question
New Shopsmither with a Goldie I recently purchased. I was playing with my jointer today and tried to switch to the beltsander but noticed the drive hub I have for the jointer does not fit the beltsander. Does anyone know what part number the hub for the beltsander would be? Thanks.....BB
BB - Welcome to the Forum!! - - Interesting question - I have no answer, except to say that to my limited knowledge all spindles on the Mark V and the accessories are the same diameter - 5/8"
Maybe you are having a rust issue? Check the inside of the tight coupler head and clean. Also remove any corrosion from the Special Purpose tool spindle.
If this doesn't work ask again.-
The hubs for the headstock have 4 grooves and the hubs for the Special Purpose Tools (SPT;s) have 5 grooves. The spring in the coupler should always face the headstock.
P.S. Here's a picture and part numbers - http://www.shopsmith.com/ownersite/cata ... oupler.htm
Maybe you are having a rust issue? Check the inside of the tight coupler head and clean. Also remove any corrosion from the Special Purpose tool spindle.
If this doesn't work ask again.-
The hubs for the headstock have 4 grooves and the hubs for the Special Purpose Tools (SPT;s) have 5 grooves. The spring in the coupler should always face the headstock.
P.S. Here's a picture and part numbers - http://www.shopsmith.com/ownersite/cata ... oupler.htm
Octogenarian's have an earned right to be a curmudgeon.
Chuck in Lancaster, CA
Chuck in Lancaster, CA
-
perryobear
- Gold Member
- Posts: 155
- Joined: Sun Jul 23, 2006 6:29 pm
- Location: Youngsville, NC
Hi BB,
Yes, as you have discovered, there are two different hubs (at least).

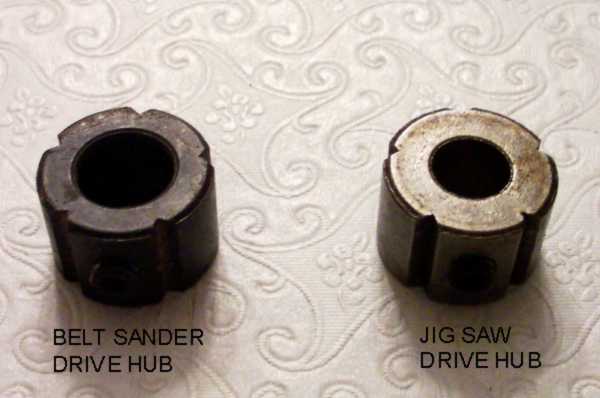

The belt sander hub is identical to the jig saw hub except for the hole for the shaft.
[ATTACH]3233[/ATTACH]
The belt sander drive hub part number record appears to be at bit strange - I have two different manuals, in one manual the drive hub does not appear in the parts listing or exploded view. In the other manual it appears in the parts listing as 503576 but not in the exploded view.
However, if you go to the online parts catalog it appears in both - part 79, part number 5035769 (yes, an extra digit). But the price of .80 is probably not correct and if you do an individual part number search 5035769 doesn't come up as a good number.
Time for a call to customer service! I would think the drive hub would be available as the belt sander is still in production.
I hope this helps,
Dennis
Yes, as you have discovered, there are two different hubs (at least).
The belt sander hub is identical to the jig saw hub except for the hole for the shaft.
[ATTACH]3233[/ATTACH]
The belt sander drive hub part number record appears to be at bit strange - I have two different manuals, in one manual the drive hub does not appear in the parts listing or exploded view. In the other manual it appears in the parts listing as 503576 but not in the exploded view.
However, if you go to the online parts catalog it appears in both - part 79, part number 5035769 (yes, an extra digit). But the price of .80 is probably not correct and if you do an individual part number search 5035769 doesn't come up as a good number.
Time for a call to customer service! I would think the drive hub would be available as the belt sander is still in production.
I hope this helps,
Dennis
- Attachments
-
- 100_1995.JPG (21.37 KiB) Viewed 19266 times
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
5/8" spt coulper
PM me your mailing address and I will send you one.
P.S. these come in a 'kit' 555124 with a coupler and two hubs. WHOOPS! I just look at the 'extra I had - it is a 4 spliner, wrong part - Sorry!
P.S. these come in a 'kit' 555124 with a coupler and two hubs. WHOOPS! I just look at the 'extra I had - it is a 4 spliner, wrong part - Sorry!
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Wow! another live and learn thing! Thanks!perryobear wrote:Hi BB,...Yes, as you have discovered, there are two different hubs (at least).
The belt sander hub is identical to the jig saw hub except for the hole for the shaft....Dennis
Octogenarian's have an earned right to be a curmudgeon.
Chuck in Lancaster, CA
Chuck in Lancaster, CA
-
perryobear
- Gold Member
- Posts: 155
- Joined: Sun Jul 23, 2006 6:29 pm
- Location: Youngsville, NC
jpg40504 wrote:PM me your mailing address and I will send you one.
P.S. these come in a 'kit' 555124 with a coupler and two hubs.
I believe that the two hubs supplied with the 555124 kit are both headstock spindle (4 slot) hubs, one for the upper spindle, one for the lower. Neither are the SPT (5 slot) hubs that would be needed on the belt sander.
Someone please jump in and correct me if I'm wrong on this.
Dennis
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
http://www.shopsmith.com/ownersite/cata ... oupler.htmperryobear wrote:I believe that the two hubs supplied with the 555124 kit are both headstock spindle (4 slot) hubs, one for the upper spindle, one for the lower. Neither are the SPT (5 slot) hubs that would be needed on the belt sander.
Someone please jump in and correct me if I'm wrong on this.
Dennis
http://www.shopsmith.com/ownersite/item ... =Find+Item
No wonder we are confused/unsure! Pick whichever one you like(same Part #)!
This seems more exacting and more useful but doesn't include the hub needed.
http://www.shopsmith.com/ownersite/part ... tslist.htm
Looks like we are back to wher we were a few posts back. item# 79 ($0.80????)
http://www.shopsmith.com/ownersite/part ... tslist.htm
Looking at the Bandsaw coupler we find....item 52, 53 and the one before them (503740) whose price seems more believable.
http://www.shopsmith.com/ownersite/part ... tslist.htm
Apparently you must order a hub as a replacement part for the spt it is to be used on.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
dusty
- Platinum Member
- Posts: 21530
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona
Looks like 1 of each.perryobear wrote:I believe that the two hubs supplied with the 555124 kit are both headstock spindle (4 slot) hubs, one for the upper spindle, one for the lower. Neither are the SPT (5 slot) hubs that would be needed on the belt sander.
Someone please jump in and correct me if I'm wrong on this.
Dennis
http://www.shopsmith.com/ownersite/cata ... oupler.htm
