Shaper Arbor
Has ShopSmith made or sold a 3/4" Shaper Arbor for the ShopSmith?
1987 ShopSmith 510, Bandsaw, Scrollsaw, 4" Jointer, Planner
2020 ShopSmith Mark 7, 6" Belt Sander
"In God We Trust"
2020 ShopSmith Mark 7, 6" Belt Sander
"In God We Trust"
-
chapmanruss
- Platinum Member
- Posts: 4184
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Shaper Arbor
Not that I have found.

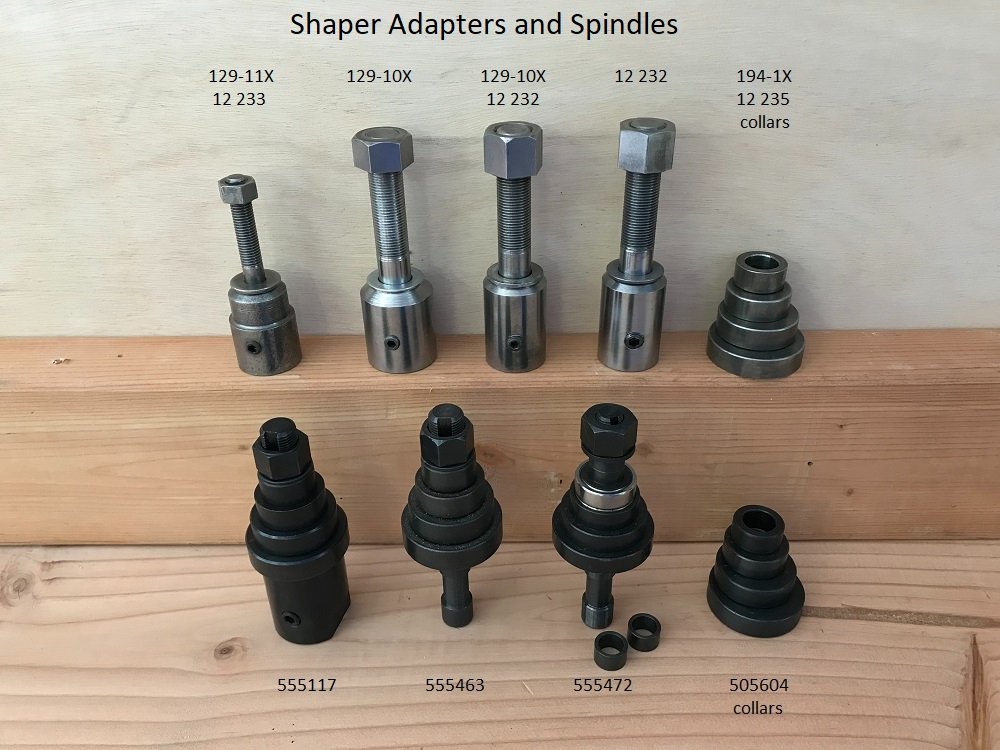

Below is a picture of all the Shaper Spindles I know of. All are for 1/2" bore Shaper Cutters except for the one on the upper left which is a 5/16" Shaper Spindle from the late 1940's into the 1950's. The Shaper Spindle P/N 555472 has a smaller threaded shaft (if I recall correctly 3/8") and uses the sleeves shown in front of it to make it 1/2" in diameter. It has actual bearings for the rub collars and the smallest outside diameter size rub collar (silver) cannot be found in a size to fit on a 1/2" shaft.
_
Below is a picture of all the Shaper Spindles I know of. All are for 1/2" bore Shaper Cutters except for the one on the upper left which is a 5/16" Shaper Spindle from the late 1940's into the 1950's. The Shaper Spindle P/N 555472 has a smaller threaded shaft (if I recall correctly 3/8") and uses the sleeves shown in front of it to make it 1/2" in diameter. It has actual bearings for the rub collars and the smallest outside diameter size rub collar (silver) cannot be found in a size to fit on a 1/2" shaft.
_
- Shaper Adapters-Spindles - labeled.jpg (127.29 KiB) Viewed 45431 times
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Re: Shaper Arbor
Thanks, I am looking for a way to cut tongue and groove joints, and was trying to use the shaper set up on the Shopsmith. All the tongue and groove shaper cutters have 3/4" bores. I was looking for a work around. I have found 1/2" shank router bits and that may be the route I go.
1987 ShopSmith 510, Bandsaw, Scrollsaw, 4" Jointer, Planner
2020 ShopSmith Mark 7, 6" Belt Sander
"In God We Trust"
2020 ShopSmith Mark 7, 6" Belt Sander
"In God We Trust"
Re: Shaper Arbor
Corob Cutters offers T&G shaper profiles in 1/2" bore. (https://corobcutters.com/shaper-profiles-1) These are fixed profile, 1/4" tongue/groove, so may not be what you are looking for. I would think there are others out there. Alternatively, you may be able to use sleeves or bushings to adapt a 3/4" bore to the 1/2" arbor if there is a particular cutter set you like.JCC52 wrote: ↑Wed Oct 30, 2024 9:29 pm Thanks, I am looking for a way to cut tongue and groove joints, and was trying to use the shaper set up on the Shopsmith. All the tongue and groove shaper cutters have 3/4" bores. I was looking for a work around. I have found 1/2" shank router bits and that may be the route I go.
- David
-
chapmanruss
- Platinum Member
- Posts: 4184
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Shaper Arbor
JCC52,
As David said there are 1/2" bore Shaper Cutters out there. I believe Corob Cutters is the brand Shopsmith was selling before they discontinued selling Shaper Cutters altogether. If you are doing 3/4" thick stock they should work fine for you. If you are doing other sizes of stock, you may have to find other options. You can cut T & G's on the table saw and adjust to the groove thickness you need.
As David said there are 1/2" bore Shaper Cutters out there. I believe Corob Cutters is the brand Shopsmith was selling before they discontinued selling Shaper Cutters altogether. If you are doing 3/4" thick stock they should work fine for you. If you are doing other sizes of stock, you may have to find other options. You can cut T & G's on the table saw and adjust to the groove thickness you need.
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Re: Shaper Arbor
Grizzly has 1/2" carbide shaper cutters https://www.grizzly.com/search?q=1%272% ... 0.5%20in.)
