Searching on posts for "610 jigsaw' I came across a couple where people were discussing making and possibly selling the crankcase gaskets for these machines.
If anybody has one for sale, please let me know. I'm also in the market for a lower chuck.
Magna 610 jigsaw refurb - parts?
Moderator: admin
Magna 610 jigsaw refurb - parts?
Geoff Baker
1951 10ER w variable speed electronic motor with reverse
1999 520 w PowerPro
Belt sander - strip sander - bandsaw - scrollsaw - jointer - overarm router - undertable router mounted on main SS saw table - speed increaser - speed reducer - forced air HEPA filter for headstock - 19" SS powered aluminum drum sander - index wheel system - lathe table crossslide vise system
1951 10ER w variable speed electronic motor with reverse
1999 520 w PowerPro
Belt sander - strip sander - bandsaw - scrollsaw - jointer - overarm router - undertable router mounted on main SS saw table - speed increaser - speed reducer - forced air HEPA filter for headstock - 19" SS powered aluminum drum sander - index wheel system - lathe table crossslide vise system
-
chapmanruss
- Platinum Member
- Posts: 4189
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Magna 610 jigsaw refurb - parts?
Geoff,

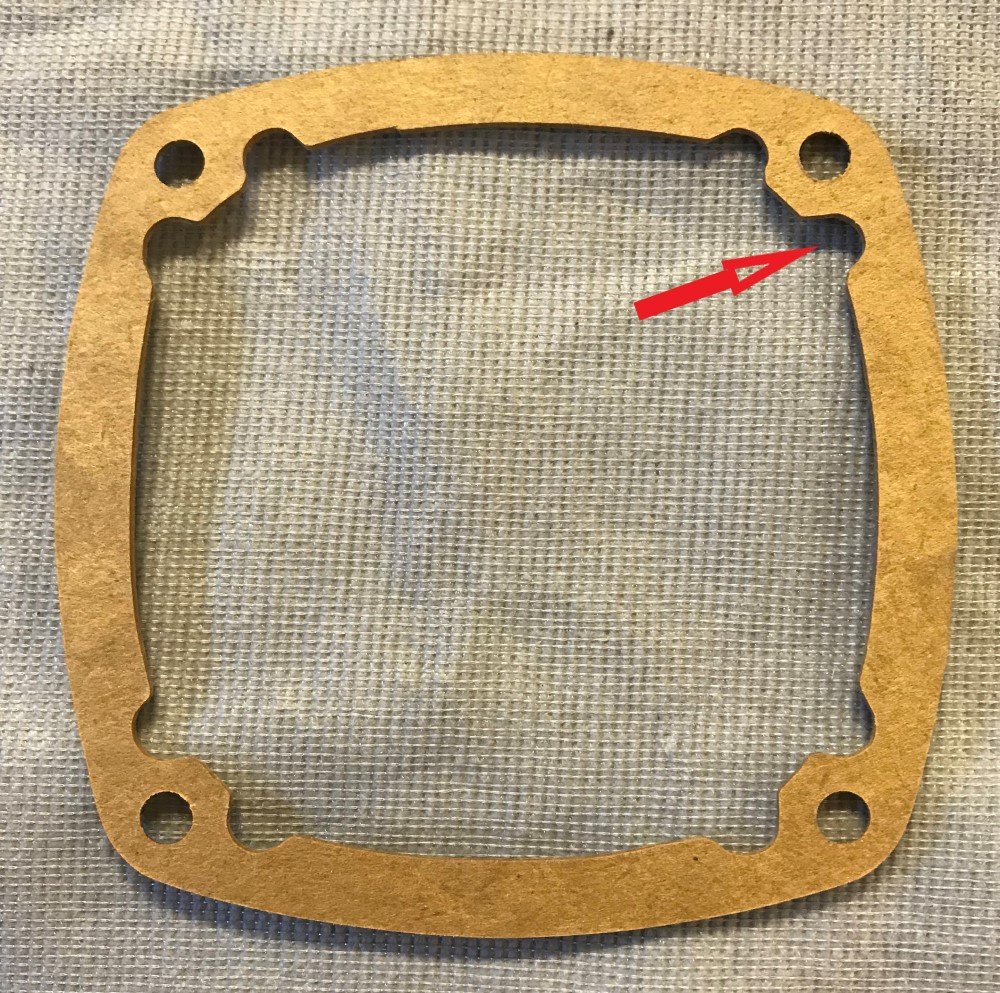

You will have to keep an eye out for the Lower Chuck for sale. It may take buying a complete or partial lower unit to get one. As for the Gasket I have seen them for sale on eBay. There is someone making replicas. You can make your own gasket. Use the Cover as a pattern for the outside and cutout the middle of the inside leaving enough gasket material to cover the end of the Housing. Don't forget to cutout a space for the vent hole. A Gasket is shown below and note the indent cutout needed for the vent as indicated by the arrow.
-
.
The OEM Gasket above had cutout spots all around the Gasket, so it does not matter which way it is positioned the vent is always clear.

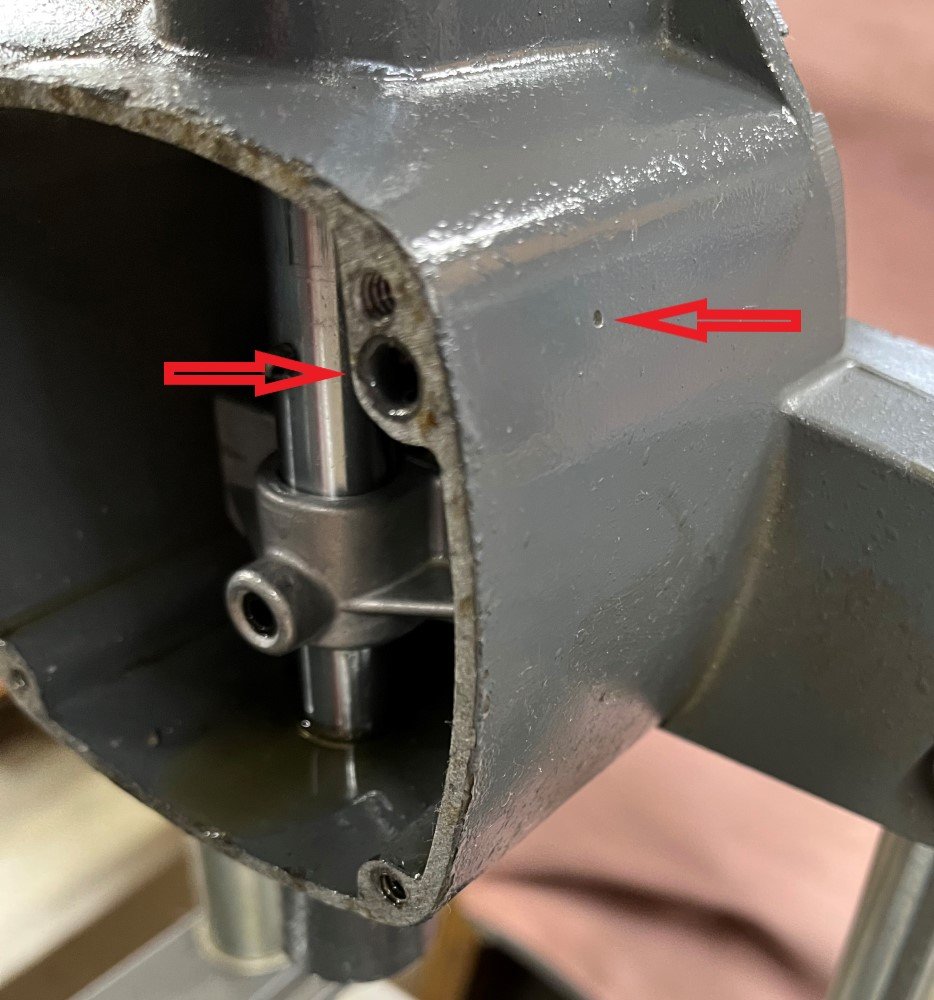

Below shows the vent holes in the Housing that must be kept open.
_
You will have to keep an eye out for the Lower Chuck for sale. It may take buying a complete or partial lower unit to get one. As for the Gasket I have seen them for sale on eBay. There is someone making replicas. You can make your own gasket. Use the Cover as a pattern for the outside and cutout the middle of the inside leaving enough gasket material to cover the end of the Housing. Don't forget to cutout a space for the vent hole. A Gasket is shown below and note the indent cutout needed for the vent as indicated by the arrow.
-
- Jig Saw Gasket - arrow.jpg (351.06 KiB) Viewed 1595 times
The OEM Gasket above had cutout spots all around the Gasket, so it does not matter which way it is positioned the vent is always clear.
Below shows the vent holes in the Housing that must be kept open.
_
- Jigsaw Vent Holes.jpg (132.05 KiB) Viewed 1595 times
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Re: Magna 610 jigsaw refurb - parts?
I bought the set off of ebay, with the bearing and seals plus the gasket. Worked well.
I 3d printed the pump seal. Haven't tried it yet, but it should work.
I 3d printed the pump seal. Haven't tried it yet, but it should work.
1961 Shopsmith Mark 5 500 Goldie serial# 369690, Bandsaw 505641 serial#47391, Jointer 555483 serial#01-01-94
