What do I have?
Moderator: admin
What do I have?

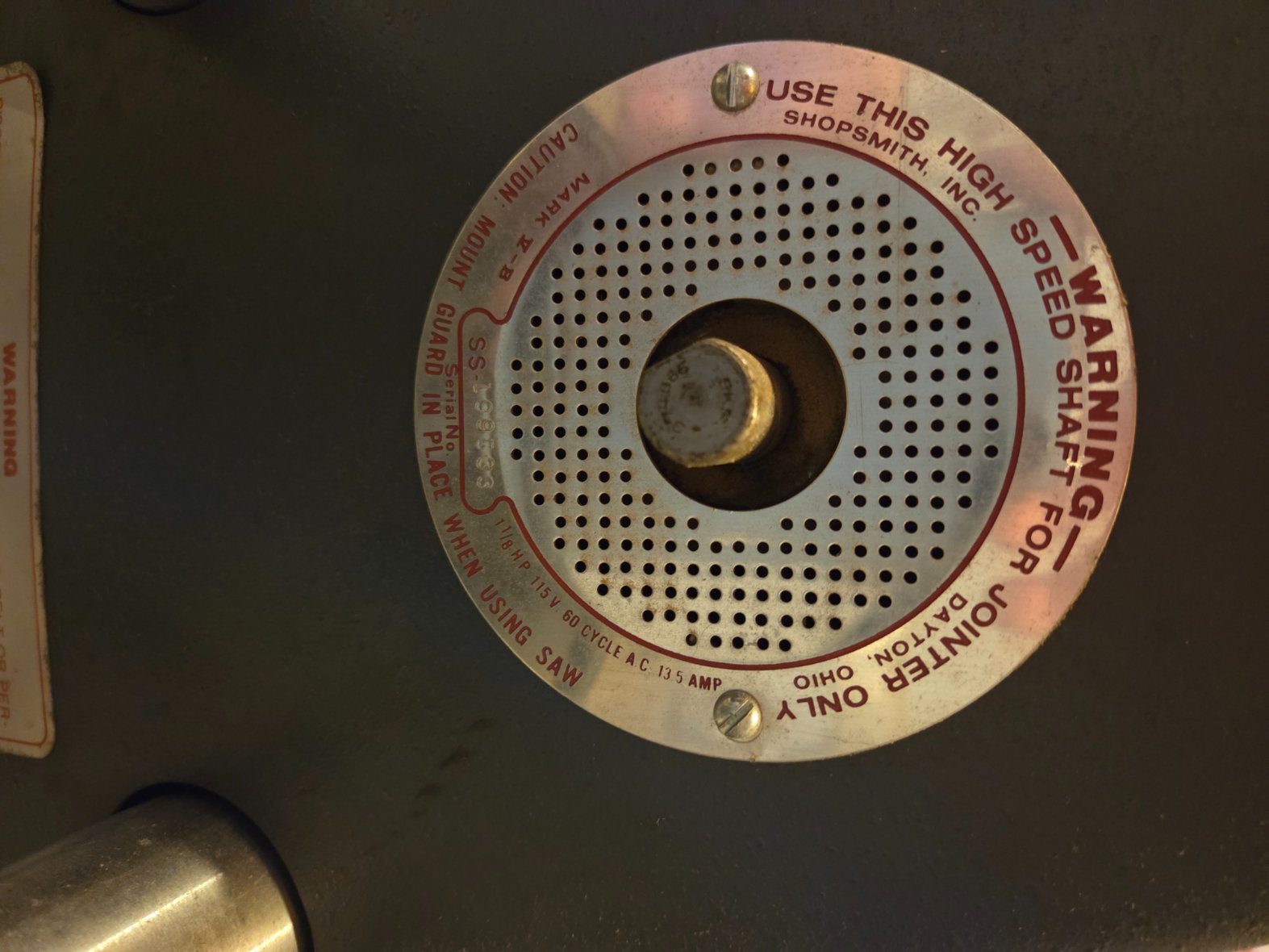

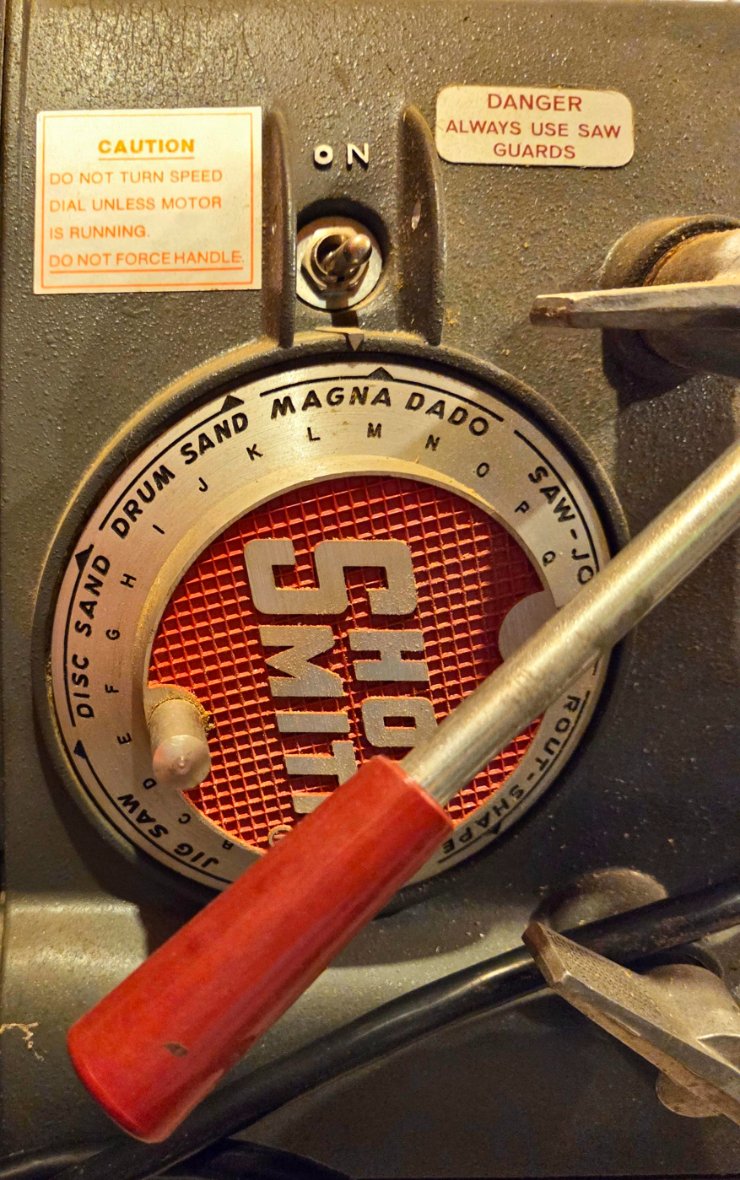

I inherited a ShopSmith Mark V-B serial#:199533 and I am very excited about it. I remember watching the infomercials as a youngster, and can hardly believe I have one now. I have the manuals and the book and have been going through them and watching videos, but I am still not certain I know what I have. I'd like to know what I have so I know how to upgrade. It is a basic model, but is it a 500, or a 505, or something else?
I'd appreciate any help figuring this out.
- Jim
I'd appreciate any help figuring this out.
- Jim
-
JPG
- Platinum Member
- Posts: 35427
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: What do I have?
500
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
chapmanruss
- Platinum Member
- Posts: 4184
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: What do I have?
To explain more, you have a Mark V 500 with the original Table System made in February 1985. It was in 1985 that the Mark V 510/505 was introduced with a larger expandable Table System and the Mark V with the original Table System became the 500.
Below is the Mark V 510. A Mark V 505 is the same Table System without the Floating Tables, Connector Tubes and Legs.
_
.
In 1999 the Mark V 520 was introduced with the Pro Fence System. It uses the same Tables and other parts, but the Fence and Fence Rails are different. The Mark V 510 above (and 505) have round tube Fence Rails and a narrower Fence than the 520.
_
.
Your Mark V can be upgraded to either a 510/505 or a 520. It takes quite a few parts to upgrade including a different Carriage.

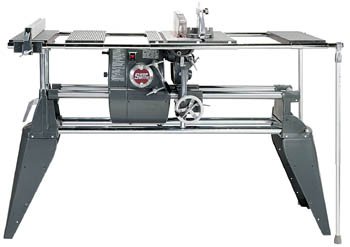

Below is the Mark V 510. A Mark V 505 is the same Table System without the Floating Tables, Connector Tubes and Legs.
_
- Mark V Model 510.jpg (12.65 KiB) Viewed 189 times

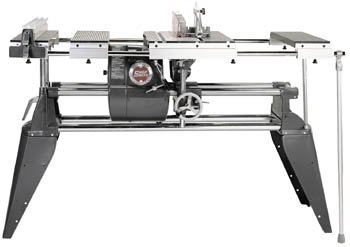

In 1999 the Mark V 520 was introduced with the Pro Fence System. It uses the same Tables and other parts, but the Fence and Fence Rails are different. The Mark V 510 above (and 505) have round tube Fence Rails and a narrower Fence than the 520.
_
- Mark V Model 520.jpg (12.21 KiB) Viewed 189 times
Your Mark V can be upgraded to either a 510/505 or a 520. It takes quite a few parts to upgrade including a different Carriage.
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Re: What do I have?
Thank you - that helps a lot!
