Sharpening Jig

Post by mikelst »

Some Time ago I remember seeing plans for a shop made sharpening jig. I am pretty sure it was in a ShopSmith publication or manual. I have looked in a 55 and an 89 copy of PTWFE and didn't find it there. Does anyone remember where I might have seen this.

Thanks
Mike
Mike......... Rowlett, Texas, near Dallas
86 MK V 500/520. 59 MK 5 Greenie Shorty. SS Jointer, SS Planer,
SS Bandsaw, SS Lathe duplicator, SS Belt Sander,SS Molder & Shaper,
SS Tenon master jig, SS Mortising kit, SS 2 1/4' Drum Sanders, Ringmaster, DC3300....
Top
User avatar
RobertTaylor
Platinum Member
Posts: 569
Joined: Mon Sep 03, 2007 9:28 am
Location: North Canton, Ohio

Post by RobertTaylor »

are you looking for a jig to sharpen lathe tools or plane irons? i don't recall seeing anything specific to shopsmith but there are plans available for a homemade "wolverine" style jig at: http://aroundthewoods.com/sharpening01.html

there are several pages to read through
Bob
1954 greenie, 1963 anniversary edition now a mini,
1984 500, 1985 510, 1987 510, pro-planer, bandsaw, dust collector
Top
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Post by reible »

Hi,

Have you checked out:
http://www.shopsmith.com/academy/sharpening/index.htm

If not it might at least be another place to check.

Ed
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
Top
spalteddog
Bronze Member
Posts: 2
Joined: Sun Oct 29, 2006 6:27 am
Location: At the shoals of the Cahaba River, Alabama

Post by spalteddog »

mikelst wrote:Some Time ago I remember seeing plans for a shop made sharpening jig. I am pretty sure it was in a ShopSmith publication or manual. I have looked in a 55 and an 89 copy of PTWFE and didn't find it there. Does anyone remember where I might have seen this.

Thanks
Mike
Try the 1984 edition of PTWFE page 334. May be what you want.
Top
judaspre1982
Platinum Member
Posts: 1237
Joined: Tue Jul 08, 2008 10:10 pm

RE: Sharpening Jig

Post by judaspre1982 »

======================

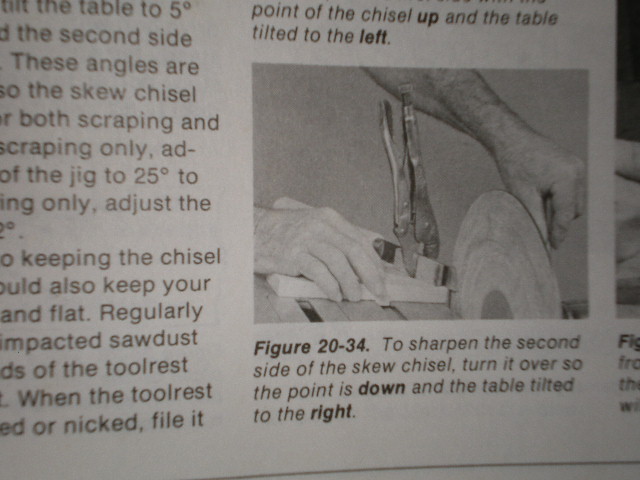

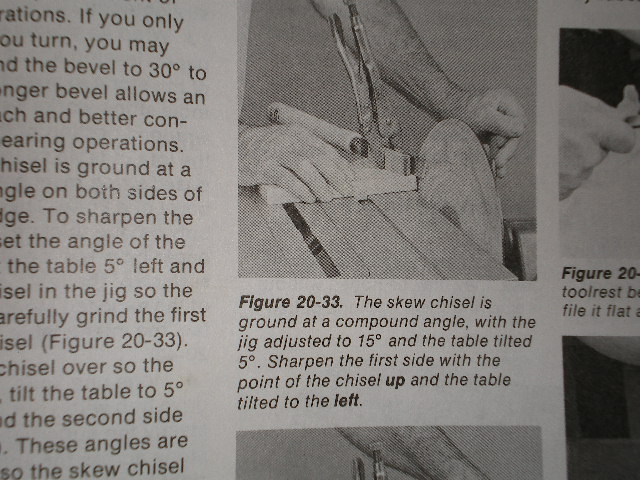

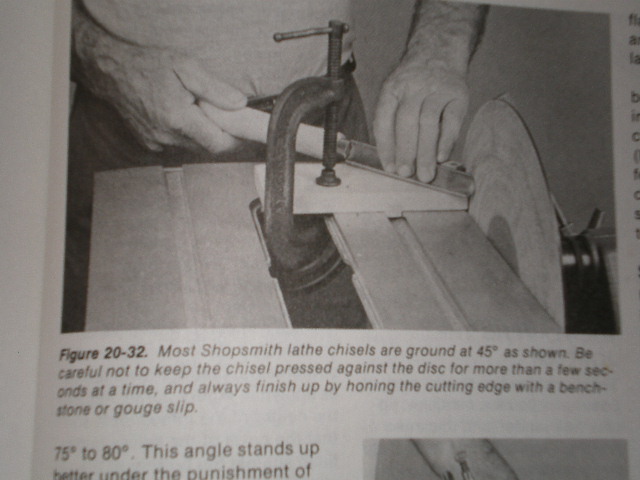

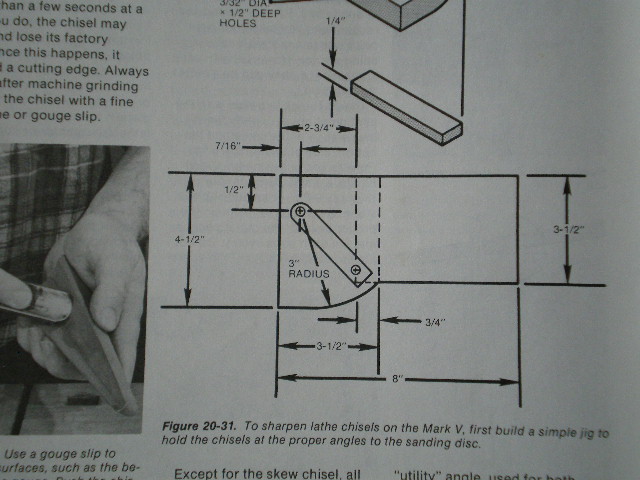

Attachments
Last edited by judaspre1982 on Wed May 17, 2017 6:10 pm, edited 1 time in total.
Top
User avatar
mikelst
Gold Member
Posts: 345
Joined: Fri Sep 19, 2008 2:14 pm
Location: Rowlett, TX
Contact:
Contact mikelst

Post by mikelst »

I'll be looking for a 'new' copy of that PTWFE i guess.
Thank you every one for your help.
Mike
Mike......... Rowlett, Texas, near Dallas
86 MK V 500/520. 59 MK 5 Greenie Shorty. SS Jointer, SS Planer,
SS Bandsaw, SS Lathe duplicator, SS Belt Sander,SS Molder & Shaper,
SS Tenon master jig, SS Mortising kit, SS 2 1/4' Drum Sanders, Ringmaster, DC3300....
Top
User avatar
edflorence
Platinum Member
Posts: 680
Joined: Thu Jul 20, 2006 8:14 pm
Location: Idaho Panhandle

Post by edflorence »

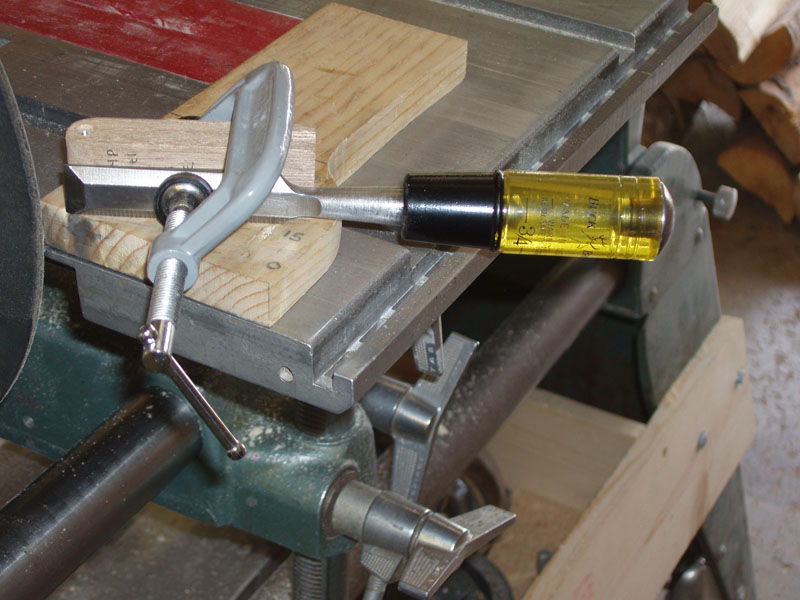

fwiw...I have been using this jig for years for bench chisels...works great and can be used on fairly short chisels.
Attachments
P1010053 copy.jpg
P1010053 copy.jpg (115.94 KiB) Viewed 6571 times
Ed
Idaho Panhandle
Mark 5 of various vintages, Mini with reversing motor, bs, dc3300, jointer, increaser, decreaser
Top
osx-addict
Gold Member
Posts: 386
Joined: Thu Feb 28, 2008 1:56 pm
Location: Los Angeles, CA

Post by osx-addict »

edflorence wrote:fwiw...I have been using this jig for years for bench chisels...works great and can be used on fairly short chisels.
What is on the sanding disc -- (assuming that's the regular flat disc) -- is it just regular sand paper or something else? Just curious!
Rick
S/W of Los Angeles, CA
1983 Mark V model 510 (SN#140061)
Top
User avatar
beeg
Platinum Member
Posts: 4791
Joined: Sun Oct 14, 2007 2:33 pm
Location: St. Louis,Mo.

Post by beeg »

osx-addict wrote:What is on the sanding disc -- (assuming that's the regular flat disc) -- is it just regular sand paper or something else? Just curious!

I use just regular sandpaper.
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
Top
User avatar
a1gutterman
Platinum Member
Posts: 3653
Joined: Tue Jan 09, 2007 12:45 am
Location: "close to" Seattle

Post by a1gutterman »

osx-addict wrote:What is on the sanding disc -- (assuming that's the regular flat disc) -- is it just regular sand paper or something else? Just curious!
Do not use the velcro system for any sharpening operations (some velcro backed disks are garnet sandpaper [knot recommended for ferrous metals] and some are aluminum oxide). You can easily damage your paper disks in the process. Probably wood knot use the regular aluminum oxide disks, but rather the cloth backed aluminum oxide disks (in 100 gritor 150 grit) wood be best.
Tim

Buying US made products will help keep YOUR job or retirement funds safer.
Top
