This thread is the last of a series showing A method of reassembling a SS Caster Set.

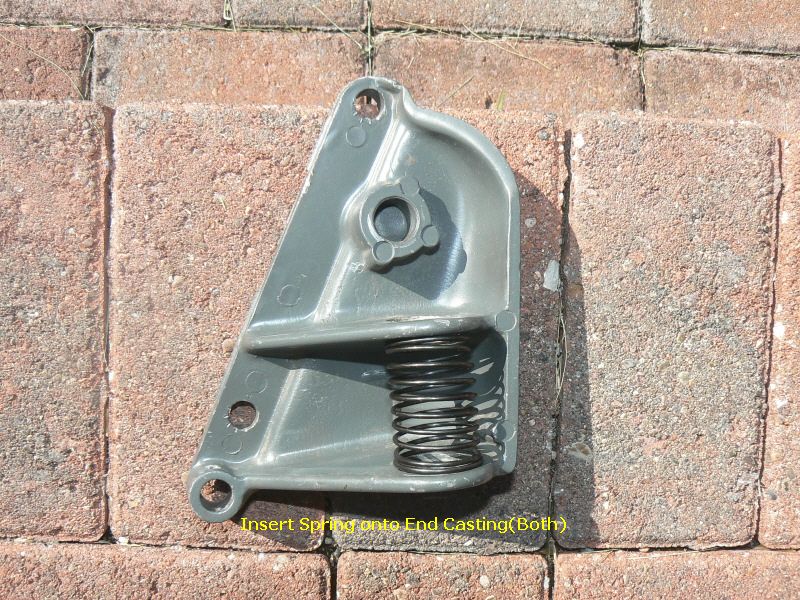

CASTER REASM (E).jpg (168.14 KiB) Viewed 4102 times
CASTER REASM (F).jpg (151.92 KiB) Viewed 4100 times
The caster hole in the cam follower faces down(the top flat camming surface faces up).
CASTER REASM (G).jpg (167.77 KiB) Viewed 4103 times
The tie rod ends should be assembled into the same casting hole and oriented(rotational) so the spring pin holes line up(rod and casting) as before dis-assembly.
CASTER REASM (H).jpg (142.37 KiB) Viewed 4099 times
Apply lithuim grease(sparingly) to the posts of the casters and push them firmly into the cam follower. They will detent into place.
