project "Heavy Roller" underway

Post by nuhobby »

This is a side project going at a leisurely pace.

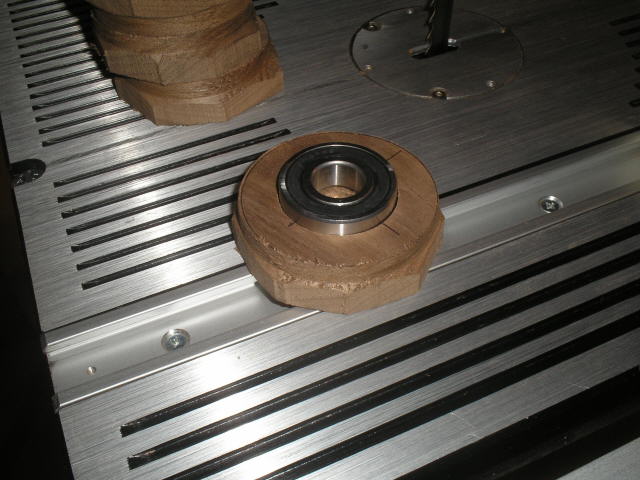

After dabbling with too much stuff and having a reluctance to ever return unused merchandise, I toyed around with a use for 4 nice ball-bearings I had on hand:
[ATTACH]6610[/ATTACH]

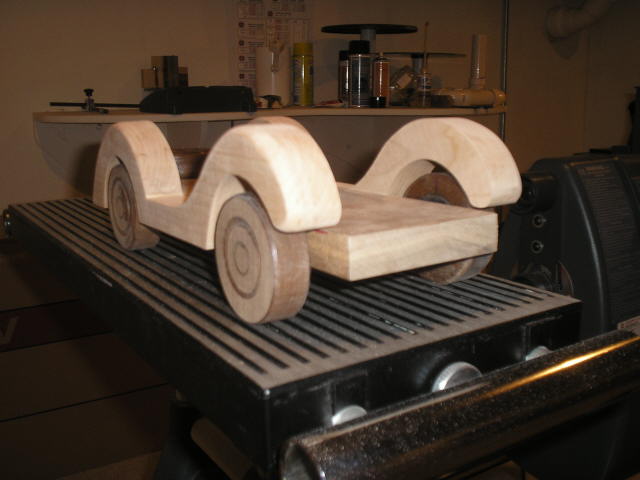

These bearings are rubber-sealed and they support a lot of weight but don't rotate super-easy just with a light mass. So.... I've started building a pretty heavy "car":
[ATTACH]6611[/ATTACH]

I've got enough "momentum" in the project that I think it will work out decently. I have no detailed plans to work from, but I have some reference photos I'm using to get a basic idea. More to come later!
Attachments
Early Wheel Bearing Sizing.jpg
Early Wheel Bearing Sizing.jpg (54.74 KiB) Viewed 4117 times
Basic Chassis.jpg
Basic Chassis.jpg (37.37 KiB) Viewed 4121 times
Chris
Top
Gene Howe
Platinum Member
Posts: 3219
Joined: Wed Jul 26, 2006 7:52 pm
Location: Snowflake, AZ

Post by Gene Howe »

More! More!....Hurry! I want to see it.:D
Gene

'The true soldier fights not because he hates what is in front of him, but because he loves what is behind him.' G. K. Chesterton
Top
User avatar
efmaron
Gold Member
Posts: 228
Joined: Mon Jul 07, 2008 3:48 pm
Location: Sebring Fl. 33875

Post by efmaron »

Looks like you are off to a good start, can't wait to see what follows.
Eric, Sebring Fl.
Top
User avatar
fjimp
Platinum Member
Posts: 2345
Joined: Wed Jul 19, 2006 8:45 pm
Location: Lakewood, Colorado

Post by fjimp »

Wow an aretist at work. I alsop look forward to what develops in your shop. Jim
F. Jim Parks
Lakewood, Colorado:)

When the love of power is replaced by the power of love the world will have a chance for survival.
Top
charlese
Platinum Member
Posts: 7501
Joined: Fri Dec 08, 2006 10:46 pm
Location: Lancaster, CA

Post by charlese »

nuhobby wrote:This is a side project going at a leisurely pace.

So.... I've started building a pretty heavy "car":

I've got enough "momentum" in the project that I think it will work out decently. I have no detailed plans to work from, but I have some reference photos I'm using to get a basic idea. More to come later!

I'm in the group that can''t wait to see more! Recognizing that you are going at a leisurely pace - I'll be patient - but anticipating more.
Octogenarian's have an earned right to be a curmudgeon.
Chuck in Lancaster, CA
Top
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Post by reible »

I don't know about anyone else but I'm thinking you are doing roller skates for at elephant, is that right? With bearings that large it must do some "hot dogging" like skating on one foot?

Ed
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
Top
User avatar
a1gutterman
Platinum Member
Posts: 3653
Joined: Tue Jan 09, 2007 12:45 am
Location: "close to" Seattle

Post by a1gutterman »

Those tires in the first picture look like Fred Flintstone tires! :D

Glad to see that they finished off round. Looking forward to seeing the end result!
Tim

Buying US made products will help keep YOUR job or retirement funds safer.
Top
nomoman
Gold Member
Posts: 177
Joined: Sun Oct 11, 2009 1:18 am
Location: Virginia Beach, VA

Post by nomoman »

What did you use for an axle?
I see said the blindman, to his deaf wife, as he picked up his hammer and saw.
Shopsmith Mark V. DC3300
Jared
Top
User avatar
mickyd
Platinum Member
Posts: 2999
Joined: Mon Feb 09, 2009 1:18 pm
Location: San Diego, CA
Contact:
Contact mickyd

Post by mickyd »

nomoman wrote:What did you use for an axle?
I'll put my money on a wooded dowel.....maybe 5/8ths??
Mike
Sunny San Diego
Top
User avatar
JPG
Platinum Member
Posts: 35457
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

mickyd wrote:I'll put my money on a wooded dowel.....maybe 5/8ths??

Methinks 3/4" more likely(wooden dowel/maple dowel/hardwood dowel) . . or :eek: steel(for weight capacity! . . although 3/4" base seems light by comparison).

BTW how much did you "put up"?:D
╔═══╗
