Cookie tray

This is a forum for intermediate to advanced woodworkers. Show off your projects or share your ideas.

Moderator: admin

Post Reply
mbcabinetmaker
Platinum Member
Posts: 1627
Joined: Thu Jul 20, 2006 6:18 am
Location: Greer SC

Cookie tray

Post by mbcabinetmaker »

I really like the rockler bench cookies but while sanding a batch of doors I was constantly struggling to position them where needed. I came up with this Idea.








[ATTACH]7125[/ATTACH]

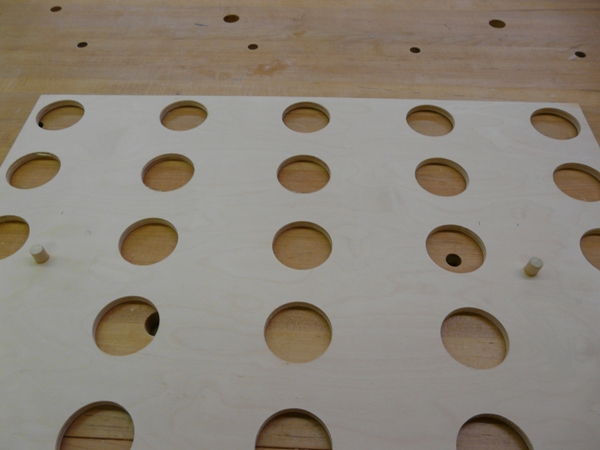

I started with a 24" x 36" piece of 1/2 inch baltic birch. I drilled 3 inch holes for the cookies and added two 5/8 inch dowels to lock into the dog holes in my bench.










[ATTACH]7126[/ATTACH]

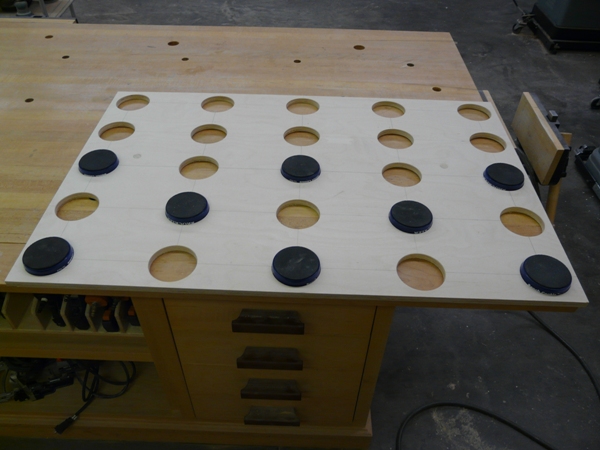

Now I can quickly position cookies where needed.











[ATTACH]7128[/ATTACH]





[ATTACH]7127[/ATTACH]










While in the process I made another one covered with a rubber sanding/routing pad for small pieces.

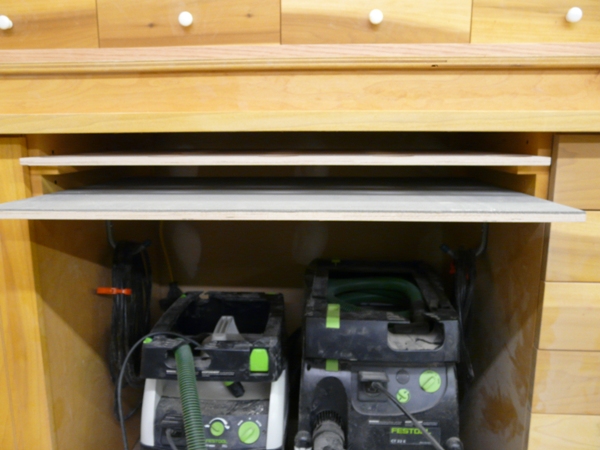

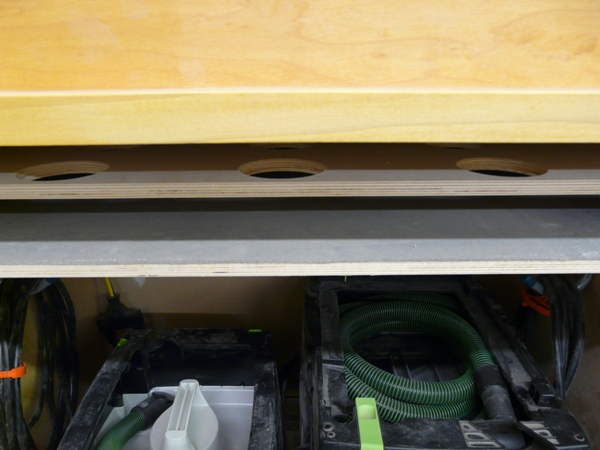

I even made a storage compartment for them under my Chop saw bench.
Attachments
****************
****************

Mark

2017 Power Pro Mark 7
2002 50th anniversary model 520
and a few other woodworking tools.
Top
User avatar
JPG
Platinum Member
Posts: 35457
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

mbcabinetmaker wrote:I really like the rockler bench cookies but while sanding a batch of doors I was constantly struggling to position them where needed. I came up with this Idea.








[ATTACH]7125[/ATTACH]



I started with a 24" x 36" piece of 1/2 inch baltic birch. I drilled 3 inch holes for the cookies and added two 5/8 inch dowels to lock into the dog holes in my bench.










[ATTACH]7126[/ATTACH]


Now I can quickly position cookies where needed.











[ATTACH]7128[/ATTACH]





[ATTACH]7127[/ATTACH]










While in the process I made another one covered with a rubber sanding/routing pad for small pieces.

I even made a storage compartment for them under my Chop saw bench.

Slick!!!!!!!!
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
User avatar
beeg
Platinum Member
Posts: 4791
Joined: Sun Oct 14, 2007 2:33 pm
Location: St. Louis,Mo.

Post by beeg »

JPG40504 wrote:Slick!!!!!!!!

NOPE. It keeps the wood in place to work on it without sliding around.:D
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
Top
8iowa
Platinum Member
Posts: 1048
Joined: Tue Aug 01, 2006 9:26 am

Post by 8iowa »

Gee! You had me drooling there. I thought you were making a tray to hold fresh baked chocolate chip cookies! Drats!
Top
User avatar
dusty
Platinum Member
Posts: 21481
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Post by dusty »

8iowa wrote:Gee! You had me drooling there. I thought you were making a tray to hold fresh baked chocolate chip cookies! Drats!


Sorry, I'd have saved you some if I had known. The chocolate chips and milk are "all gone".:rolleyes:
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Top
User avatar
john
Platinum Member
Posts: 1046
Joined: Mon Mar 05, 2007 7:42 pm
Location: St. Lambert , Quebec

Post by john »

Nice creative thinking!

John
Top
User avatar
fjimp
Platinum Member
Posts: 2345
Joined: Wed Jul 19, 2006 8:45 pm
Location: Lakewood, Colorado

Post by fjimp »

8iowa wrote:Gee! You had me drooling there. I thought you were making a tray to hold fresh baked chocolate chip cookies! Drats!
At our house we don't need a tray for chocolate chip cookies. In fact the one I ate prior to reading your post was delicious. One more reason I work so hard at keeping the cookie maker happy:D:):rolleyes: Jim
F. Jim Parks
Lakewood, Colorado:)

When the love of power is replaced by the power of love the world will have a chance for survival.
Top
User avatar
mickyd
Platinum Member
Posts: 2999
Joined: Mon Feb 09, 2009 1:18 pm
Location: San Diego, CA
Contact:
Contact mickyd

Post by mickyd »

fjimp wrote:At our house we don't need a tray for chocolate chip cookies. In fact the one I ate prior to reading your post was delicious. One more reason I work so hard at keeping the cookie maker happy:D:):rolleyes: Jim
Now you have to teach her to turn some pens!!:D
Mike
Sunny San Diego
Top
User avatar
horologist
Gold Member
Posts: 431
Joined: Sat Dec 22, 2007 6:36 pm
Location: Melrose, FL

Post by horologist »

dusty wrote:Sorry, I'd have saved you some if I had known. The chocolate chips and milk are "all gone".:rolleyes:

Dusty,
Whatever you do, don't let him near your cookies! :eek:
Unless you plan on a cookie free diet.....

mbcabinetmaker wrote: While in the process I made another one covered with a rubber sanding/routing pad for small pieces.

I even made a storage compartment for them under my Chop saw bench.


Mark,
Clever idea, are there advantages to the cookie/tray combo over the board coated with the anti slip mat?

Troy
The best equipped laundry room in the neighborhood...
Top
kalynzoo
Platinum Member
Posts: 829
Joined: Sat Jan 19, 2008 11:02 pm
Location: Los Angeles, CA

Post by kalynzoo »

How inventive. Really Cool.
Gary Kalyn
Kalynzoo Productions
Woodworking
Porter Ranch/Northridge
Los Angeles, CA
Top
