At Dusty's request

Post by Gene Howe »

Dust,

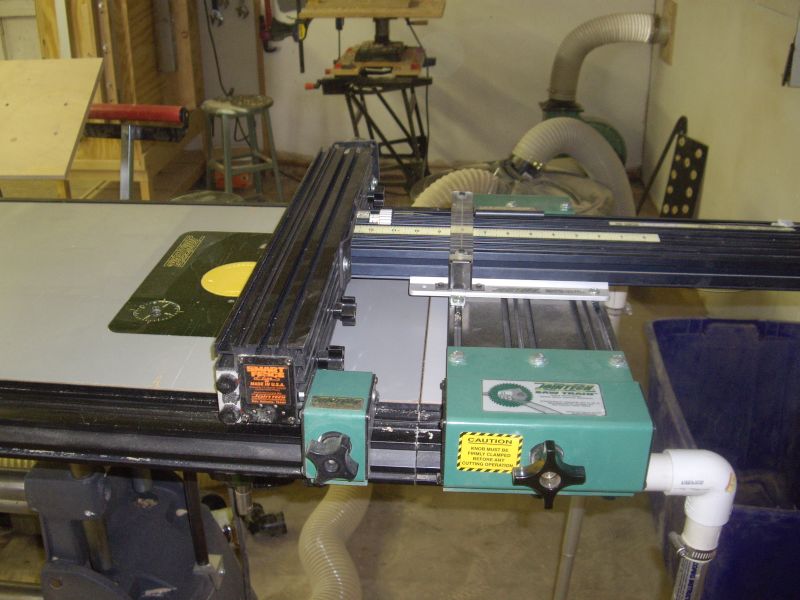

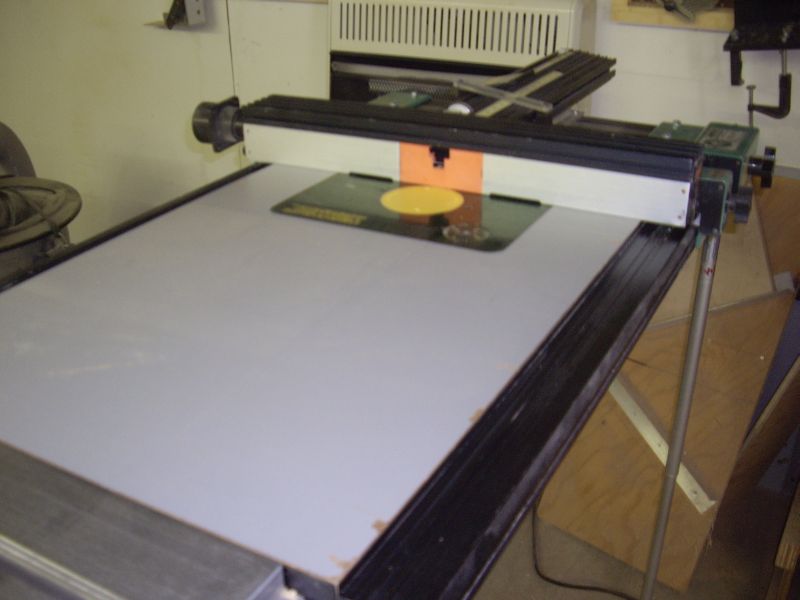

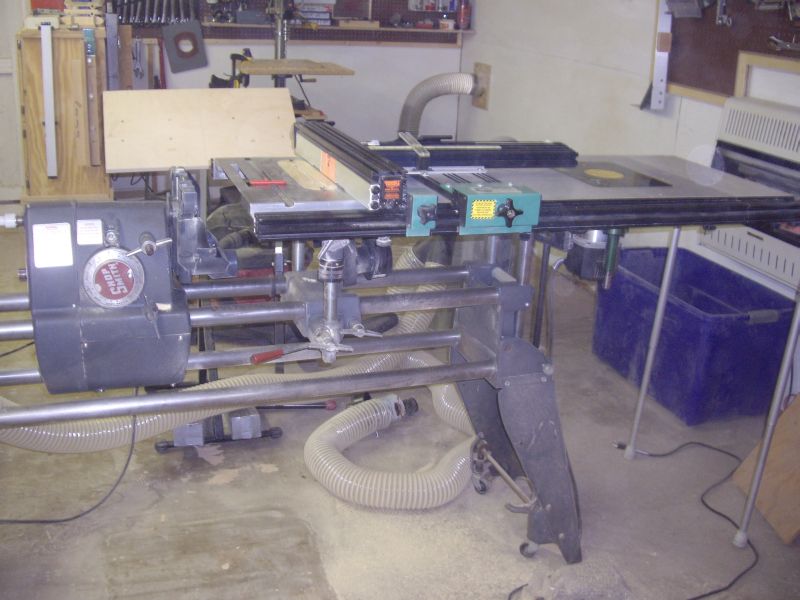

Here are pics of my MKV/router table set up.

[ATTACH]7297[/ATTACH]
[ATTACH]7298[/ATTACH]
[ATTACH]7299[/ATTACH]
Attachments
Gene

'The true soldier fights not because he hates what is in front of him, but because he loves what is behind him.' G. K. Chesterton
Top
User avatar
wlhayesmfs
Platinum Member
Posts: 667
Joined: Fri Jul 21, 2006 10:50 am
Location: Broken Arrow OK

Post by wlhayesmfs »

All I can say is WOW what a set up.
Thanks for the picture also of some of the shop
Bill :)
Broken Arrow OK
MKV, 510, MKVll, 50th Anniversary 520 with Jointech saw train, Bandsaw, scroll saw, joiner, 6" Sander,Stand Alone Pin Router and Router Table, Strip Sander, Jigsaw & (4) ER's plus Jigsaw for ER. DC SS RAS
Top
User avatar
dusty
Platinum Member
Posts: 21481
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Post by dusty »

That is a really nice setup. Your table top is massive by comparison to mine and I have always thought mine was quite adequate.

However, you have everything mounted on the opposite end of the Mark V (from where I mount mine when I mount on the Mark V). As a result, I have to sit and think about where I would stand. Especially when routing with a fence involved. I have launched a work piece or two and I think that can be as dangerous as "kickback".

Is the vertical section of PVC part of the dust collection system?
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Top
User avatar
a1gutterman
Platinum Member
Posts: 3653
Joined: Tue Jan 09, 2007 12:45 am
Location: "close to" Seattle

Post by a1gutterman »

dusty wrote:... I have launched a work piece or two and I think that can be as dangerous as "kickback"...
In my book, it IS kickback!!!:eek:
Tim

Buying US made products will help keep YOUR job or retirement funds safer.
Top
User avatar
dusty
Platinum Member
Posts: 21481
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Post by dusty »

a1gutterman wrote:In my book, it IS kickback!!!:eek:


If it hits you, it'll certainly feel like "kickback". The only possible difference that I can see is that some kickback comes up off the table and then back at you. I would think that most router kickback fires back at table top height.

Fortunately, I am not all that experienced in the phase of woodworking and I might be wrong.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Top
User avatar
fjimp
Platinum Member
Posts: 2345
Joined: Wed Jul 19, 2006 8:45 pm
Location: Lakewood, Colorado

Post by fjimp »

dusty wrote:If it hits you, it'll certainly feel like "kickback". The only possible difference that I can see is that some kickback comes up off the table and then back at you. I would think that most router kickback fires back at table top height.

Fortunately, I am not all that experienced in the phase of woodworking and I might be wrong.
Would the fence be mounted to the left or right of router as one stands in front if the Mark V?
F. Jim Parks
Lakewood, Colorado:)

When the love of power is replaced by the power of love the world will have a chance for survival.
Top
Gene Howe
Platinum Member
Posts: 3219
Joined: Wed Jul 26, 2006 7:52 pm
Location: Snowflake, AZ

Post by Gene Howe »

The fence is mounted to the right, as you see it in the pics.
I thought it would be difficult to use from the side, but it's not at all.
Gene
