Way tubes vs Bench tubes

PG-Zac · Post by **PG-Zac** » Wed Mar 31, 2010 6:13 pm

I don't have a micrometer, and my vernier measurements are inconclusive so I'll have to ask the boffins.

Is there a size difference between Way & Bench tubes?

The reason for asking, is that my bench tubes were painted some time in their history and have rusted a lot less than my Way tubes. My first bench tube cleanup seems to be yielding good results, and I fear that the Way tubes will be likely be too pitted for decent sliding use.

I don't want to spend too much time buffing & polishing any tube if I'm just going to paint it again.

Thanks all.

JPG · Post by **JPG** » Wed Mar 31, 2010 7:31 pm

PG-Zac wrote:I don't have a micrometer, and my vernier measurements are inconclusive so I'll have to ask the boffins.

Is there a size difference between Way & Bench tubes?

The reason for asking, is that my bench tubes were painted some time in their history and have rusted a lot less than my Way tubes. My first bench tube cleanup seems to be yielding good results, and I fear that the Way tubes will be likely be too pitted for decent sliding use.

I don't want to spend too much time buffing & polishing any tube if I'm just going to paint it again.

Thanks all.

The 'concise' answer is 'maybe'! I am not recalling what you are working on, but if it is an earlier Greenie than the tube diameters are different. The early Greenies bench tubes were 1 7/8" od. ALL others are 1 3/4" od.

ALL way tubes are 52" long(including the 10E/R) and ALL bench tubes are 3/4" longer. The 10E/R tubes are twice as thick as the Mark 5/v tubes.

PG-Zac · Post by **PG-Zac** » Thu Apr 01, 2010 4:02 am

Thanks Red,

I am restoring a Goldie from '62 or '63 (no serial #)

Thanks for pointing out the length difference - I didn't even think to check that.

mickyd · Post by **mickyd** » Thu Apr 01, 2010 7:59 am

PG-Zac wrote:I don't have a micrometer, ........

.........and I fear that the Way tubes will be likely be too pitted for decent sliding use.

I would't be concerned that the tubes are too pitted. After electrolysis rust removal and prior to sanding, these tubes worked fine yet you can see how pitted they were.

JPG · Post by **JPG** » Thu Apr 01, 2010 10:39 am

PG-Zac wrote:Thanks Red,

I am restoring a Goldie from '62 or '63 (no serial #)

Thanks for pointing out the length difference - I didn't even think to check that.

A word of caution! Do not assume anything relative to what/how old/model you are dealing with. It can be a mix from different units.

PG-Zac · Post by **PG-Zac** » Thu Apr 01, 2010 12:22 pm

JPG40504 wrote:A word of caution! Do not assume anything relative to what/how old/model you are dealing with. It can be a mix from different units.

That's for sure. I have already found that this Goldie is made of not all original parts. For example, the extension table is cast iron.

JPG · Post by **JPG** » Thu Apr 01, 2010 12:47 pm

PG-Zac wrote:That's for sure. I have already found that this Goldie is made of not all original parts. For example, the extension table is cast iron.

OK! Clone parts also!:eek:

robinson46176 · Post by **robinson46176** » Thu Apr 01, 2010 1:33 pm

JPG40504 wrote:A word of caution! Do not assume anything relative to what/how old/model you are dealing with. It can be a mix from different units.

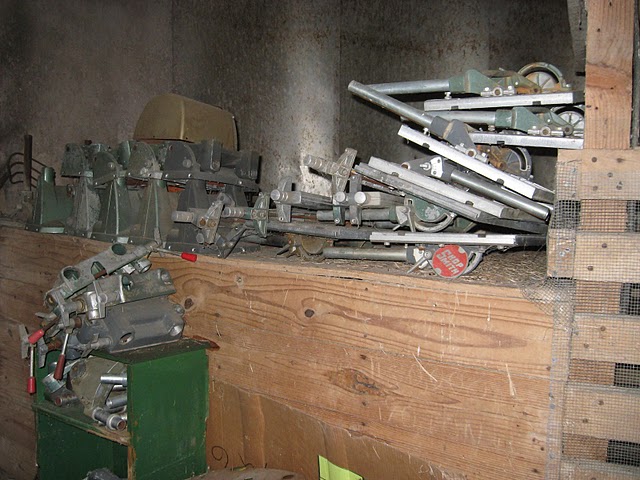

Do you mean like from my parts stash? ]8344[/ATTACH]

PG-Zac · Post by **PG-Zac** » Thu Apr 01, 2010 7:08 pm

WOAH Francis !!!

That is quite a stash - you certainly have one or two spares.

JPG · Post by **JPG** » Thu Apr 01, 2010 8:24 pm

PG-Zac wrote:WOAH Francis !!!

That is quite a stash - you certainly have one or two spares.

And that does not include the stable of operating ones!:D
