I inherited my late stepfather's SS, I think it is the Mark V (how can I tell?) and I tried turning it on the other day, but all I got was a hum from inside (sounded like motor kicked on, but was not moving...) and nothing moving.
There are no accessories hooked to it, and I don't know if that makes a difference. I wanted to use the band saw, but could not figure out how to connect it to the head.
Anyone know what I'm doing wrong?
Thanks!
Morgan
Inherited SS, not sure if it works
Moderator: admin
Easiest thing to do is post a photo, that will make it super simple to tell what you have.
If the table for the table saw has a red insert and has round tubes, then you have a mark V 510.
If the table has a red insert and boxy aluminum rails, then you have a 520.
Most likely you have a 500, which means it has a table with a lip on the front, but not hte back. As long as you don't see any exposed belts you are pretty well assured that its a Mark V
If the table for the table saw has a red insert and has round tubes, then you have a mark V 510.
If the table has a red insert and boxy aluminum rails, then you have a 520.
Most likely you have a 500, which means it has a table with a lip on the front, but not hte back. As long as you don't see any exposed belts you are pretty well assured that its a Mark V
Mark 7, Pro Planer, Jointer, Bandsaw w/Kreg, Biscuit Joiner, Belt Sander, Jig Saw, Ringmaster, DC3300, Overarm Pin Router, Incra Ultimate setup
JWBS-14 w/6" riser, RBI Hawk 226 Ultra, Bosch GSM12SD Axial Glide Dual Compound Miter Saw
-- I have parts/SPTs available, so if you are in the Seattle area and need something let me know --
damagi AT gmail DOT com
JWBS-14 w/6" riser, RBI Hawk 226 Ultra, Bosch GSM12SD Axial Glide Dual Compound Miter Saw
-- I have parts/SPTs available, so if you are in the Seattle area and need something let me know --
damagi AT gmail DOT com
looks like you have a mark V 500 to me. There hopefully is a pile of other parts not pictured - otherwise you are missing quite a bit of stuff...you have a bandsaw though =)

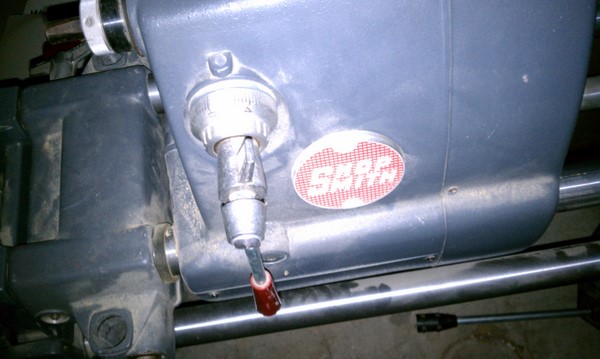

As for the motor not spinning, try rotating the spindle (the part that extends out when you turn the red handle). It might be stuck from sitting for quite a while and need a little movement. There are more involved things to try, but thats a good start. Make sure the unit is unplugged when doing this.
BTW - do not turn the speed dial while the unit is off. You will break things.
As for the motor not spinning, try rotating the spindle (the part that extends out when you turn the red handle). It might be stuck from sitting for quite a while and need a little movement. There are more involved things to try, but thats a good start. Make sure the unit is unplugged when doing this.
BTW - do not turn the speed dial while the unit is off. You will break things.
Mark 7, Pro Planer, Jointer, Bandsaw w/Kreg, Biscuit Joiner, Belt Sander, Jig Saw, Ringmaster, DC3300, Overarm Pin Router, Incra Ultimate setup
JWBS-14 w/6" riser, RBI Hawk 226 Ultra, Bosch GSM12SD Axial Glide Dual Compound Miter Saw
-- I have parts/SPTs available, so if you are in the Seattle area and need something let me know --
damagi AT gmail DOT com
JWBS-14 w/6" riser, RBI Hawk 226 Ultra, Bosch GSM12SD Axial Glide Dual Compound Miter Saw
-- I have parts/SPTs available, so if you are in the Seattle area and need something let me know --
damagi AT gmail DOT com
-
wannabewoodworker
- Platinum Member
- Posts: 626
- Joined: Mon Feb 15, 2010 11:36 am
- Location: Milford, CT
Looks like a Model 500 you are missing the coupler to run the bandsaw. But that is of no concern until you troubleshoot why the headstock is not spinning. Probably needs normal maintenance and has been sitting for a long time that is why it is not purrrrin like a kitten. Go to the Shopsmith site and look at the Sawdust Sessions 21,22,23,24.
Sawdust Session 21
Sawdust Session 22
Sawdust Session 23
Sawdust Session 24
Sawdust Session 21
Sawdust Session 22
Sawdust Session 23
Sawdust Session 24
Michael Mayo
Senior IT Support Engineer
Soft Designs Inc.
albiemanmike@gmail.com
1960's SS Mark VII, 1954 Greenie, 1983 Mark V, Jointer, Bandsaw, Jigsaw, Dewalt Slider, Delta Super 10, Delta 8" Grinder, Craftsman compressor, Drill Doctor, Kreg PH Jig, Bosch Jigsaw, Craftsman Router and Table...........and adding more all the time....
Senior IT Support Engineer
Soft Designs Inc.
albiemanmike@gmail.com
1960's SS Mark VII, 1954 Greenie, 1983 Mark V, Jointer, Bandsaw, Jigsaw, Dewalt Slider, Delta Super 10, Delta 8" Grinder, Craftsman compressor, Drill Doctor, Kreg PH Jig, Bosch Jigsaw, Craftsman Router and Table...........and adding more all the time....
-
JPG
- Platinum Member
- Posts: 35457
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
FYI: https://forum.shopsmith.com/viewtopic.php?t=7092&highlight=newowner
What is the serial number found on the shiney round vent plate around the middle output shaft on the 'left' end.
The bandsaw attaches to the headstock by way of splined coupling hubs and a plastic 'coupler'.
The hubs are apparent in your pix. The coupler is about 4 to 5 inches long, and has a spring on one end.
What is the serial number found on the shiney round vent plate around the middle output shaft on the 'left' end.
The bandsaw attaches to the headstock by way of splined coupling hubs and a plastic 'coupler'.
The hubs are apparent in your pix. The coupler is about 4 to 5 inches long, and has a spring on one end.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
mbcabinetmaker
- Platinum Member
- Posts: 1627
- Joined: Thu Jul 20, 2006 6:18 am
- Location: Greer SC
-
JPG
- Platinum Member
- Posts: 35457
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
If the motor humming problem is not resolved by manually rotating the output shaft, the motor likely has a stuck open start switch(or saw dust or other matter holding the contacts open).
In any event do not try starting the motor until you have determined why it is not starting. Repeated lengthy attempts to start it will likely overheat it and burn the winding insulation. Very short 'attempts' are ok if not repeated too soon.
You may need to remove the belt cover and blow debris out from the motor. GENTLE tapping on the motor casing MAY shake debris holding the contacts open.
Last effort:( open up the motor to determine cause etc.
In any event do not try starting the motor until you have determined why it is not starting. Repeated lengthy attempts to start it will likely overheat it and burn the winding insulation. Very short 'attempts' are ok if not repeated too soon.
You may need to remove the belt cover and blow debris out from the motor. GENTLE tapping on the motor casing MAY shake debris holding the contacts open.
Last effort:( open up the motor to determine cause etc.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
robinson46176
- Platinum Member
- Posts: 4182
- Joined: Mon Mar 09, 2009 9:00 pm
- Location: Central Indiana (Shelbyville)
mbcabinetmaker wrote:Welcome to the forum Morgan. You will get good advice here.
You will also enjoy your time here. It is like having friends that do not come over and borrow your tools.
I have a sign in one shop that says
"We loaned our last tool in June of 1918, If you still have it please bring it back".
.
--
farmer
Francis Robinson
I did not equip with Shopsmiths in spite of the setups but because of them.
1 1988 - Mark V 510 (bought new), 4 Poly vee 1 1/8th HP Mark V's, Mark VII, 1 Mark V Mini, 1 Frankensmith, 1 10-ER, 1 Mark V Push-me-Pull-me Drillpress, SS bandsaw, belt sander, jointer, jigsaw, shaper attach, mortising attach, TS-3650 Rigid tablesaw, RAS, 6" long bed jointer, Foley/Belsaw Planer/molder/ripsaw, 1" sander, oscillating spindle/belt sander, Scroll saw, Woodmizer sawmill
farmer
Francis Robinson
I did not equip with Shopsmiths in spite of the setups but because of them.
1 1988 - Mark V 510 (bought new), 4 Poly vee 1 1/8th HP Mark V's, Mark VII, 1 Mark V Mini, 1 Frankensmith, 1 10-ER, 1 Mark V Push-me-Pull-me Drillpress, SS bandsaw, belt sander, jointer, jigsaw, shaper attach, mortising attach, TS-3650 Rigid tablesaw, RAS, 6" long bed jointer, Foley/Belsaw Planer/molder/ripsaw, 1" sander, oscillating spindle/belt sander, Scroll saw, Woodmizer sawmill

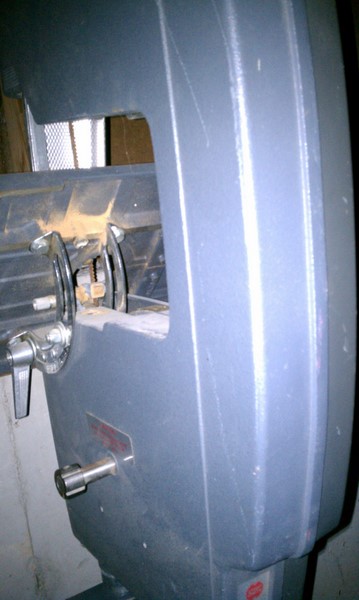

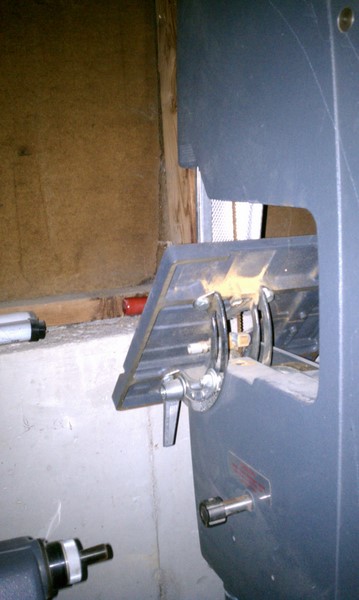

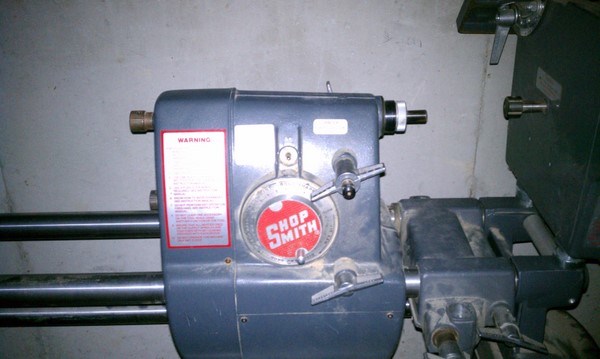

The fourth picture you posted shows the bandsaw next to the shaft the saw blade mounts onto. Looking at the machine front side The bandsaw , etc, etc. always mount to your left not the right.... If you mount it on the right side and it will run backwards..... The second picture on the upper left shows the hub to drive the bandsaw..... all you would need is the plastic coupler... Good luck, questions ask these guys and you will get straight answers.....
