John, and JPG

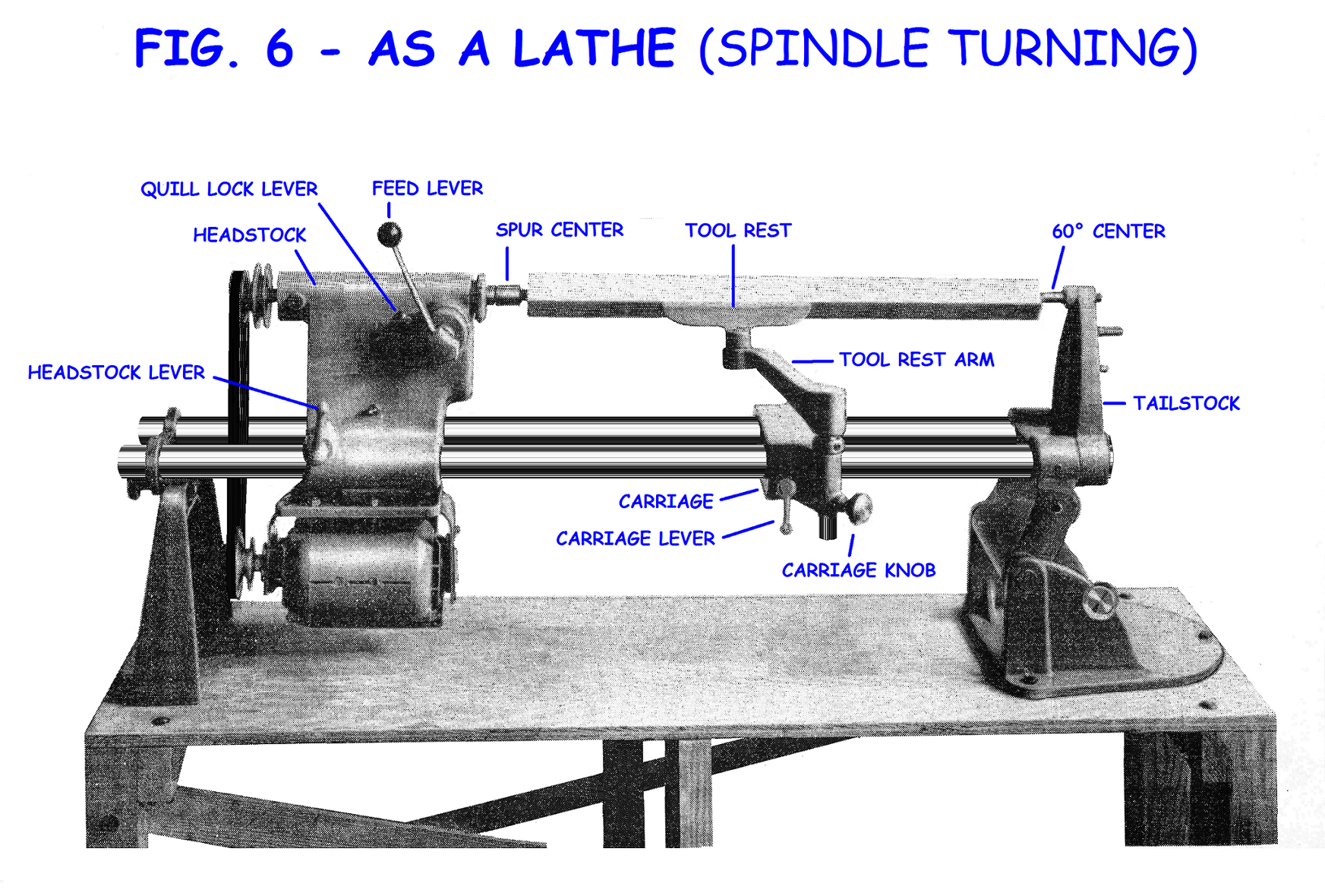

I was restoring FIG. 6 from the manual when you posted FIG. 2 above, enhanced.
FIG. 6 is the same quality as FIG. 2 from the manual. This is about 1/3 the size of the file I am working on, I just had to reduce it drastically to post it in the forum.
It takes time to restore, especially when the image is in poor shape. I will give you an example. I am doing what I can to make them better, much the same as we do for the machines themselves.
Using that analogy, I just cleaned the old girl up, polished and waxed the way tubes, and gave her a new belt..... which is pretty much all you do to the 70 year old machines anyway.
You two have been so much help scanning the pages of the old manuals for the manuals that I have restored. John has a preliminary working copy of the Preliminary Manual that he is proof-reading for me (less all the images) which I am still working on.
Work is busy, so I don't know how quickly I am going to get finished on this manual restoration.
Kindest regards,
Everett
