One of the hardest joints in woodworking to keep constant is the simple but joint of a face frame to a cabinet side. Plywood isn't always straight and flat and I won't even get started on hardwood.


I came up with this trick for the Domino to give a .020 offset so that the face frame ...

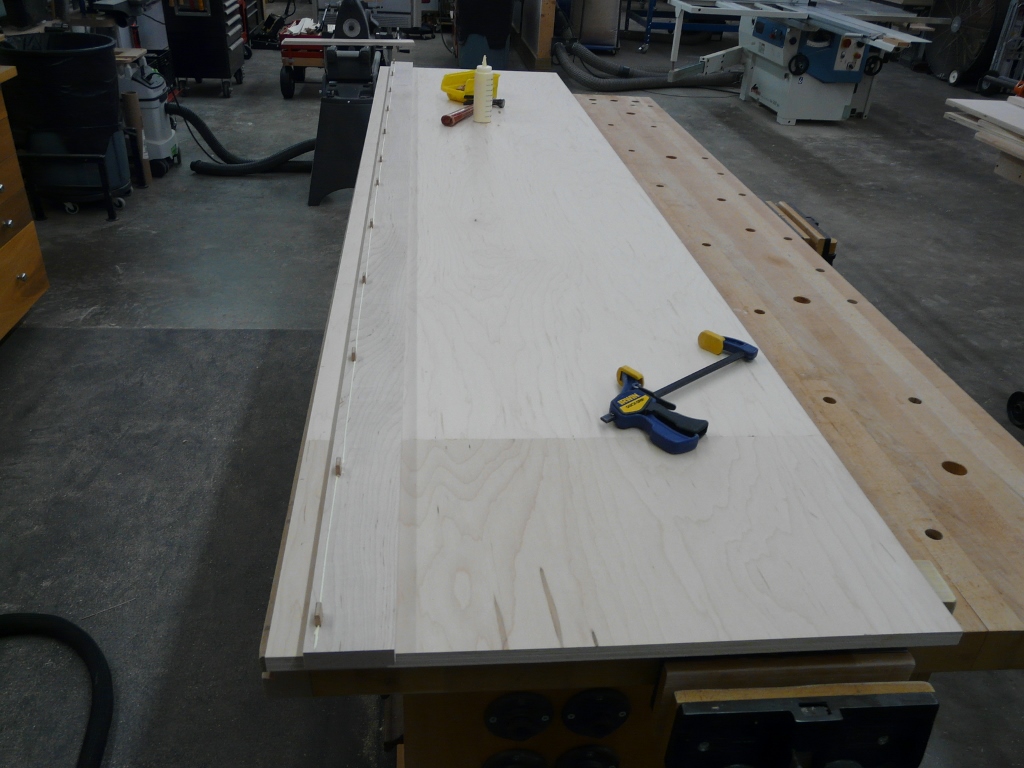

Get out the board stretcher. I need some 9' plywood







This is where those chamfered dominos come into play








A little trick with the Domino machine comming up soon

dusty wrote:What design/graphics program are you using.

You do beautiful work, Mark. I wish you had built my kitchen and bathroom cabinets.

Thanks you Dusty. I use Sketchup Pro and Sketchup Viewer on my tablet.

Doors set



This is how the hinges work

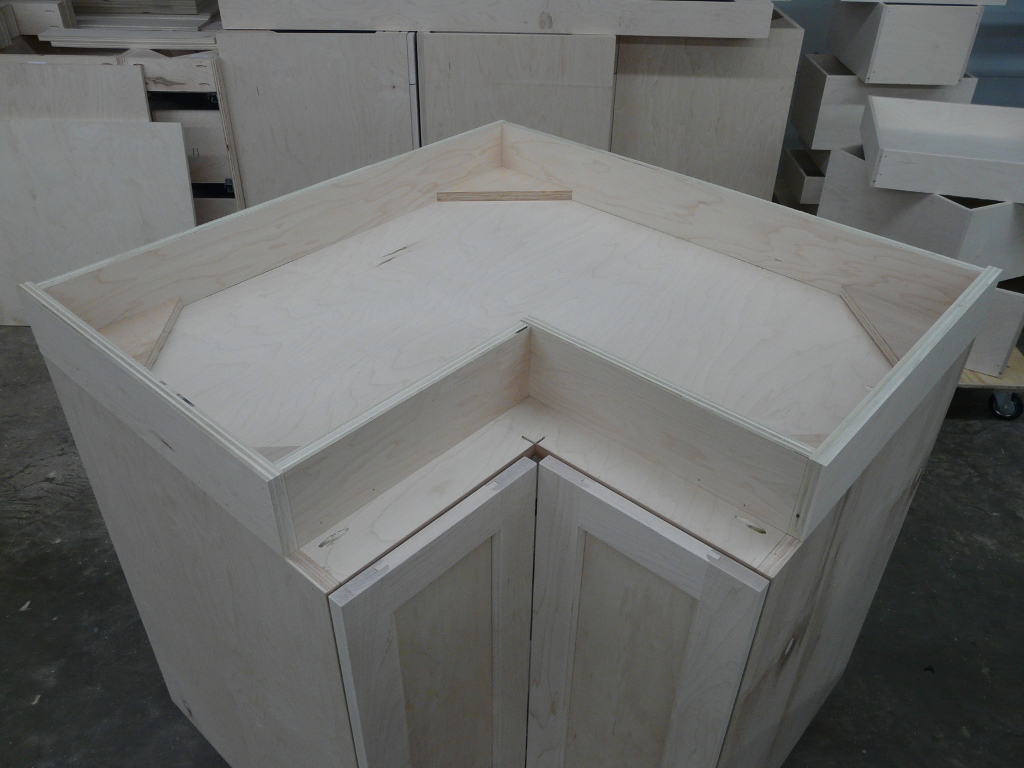

The base

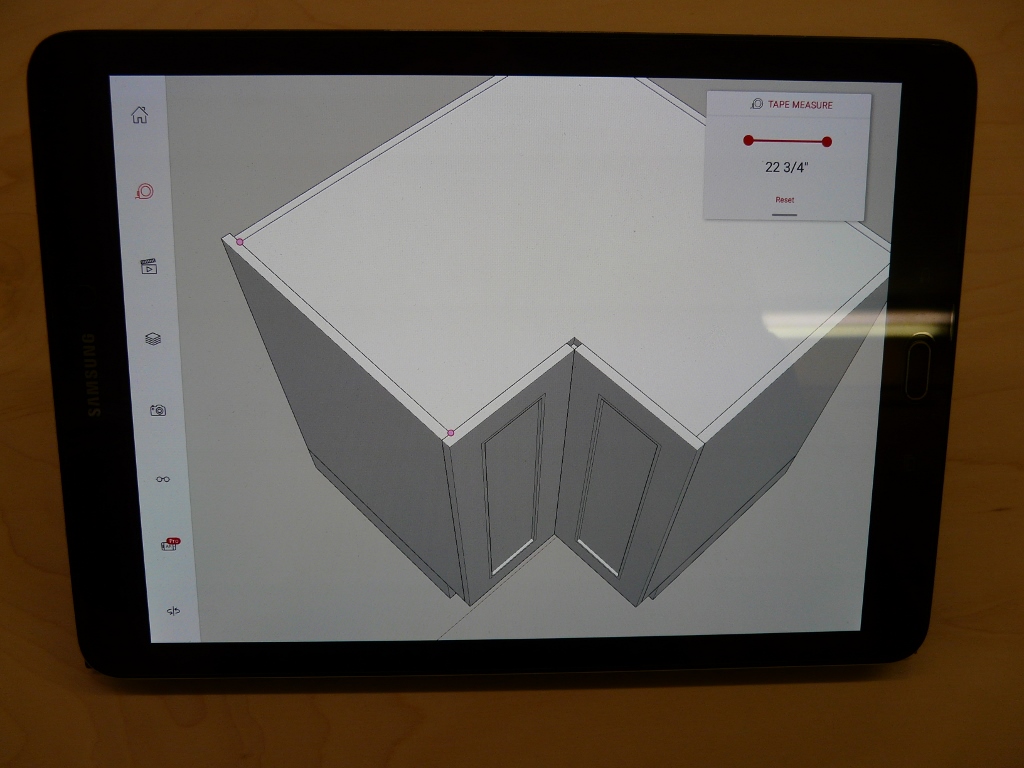

OOPs I forgot to reset the tape measure tool

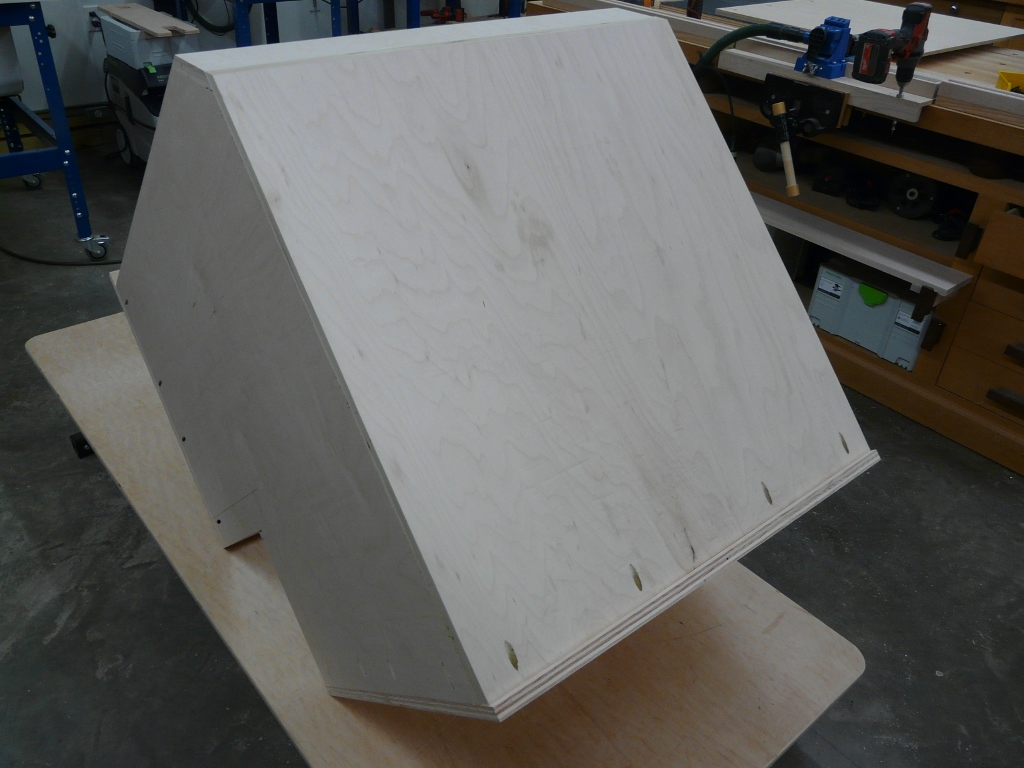

Here I fit the backs but they will be installed after painting is done.

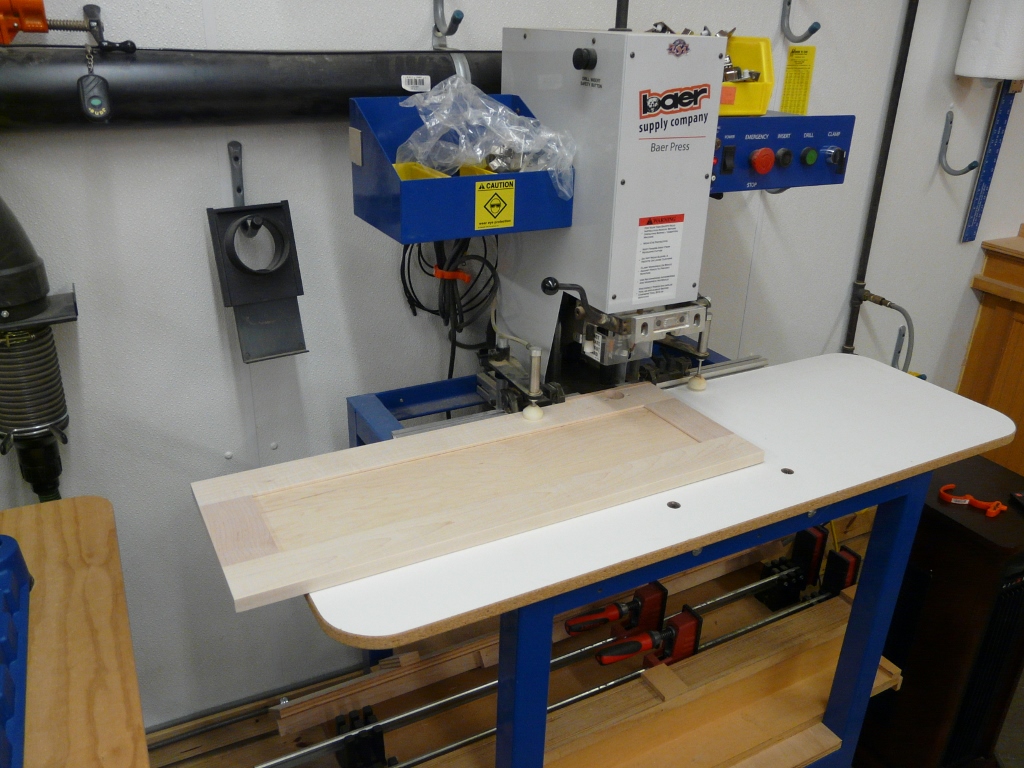

A little specility drilling for the doors.




No it just looks like a mistake!

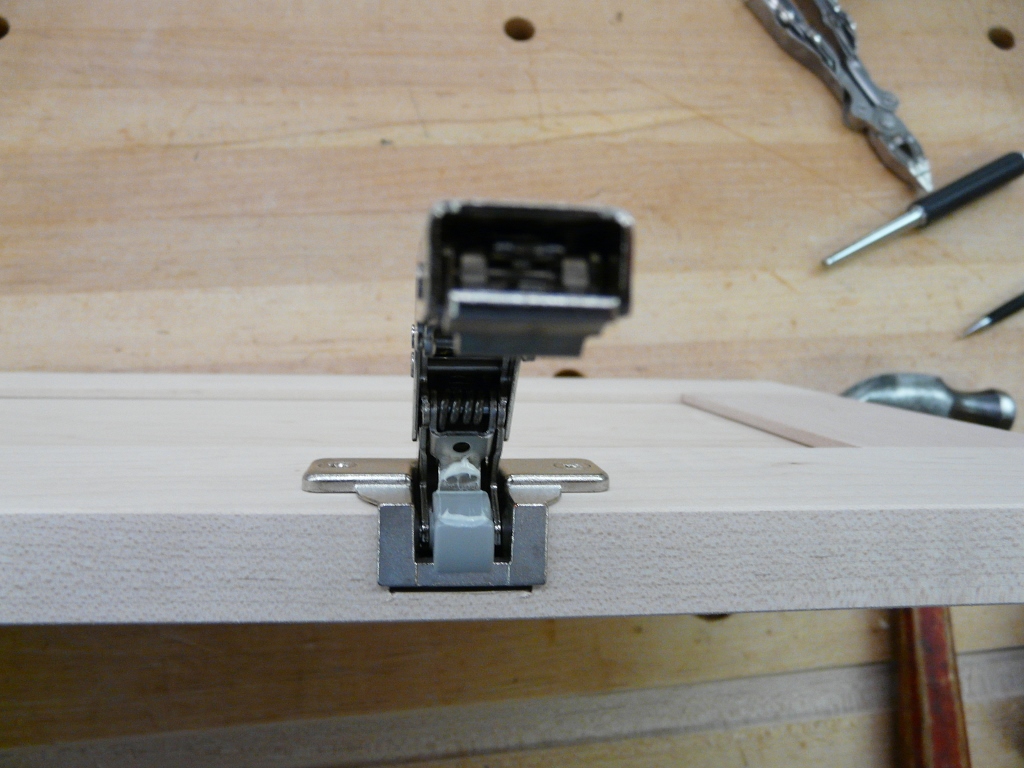

This is called a bi-fold hinge.





All ready to install onto the cabinet.

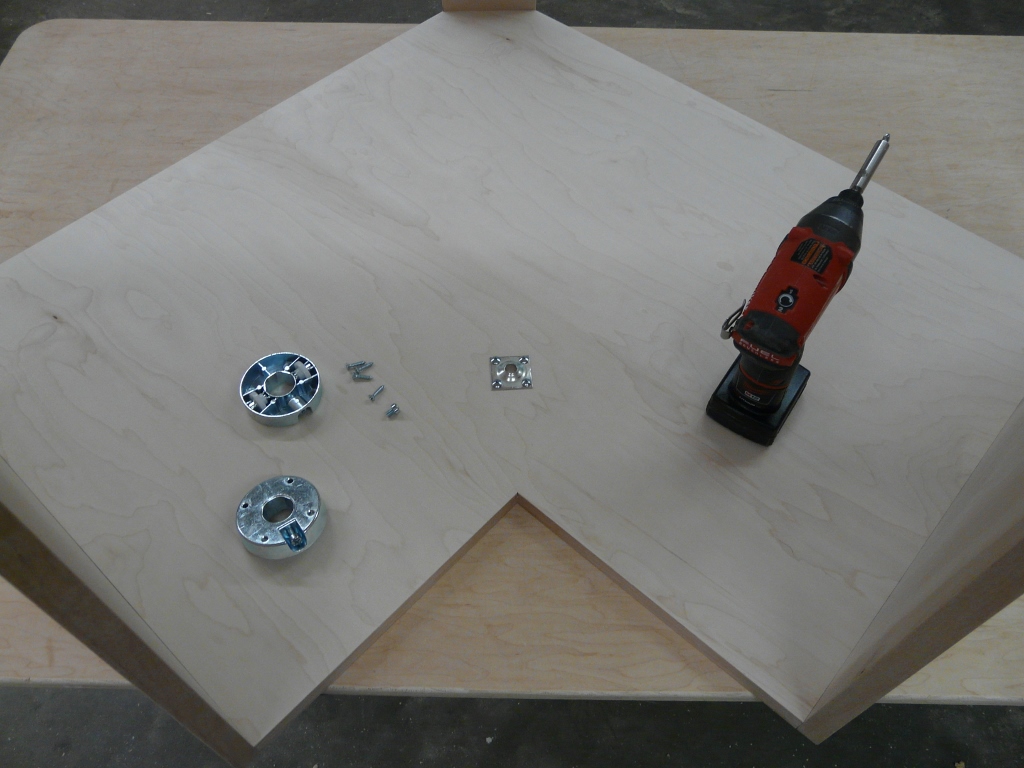

Now we can drill for the Lazy Susan hardware.

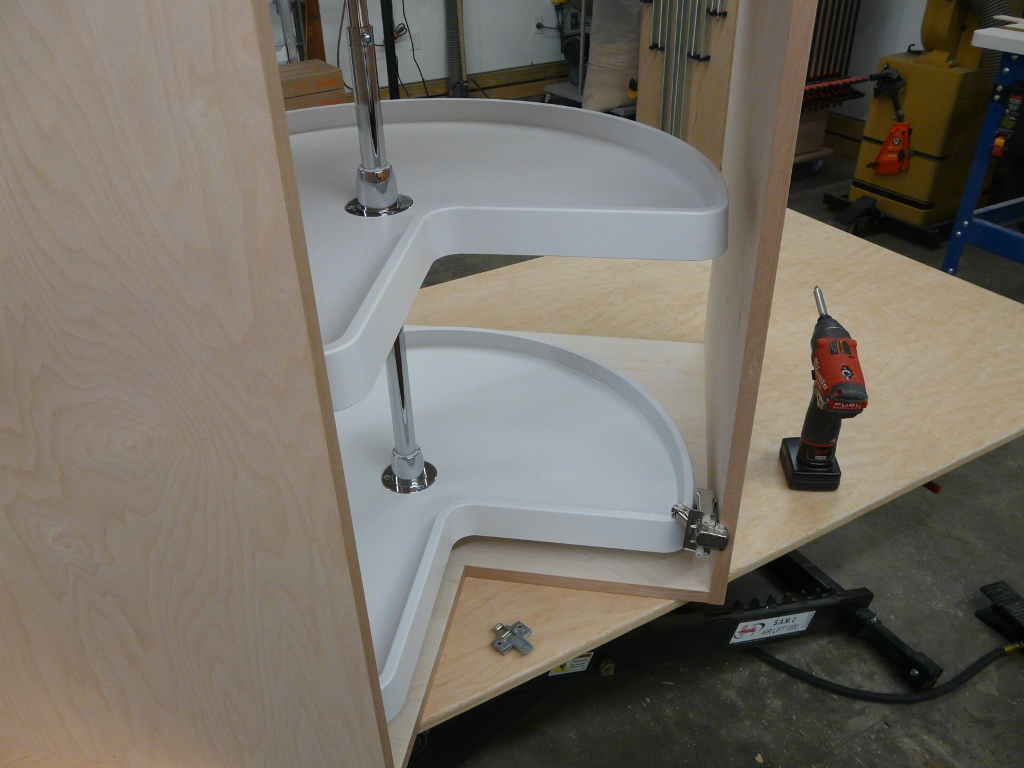

The lower hinges have to be offset to clear the bottom tray.


It seems like Rev a Shelf changes these about every year or so so my old template no longer works with the new hardware.








No problem I'll just glue the new template to a board and save it until the next change.




Next step is to drill 1/4" holes in the ...

Very nice job on the repair.

It is so nice seeing these units come together. I hope you show them after the finish has been applied, too. They look awesome and I wish I had the skill to do the quality work you do (and your awesome shop).

I'll try to get pictures but 99% of the work that I do these days is for a larger shop ...

Billdit wrote:Mark, you do the best work ! Good seeing you take the time to share your expertise ! Is your “new” Powerpro unit still getting it done ?

Yes Bill it hasn't given me any trouble and I use it for something almost daily. Love the power and smoothness!
