Video of my working air compressor!
Moderator: admin
-
ugly_guitar_guy
- Gold Member
- Posts: 36
- Joined: Wed Aug 24, 2011 3:07 pm
- Location: Orange County, CA
Video of my working air compressor!
Hey guys, here's a short vid showing my working air compressor after replacing the gasket. I can't seem to find much info on these old beasts, so I figured that you all would appreciate seeing one in action!
http://www.youtube.com/watch?v=18OqJLtIhPY
http://www.youtube.com/watch?v=18OqJLtIhPY
-
easterngray
- Platinum Member
- Posts: 720
- Joined: Sun Mar 11, 2007 8:28 pm
- Location: Cape Cod MA.
That was excellent - I love to see old Shopsmith gear rescued and working. Nice job! My compressor of the same era gets pretty darn hot. Your advice to lube is good - where did you lube? Also, did you get the pressure gauge at HF? That's a nice addition. Alec
1960 Aniversary Model Mark 5 500 "Goldie" with most SPT's
-
ugly_guitar_guy
- Gold Member
- Posts: 36
- Joined: Wed Aug 24, 2011 3:07 pm
- Location: Orange County, CA
When I had the gasket out I just oiled the heck out of all the moving parts below the mushroom, and of course the bearings that are on the shaft that go to the power coupler attachment. It ran much smoother after that.easterngray wrote:That was excellent - I love to see old Shopsmith gear rescued and working. Nice job! My compressor of the same era gets pretty darn hot. Your advice to lube is good - where did you lube? Also, did you get the pressure gauge at HF? That's a nice addition. Alec
The pressure gauge is just a $5 HF gauge. I bought their air compressor "starter kit" for all the attachments and hose. Works great, with no leaks!
Looks great! Now if you can just covert your Guitar to a air, you can put a new meaning to playing the air guitar:D
Sam in Northfield, MN
A day without beer......could have been better
Mark V 500 - S/N 100990, Mark V 510 - S/N missing, SS Band Saw, SS 6" Belt Sander, SS 4" Jointer, SS Scroll Saw, SS DC3300
A day without beer......could have been better
Mark V 500 - S/N 100990, Mark V 510 - S/N missing, SS Band Saw, SS 6" Belt Sander, SS 4" Jointer, SS Scroll Saw, SS DC3300

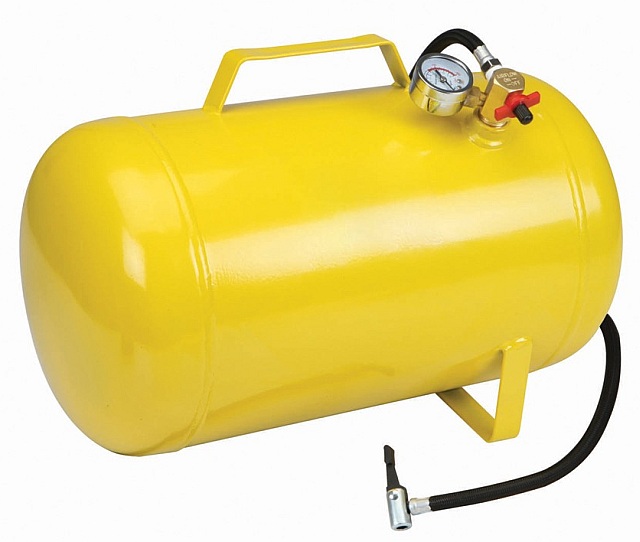

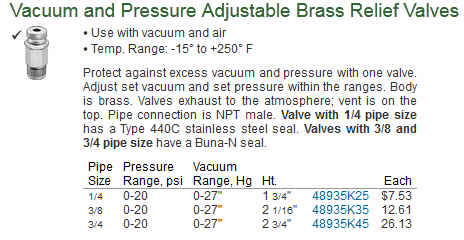

What you need to improve your performance is an auxiliary air tank and a pressure relief valve.
