What direction does the Power Station output shaft rotate? Looking at the switch side of the power head (for front orientation) my output shaft turns top to the back. I suspect it should turn top to front.
Another way to state the rotation direction. Looking from the output side of the power head mine rotates counter clockwise
The motor can be wired to rotate in either direction.

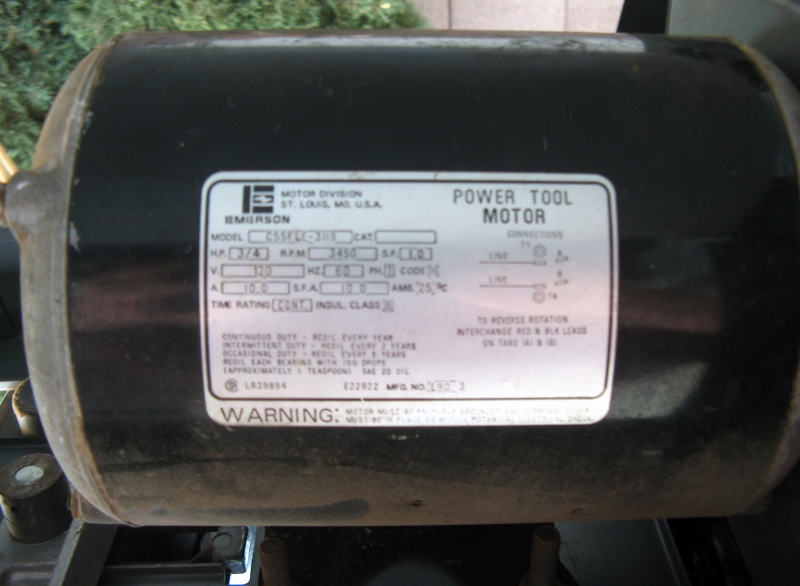

Note: The motor label picture is rotated 180
[ATTACH]20291[/ATTACH]
[ATTACH]20292[/ATTACH]
Power Station output shaft rotation
Moderator: admin
Power Station output shaft rotation
- Attachments
-
- IMG_0542 (800x590).jpg (413.37 KiB) Viewed 1187 times
-
- IMG_0544 (800x586).jpg (311.24 KiB) Viewed 1194 times
Glenn
I create problem solving challenges and opportunities for design modification, not mistakes.
SS 520 born 04/16/03, Power Station mounted Band saw , Scroll saw, Jointer, Belt sander, Overarm router, dedicated Mark V drill press, SS Maxi-clamp system, Shopsmith woodworking bench
I create problem solving challenges and opportunities for design modification, not mistakes.
SS 520 born 04/16/03, Power Station mounted Band saw , Scroll saw, Jointer, Belt sander, Overarm router, dedicated Mark V drill press, SS Maxi-clamp system, Shopsmith woodworking bench
-
BuckeyeDennis
- Platinum Member
- Posts: 3814
- Joined: Tue Jul 24, 2012 10:03 pm
- Location: Central Ohio
Thanks for taking the time to reply.BuckeyeDennis wrote:Your suspicion is correct. Mine rotates "top to front", or clockwise when viewed from the shaft end.
I almost said that the bandsaw I have mounted wouldn't work with the rotation reversed. But hey, if I simply flipped the blade around, I could invent the "reverse upcut bandsaw"!
I wonder how flipping the blade would effect tracking?
Glenn
I create problem solving challenges and opportunities for design modification, not mistakes.
SS 520 born 04/16/03, Power Station mounted Band saw , Scroll saw, Jointer, Belt sander, Overarm router, dedicated Mark V drill press, SS Maxi-clamp system, Shopsmith woodworking bench
I create problem solving challenges and opportunities for design modification, not mistakes.
SS 520 born 04/16/03, Power Station mounted Band saw , Scroll saw, Jointer, Belt sander, Overarm router, dedicated Mark V drill press, SS Maxi-clamp system, Shopsmith woodworking bench
Might be hard to keep it sharp also:Dstumpbuster wrote:Thanks for taking the time to reply.
I wonder how flipping the blade would effect tracking?
Sam in Northfield, MN
A day without beer......could have been better
