I would refer to them as bench tubes, but they do not function as such. They remain part of the 'upper' assembly that includes the way tubes and headstock etc.

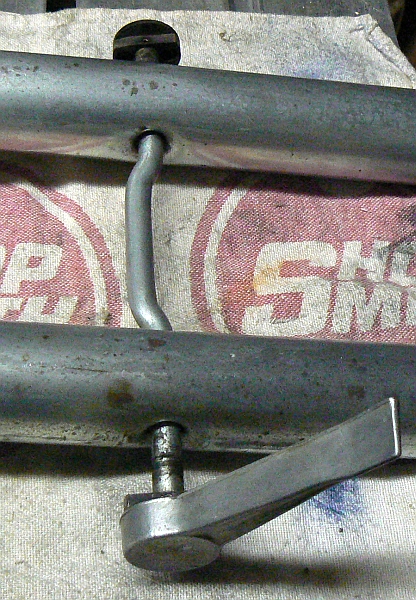

There are two tilt locks, one for each 'direction.
[ATTACH]20844[/ATTACH]

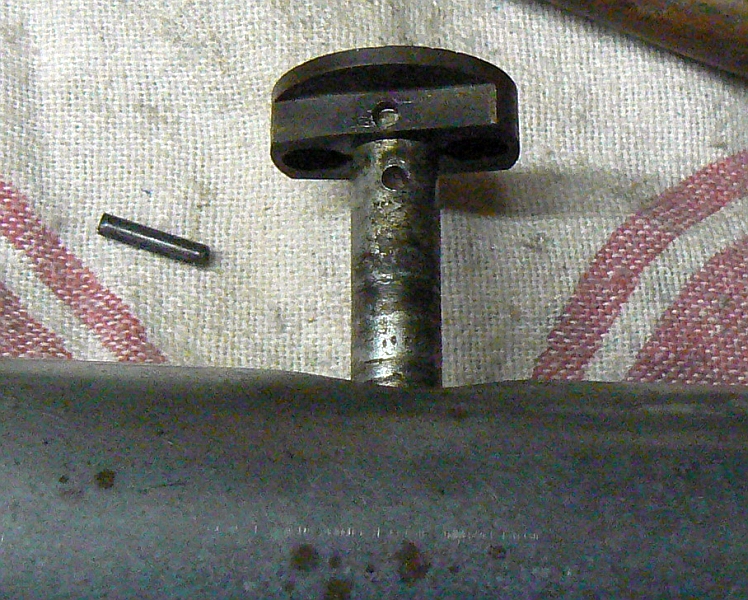

The rear end lock cam is retained by a tension pin.
[ATTACH]20845[/ATTACH]

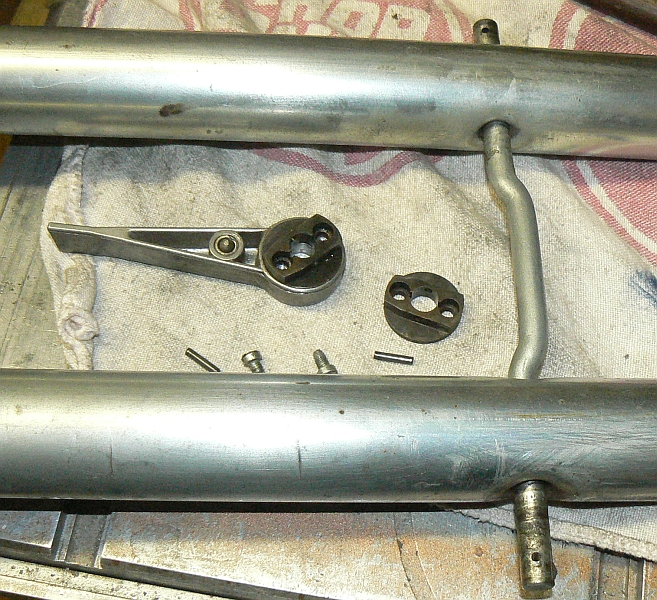

As is the front lock cam that also has the lock handle attached.
[ATTACH]20846[/ATTACH]

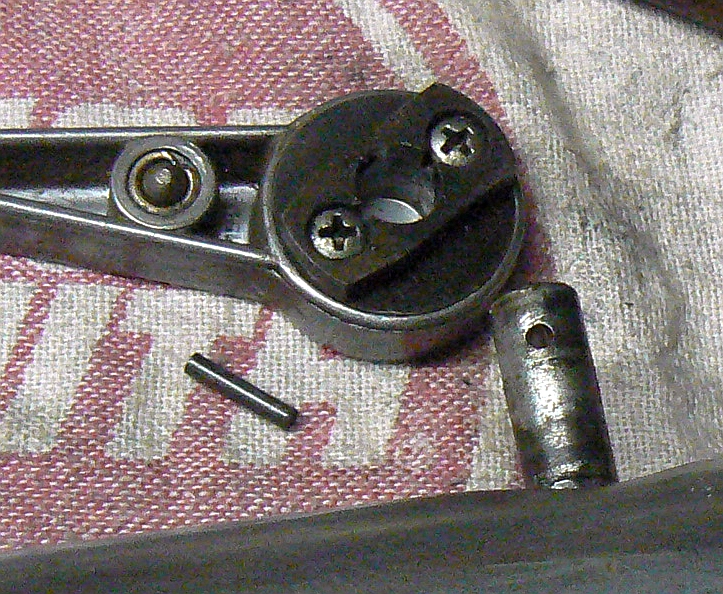

The handle is secured to the cam by two screws.
[ATTACH]20847[/ATTACH]
This thread is linked to from https://forum.shopsmith.com/viewtopic.php?t=11373
Lower tubes breakdown
Moderator: admin
-
JPG
- Platinum Member
- Posts: 35438
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Lower tubes breakdown
- Attachments
-
- clamp a.jpg (289.62 KiB) Viewed 1218 times
-
- clamp b.jpg (468.62 KiB) Viewed 1218 times
-
- clamp c.jpg (486.78 KiB) Viewed 1219 times
-
- clamp d.jpg (416.58 KiB) Viewed 1220 times
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
JPG
- Platinum Member
- Posts: 35438
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)

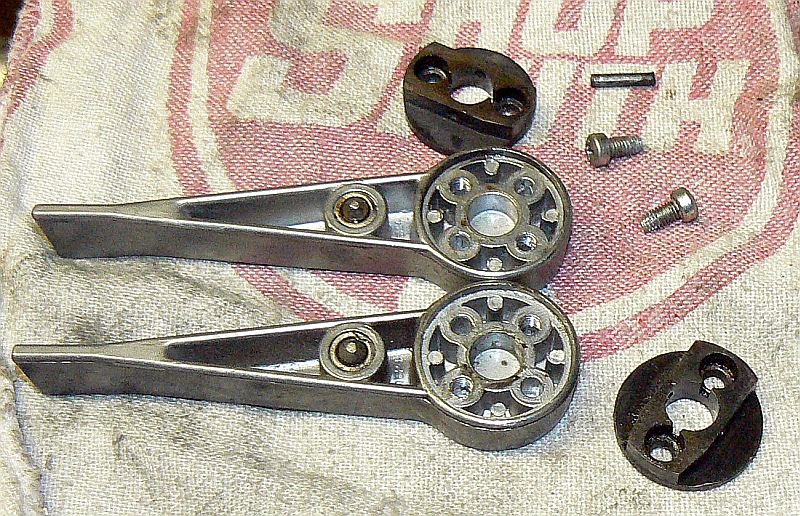

The two lock levers are identical, but have the opposite pair of holes tapped. This is so each locks in opposite directions
[attach]20848[/attach]

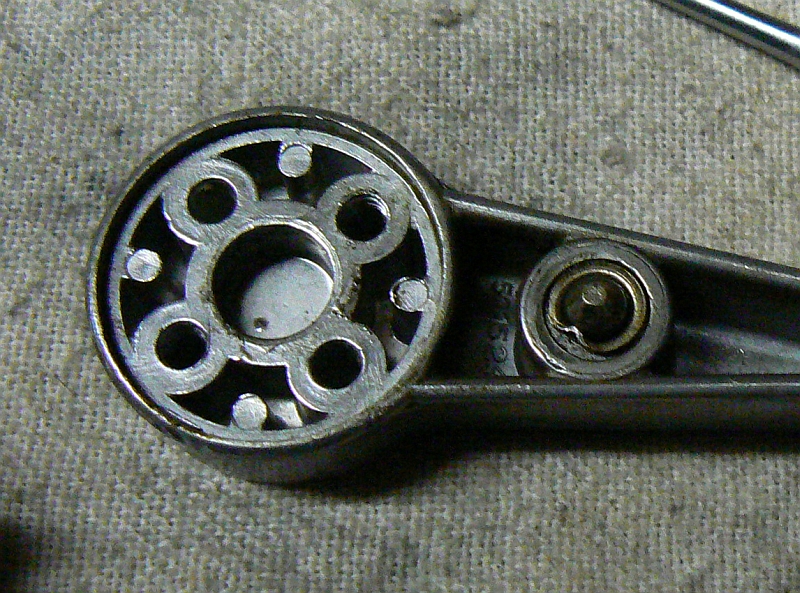

One lever had a bit of damage(PO attempted to remove bullet detent?)
[attach]20849[/attach]

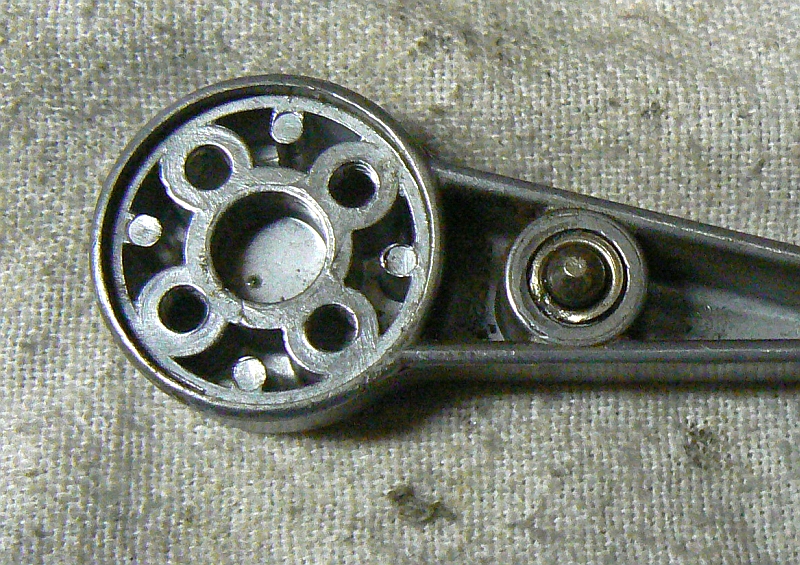

Not pretty, but more 'normal'.
[attach]20850[/attach]

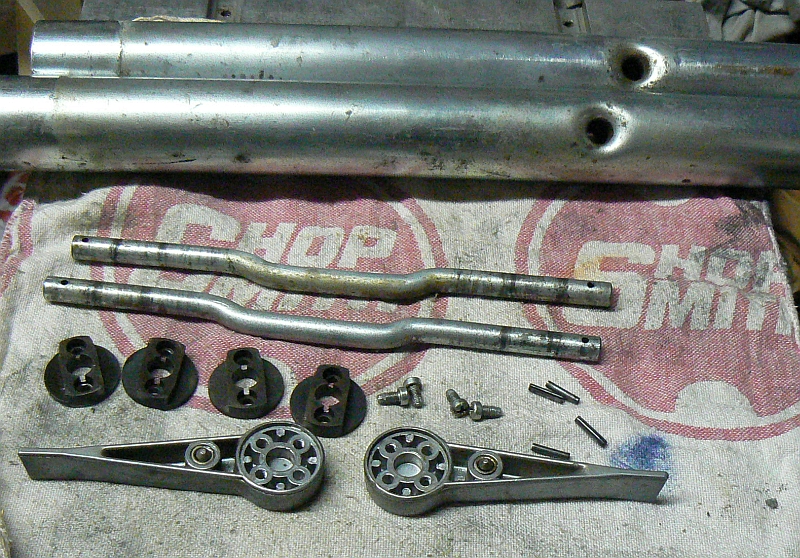

Finally all the parts there are ready for cleanup.
[attach]20851[/attach]
[attach]20848[/attach]
One lever had a bit of damage(PO attempted to remove bullet detent?)
[attach]20849[/attach]
Not pretty, but more 'normal'.
[attach]20850[/attach]
Finally all the parts there are ready for cleanup.
[attach]20851[/attach]
- Attachments
-
- clamp e.jpg (505.92 KiB) Viewed 1218 times
-
- clamp e2.jpg (500.05 KiB) Viewed 1217 times
-
- clamp f.jpg (503.2 KiB) Viewed 1224 times
-
- clamp g.jpg (495.48 KiB) Viewed 1213 times
╔═══╗
