Is there any lasting way to align the spindle and tail stop. The eccentric collar seem to move. Please advise.
Thanks
spindle alignment
Moderator: admin
Jack
Inspect the eccentric by removing the set screw and removing the eccentric from the tailstock. If there is a groove worn into the eccentric from the set screw, file the burrs down and the groove can be filled in with some JB weld and filed smooth. If the tailstock has only one set screw the tailstock can be drilled out on the opposite side of the existing screw and tapped for a second screw.
Bill V
Inspect the eccentric by removing the set screw and removing the eccentric from the tailstock. If there is a groove worn into the eccentric from the set screw, file the burrs down and the groove can be filled in with some JB weld and filed smooth. If the tailstock has only one set screw the tailstock can be drilled out on the opposite side of the existing screw and tapped for a second screw.
Bill V
Information on drilling the second hole if you want it.
https://forum.shopsmith.com/viewtopic.php?t=9564
Ed
https://forum.shopsmith.com/viewtopic.php?t=9564
Ed
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
tailstock dimple 'override'
Another approach.

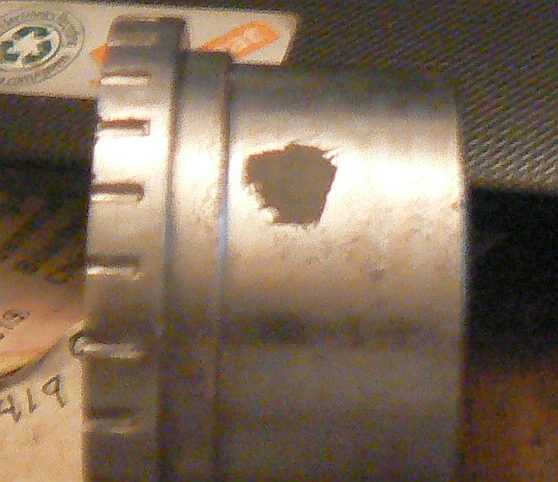

[ATTACH]21967[/ATTACH]
First fill the dimple.
[ATTACH]21968[/ATTACH]
The steel sheet metal 'ring' can be up to 18 ga(this one is thinner).
There is room for a strip 3/8"+ that will lay in the screw landing zone.
This will work on all Mark 5/V tailstocks known to me.

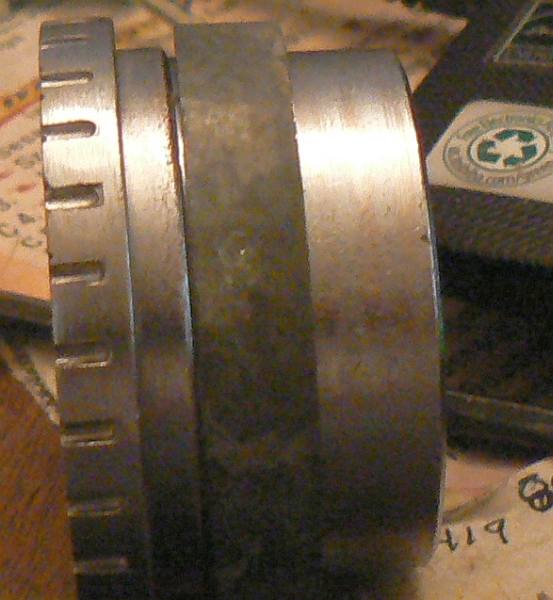

[ATTACH]21967[/ATTACH]
First fill the dimple.
[ATTACH]21968[/ATTACH]
The steel sheet metal 'ring' can be up to 18 ga(this one is thinner).
There is room for a strip 3/8"+ that will lay in the screw landing zone.
This will work on all Mark 5/V tailstocks known to me.
- Attachments
-
- 2 tailstock.jpg (255.4 KiB) Viewed 1435 times
-
- 3 tailstock.jpg (276.79 KiB) Viewed 1442 times
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
I was doing some end-grain boring on a lathe piece last night. A tip I found for myself probably sounds very elementary, but it helped me. I realized that when I concentrated on rotating my eccentric for left/right alignment, I wasn't always keeping it "flush" against the tailstock. So I was subjecting myself to a "Morse-taper tilt" variable along with the left/right and up/down variables. No wonder I often encountered a wobbling drill-bit during the boring-drill sessions.
So... when I kept everything flush and tight during my alignment steps, things got better. I did a perfect 4+ inch bore in end-grain on a very hard workpiece. I'll report out on that project later
.
So... when I kept everything flush and tight during my alignment steps, things got better. I did a perfect 4+ inch bore in end-grain on a very hard workpiece. I'll report out on that project later
.Chris
