building a new work bench.

This is a forum for intermediate to advanced woodworkers. Show off your projects or share your ideas.

Moderator: admin

Post Reply
User avatar
apexsunguitars
Gold Member
Posts: 107
Joined: Wed Jul 10, 2013 12:18 pm
Location: Porter, TX

Post by apexsunguitars »

your dad's bench is very nicely organized Dick! I will eventually be building a furnituremakers type bench myself, those vices are perfect for lutherie. I may sink a granite surface block into one end and will definately put some thought into honoring your fathers design as well. The flip of compartmanets would be idea for all the specialized handtools that I use.
Two each Shopsmith Model 500, 505, 510s. Sawsmith Model 500003. Most of the SPT goodies aside from the compressor and the Planer.
Top
User avatar
dickg1
Gold Member
Posts: 343
Joined: Tue Jan 02, 2007 1:31 pm
Location: Northwestern NJ

Post by dickg1 »

terrydowning wrote:The flip tops are really clever. Any chance of close up photos of those?

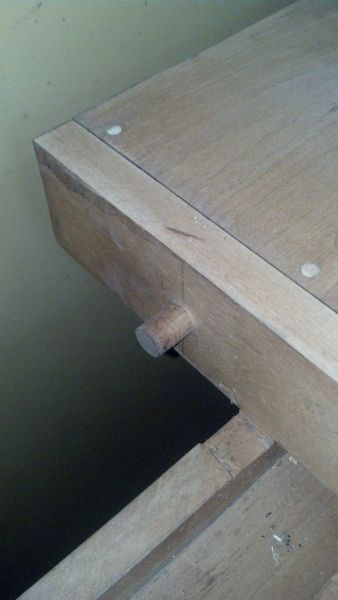

The construction is as simple as it can get. This first photo shows a peg installed on one side of the tool holder position, there is another directly opposite.
[ATTACH]22275[/ATTACH]

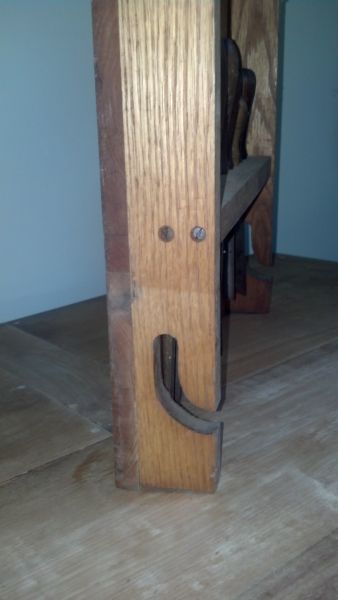

The tool holders have a slot cut into each tail. Slip the slot onto the peg and let the holder drop to the slot top. The holder can be removed simply by standing it vertical, lifting and sliding it off of the peg.
[ATTACH]22276[/ATTACH]
Dick
Attachments
A Veteran-whether Active Duty, Retired, National Guard or Reserve-Is Someone Who, at One Point in Their Life, Signed a Blank Check Made Payable To "The United States of America", For An Amount of 'Up To and Including My Life'
Top
User avatar
terrydowning
Platinum Member
Posts: 1678
Joined: Mon Jul 19, 2010 3:26 pm
Location: Windsor, CO

Post by terrydowning »

Thanks,

I love simple.
--
Terry
Copy and paste the URLs into your browser if you want to see the photos.

1955 Shopsmith Mark 5 S/N 296860 Workshop and Tools
https://1drv.ms/i/s!AmpX5k8IhN7ahFCo9VvTDsCpoV_g

Public Photos of Projects
http://sdrv.ms/MaXNLX
Top
User avatar
JPG
Platinum Member
Posts: 35600
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

Curved slots were cut with a coping saw I presume.:) I did not expect the curve. My thoughts were straight slot. This just keeps getting better!:cool:
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
