Post by sawmill »

It is boards that was pulled from the stars:D . It is a white plastic material like they use in boats and it makes great cutting boards. It has a slight pebble finish and things will slide on it very easy
Top
sawmill
Gold Member
Posts: 296
Joined: Mon Dec 11, 2006 10:10 am
Location: Lake City, Mich

Post by sawmill »

It is boards that was pulled from the stars:D . It is a white plastic material like they use in boats and it makes great cutting boards. It has a slight pebble finish and things will slide on it very easy
Top
keakap
Platinum Member
Posts: 1331
Joined: Tue Jan 16, 2007 5:09 pm
Location: Kailua, Hawaii

Post by keakap »

JPG40504 wrote:OK, what is 'star board'?
the other side if you're on port.
Mark V 520, Power-Pro!; Speed Reducer; B/S; Jointer; ShopMate DCS; SS Tenon Master; Rip-Strate; Incra; BCTW; DW734; var. SS sanding systems; Wood River;
Top
redleg
Gold Member
Posts: 237
Joined: Thu May 23, 2013 8:46 pm
Location: Asheboro, NC

Bandsaw Circle Jig

Post by redleg »

Sawmill noted that he found a jig for himself but thought I would still share these that work for me. One with the plexiglass slide was from Shopnotes Vol 15 I believe and the plans can still be purchased online if you don't have access to the magazine. The other with the dowel was a modification from who knows where. I used a fixed distance for the dowel to cut a two inch wheel that is finished on the lathe. The board with clamp in photo three and four is used as a stop when pushing the square block into the blade. Either of these can be sized for use on the cast iron table. Also look at your PTWFE bandsaw section where a simple circle cutting jig is discussed.

[ATTACH]22931[/ATTACH]

[ATTACH]22932[/ATTACH]

[ATTACH]22933[/ATTACH]

[ATTACH]22934[/ATTACH]
Attachments

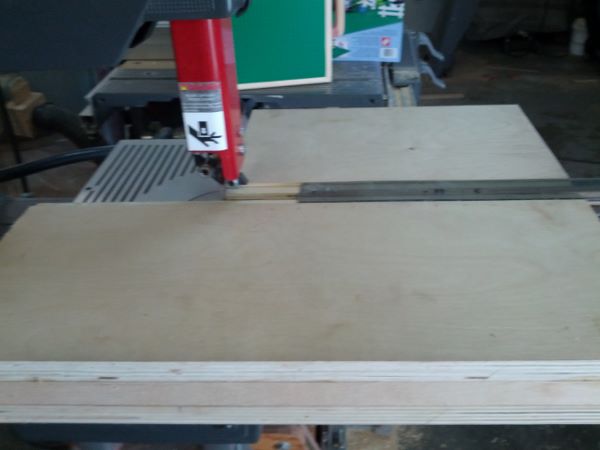

IMG_20131003_142545 (600x450).jpg
IMG_20131003_142545 (600x450).jpg (47.19 KiB) Viewed 1916 times

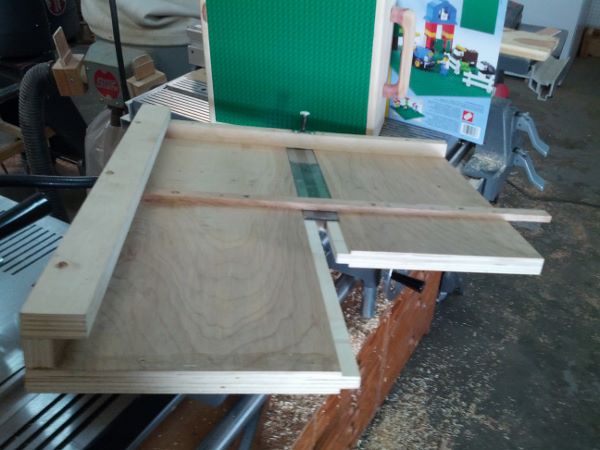

IMG_20131003_142630 (600x450).jpg
IMG_20131003_142630 (600x450).jpg (66.24 KiB) Viewed 1917 times

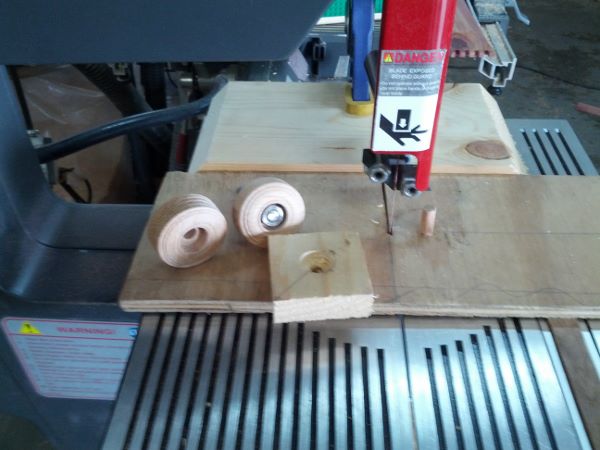

IMG_20131003_144404 (600x450).jpg
IMG_20131003_144404 (600x450).jpg (65.53 KiB) Viewed 1918 times

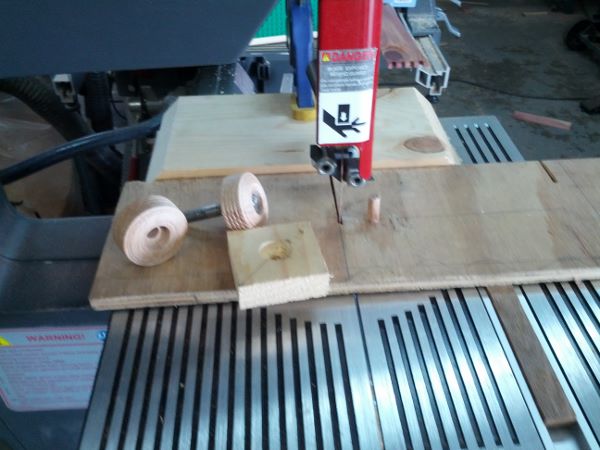

IMG_20131003_144532 (600x450).jpg
IMG_20131003_144532 (600x450).jpg (69.43 KiB) Viewed 1916 times
Top
keakap
Platinum Member
Posts: 1331
Joined: Tue Jan 16, 2007 5:09 pm
Location: Kailua, Hawaii

Post by keakap »

...
So I made a simple one to serve my porpoises of the day- making discs of from 2 to 23" diameter, accurately and repeatably.
On hand: one pi...

and I belatedly realized that the 'sled' can be moved to the Main table and used for finish sanding as is, with the conical disc.
Ah, so, something more to play with...
Mark V 520, Power-Pro!; Speed Reducer; B/S; Jointer; ShopMate DCS; SS Tenon Master; Rip-Strate; Incra; BCTW; DW734; var. SS sanding systems; Wood River;
Top
jere
Gold Member
Posts: 95
Joined: Sat Sep 15, 2012 7:42 am

Post by jere »

berry wrote:I made one years ago and it works fine. I can't remember where I saw it, but most of them seem pretty similar, IMHO. Not much to mine:

1. there's a bar from an old miter gauge
2. base (scrap pw)
3. slider (scrap hardwood)
4. nail (pivot pin)
5. C clamp (hold the unit on the band saw - not shown in pic)
6. spring clamp (to keep the slider from moving - not shown in pic)

And it's easy as can be to put it on the table and use with the disk sander too. The smallest circle I've made was a 5" diameter.
Very neat idea thanks for sharing! I am going to use that one also
