Make sure you also have a washer between the speed changer and the headstock. I think the main purpose of this washer is to provide support behind the nut so the main bracket of the speed changer isn't broken in half (as evidenced by a recent eBay auction that was linked to elsewhere on the forum). But, it may also provide an extra little bit of clearance.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Cavediver wrote:Will do, and thank you for the help!
On the subject of belts, do you prefer the standard belts or the cogged version? The belts provided with the speed changer are in fair shape and don't need replacement, but I might as well go ahead and do it while it's still pulled apart.
Cogged. They're more flexible and allow for a tighter radius. But, I don't think they make the original lengths anymore. Or else they're just incredibly hard to find. The workaround is to get one belt slightly longer and the other belt slightly shorter. I don't remember the lengths off hand. I highly recommend skip at MCKtools as the source for new belts. http://mkctools.com/10erparts.htm
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
The cogged belts are a definite improvement. They are more flexible(important with small diameter pulleys). The speed changer pulleys are very small!;)
IIUC, the belt length difference is 3"
Notes(penciled in by a PO) on my 'documentation' states 22 1/2 and 25 1/2.
Assuming adjustment range of the motor mount and speed changer arm, either 22,25 or 23,26 belts MAY work.
I decided upon 22,25 for mine.
IIUC, the belt length difference is 3"
Notes(penciled in by a PO) on my 'documentation' states 22 1/2 and 25 1/2.
Assuming adjustment range of the motor mount and speed changer arm, either 22,25 or 23,26 belts MAY work.
I decided upon 22,25 for mine.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Get em from Skip!!!!!!!!!!!!!!!!!!!!!!!Cavediver wrote:Excellent! I'll get a set ordered today
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Great minds travel similar paths!!!!:D

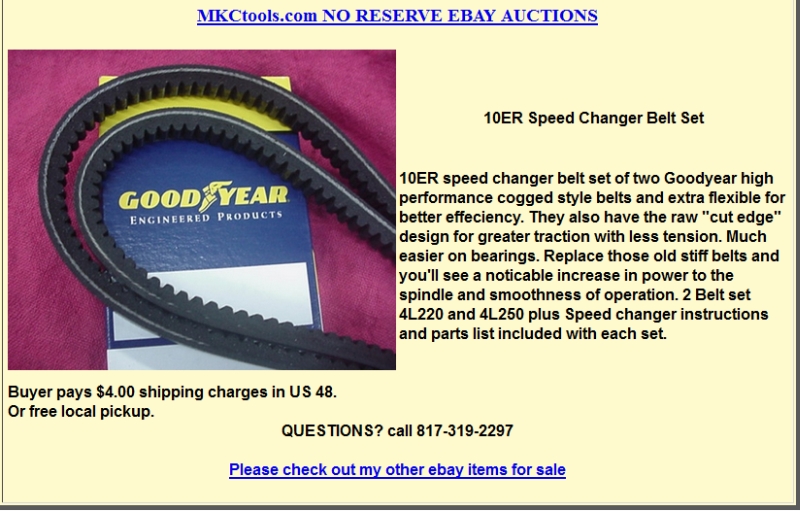

[ATTACH]24679[/ATTACH]
Notice the belt sizes! 4L220 = 1/2" x 22" etc.
[ATTACH]24679[/ATTACH]
Notice the belt sizes! 4L220 = 1/2" x 22" etc.
- Attachments
-
- 10E speed changer belts.jpg (239.63 KiB) Viewed 1239 times
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
I sure like the look of those variable speed/reversable motors Skip makes for the 10ER
'78 Mark V 500 #27995 (my Dad bought new)
'82 Mark V 500 #96309
Two '47 10E's (serial#4314+6149) - one a dedicated drill press and the other a lathe
Two 10E/ER in parts slowly being restored…#26822 and #????? (SS plate missing)
SPT's: Bandsaw, Belt Sander, Strip Sander, Jointer, Jigsaw, Biscuit Joiner
'82 Mark V 500 #96309
Two '47 10E's (serial#4314+6149) - one a dedicated drill press and the other a lathe
Two 10E/ER in parts slowly being restored…#26822 and #????? (SS plate missing)
SPT's: Bandsaw, Belt Sander, Strip Sander, Jointer, Jigsaw, Biscuit Joiner
Success! You guys ROCK!
Moving the screw to the other side of the ears has solved the issue. I picked up a threaded stud and a couple of jamb nuts today at the hardware store, so now I'm just waiting on the belts. In the meantime I'm going to try to add a proper strain relief and revamp the ground wire connections on the motor and headstock. After that, I'll be back to turning!
Thanks everyone!
Moving the screw to the other side of the ears has solved the issue. I picked up a threaded stud and a couple of jamb nuts today at the hardware store, so now I'm just waiting on the belts. In the meantime I'm going to try to add a proper strain relief and revamp the ground wire connections on the motor and headstock. After that, I'll be back to turning!
Thanks everyone!
