520 Fence Rear Pin

mountainbreeze · Post by **mountainbreeze** » Tue Dec 02, 2014 10:50 am

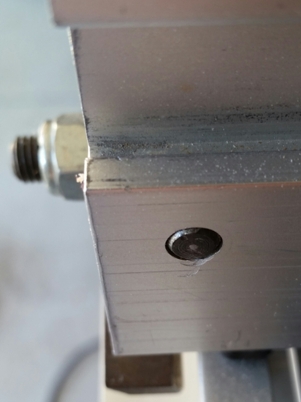

The pin at the rear of my 520 fence tends to migrate out with use. Typically, I don't notice it until I am cutting a board and it hits the pin. Then I tap it back in and all is good for a while. Is there something I can do to make it stay where it belongs?

: 520 Fence Pin.jpg (64.07 KiB) Viewed 1133 times

drl · Post by **drl** » Tue Dec 02, 2014 11:36 am

You'll get a more "eloquent" solution I'm sure but what I would do the next time is shows it's head is to put a drop of CA (superglue) on it and tap it back in flush.
Regards,
Dwight

dusty · Post by **dusty** » Tue Dec 02, 2014 1:39 pm

I suggest that you call Shopsmith and ask them. It may be a warranty issue.

I am unable to determine how the pin is held in place. I suspect it is wedged in under pressure.

JPG · Post by **JPG** » Tue Dec 02, 2014 2:23 pm

IF it IS wedged in, I would suggest BLUE loctite.

What is it's function???

dusty · Post by **dusty** » Tue Dec 02, 2014 2:27 pm

The pin serves as the 'pivot point' for the rear fence lock mechanism.

JPG · Post by **JPG** » Tue Dec 02, 2014 2:30 pm

Best be Careful with Whatever sticky stuff is tried!

mbcabinetmaker · Post by **mbcabinetmaker** » Tue Dec 02, 2014 6:55 pm

Bill I used red loctite on one of mine. Now it stays put. Not very likely you would ever need to remove it.

mountainbreeze · Post by **mountainbreeze** » Tue Dec 02, 2014 11:23 pm

I'll try the loctite. Thanks to all for the suggestions.
