Hi Everyone
I am wondering if my gauge is missing a part on the bottom? It seems sloppy toward the rear (claims side).

Thanks
Bill

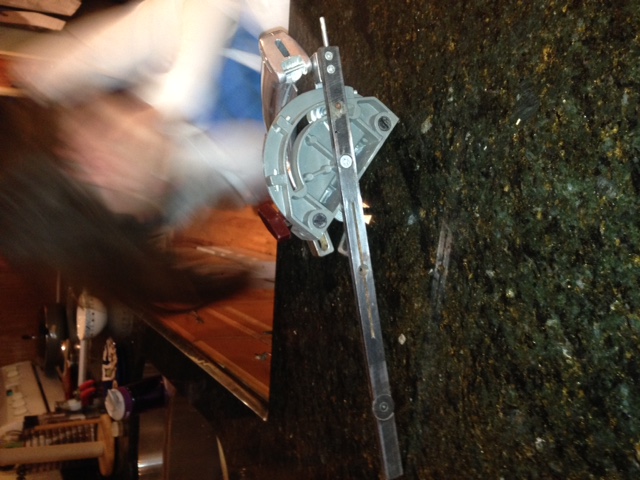

[JPG]

I see one thing for sure and a maybe.

The clamp handle is supposed to fit over the end of the miter bar and is secured with a screw.

The tilt stop pin looks unusual.

A closeup of the end would be helpful.

[algale]

JPG beat me to it.

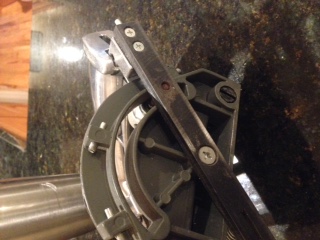

This photo shows the screw through the base of the handle.

[MrWilliams]

Thanks for quick responses. I moved the claim handle and it is much better now!! Not sure what the tilt stop pin is yet - going to have to look it up.

[MrWilliams]

One more picture

[MrWilliams]


[algale]

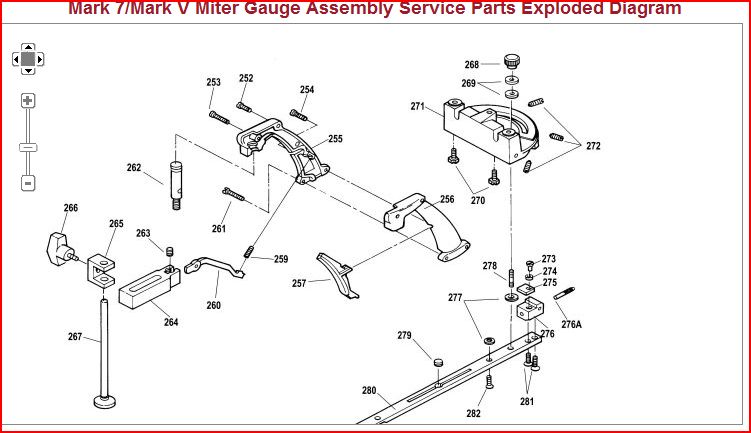

You need the screw that goes through the base of the handle into the block. It is part 261 in the diagram.


For some reason, when I click it, it isn't coming up with the correct part number or price. Call customer service Monday.

[JPG]

Make that a miter angle stop pin. It looks 'normal'.

[JPG]

You need the screw that goes through the base of the handle into the block. It is part 261 in the diagram.


For some reason, when I click it, it isn't coming up with the correct part number or price. Call customer service Monday.

Not in the parts list either, but it is an 8-32 x 3/4 fillister(?) head screw. (1 1/4 would work better)
