Shop Made Clamp System

[gatheringsplinters]

Greetings!

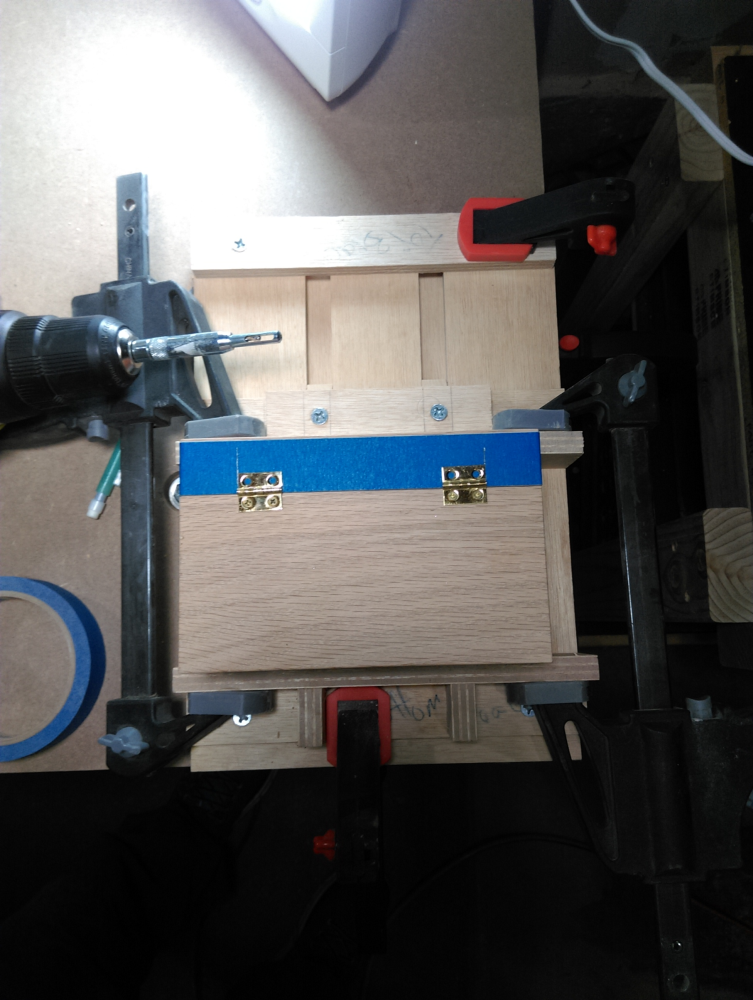

Awhile back I I found myself in need of a small, light duty clamping jig. I drew up a quick sketch and made this with a plywood and wood screws. It has proven way more useful than I could have imagined. At some point I'm gonna rework it and make one specifically for the drill press.

Clamping Jig.png (834.84 KiB) Viewed 3617 times

Jig in Use.png (720.12 KiB) Viewed 3617 times

[ERLover]

So what does it do? Pics did not disciple anything special?

[Skizzity]

So what does it do? Pics did not disciple anything special?

A wooden vise using bar clamps.

[gatheringsplinters]

So what does it do? Pics did not disciple anything special?

A wooden vise using bar clamps.

Yep, that's pretty much what it is. The nice thing is that I can move it between machines and clamp it to their work table for various purposes.

[dusty]

It helps to make square boxes square; i.e. parallel sides paralle.

Neat little jig.

[TomH]

Genius! When are you going to post the plans?

[oldiron]

Nicely done! If you ever build another, I wonder if adding a second set of miter slots perpendicular to the set you have would add even more versatility to the jig?

It could do a two way glue-up, However, What you have built is very nice!!!!!!

Mike

[gatheringsplinters]

Thanks guys,

Necessity is the mother on invention LOL. I'll see if I can find my written plans and I'll scan them for ya.

There are a few things I'd do differently but it works for now. I'm sure I'll make at least one more for the drill press that can be drilled through.
