Continuing bag box 'enhancements' to the Mark VII

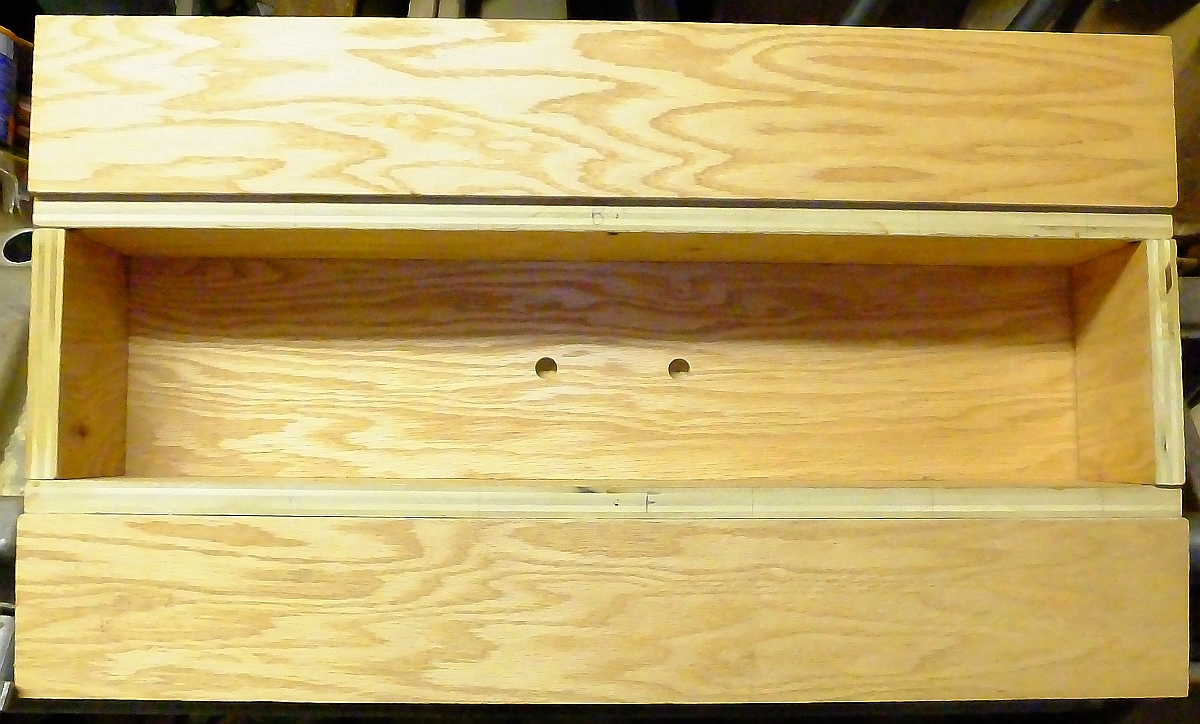

Repeating a previous post, the 'bottom' has a 'nest' that fits between the Mark VII 'legs'(they run horizontally end to end). The bag box sets in the middle.
- bare.jpg (645.73 KiB) Viewed 1868 times

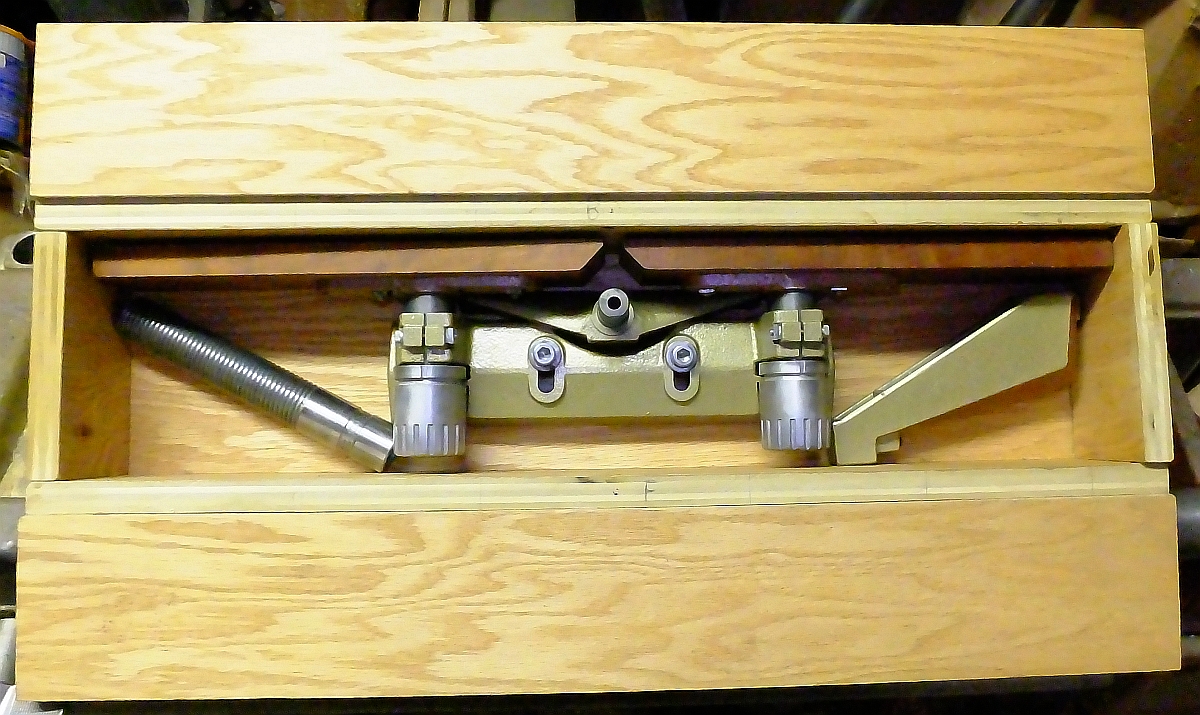

Into this nest goes the shaper fence and the lathe tool rest parts.
- fenc and tool rest.jpg (680.66 KiB) Viewed 1868 times

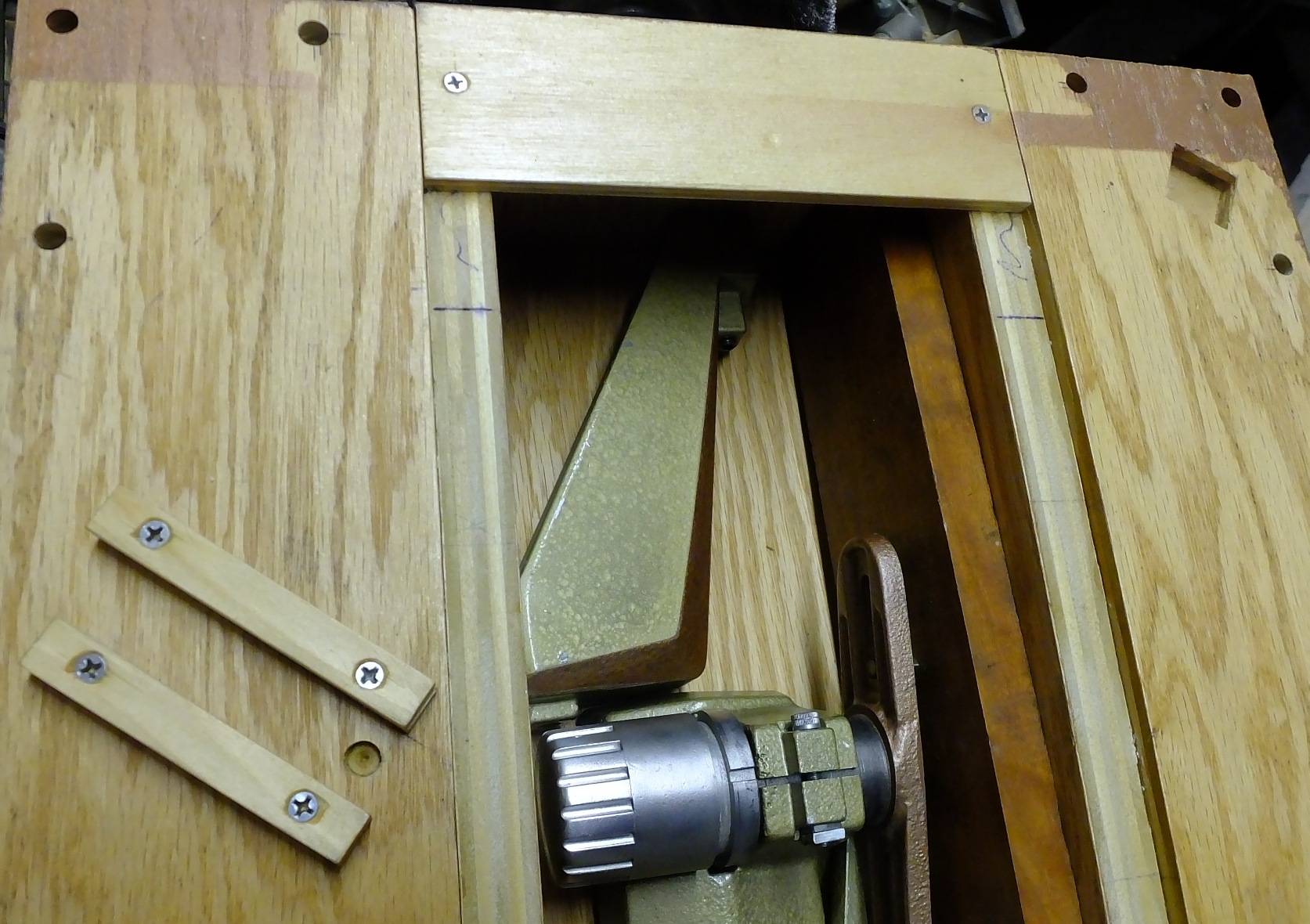

ADDITIONS TO LEFT END
- ADDITIONS TO LEFT END.jpg (1.19 MiB) Viewed 1868 times
An end plate, a depression for the rip fence rear clamp and a nest for the miter gauge base end. Also 6 holes for mounting the bag box to the 'legs'.

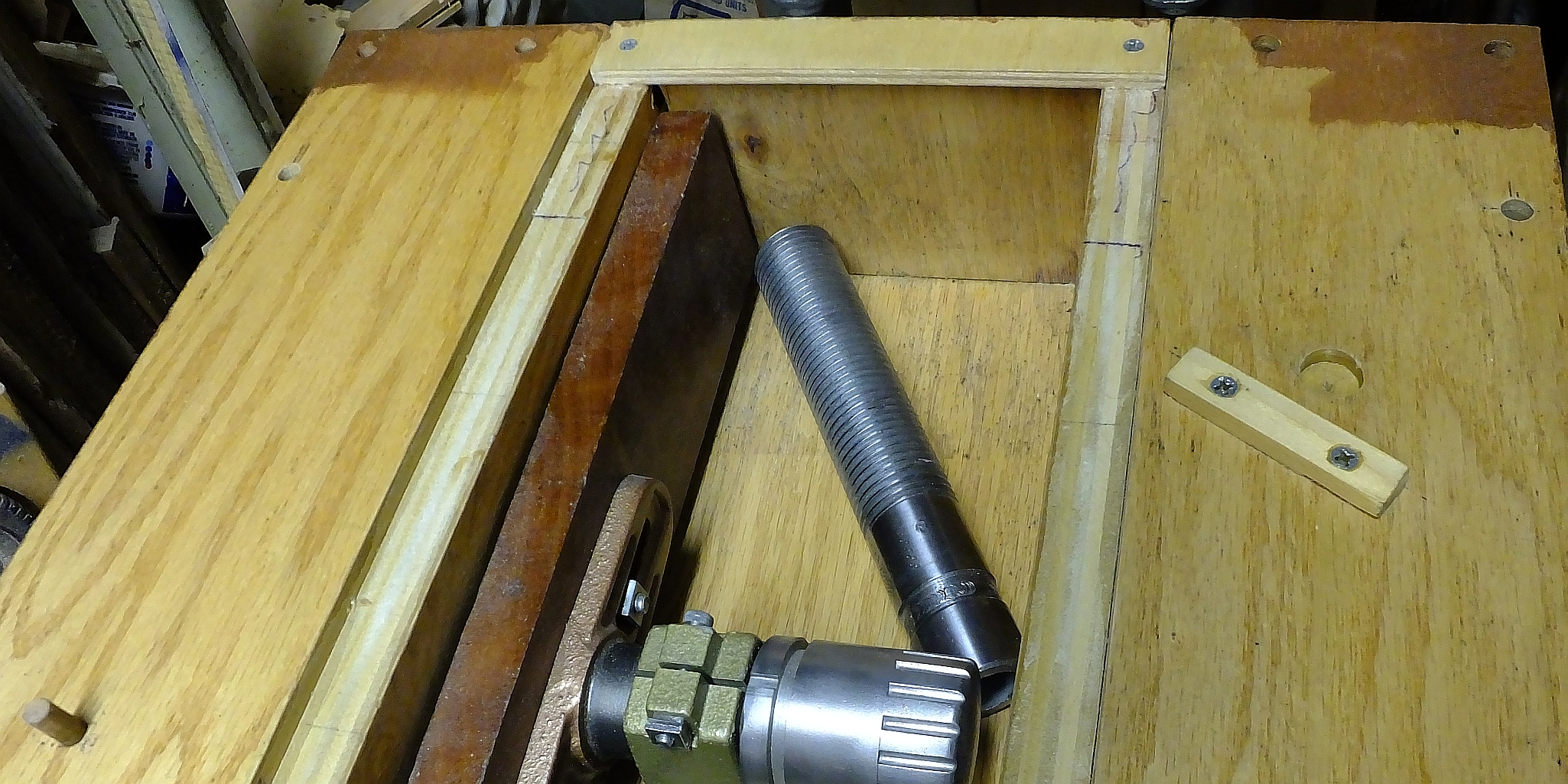

ADDITIONS TO RIGHT END
- ADDITIONS TO RIGHT END.jpg (1.61 MiB) Viewed 1868 times

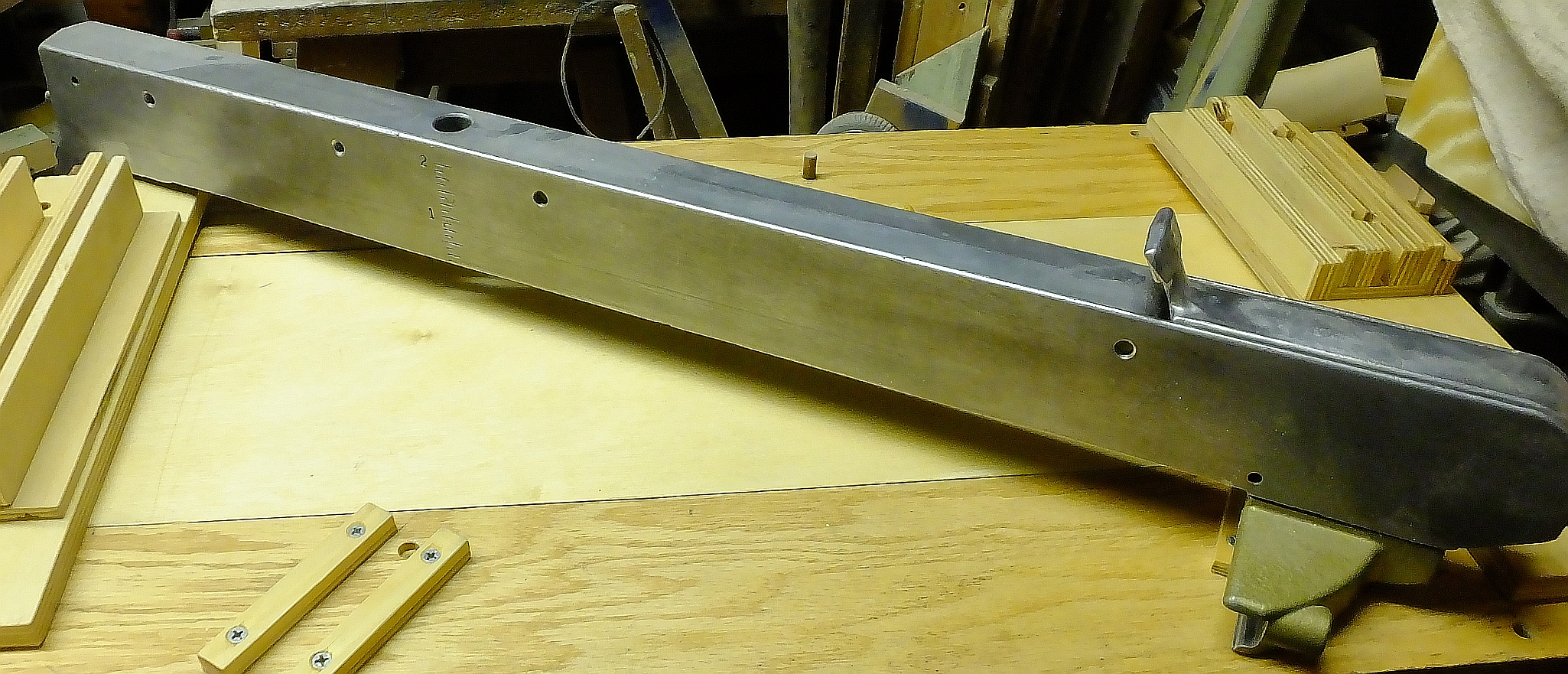

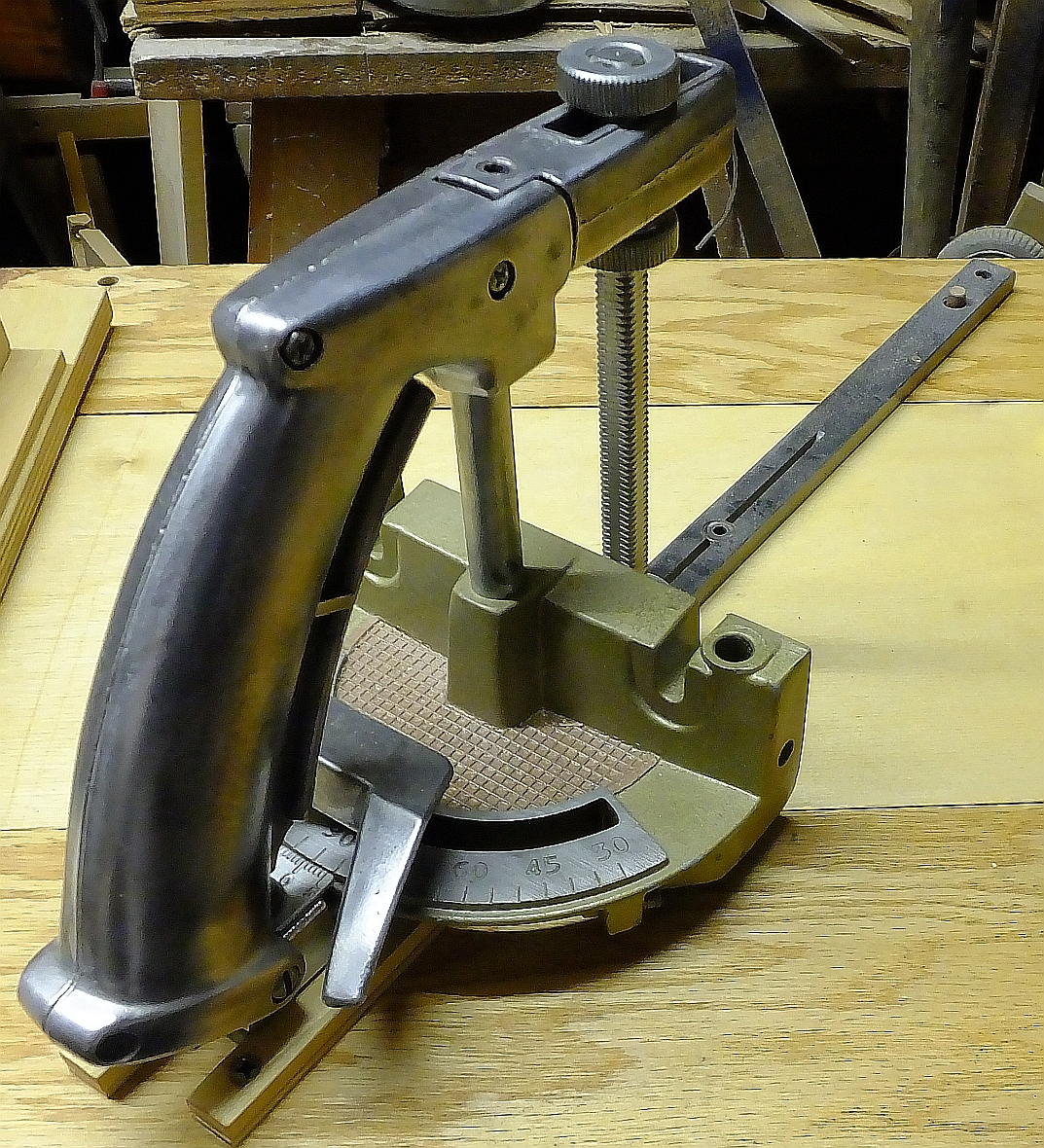

6 more bag box mounting holes, another end plate, a nest for the rip fence base, and a peg for the miter gauge.

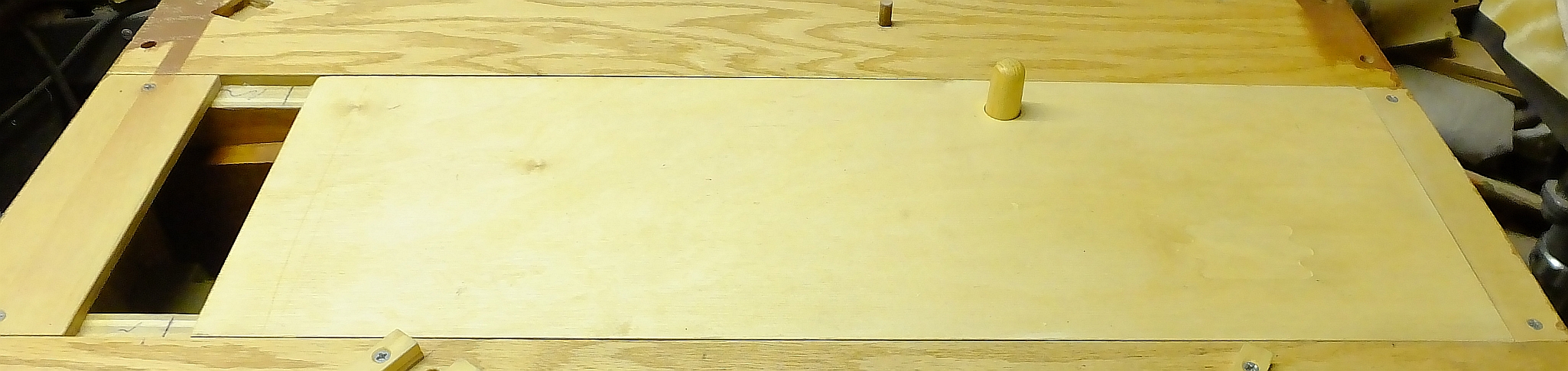

SLIDING PARTITION OPEN/INSERT
- SLIDING PARTITION.jpg (656.68 KiB) Viewed 1868 times

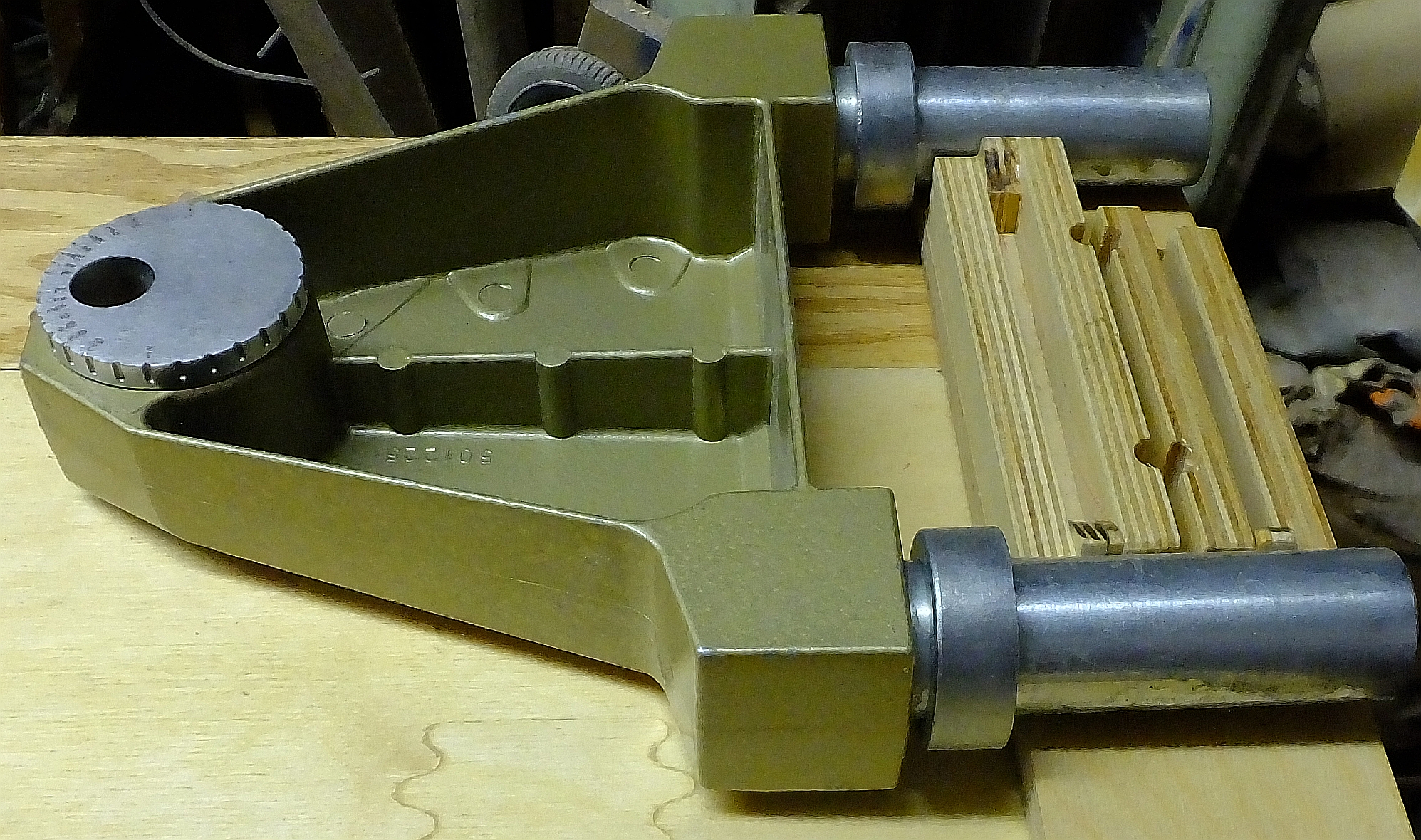

The right end slides under the bag box right end(it extends a half inch in past the inner mounting holes). The left end of the sliding partition will clear the box box left end. The 'knob' serves as both a handle for moving the partition and a peg to mount the tail stock onto.

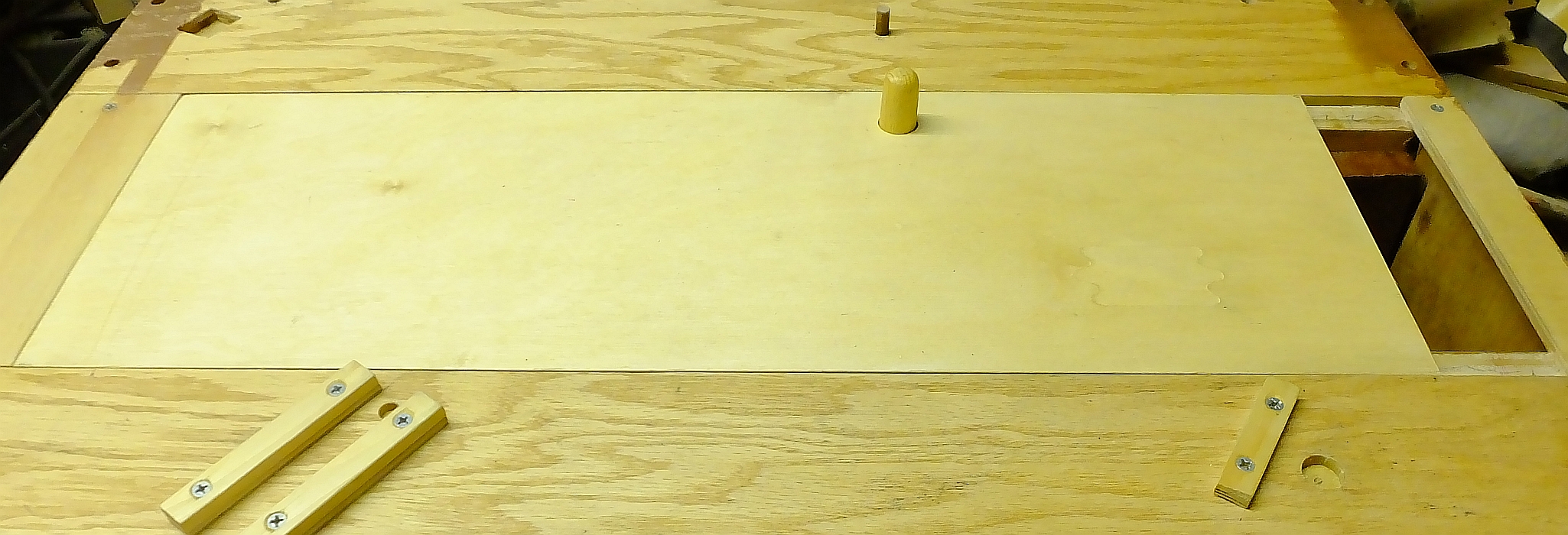

SLIDING PARTITION CLOSED
- SLIDING PARTITION CLOSED.jpg (977.42 KiB) Viewed 1868 times
The partition slides to the left under the bag box left end. The right end remains under the bag box right end.

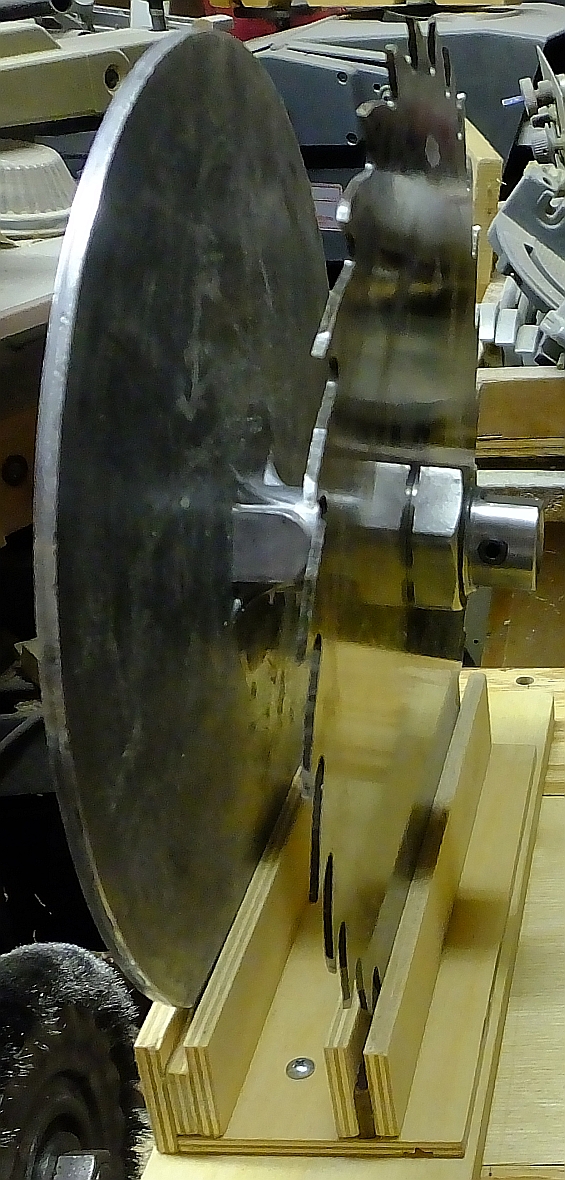

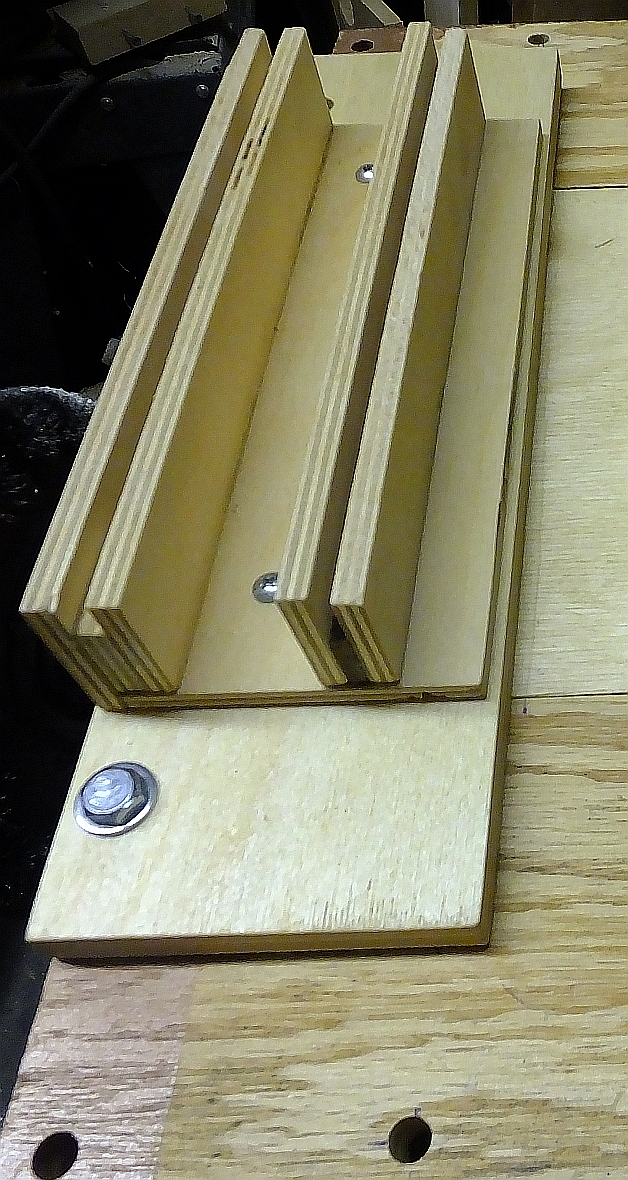

ADDING MORE STUFF TO THE LEFT END
- MORE LEFT END STUFF.jpg (656.39 KiB) Viewed 1868 times
This addition is secured by the inner two bag box mounting screws at each end.

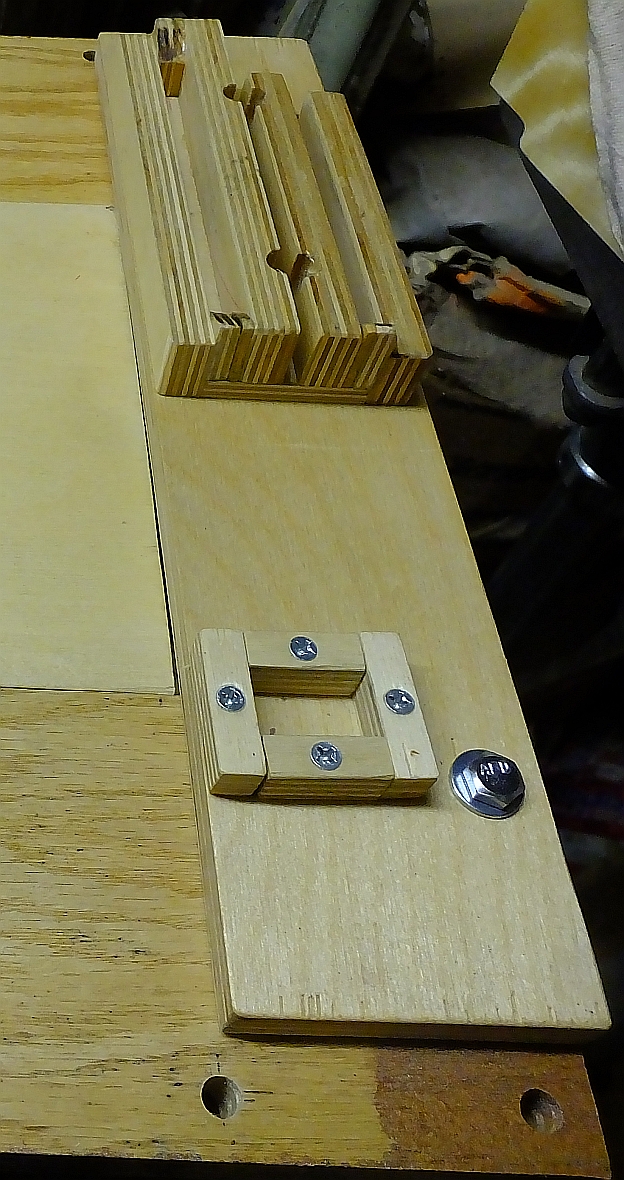

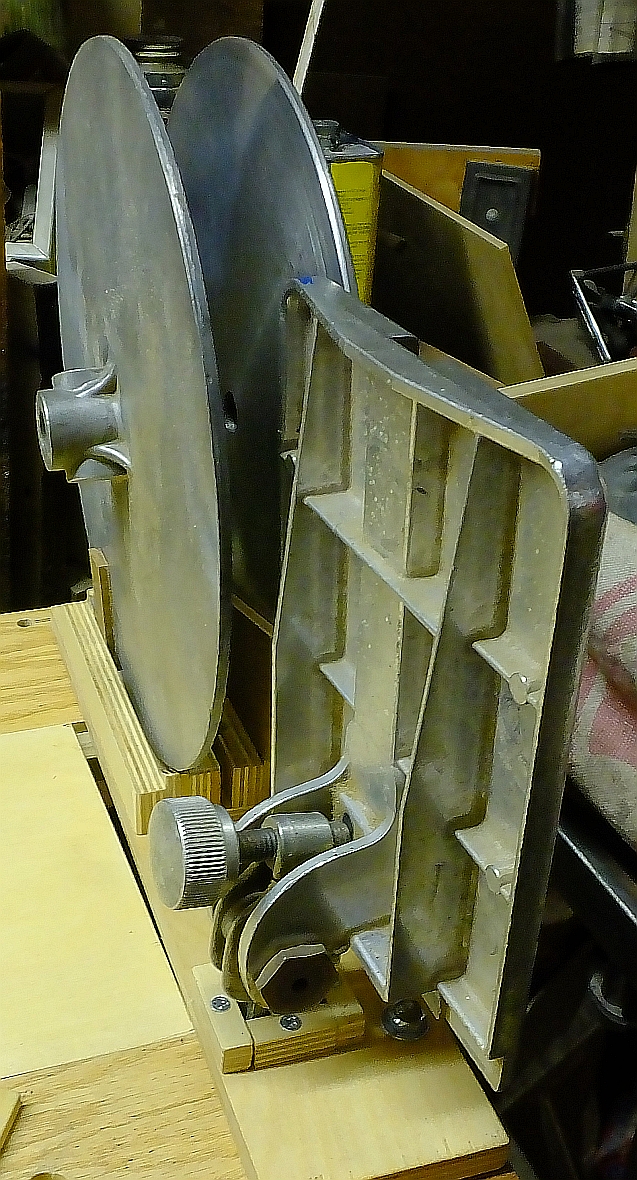

ADDING MORE STUFF TO THE RIGHT END
- MORE RIGHT END STUFF.jpg (585.7 KiB) Viewed 1868 times
This is also secured by the inner two bag box mounting screws.

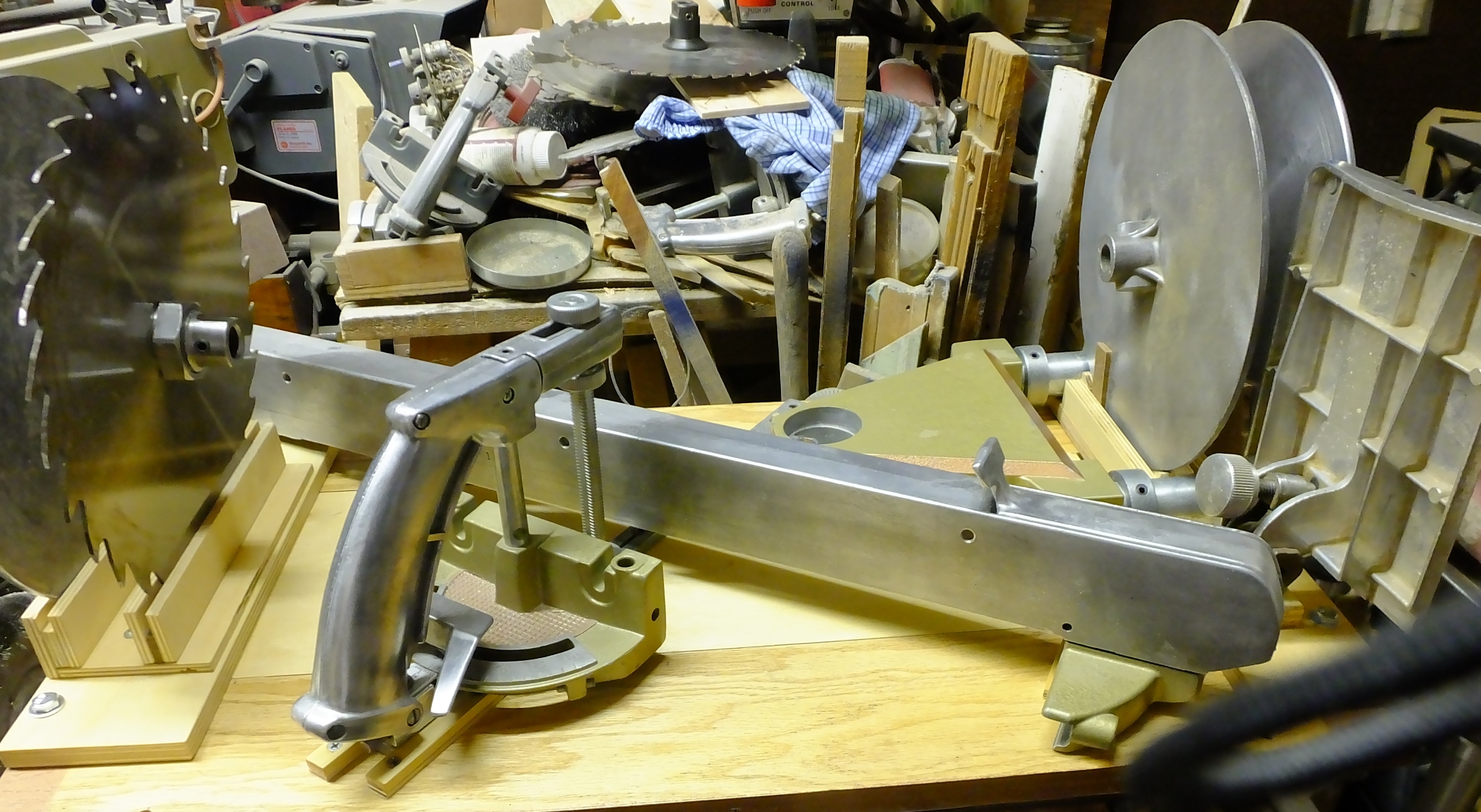

More follows - it gets 'populated'.
