Sorry I'm a bit tardy on this thread.
I've upgraded the video card on my PC, new key board and upgraded to the new fast ring windows 10 so I had a little down time. New monitor will be here on Sat. No problems but it sure was interesting when I pulled my old video card. The heat sink under the fun was packed with dust and I mean packed. I was pulling it out in chunks. This was just an attempt to keep the system relevant for a bit longer.

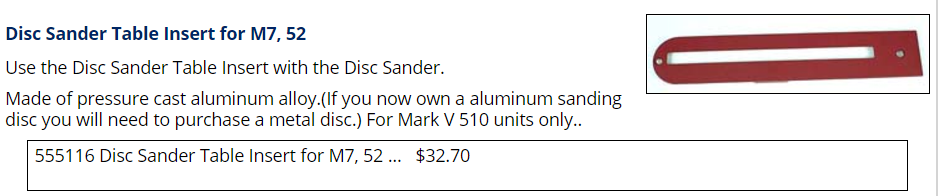

I wanted to look at the insert again after read about it in the "catalog" and noting it has a "beveled underside to allow for sanding with the table tilted". When I saw the bevel I was pretty sure what it was but wanted to get the main table mounted and a sanding disk in place to be sure. I had been set up to do some belt sanding and with that project finished just before 4:00 yesterday I was free to try it out.
No doubt that is what it is. If I had been able to be a bit more prompt and getting here I could have announce that. As it was the answer had come out when I got back here so you already know. I did take a couple of pictures yesterday so I'll include them for future reference.

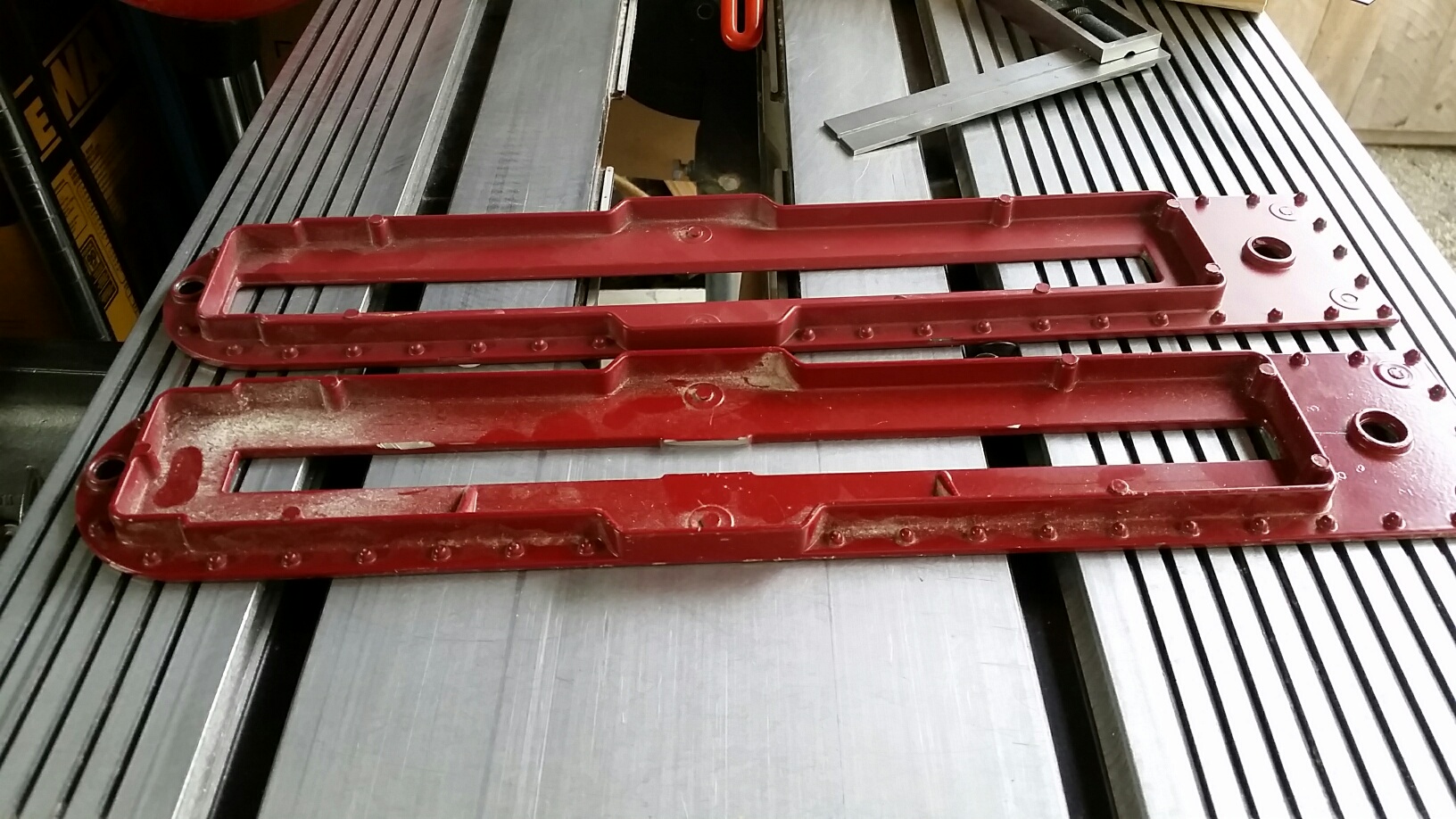

In this picture you can see the bevel, well it can be seen but you have to look carefully.
- 20170711_170725_resized.jpg (490.38 KiB) Viewed 7929 times

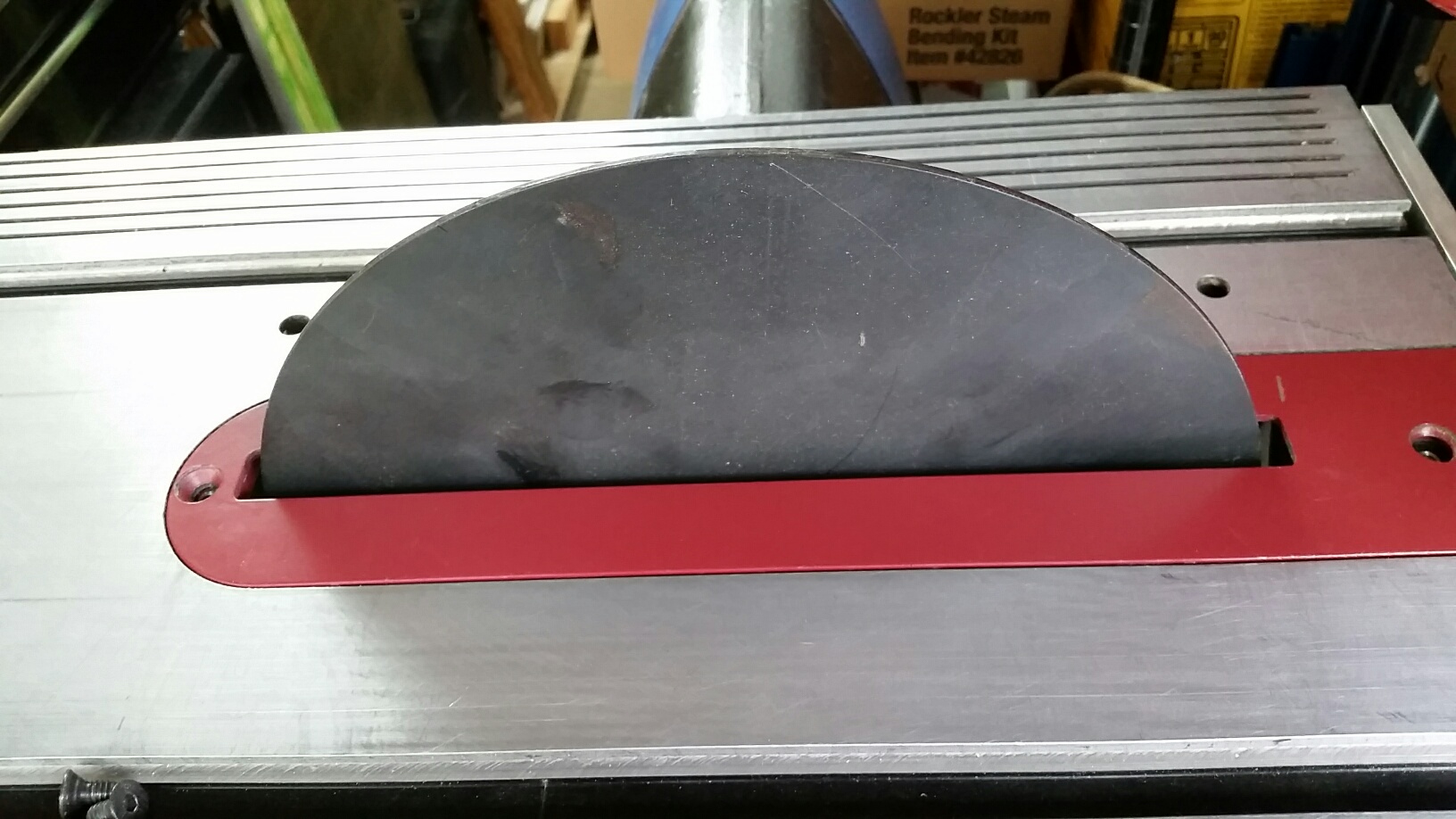

Here it is in place with the sanding disk mounted and the table down as low as it can go.
- 20170711_171113_resized.jpg (348.2 KiB) Viewed 7929 times
Thank you to those that helped out with this.
Ed
