Help needed in the UK

Moderator: admin

Post Reply
User avatar
everettdavis
Platinum Member
Posts: 2163
Joined: Thu Jul 17, 2014 11:49 am
Location: Lubbock, TX

Re: Help needed in the UK

Post by everettdavis »

I realize you are in the UK and your motor may be 220VAC

In the US most are 110VAC

The external Motor Start relays used on motors without an internal centrifugal motor start switch might resemble this configuration.

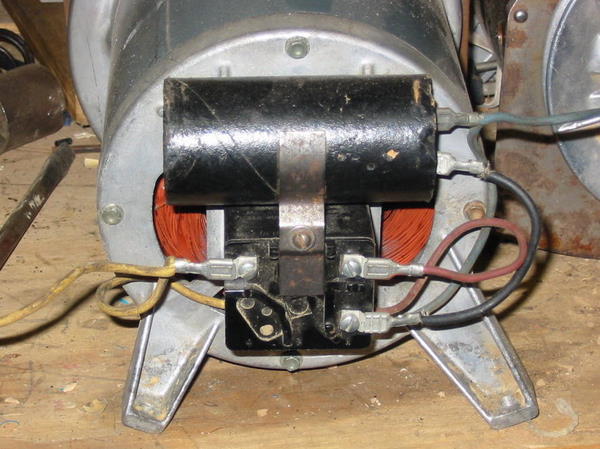

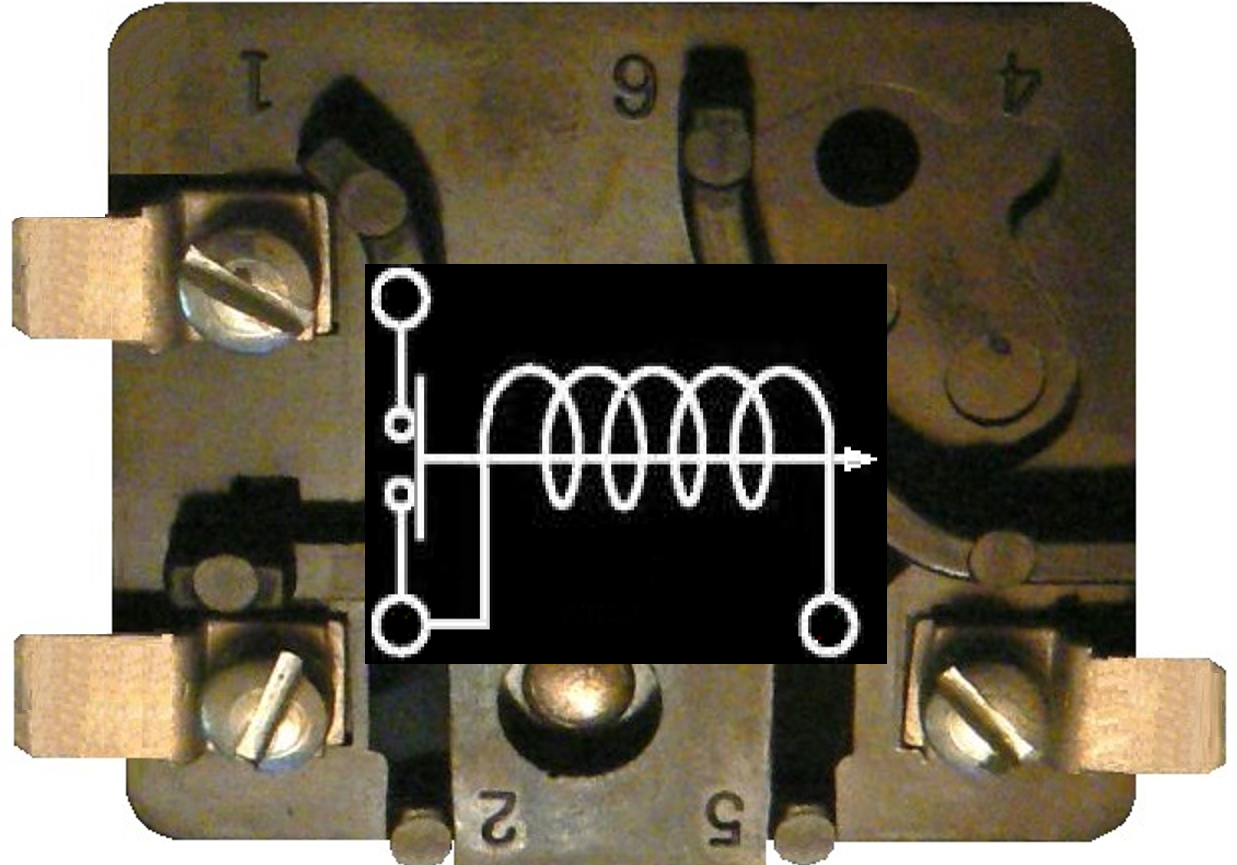

The Relay itself would be connected internally as I have drawn it with the overly of the schematic representation of coil and contacts below.
Motor Start Relay with imbedded Schematic.png
Motor Start Relay with imbedded Schematic.png (1.14 MiB) Viewed 5662 times
The GE relay I am most familiar with here is this type

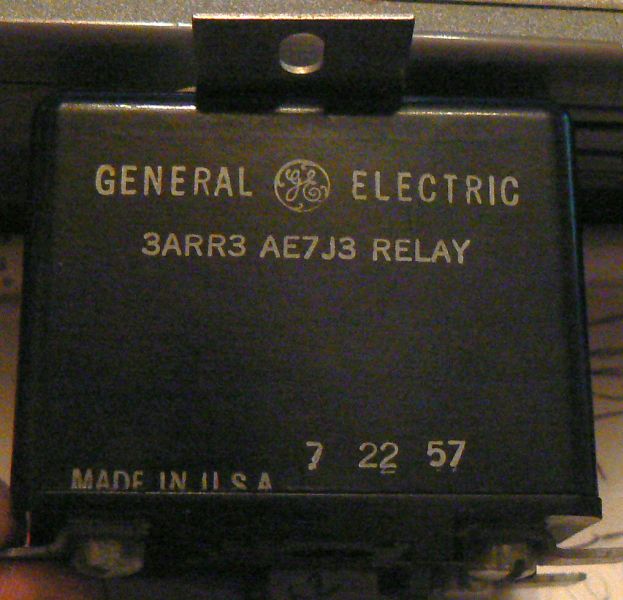

ge 3-4hp motor start relay numbers.jpg
ge 3-4hp motor start relay numbers.jpg (82.8 KiB) Viewed 5662 times
The relay you mention is a DC relay, I presume mounted on a circuit board of sorts that provided the AC rectification of the AC to convert it to DC for the relay coil. Not having pictures to reference is a disadvantage.

I don't have much on UK Shopsmith info. Jacob Anderson might know more.

Check out some of his free videos on Shopsmith at https://jacobs-repairshop.com/youtube-videos/

Everett
Top
User avatar
JPG
Platinum Member
Posts: 35598
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: Help needed in the UK

Post by JPG »

Realize that a start relay is not a typical relay. Coil sensitivity is calibrated to match the emf generated in the start winding when the motor is up to speed and the relay has a normally closed contact to disconnect the start winding from the power source(mains).
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
Hobbyman2
Platinum Member
Posts: 2673
Joined: Wed Feb 01, 2017 12:52 am
Location: Ohio

Re: Help needed in the UK

Post by Hobbyman2 »

since we are discussing relays and their coil voltage AC VS DC ,, I was all ways taught as follows ,,

AC coils can be used with DC as long as you dont exceed the power rating of the coil.

I found this on line while doing the search https://www.google.com/search?client=op ... 8&oe=UTF-8

any one else have any thoughts if this is correct ?
Hobbyman2 Favorite Quote: "If a man does his best, what else is there?"
- General George S. Patton (1885-1945)
Top
User avatar
everettdavis
Platinum Member
Posts: 2163
Joined: Thu Jul 17, 2014 11:49 am
Location: Lubbock, TX

Re: Help needed in the UK

Post by everettdavis »

Check out this page. 3ARR3 relay It looks like the replacement for the GE#.

https://www.zettlercontrols.com/products/pdfs/3arr.pdf

Everett
Top
Bushell5
Bronze Member
Posts: 4
Joined: Sat Oct 27, 2018 12:31 pm

Re: Help needed in the UK

Post by Bushell5 »

Thanks everyone
Top
Hobbyman2
Platinum Member
Posts: 2673
Joined: Wed Feb 01, 2017 12:52 am
Location: Ohio

Re: Help needed in the UK

Post by Hobbyman2 »

everettdavis wrote:Check out this page. 3ARR3 relay It looks like the replacement for the GE#.

https://www.zettlercontrols.com/products/pdfs/3arr.pdf

Everett
===================
Good link thanks for posting it
Hobbyman2 Favorite Quote: "If a man does his best, what else is there?"
- General George S. Patton (1885-1945)
