Does anyone 3D print a table insert for the 555220 scroll saw? If you're out there please let me know. Otherwise I'll be making some out of some birch plywood that I hope I still have.
Thanks in advance, Ed
Table insert for 555220 scroll saw
Moderator: admin
-
KentuckyEd
- Bronze Member
- Posts: 3
- Joined: Sat Dec 12, 2020 12:16 pm
-
chapmanruss
- Platinum Member
- Posts: 4534
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Table insert for 555220 scroll saw

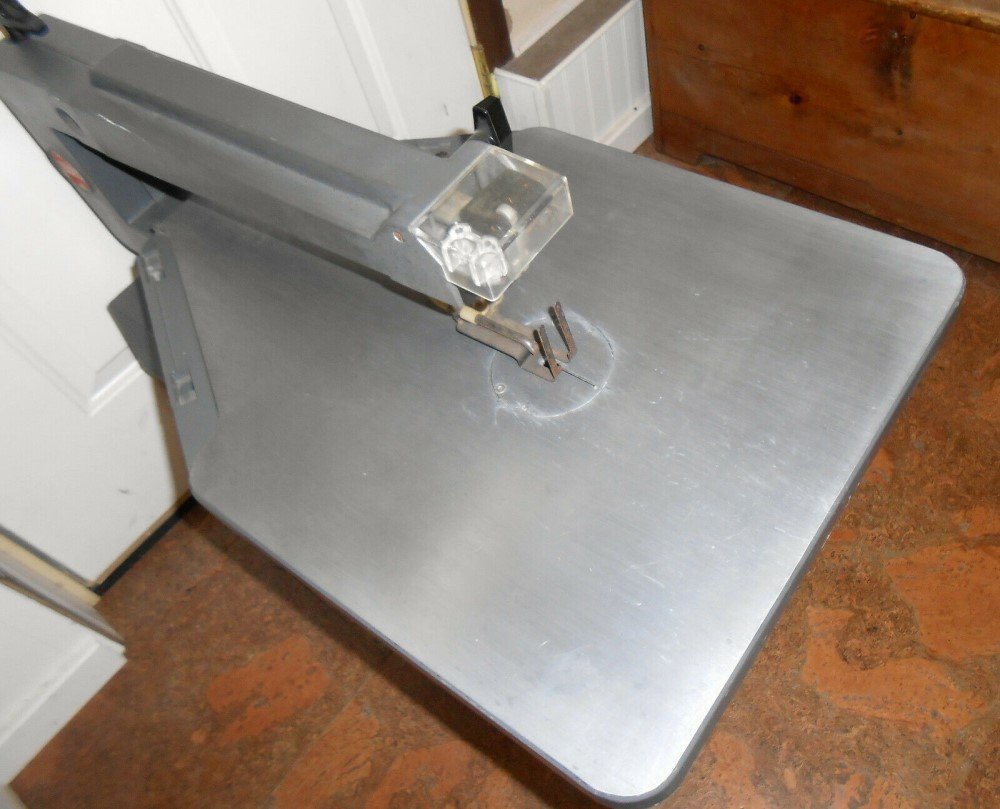

If your Scroll Saw has the same table as the one shown in the picture below it uses the same table insert as the Bandsaw with the aluminum table. It is part number 516173 Bandsaw Table Insert for Aluminum Table.
_
_

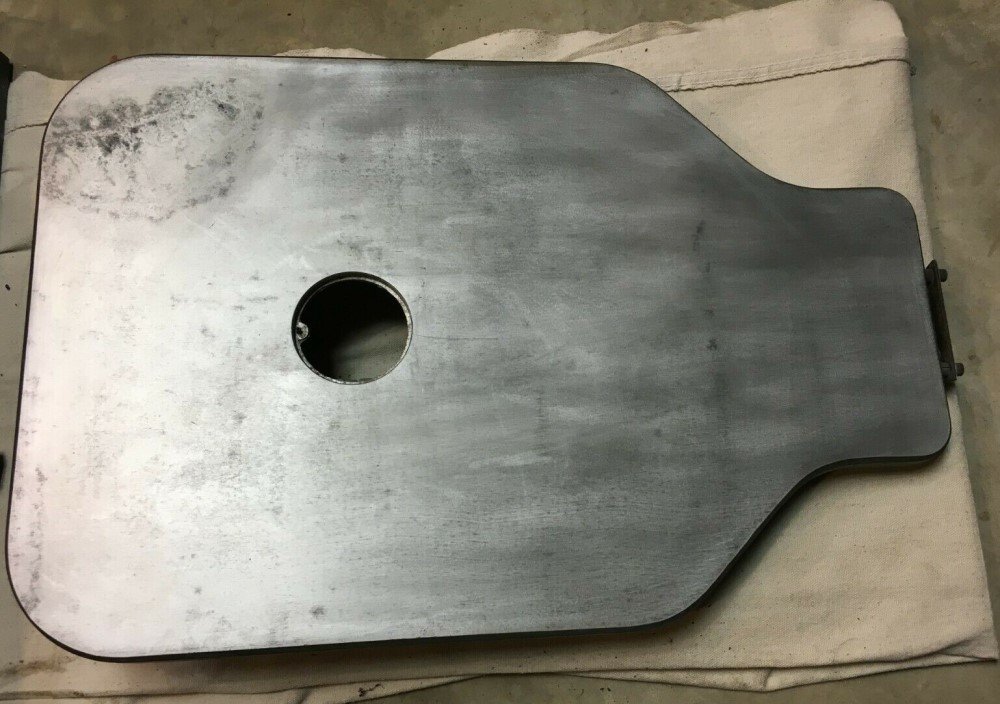

There was an earlier Scroll Saw Table that uses a different insert. If your Scroll Saw table looks like the one in the picture below the insert is more like the Jig Saw insert. It was part number 515196 and is no longer available.
_
_
For those interested the current Scroll Saw does not use a separate table insert.
_
- Model 555220 ser 020293.jpg (110.26 KiB) Viewed 1146 times
There was an earlier Scroll Saw Table that uses a different insert. If your Scroll Saw table looks like the one in the picture below the insert is more like the Jig Saw insert. It was part number 515196 and is no longer available.
_
- Scroll Saw Table from early Model 555220.jpg (122.88 KiB) Viewed 1146 times
For those interested the current Scroll Saw does not use a separate table insert.
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's, 2 Power Stations & Crafter's Station
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's, 2 Power Stations & Crafter's Station
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored.
-
KentuckyEd
- Bronze Member
- Posts: 3
- Joined: Sat Dec 12, 2020 12:16 pm
Re: Table insert for 555220 scroll saw
My table is the first option. Thank you very much for the information.
Re: Table insert for 555220 scroll saw
Hi Ed - did you end up making this?KentuckyEd wrote: Sat May 29, 2021 12:33 pm My table is the first option. Thank you very much for the information.
