What are these?
Moderator: admin
What are these?
Found them in my Shopsmith bits and bobs collection
- Matanuska
1984 Mark V upgraded to 520 PowerPro. Shopsmith cast iron table bandsaw, jointer, belt sander, and 60's vintage 610 jigsaw SPT's. Makita 2040 15" planer, JessEm Mast-R-Lift II router table.
1984 Mark V upgraded to 520 PowerPro. Shopsmith cast iron table bandsaw, jointer, belt sander, and 60's vintage 610 jigsaw SPT's. Makita 2040 15" planer, JessEm Mast-R-Lift II router table.
Re: What are these?
My guess is original bandsaw guide bushing screws. Left over after someone updated to the new bearings, as they come with new screws.
Re: What are these?
That must be it - I upgraded the bearings a few years ango and must have kept these. Thanks!
- Matanuska
1984 Mark V upgraded to 520 PowerPro. Shopsmith cast iron table bandsaw, jointer, belt sander, and 60's vintage 610 jigsaw SPT's. Makita 2040 15" planer, JessEm Mast-R-Lift II router table.
1984 Mark V upgraded to 520 PowerPro. Shopsmith cast iron table bandsaw, jointer, belt sander, and 60's vintage 610 jigsaw SPT's. Makita 2040 15" planer, JessEm Mast-R-Lift II router table.
Re: What are these?
Yup looks like these:
viewtopic.php?t=20909
Do you still have the bronze bushings? I assume you're done with them. I've been trying to find a set.
viewtopic.php?t=20909
Do you still have the bronze bushings? I assume you're done with them. I've been trying to find a set.
1983 Mark V 500 (230V/50Hz AU) S/N SS-115073
11" Bandsaw (incoming)
Brisbane, Australia
11" Bandsaw (incoming)
Brisbane, Australia
-
chapmanruss
- Platinum Member
- Posts: 4558
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: What are these?
Maurice,
Although the Bushing type are original to earlier Bandsaw Guides, I don't recommend using them since they are a high maintenance item to keep them working properly and more important, quietly. That being said I do have them, and even the original plastic ones, on early Bandsaws that I have restored to original condition. These of course are not my primary Bandsaw. It has the current Auto Track and Guide (sealed) Bearings.
The Bushing type ones are below. They use a brass sleeve, a similar idea, as is used on the Model 10 Speed Changer's Pulley assembly. They require frequent cleaning and oiling.
_
.
As I recommended for actual use the current Backup Bearings are shown below. Two of the Bearings are mounted together for the Auto-track Guide. The Upper and Lower Guides use a single bearing each.
_
.
Be careful if buying bearings from other sources. The two Bearings placed together to make the Auto-track set must have the outer sleeve part tight together otherwise the blade can get stuck between the bearings. The correct assembly is shown below.
_
.

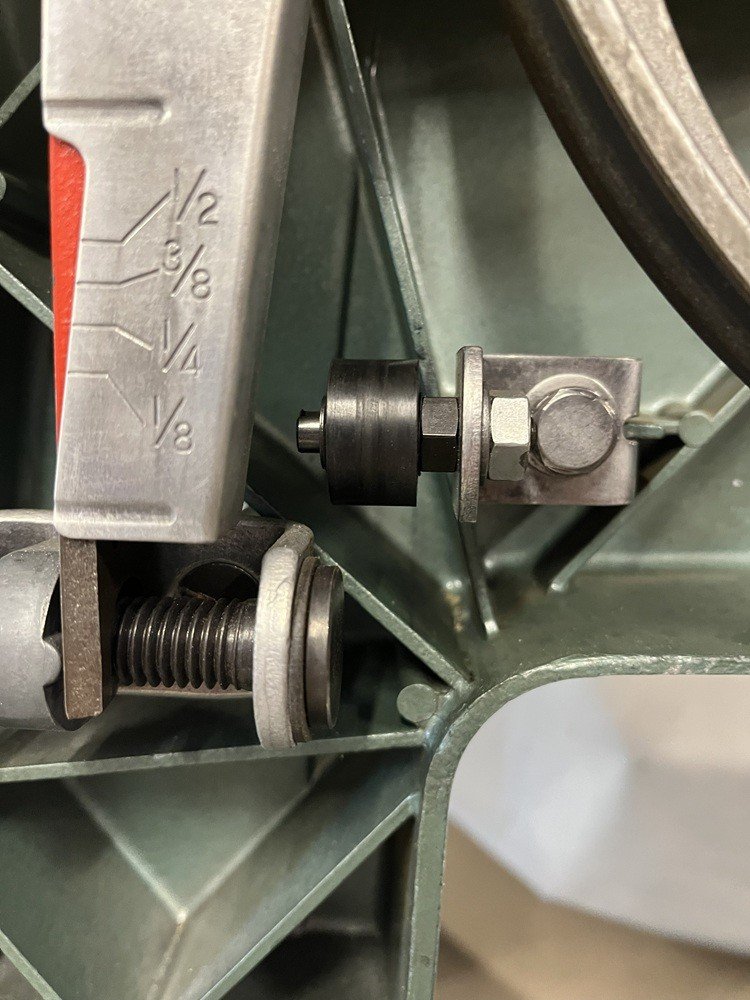

Just for reference the plastic Auto-track Guide is show below mounted in my restored Greenie Bandsaw.
_
.
I know this has been over explained for this case as I tend to do but others reading this topic may find it helpful.
Although the Bushing type are original to earlier Bandsaw Guides, I don't recommend using them since they are a high maintenance item to keep them working properly and more important, quietly. That being said I do have them, and even the original plastic ones, on early Bandsaws that I have restored to original condition. These of course are not my primary Bandsaw. It has the current Auto Track and Guide (sealed) Bearings.

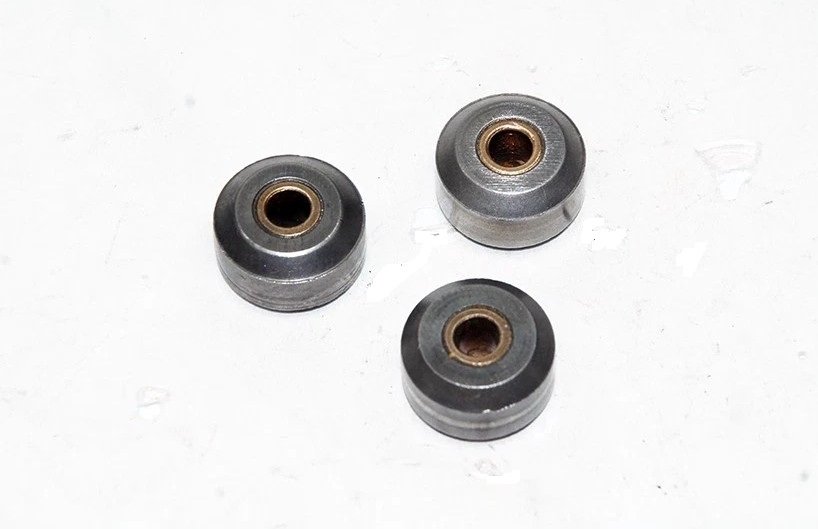

The Bushing type ones are below. They use a brass sleeve, a similar idea, as is used on the Model 10 Speed Changer's Pulley assembly. They require frequent cleaning and oiling.
_
- Backup Bearings - 505578 Rollers.jpg (37.34 KiB) Viewed 19 times

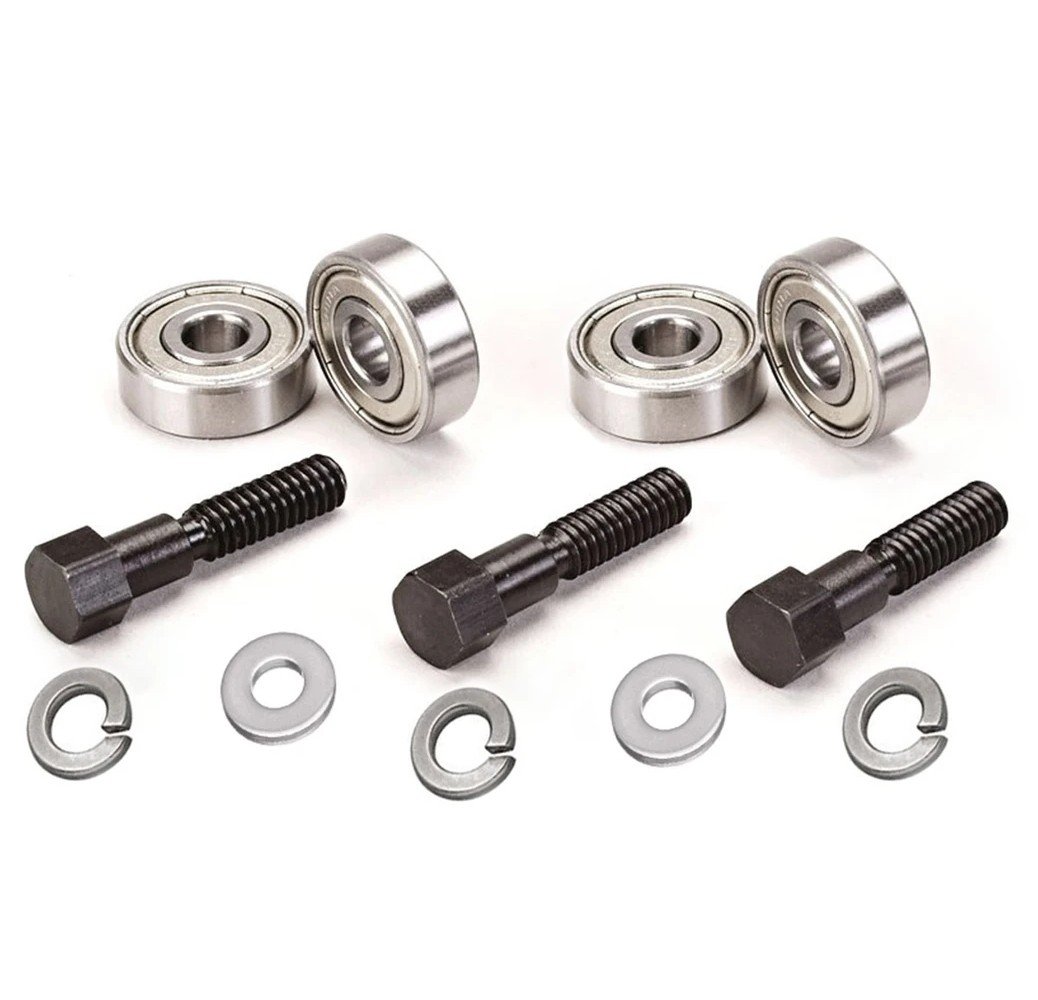

As I recommended for actual use the current Backup Bearings are shown below. Two of the Bearings are mounted together for the Auto-track Guide. The Upper and Lower Guides use a single bearing each.
_
- Bandsaw Backup Bearing Upgrade.jpg (86.12 KiB) Viewed 19 times

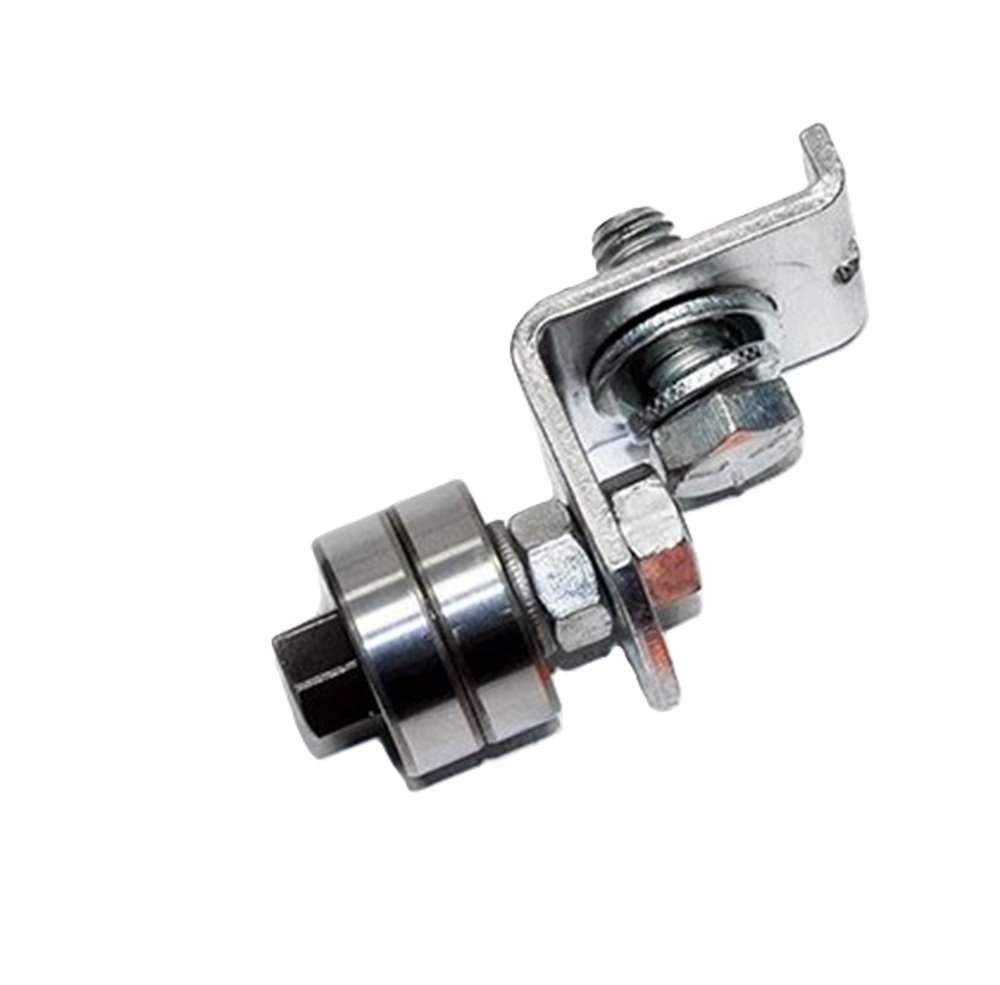

Be careful if buying bearings from other sources. The two Bearings placed together to make the Auto-track set must have the outer sleeve part tight together otherwise the blade can get stuck between the bearings. The correct assembly is shown below.
_
- Auto-Track Blade Guide Assembly V3.jpg (44.52 KiB) Viewed 19 times
Just for reference the plastic Auto-track Guide is show below mounted in my restored Greenie Bandsaw.
_
- Auto-Track Blade Guide Assembly V1.jpg (139.53 KiB) Viewed 19 times
I know this has been over explained for this case as I tend to do but others reading this topic may find it helpful.
Russ
