ER modification to prevent table raiser crank damage

Post by mickyd »

When I got the ER10, the table raiser crank was severly bent.
.
.
[ATTACH]7840[/ATTACH]
.
.

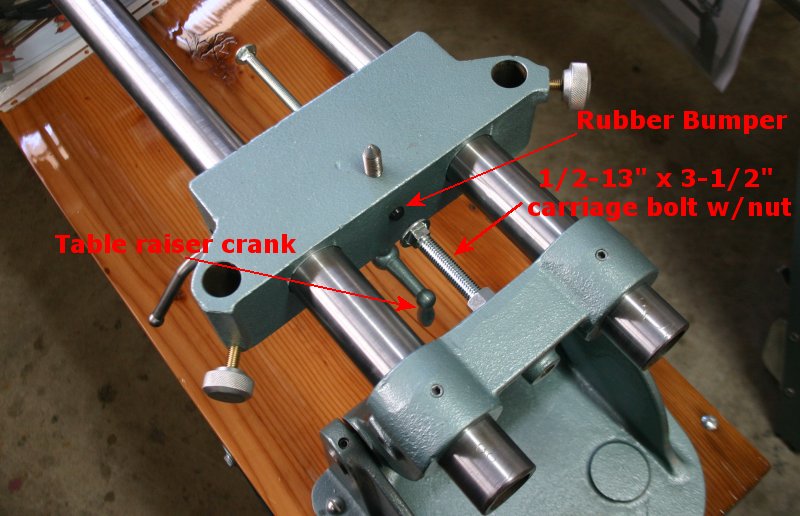

This was probably due to the crank getting slammed up against the arm when the ER was in the vertical drill press positon. A simple preventive measure is shown below.
.
.
[ATTACH]7841[/ATTACH]
Attachments
Mike
Sunny San Diego
Top
User avatar
shipwright
Platinum Member
Posts: 1165
Joined: Tue Dec 15, 2009 7:28 pm
Location: Vancouver Island, Canada
Contact:
Contact shipwright

Post by shipwright »

Good one Mike. Mine was a little bent too. I just straightened it and didn't think any more about it. I will be making the mod. ...or maybe I'll just be careful in drill press mode but in any case it's a good observation.
Thanks

Paul M
Paul M ........ The early bird gets the worm but the second mouse gets the cheese
Top
User avatar
JPG
Platinum Member
Posts: 35429
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

Did you put a bumper on the headstock also?
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
User avatar
mickyd
Platinum Member
Posts: 2999
Joined: Mon Feb 09, 2009 1:18 pm
Location: San Diego, CA
Contact:
Contact mickyd

Post by mickyd »

No. Figured that's reserved for a positive stop.
Mike
Sunny San Diego
Top
User avatar
mickyd
Platinum Member
Posts: 2999
Joined: Mon Feb 09, 2009 1:18 pm
Location: San Diego, CA
Contact:
Contact mickyd

Post by mickyd »

shipwright wrote:Good one Mike. Mine was a little bent too. I just straightened it and didn't think any more about it. I will be making the mod. ...or maybe I'll just be careful in drill press mode but in any case it's a good observation.
Thanks

Paul M
I had mentioned that the crank handle probably got bent in drill press mode. I'm adding another possible cause. Sliding the work table / carriage over to the right and knocking it against the arm will also cause the handle to get bent. Had I not had my preventive measure in place, I probably would have bent it yesterday. I went to move the carriage and the wedge locks held on tight. When they let loose, the carriage moved VERY fast (thanks to those nicely polished, previously trashed tubes :D ) and it tunked the carriage bolt / bumper pretty good. Had the carriage bolt not been there, the crank handle would have hit.
Mike
Sunny San Diego
Top
User avatar
robinson46176
Platinum Member
Posts: 4182
Joined: Mon Mar 09, 2009 9:00 pm
Location: Central Indiana (Shelbyville)

Post by robinson46176 »

mickyd wrote: and it tunked the carriage bolt / bumper pretty good.


"tunked"? Is that one of those technical engineering terms? :D :D :D
My stuff usually just bonks or bangs.
--
