SS Accessory Cart & Bench

ARCretired · Post by **ARCretired** » Sun Oct 22, 2017 6:05 pm

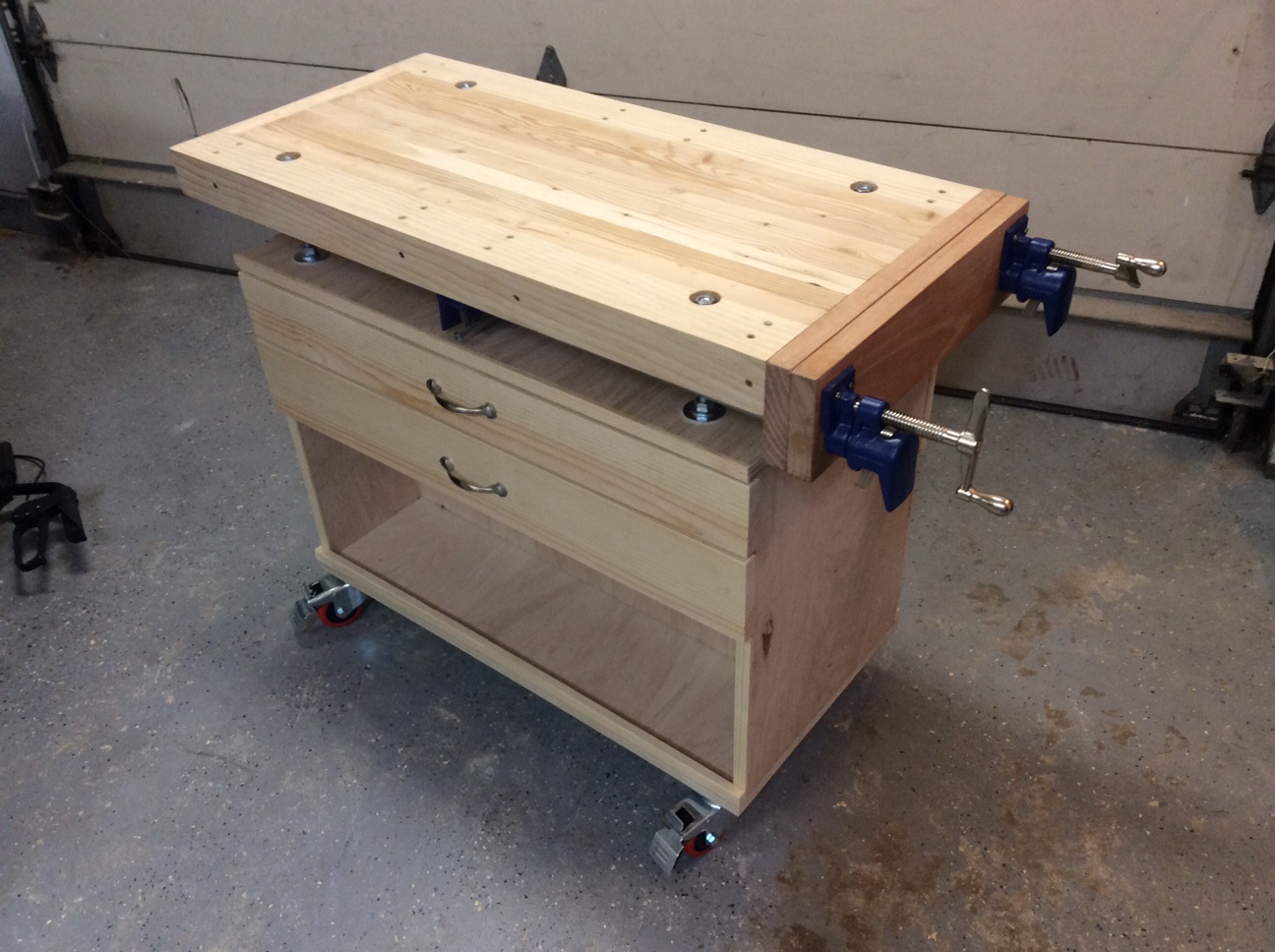

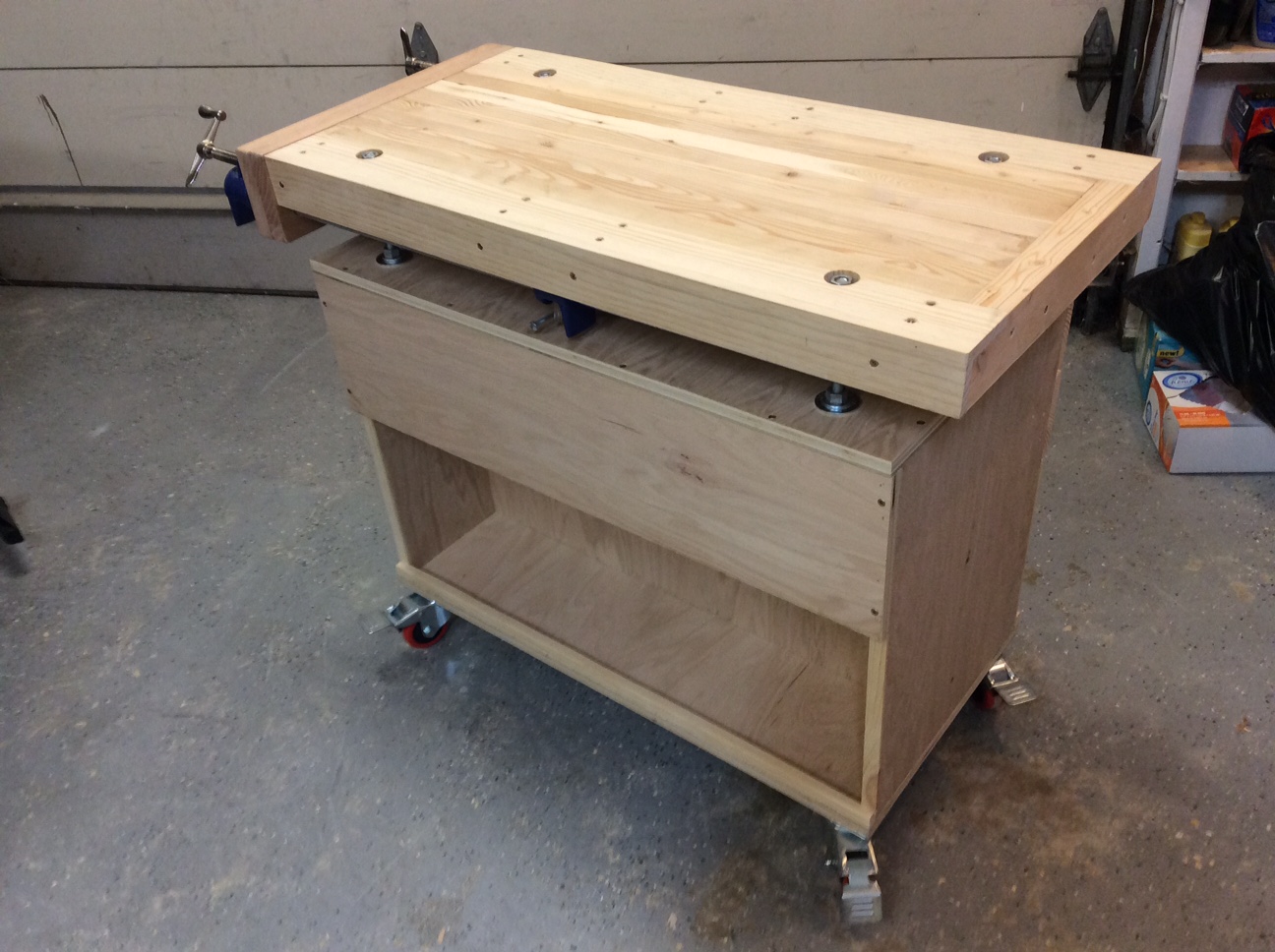

I'm attaching individual pictures.

jsburger · Post by **jsburger** » Sun Oct 22, 2017 6:06 pm

dusty wrote:
ARCretired wrote:I uploaded file as a JPEG, perhaps the TIFF format is a problem.
I see them now but only as a collage. I can not view each image individually. Pretty neat work bench. You can be proud.

Same here. Very nice!!!

algale · Post by **algale** » Sun Oct 22, 2017 6:07 pm

Much better pics, thanks! Great design and work!

ChrisNeilan · Post by **ChrisNeilan** » Sun Oct 22, 2017 10:58 pm

For what it's worth, I can see all the photos, including the first few posts, on my Ipad, but not my PC or Samsung Android phone.

JPG · Post by **JPG** » Sun Oct 22, 2017 10:59 pm

A single pix of this would be interesting!

: bench guts.jpg (15 KiB) Viewed 9651 times

ARCretired · Post by **ARCretired** » Mon Oct 23, 2017 8:05 am

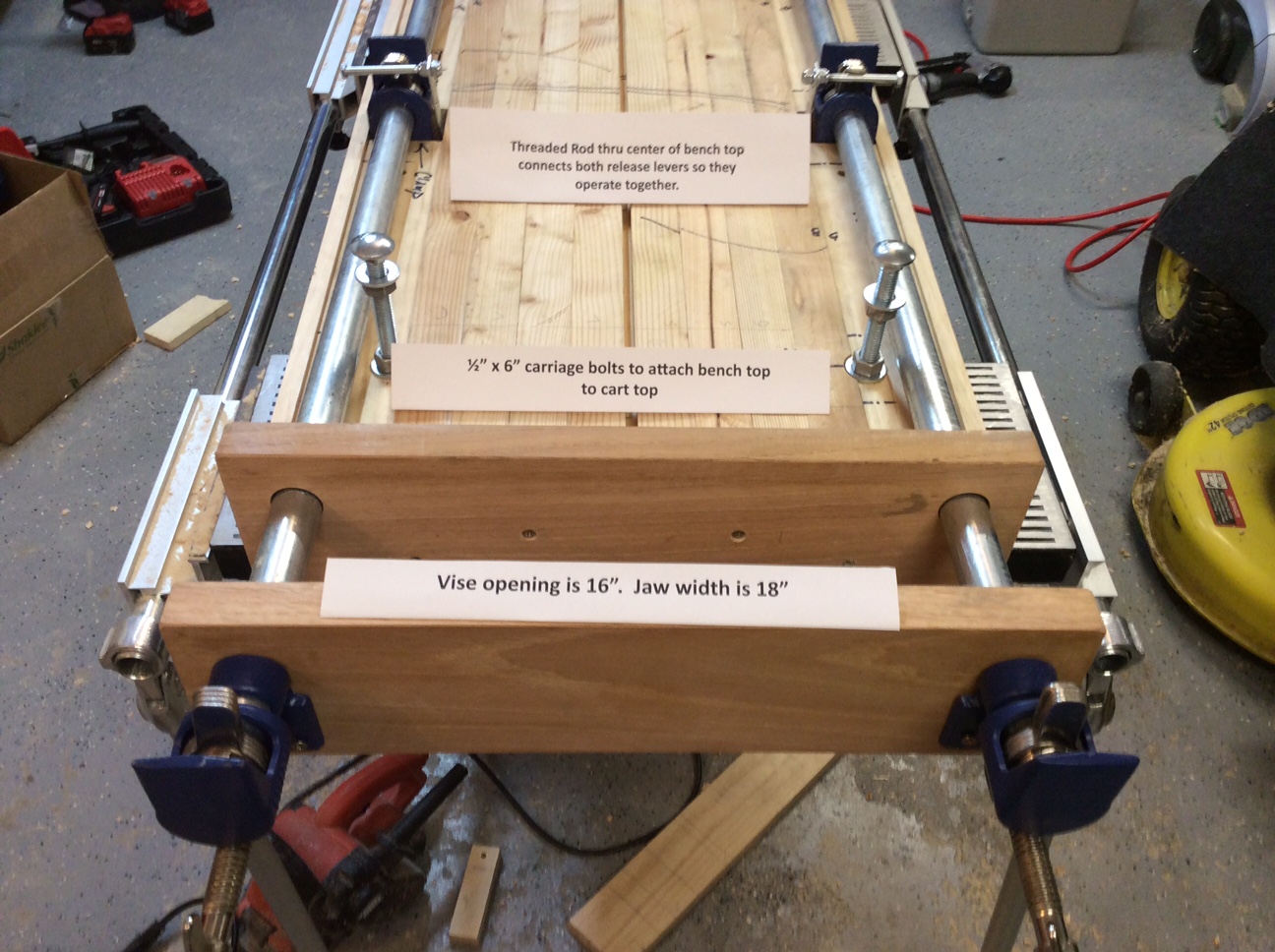

Here's a picture of the underneath side during construction. I used a 5/16" threaded rod, and some standard hardware to connect the release mechanisms together on both clamps. I drilled thru the center of the bench top for the rod. So releasing one side releases both. My objective was to release the clamps & use a clip to keep them released, thus freeing both hands to adjust the vise. However, it is possible to release the clamps one at a time manually. I plan on making several types of jaws, including individual ones for tail vises. I'm currently adding bench dogs and a removable piece on the jaw for clamping long boards. Total length clamping capacity will be about 50".

If I had it to do over, I might have had the release mechanism welded on one side, use a solid rod and thread the other end to reduce flex and / or loosening. I'll see how this one lasts over time & replace if needed. Currently it works fine. Also I used galvanized pipe, lightly sanded to eliminate burrs & put minwax on them. They slide really well & the metal strips have no trouble clamping & holding.

JPG · Post by **JPG** » Mon Oct 23, 2017 8:39 am

Thank You!

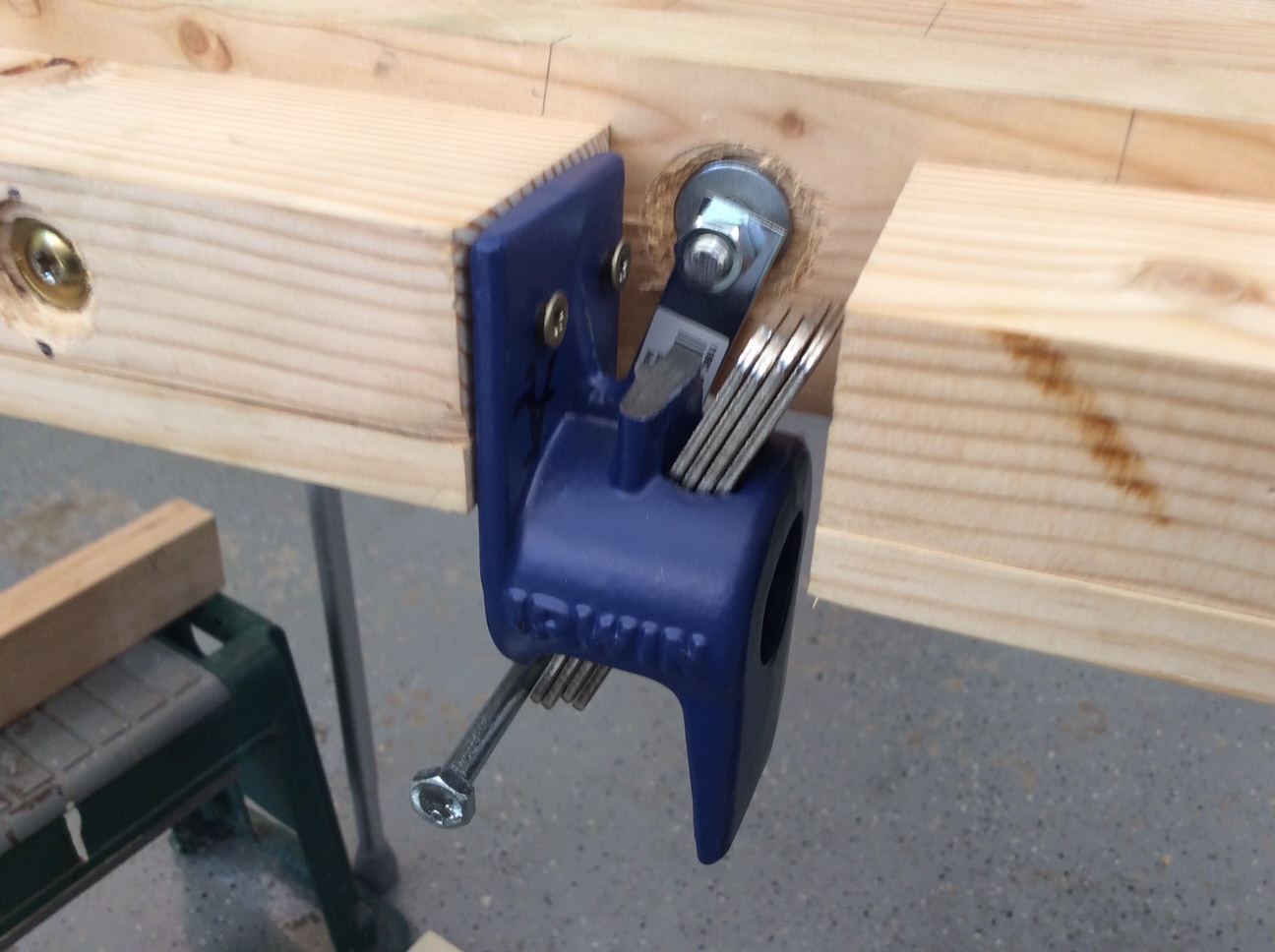

Interesting crank screw end on the pipe clamp. First time I have seen one for 'unthreaded pipe'. Maybe I just haven't been looking!

Also 'nice' holders for the table tubes.

Good Job!!!

Ed in Tampa · Post by **Ed in Tampa** » Mon Oct 23, 2017 10:10 am

Would love to see clamp details in photos that we can enlarge. Also bottom of top I see you labeled various components but they are unreadable to me.
Project looks like a huge winner! Nice job! Thanks for sharing!

dusty · Post by **dusty** » Mon Oct 23, 2017 10:18 am

Ed in Tampa wrote:Would love to see clamp details in photos that we can enlarge. Also bottom of top I see you labeled various components but they are unreadable to me.
Project looks like a huge winner! Nice job! Thanks for sharing!

Ed, you better go get your eyes checked. You might need different glasses.

The labels, from top to bottom read:

Threaded rod thru center of bench top connects both release levers so they operate together.

1/2" x 6" carriage bolts to attach bench top to cart top.

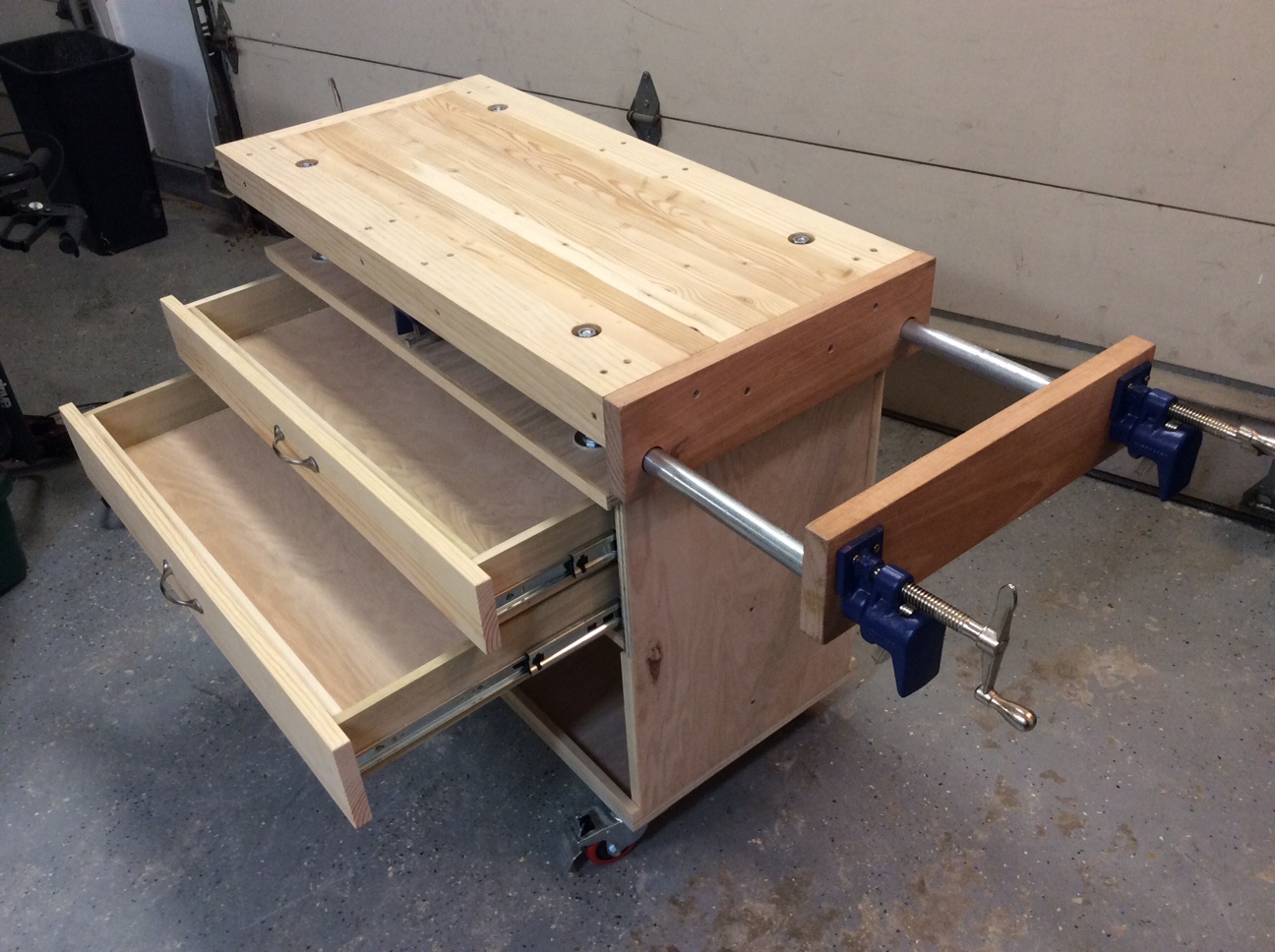

Vise opening is 16". Jaw width is 18".

Yes, ARC, very nice job

masonsailor2 · Post by **masonsailor2** » Mon Oct 23, 2017 11:15 am

Well it looks great. Nice mobile work bench !
Paul
